Description

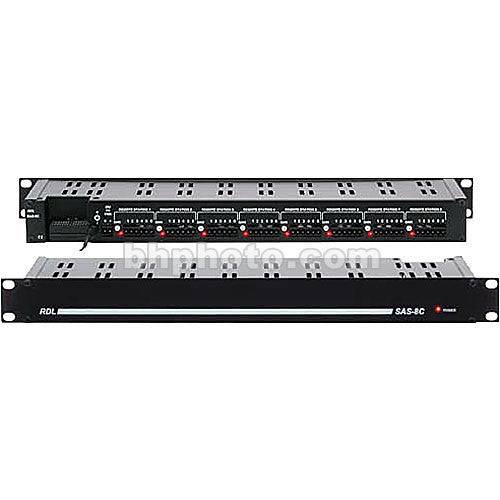

The SAS-8C 8-Station Audio Controller from RDL is a device that allows you to control (8) SourceFlex listening stations. Each listening station connects to this unit via a 6-conductor wire. A maximum listening level can also be set for each station.
The unit's power conductor is protected by an auto-resetting fuse. The unit is configured by daisy chaining the SAS-82 or SAS-8i units to the controller. By using this unit in large SourceFlex systems, you can also lower your cost per station.
- Wiring Harness Adapters
- Use this unit to control up to (8) SourceFlex listening stations.
- Maximum Listening Level
- A maximum listening level can be set for each station.
- Auto-Resetting Fuse
- The unit's power conductor is protected by an auto-resetting fuse.
- Lower Cost Per Station
- Use of this unit in large SourceFlex systems can lower your cost per station.
In the Box
RDL SAS-8C 8-Station Audio Controller
- 8-Station Audio Controller
- Three-Year Warranty Against Defects In Material & Workmanship
| Construction | Not specified by manufacturer |
| Finish | Black |
| Inputs/Outputs | Input, bus: 24-pin ribbon cable header driven from SAS-88 (or other SAS-82 or SAS-8C loop-thru jack, input cable included) Output, bus: 24-pin ribbon cable header loop-thru output to drive additional SAS-82 or SAS-8C Outputs: (8) 6-position removable terminal blocks (connection to remote Listening Station) |
| Gain Range | Audio output gain range: 40dB (trimpot presettable) |
| Indicators | (8) LEDs |
| Power | 24 to 33VDC @ 2A, ground-referenced |
| Dimensions (HxWxD) | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 4.29 lb |
| Box Dimensions (LxWxH) | 20.5 x 6.75 x 2.25" |
