Description
- Ultra Compact
- Feed into Phone MOH Input
- Optimized Sound Quality
- RCA Phono I/O
- Screw Terminal Output

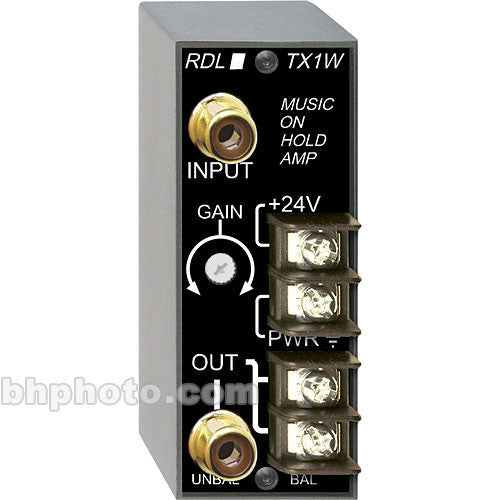

The TX-1W from RDL is a high-quality compact amplifier designed to feed music or voice signals to a telephone system. While conventional amplifiers can produce irritating artifacts at a caller's earpiece when connected to a music-on-hold system, the TX-1W features a response that's specifically designed to match the widest variations in telephone audio distribution to produce a crisp sound without the typical problems found in MOH systems.
The amplifier features RCA phono input and output connectors to connect to a phone system's unbalanced input. The output can deliver line-level signals for a typical input, but can also provide 1W RMS to an eight Ohm input. A screw terminal output is also provided for connecting to systems with a 600 Ohm transformer input.
- Ultra compact design
- Optimized to provide the best sound quality to an MOH system without the typical muffled or distorted artifacts commonly associated with telephone music systems
- RCA phono I/O
- Delivers line-level signal for typical inputs, and can also provide 1W RMS to eight Ohm inputs
- Screw terminal output for driving a 600 Ohm transformer input
- Convenient gain control
- 3-Year Limited Warranty
| Input Level | -10dBV Nominal |
| Gain | -10dB to +25dB (Adjustable) |
| Frequency Response | Tailored to Phone Systems Within 20Hz to 20kHz Spectrum |
| Total Harmonic Distortion (THD) | < 0.5% (1kHz @ Maximum Output 1W) < 0.2% (1kHz @ +4dBu) |
| Residual Noise | < -75dB (Referred to 600 Ohms +4 dBu, or to 1W RMS) |
| Inputs/Outputs | 1 x RCA Phono Input, Unbalanced 1 x RCA Phono Output, Unbalanced, Up to 1W 1 x Screw Terminal Output, 600 Ohms |
| Power Requirements | 24 to 33VDC @ 150mA, Ground-Referenced |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 20290.9 |
| 3-5 | ₹ 20083.85 |
| 5-10 | ₹ 19669.75 |
| 10+ | ₹ 19255.65 |
Bulk discount will be automatically applied during checkout based on quantity.
