Description
R5F10278ANA#45 is a RL78/G12 group compact, low power microcontroller for general purpose applications ideal for Sub-MCUs. RL78/G12 microcontroller balances the industry's lowest level of consumption current (CPU: 63µA/MHz, standby (STOP): 230nA) and a high performance of 32.4DMIPS (24MHz). It has an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). Suitable for use in tankless gas water heater with remote control, smart toilet, air purifier sensor module, household smoke detector, flexible 6-channel power sequencer, robotic lawn mower, portable ultraviolet disinfector, office, home appliance, healthcare and security.
- RL78 core, max 24MHz CPU
- Ultra-low power consumption technology with 1.8V to 5.5V voltage range
- Ultra-low power consumption technology with 1.8V to 5.5V voltage range
- DMA (Direct Memory Access) controller
- 16bit timer (ch) 4 to 8 channels, watchdog timer (ch) x 1, 12bit interval timer x 1 ch
- Features high-speed on-chip oscillator
- POR and LVD power management and reset function
- Simplified SPI, UART, simplified I2C communication and I2C communication serial interface

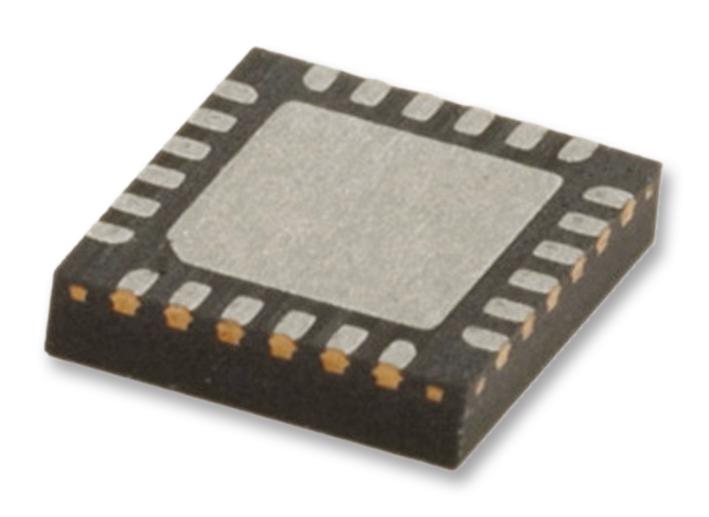

- 24-pin HWQFN package with 0.5mm pitch
- Suitable for consumer applications and temperature range from -40°C to +85°C
Product details
Product Range: RL78 Family, RL78/G1x Series, RL78/G12 Group Microcontrollers |
Device Core: RL78 |
Data Bus Width: 16 bit |
Operating Frequency Max: 24MHz |
Program Memory Size: 8KB |
No. of Pins: 24Pins |
IC Case / Package: HWQFN-EP |
No. of I/O's: 22I/O's |
Interfaces: I2C, CSI, UART |
RAM Memory Size: 768Byte |
ADC Channels: 11Channels |
ADC Resolution: 10Bit |
Supply Voltage Min: 1.8V |
Supply Voltage Max: 5.5V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 85°C |
IC Mounting: Surface Mount |
MCU Series: RL78/G1x |
MCU Family: RL78 |
Qualification: - |
Other details
Brand | RENESAS |
Part Number | R5F10278ANA#45 |
Quantity | Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
