Description

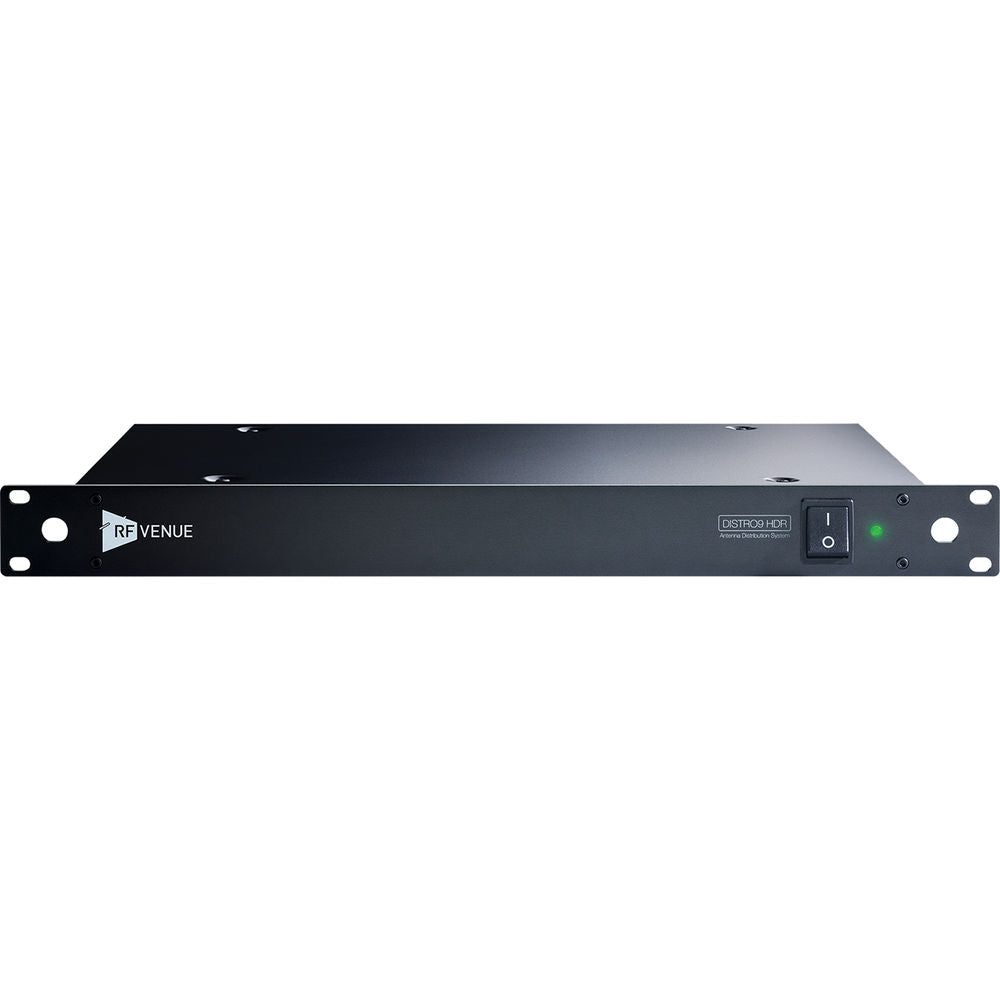

RF Venue Distro9 HDR Overview
The Distro9 HDR Multi-Zone Antenna Distribution System from RF Venue delivers up to 9 low-noise channels of diversity wireless and eliminates the need for internal splitters, replacing them with state-of-the-art divide-by-three circuitry. It can be used to provide nine RF channels of wireless with clean output, low-noise amplification, and a gain structure for high dynamic range across the VHF, T-Band, and UHF spectrum.

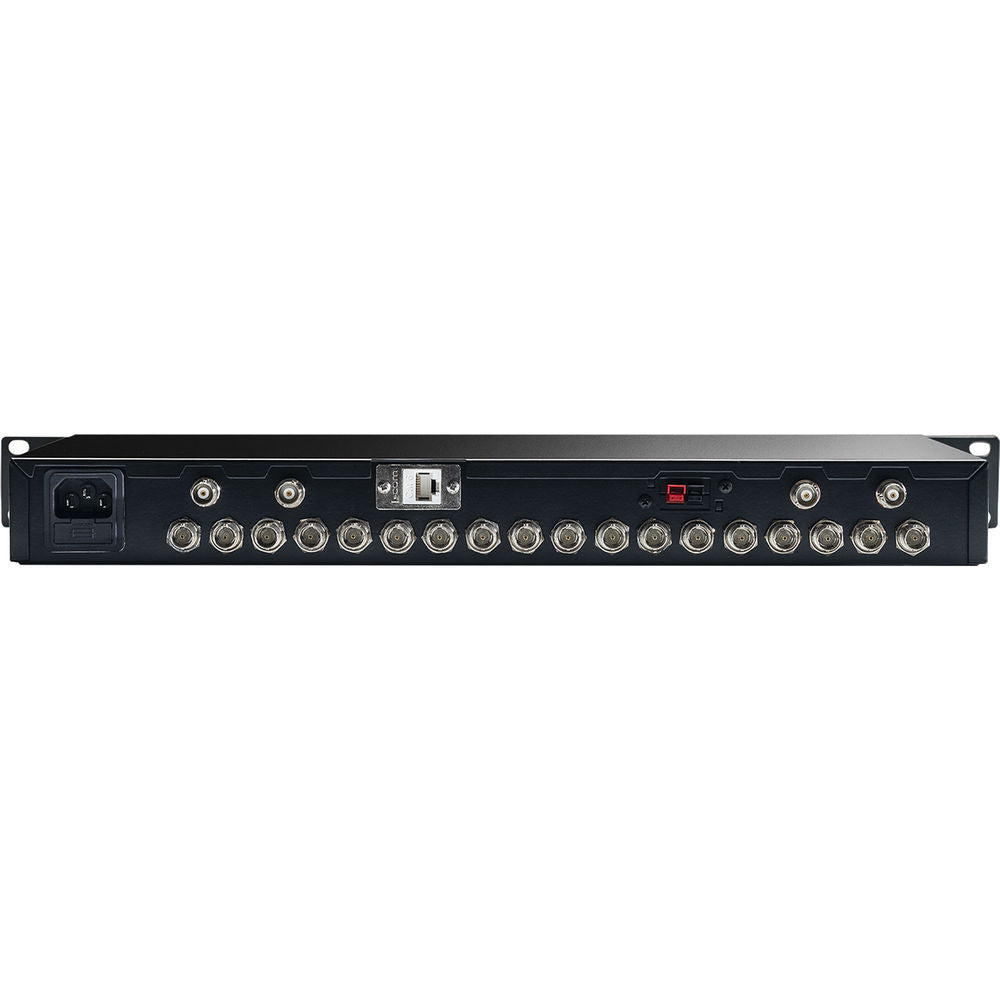

Any Distro9 HDR RF output can be cascaded to a second Distro9 HDR, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in 2 RU space. There are two zone antenna inputs on the Distro9 HDR that provide coverage for large areas or multiple rooms, each with DC power for in-line amplifiers or active antennas. In addition, it can provide DC power to wireless microphone receivers with an optional DC cable kit (sold separately) and can be powered from a DC battery source for location sound cart applications.
Furthermore, an internal I/O section provides a range of future module add-on capabilities ranging from remote web-based spectrum monitoring to bandpass filtering, and more. The Distro9 HDR Multi-Zone Antenna Distribution System is highly configurable to meet the current and future needs of various professional wireless microphone systems.
In the Box
- RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
- IEC Power Cable
- Limited 1-Year Warranty
RF Venue Distro9 HDR Specs
| Frequency Range | 50 to 1000 MHz (VHF, UHF, +900 Bands) |
| RF Output Level | Gain: ± 3 dB |
| Output Connection Isolation | 60 dB at 510 MHz, 80 dB at 200 MHz |
| Third Order Intercept Point | 15 dBm at VHF, 20+ at UHF |
| Impedance | 50 Ohms |
| Power Requirements | 50/60 Hz, 2 A |
| Fuse | T3.15a / 250 V |
| Input AC Voltage | 100 to 240 VAC |
| Output Voltage | To Receiver Jacks: 12 VDC, 3 A Connectors: Anderson Power Pole |
| Dimensions (W x H x D) | 18.9 x 1.8 x 9.8" / 48 x 4.5 x 25 cm |
| Weight | 6 lb / 2.7 kg |
| Package Weight | 8.625 lb |
| Box Dimensions (LxWxH) | 22.1 x 12.7 x 3.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
