Description

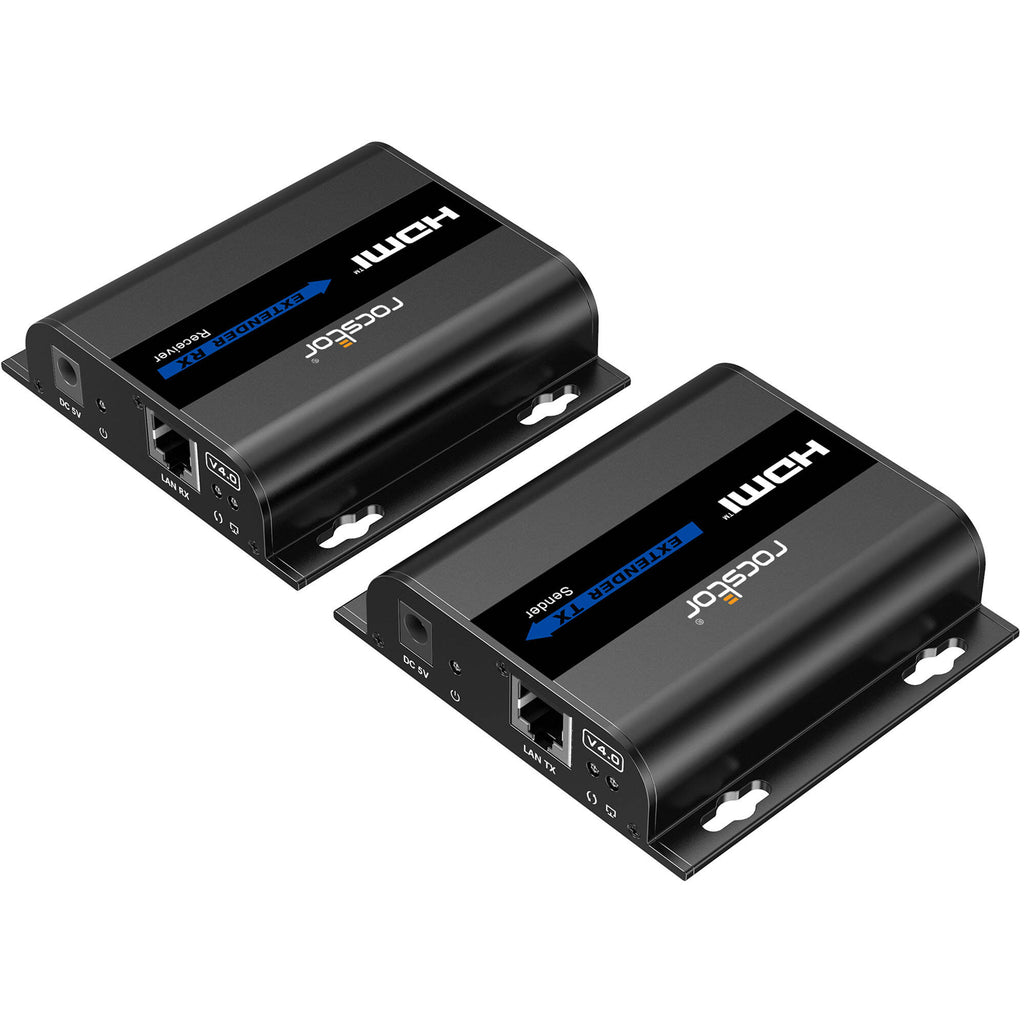

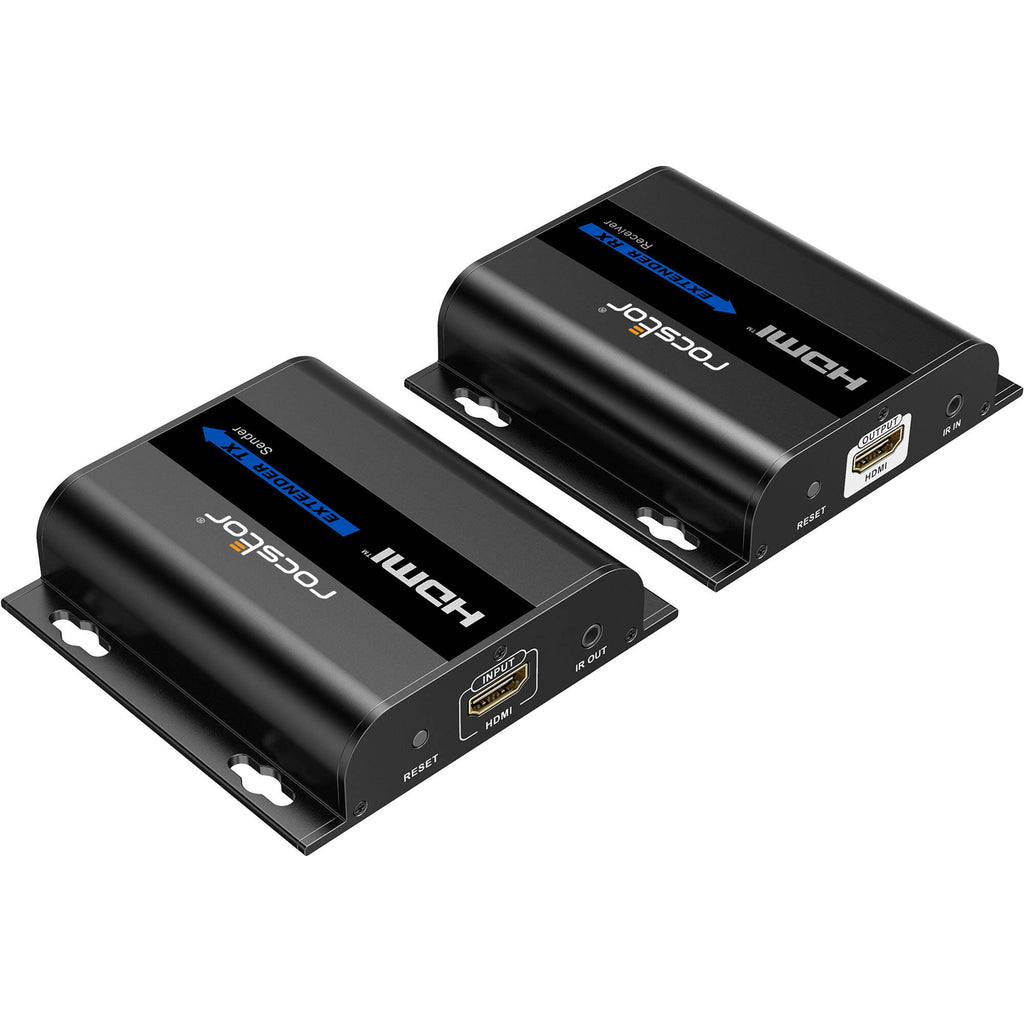

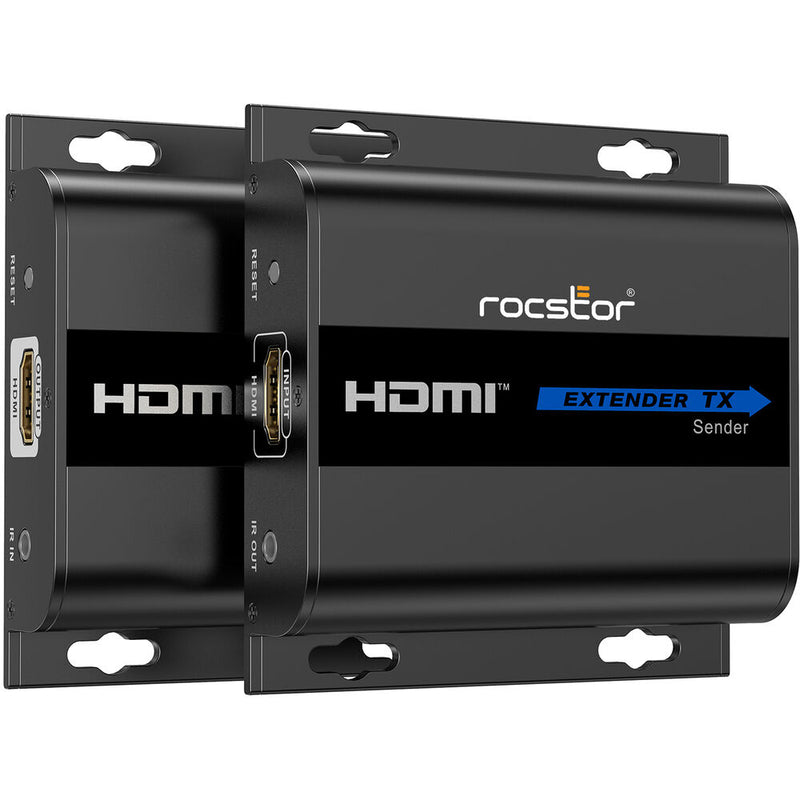

Rocstor TrueReach 1080p Overview
Extend your HDMI reach over IP at distances of up to 393' when using an optional Cat 6 cable with this TrueReach 1080p HDMI over Cat 6 Extender Kit with IR from Rocstor. Boasting support for HDMI 1.3 and HDCP 1.4 with up to 1080p60 resolution and HDR compatibility, the transmitter and receiver kit is ideal for use in home theater setups, classrooms, and digital signage systems.
Optional Cat 5 cables support extension of the HDMI signal to distances of up to 262', and 328' when using Cat 5e, providing IR with passback for effortless management of connected devices without needing additional equipment or separate control systems. The kit features lightning, surge, and electrostatic discharge (ESD) protection and the integrated V4.0 technology facilitates low-latency and low transmission delay. The sturdy metal housing of the transmitter and receiver is designed with convenient, built-in mounting brackets.
- Versatile HDMI over IP extender for seamless audiovisual transmission
- Supports 1080p60 HDR resolution for vibrant visuals
- Transmission distance of up to 394'
- IR signal transmission with pass-through capability for convenient device control
- Built-in lightning, surge, and ESD protection for equipment safety
- EDID passthrough ensures smooth communication between source and display
- Utilizes V4.0 technology with low latency and low transmission delay
- Adaptive technology automatically adjusts parameters for optimal display performance
In the Box
- Rocstor TrueReach 1080p HDMI over Cat 6 Extender Kit with IR (up to 394')
- Transmitter
- Receiver
- 2 x 5 VDC, 1A Power Adapter
- IR Blaster Extension Cable
- IR Receiver Extension Cable
- Limited 1-Year Manufacturer Warranty
Rocstor TrueReach 1080p Specs
| Inputs |
1x HDMI (HDMI 1.3)
|
| Embedded Audio Input |
HDMI: 8-Channel
|
| Outputs |
1x RJ45
|
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Output
|
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 1.3)
|
| Embedded Audio Output |
HDMI: 8-Channel
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
|
| Reclocking |
No
|
| HDCP Support |
Yes, Version 1.4
|
| EDID Support |
Passthrough
|
| Max Transmission Distance |
262.5' / 80 m (via Cat 5)
328.1' / 100 m (via Cat 5e) 393.7' / 120 m (via Cat 6) |
| Video Format |
HDMI
1080p: 50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| Supported Cable Types |
Cat 5/5e/6
|
| Transmitter Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Transmitter Power Consumption |
(3.5 W)
|
| Receiver Power Consumption |
(3 W)
|
| Operating Temperature |
32 to 140°F / 0 to 60°C
|
| Transmitter Dimensions |
3.8 x 3.7 x 0.9" / 96.8 x 94 x 23.7 mm
|
| Receiver Dimensions |
3.8 x 3.7 x 0.9" / 96.8 x 94 x 23.7 mm
|
| Transmitter Weight |
5.1 oz / 145 g
|
| Receiver Weight |
5 oz / 142 g
|
| Package Weight |
1.24 lb
|
| Box Dimensions (LxWxH) |
8.2 x 5.8 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
