Description

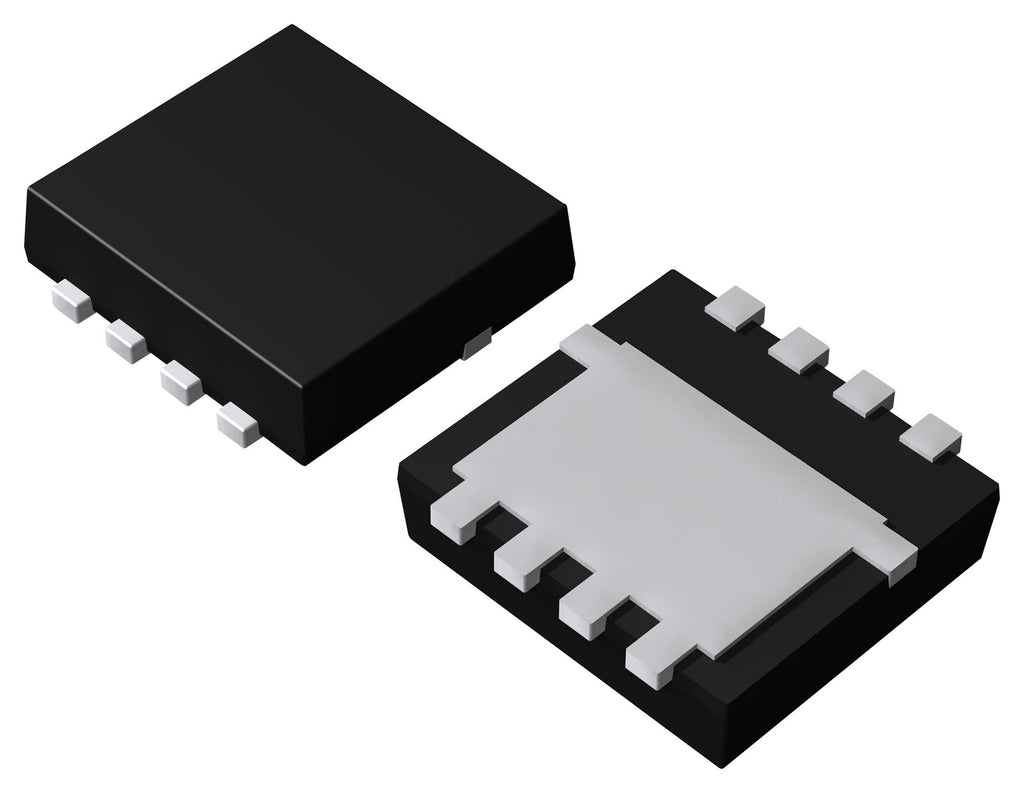

This is a MOSFET Transistor, P Channel, -39 A, -30 V, 0.0061 ohm, -10 V, -2.5 V product from ROHM with the model number RQ3E120ATTB
Product details
| Transistor Polarity | P Channel |
| Continuous Drain Current Id | -39A |
| Drain Source Voltage Vds | -30V |
| On Resistance Rds(on) | 0.0061ohm |
| Rds(on) Test Voltage Vgs | -10V |
| Threshold Voltage Vgs | -2.5V |
| Power Dissipation Pd | 20W |
| Transistor Case Style | HSMT |
| No. of Pins | 8Pins |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | ROHM |
| Part Number | RQ3E120ATTB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
