Description

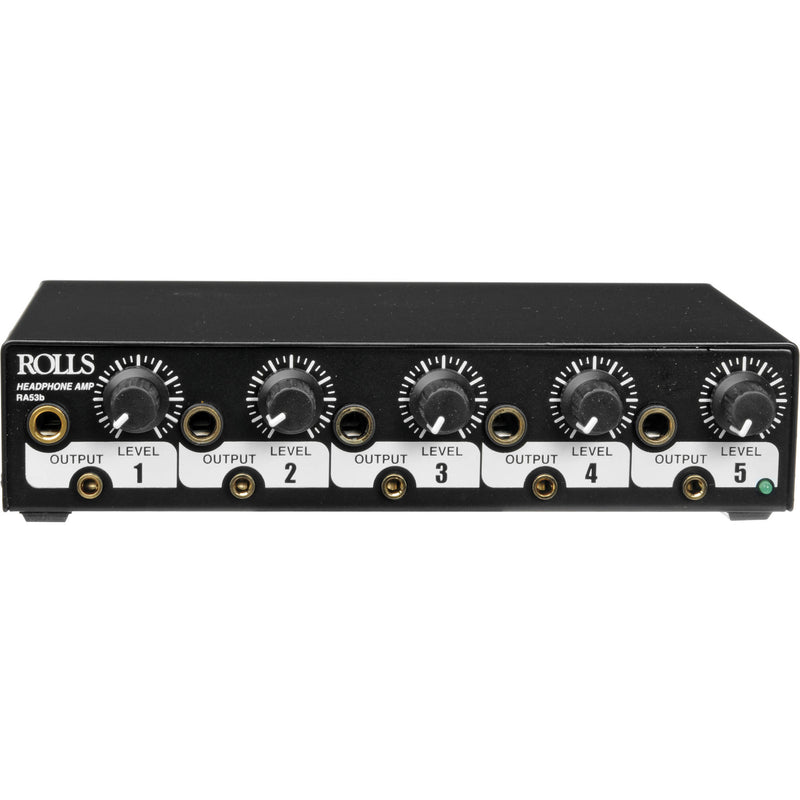

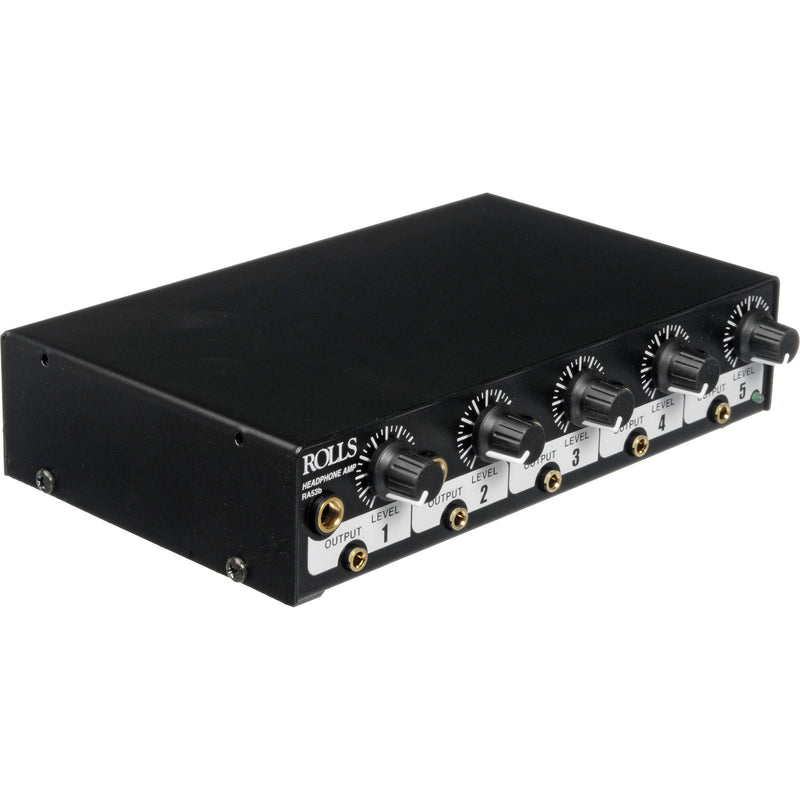

The Rolls RA53B is a 5-channel, 1/2 space, rackmountable stereo headphone amplifier featuring 1/4" TRS and 1/8" stereo mini simultaneous outputs for each channel. Two units may be linked for 10-channel, 6-insert operation, and a total of 3 channel inserts enable direct access to channels 1,2 and 3, potentially feeding 3 independent stereo mixes to those channels.
The RA53B is inexpensive, ruggedly built, and equally viable as a multi-client stage or studio headphone monitoring solution.
- 5-channel, 1/2-space rackmount headphone amplifier
- 1/4" and 1/8" stereo headphone outputs for each channel can be used simultaneously for total of 10 outputs
- 3 Channel Insert points allow direct access to channels 1, 2, and 3 for independent stereo mix feeds to those channels
- Join I/O allows linking of two units for 10-channel operation with six inserts from master stereo signal
- Versatile stereo input connector complement includes XLR, 1/4" Mono and Stereo, and RCA
UPC: 675889000535
| Number of Channels | 5 |

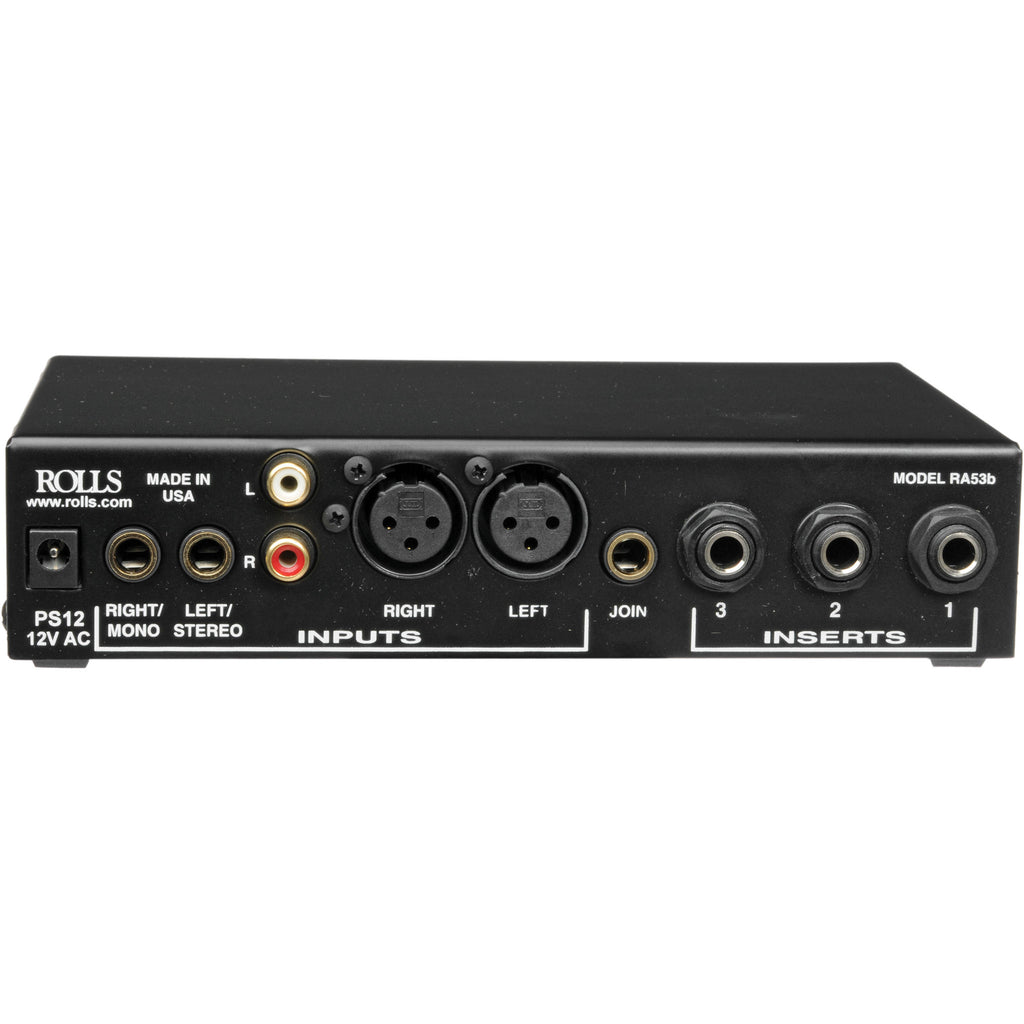

| Input Connections | 2 x XLR Female 2 x L, R RCA Phono 1 x 1/4" TRS Left/Stereo In 1 x 1/4" TRS Right/Mono In 3 x 1/4" TRS Inserts 1 x 12 VDC In |
| Output Connectors | 5 x 1/4" Stereo Phone 5 x 1/8" Stereo Mini 1 x 1/4" TRS Phone Join Output |
| Maximum Output Level | Not Specified by Manufacturer |
| Function Controls | 5 x Front Panel Level Controls |
| Frequency Response | Not Specified by Manufacturer |
| THD + N | <.008% |
| Noise | <.008% |
| Display | No |
| Dimensions | 8.4 x 1.7 x 5" (213 x 43 x 130mm) |
| Weight | 2.5 lb (1.14 kg) |
| Specialties | Two Headphone Outs per Channel Join Connector Links 2 Units |
| Packaging Info | |
|---|---|
| Package Weight | 3.2 lb |
| Box Dimensions (LxWxH) | 13.937 x 8.661 x 3.937" |
In the Box
Rolls RA53B - 5-Channel 1/2 Space Rackmount Stereo Headphone Amplifier
- 12 VDC Power Supply
- Owner's Manual
- 1 Year Warranty
