Description
- 2 XLR Microphone Channels
- 4 RCA Stereo Source Channels
- Individually Switchable Phantom Power
- Tone Control for Microphone Channels
- 2-Band Program EQ for Source Channels
- Switchable Global Mono-Summing
- Stereo RCA and Balanced XLR Outputs
- 2 Inputs Paralleled on Front Panel
- High Quality All-Metal Chassis

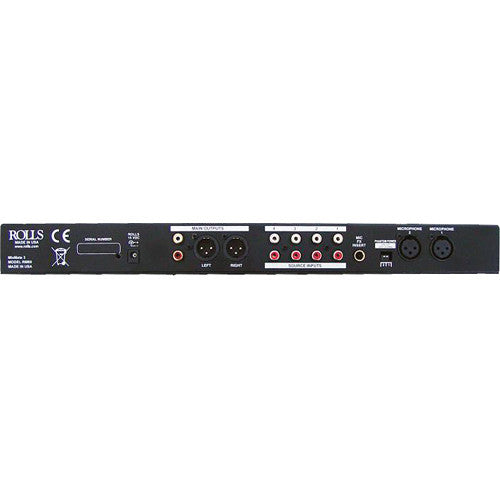

The Rolls RM69 MixMate 3 is a 6-channel stereo line mixer with 2 microphone inputs. The MixMate 3 is ideal for single-zone fixed installs where audio quality is a priority.
The MixMate 3 has four stereo RCA inputs for CD players, DVD audio, turntables, etc. The 4th RCA input has a paralleled 1/8" stereo input on the front panel for mp3 players. The 2-band EQ applies across all stereo inputs. The two microphone inputs each have a rotary tone control, attenuating lows in one direction and highs in the other. The 1st microphone channel has a paralleled XLR input on the front panel, allowing easy connection for a paging or karaoke mic.

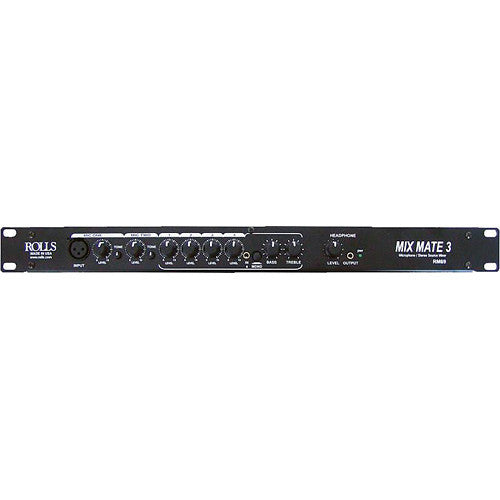

The front panel of the MixMate 3 also includes a 1/8" headphone jack with volume control and a global mono switch.
- Rolls - RM69 MixMate 3 - 6-Channel Stereo Line / Microphone Mixer
-
- Two XLR Microphone Inputs
- Individually Switchable Phantom Power
- Four RCA Stereo Source Inputs
- Front Panel Parallel Input Connectors: XLR 1 and 1/8" Source 4
- Stereo RCA Outputs or Balanced XLRs
- 1/4" TRS Mic Insert jack
| Inputs | |
|---|---|
| Input Connectors | Balanced XLR microphone x3 RCA stereo pair x4 1/8" stereo x1 |
| Input Impedances | Mic: 600 Ohms RCA: 22K Ohms 1/4" TRS insert: 22K Ohms |
| Maximum Input Level | Mic: -14 dBV Source: 24 dBV |
| Phantom Power | +15 VDC |
| Outputs | |
|---|---|
| Outputs | Balanced XLR x2 Unbalanced RCA stereo pair x1 |
| Output Impedance | 100 Ohms Balanced |
| Headphone Jack | 1/8" Stereo Impedance: > 8 Ohms |
| Output Level | +17 dBV max |
| Performance | |
|---|---|
| Maximum Gain | Mic: 60 dB Source: 26 dB |
| Equalization | Source program EQ: Bass @ 100 Hz, +/-12 dB Treble @ 11 kHz, +/-12 dB |
| Noise Floor | -80 dB |
| THD | < 0.025% |
| S/N Ratio | 96 dB |
| General | |
|---|---|
| Current Drain | 50 mA 15VDC |
| Dimensions (W x H x D) | 19 x 1.75 x 4" (48.3 x 4.5 x 10 cm) |
| Weight | 5 lbs (2.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.6 lb |
| Box Dimensions (LxWxH) | 21.6 x 8.0 x 3.8" |
- 1-Year Limited Warranty
