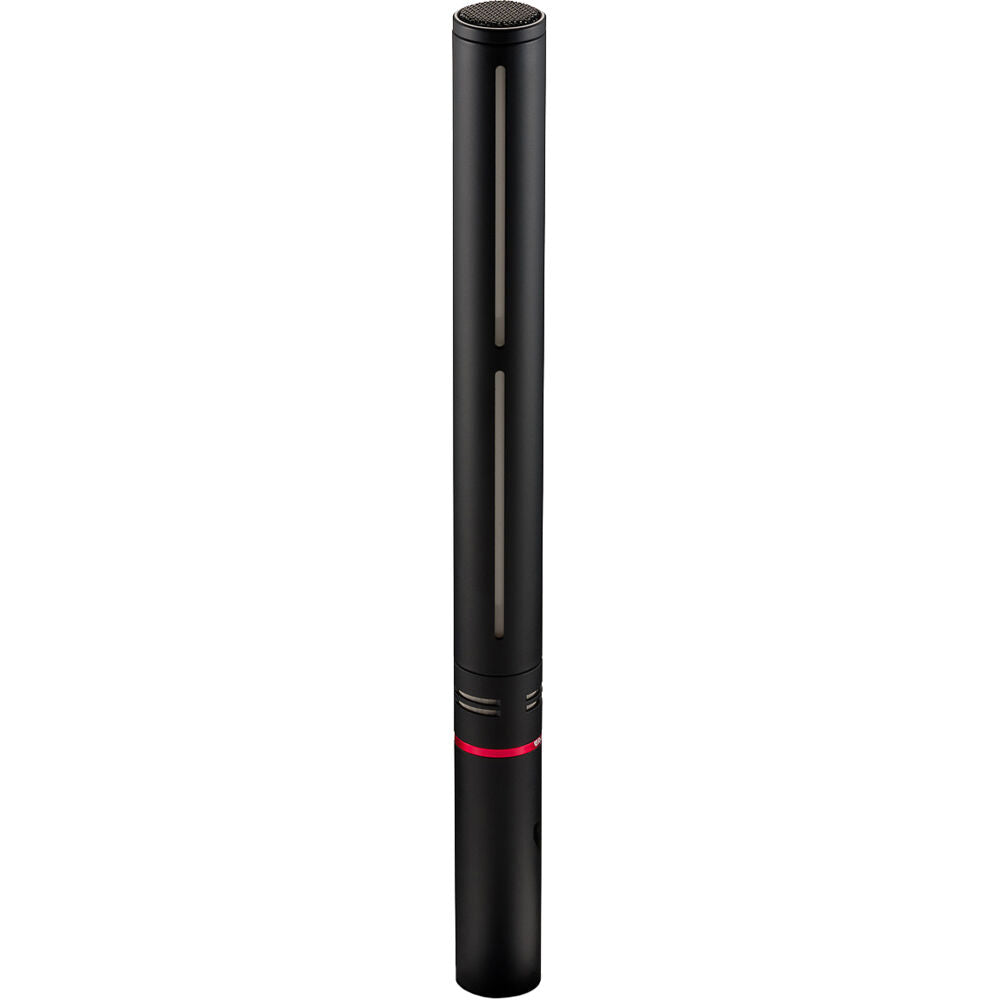

The Rycote HC-22 is a shotgun microphone with a 6.3" interference tube that leverages the company's audio expertise to provide a high-performing, all-purpose solution for location recording, TV/film production, and broadcast work. The electret condenser capsule features sophisticated RF shielding to reduce noise and interference, while its hypercardioid polar pattern reliably attenuates off-axis sound to provide crisp, precise speech and dialog that rivals substantially more expensive models.
The HC-22 can handle sound sources at volumes up to 133 dB SPL when operating on full 48V phantom power. The mic can also run on 24V, but with lowered SPL handling capabilities. The mic offers an extremely low self noise of 8.5 dB and a wide frequency response of 50 Hz to 20 kHz. A travel case is included, while a wide variety of Rycote windshields and mounting accessories are available separately.
Capsule
- Individually fine-tuned back-electret microphone capsule for professional, broadcast-quality sound with a hint of warmth
- Hypercardioid polar pattern picks up less unwanted background sound
Preamp
- Compact design
- Sophisticated RF shielding
- Low power consumption
RF-Protection
- Active in-line filtering
- Fine-tuned mechanical RF shielding
- Thoroughly tested against digital wireless systems and walkie talkies
Materials and Construction
- Gold-plated Neutrik XLR connector
- Preamp made from non-corrosive machined brass with low impedance to ensure best possible and longest lasting RF shielding
- Capsule and interference tube made from lightweight machined aluminum
- Weight balanced to help keep center of gravity further back for improved handling when using Rycote Lyre shockmounts and slip-on wind protection
Compatible Rycote Windshields
The HC-22 does not include a windshield. Rycote offers several compatible wind reduction options that are available separately:
- 7" Classic Softie
- 7" Short Fur Softie
- 7" SGM Foam
- 7" Super Softie
- NS4-DB Nano Shield Kit
- Medium Cyclone Windshield
- Modular Windshield Kit 3
In the Box
- Rycote HC-22 Shotgun Microphone

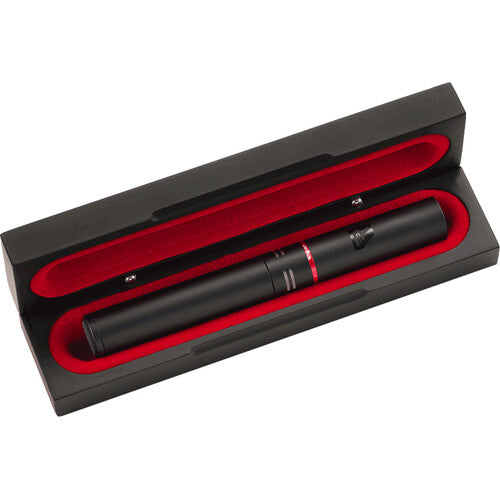

- Travel Case
- Limited 2-Year Warranty
Table of Contents
- Description
- Capsule
- Preamp
- RF-Protection
- Materials and Construction
- Compatible Rycote Windshields
Rycote HC-22 Specs
Microphone
| Primary Applications |
Broadcast, ENG (Electronic News Gathering), Audio for Video, Location Sound |
| Form Factor |
Shotgun Mic |
| Intended Sound Sources |
Vocals, Speech/Voice Over |
| Sound Field |
Mono |
| Capsule |
1 x Electret Condenser |
| Polar Pattern |
Hypercardioid |
| Orientation |
End Address |
| High-Pass Filter |
None |
| Gain Adjustment |
None |
| Windscreen |
Blimp, Foam, Windsock/Windjammer (Available Separately) |
Performance
| Frequency Range |
50 Hz to 20 kHz |
| Maximum SPL |
133 dB SPL (Phantom Power) |
| Impedance |
100 Ohms |
| Load Impedance |
1 Kilohms |
| Sensitivity |
48 mV/Pa |
| Signal-to-Noise Ratio |
85 dB A-Weighted (1 kHz) |
| Equivalent Noise Level |
8.5 dB A-Weighted |
| THD |
1% |
| CMRR |
60 dB |
Connectivity
| Output Connectors (Analog) |
1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector |
None |
Power
| Operating Voltage |
24 to 48 V (Phantom Power) |
| Operating Current Consumption |
3 mA |
Physical
| Color |
Black |
| Mounting |
Boompole, Camera/Shoe-Mount, Shockmount (with Optional Hardware) |
| Included Case |
Hard Case |
| Included Filters |
None |
| Construction Material |
Aluminum |
| Dimensions |
ø: 0.7 x L: 8.7" / ø: 19 x L: 221 mm |
| Weight |
3.5 oz / 100 g |
Packaging Info
| Package Weight |
0.7 lb |
| Box Dimensions (LxWxH) |
11.1 x 2 x 1.4" |
