Description
Sachtler Ace XL MKII Tripod System Overview

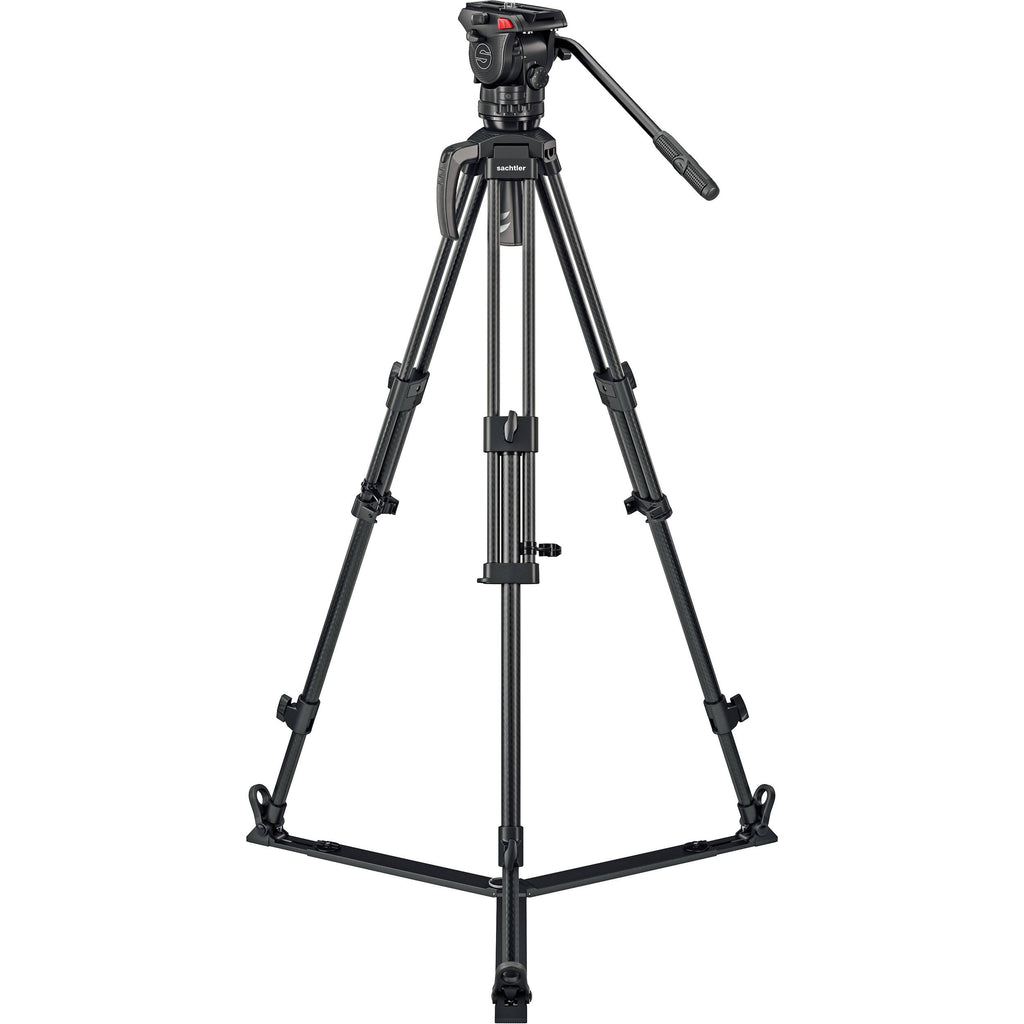

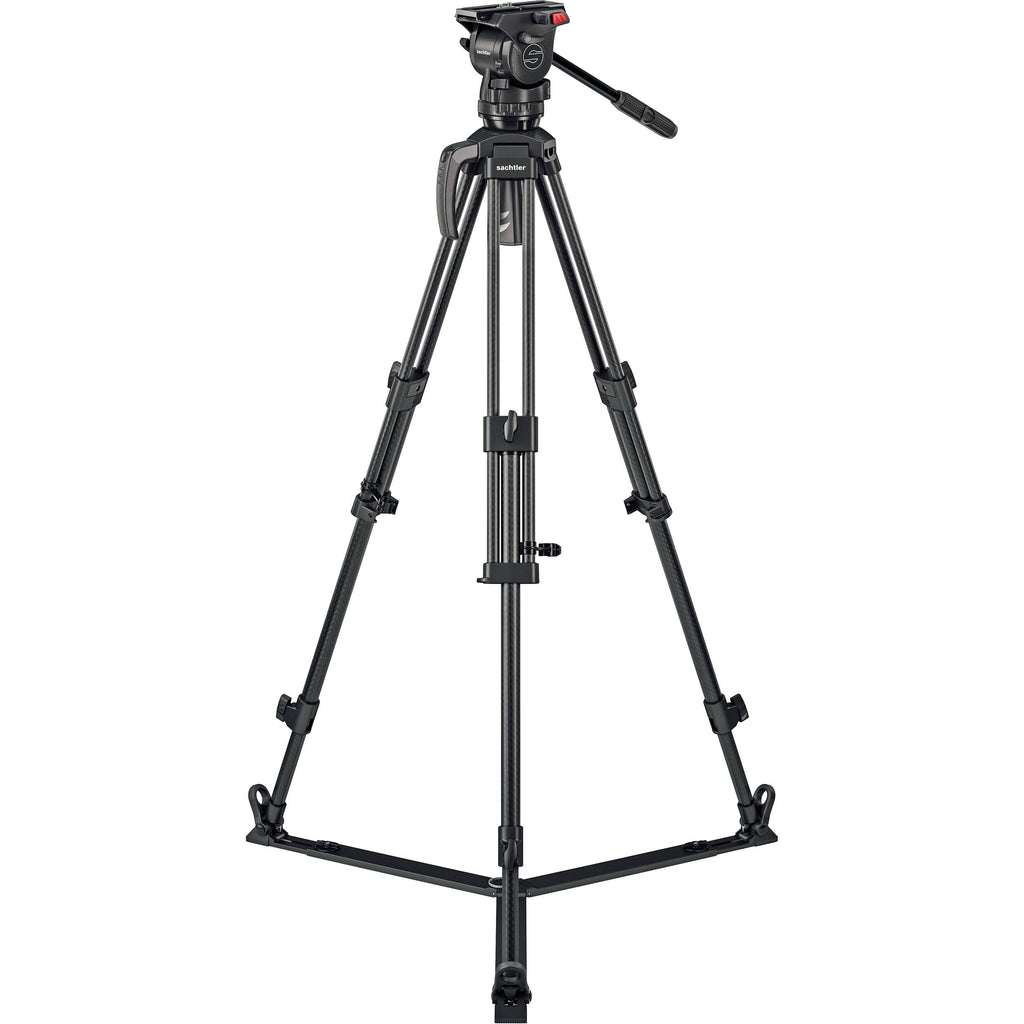

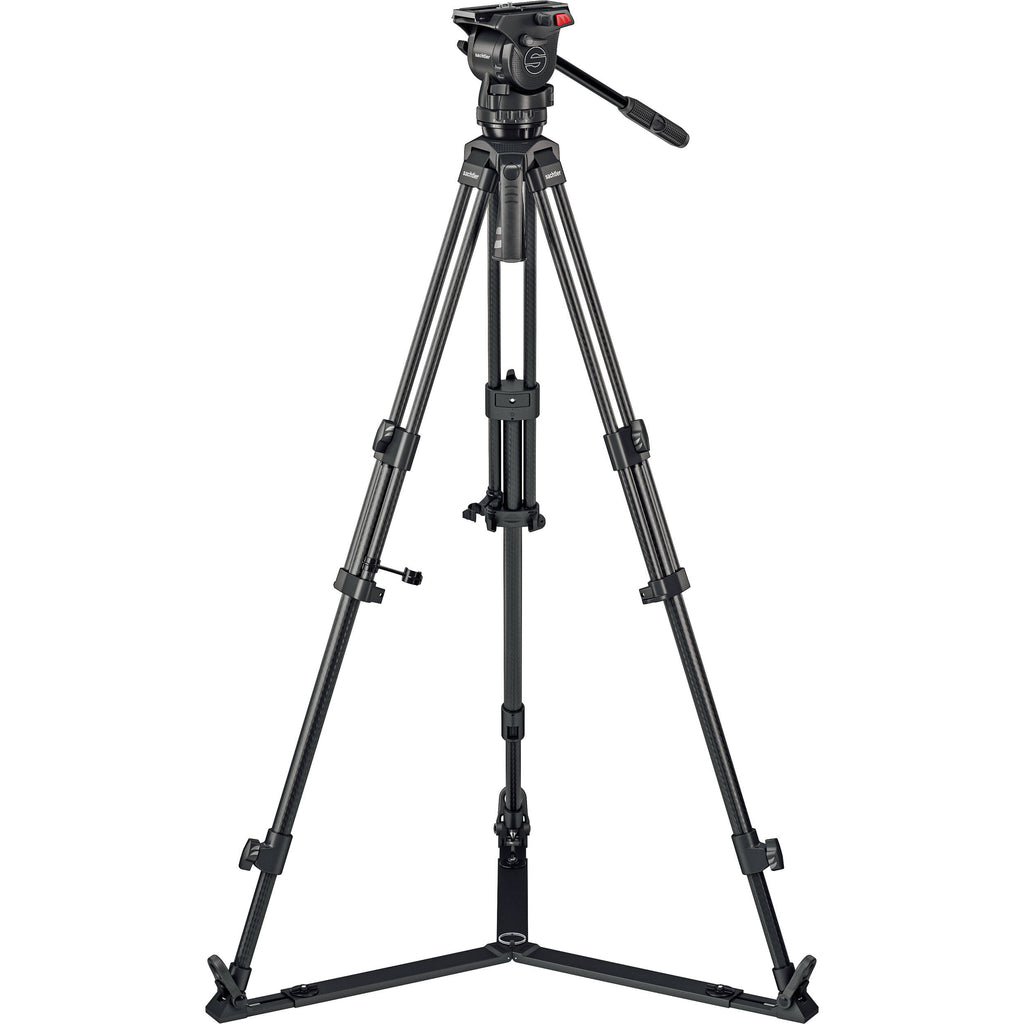

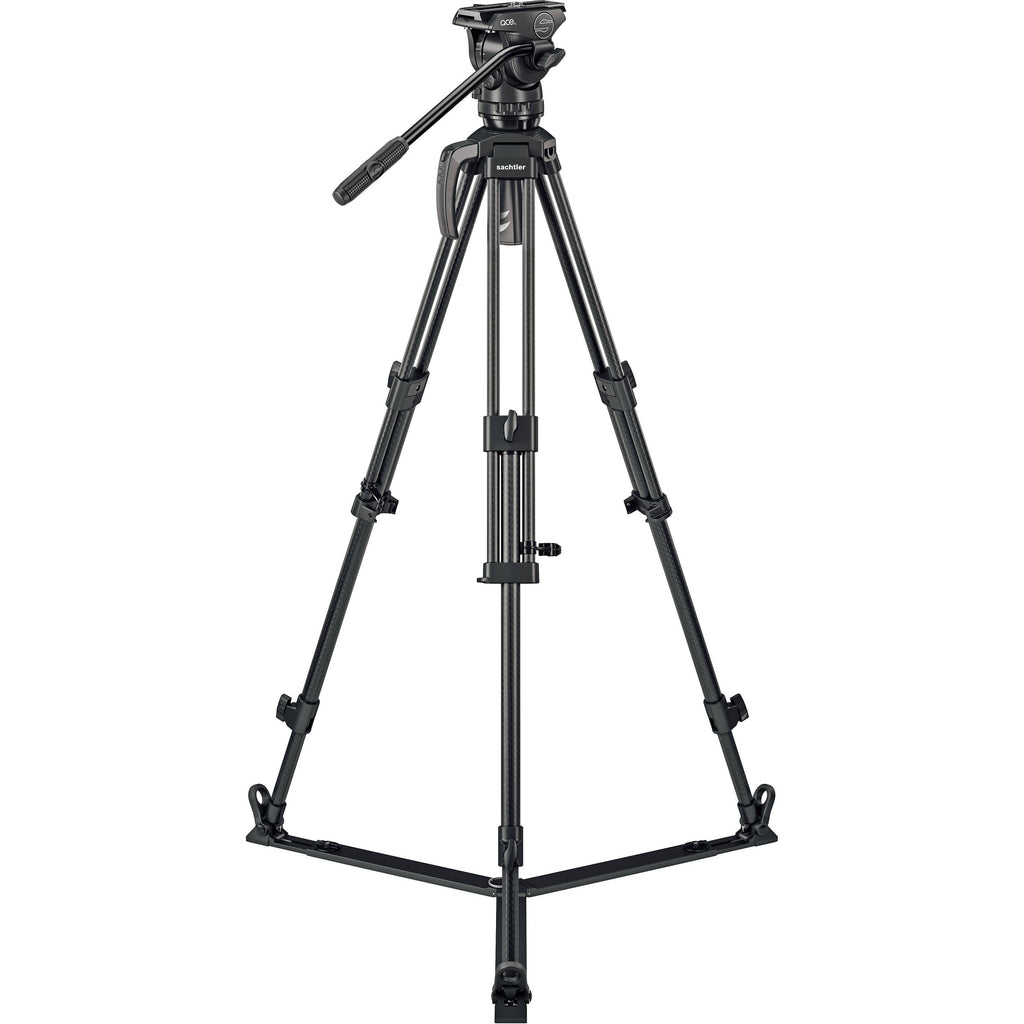

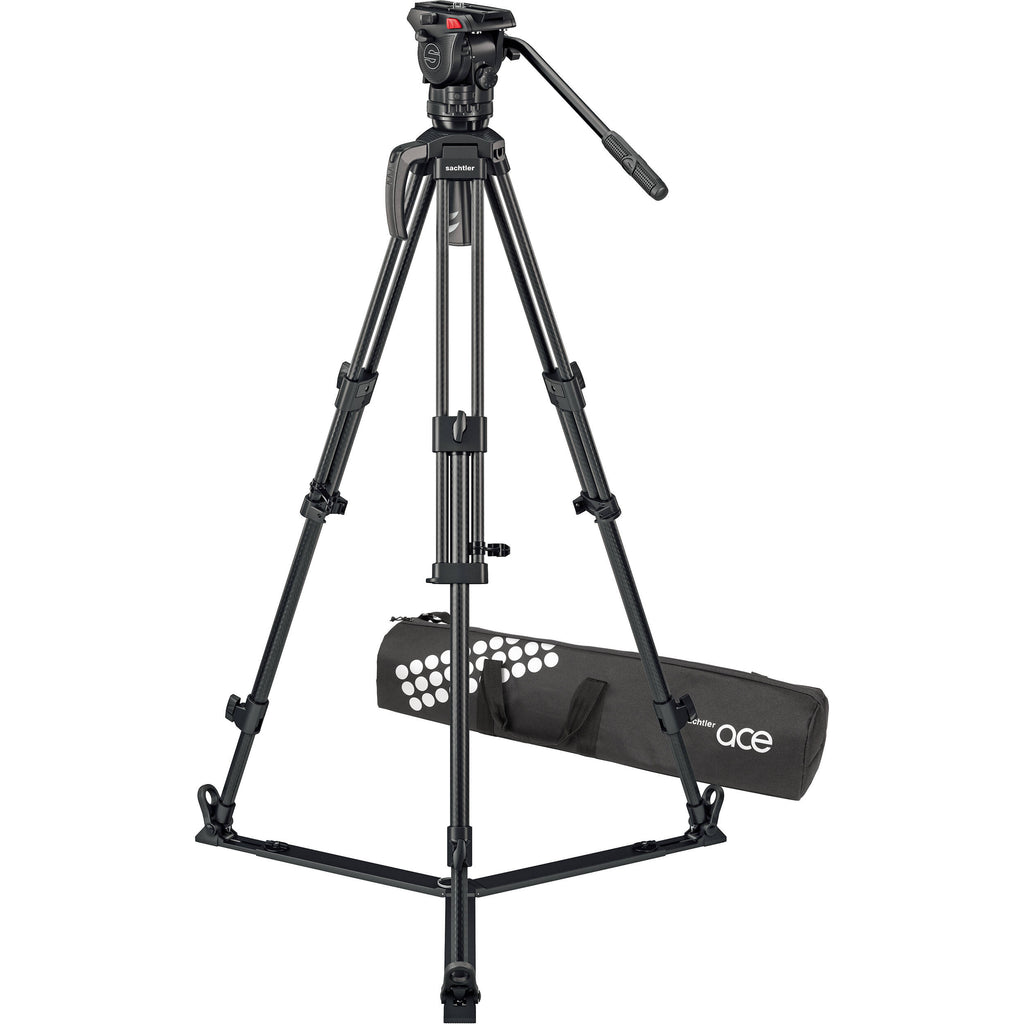

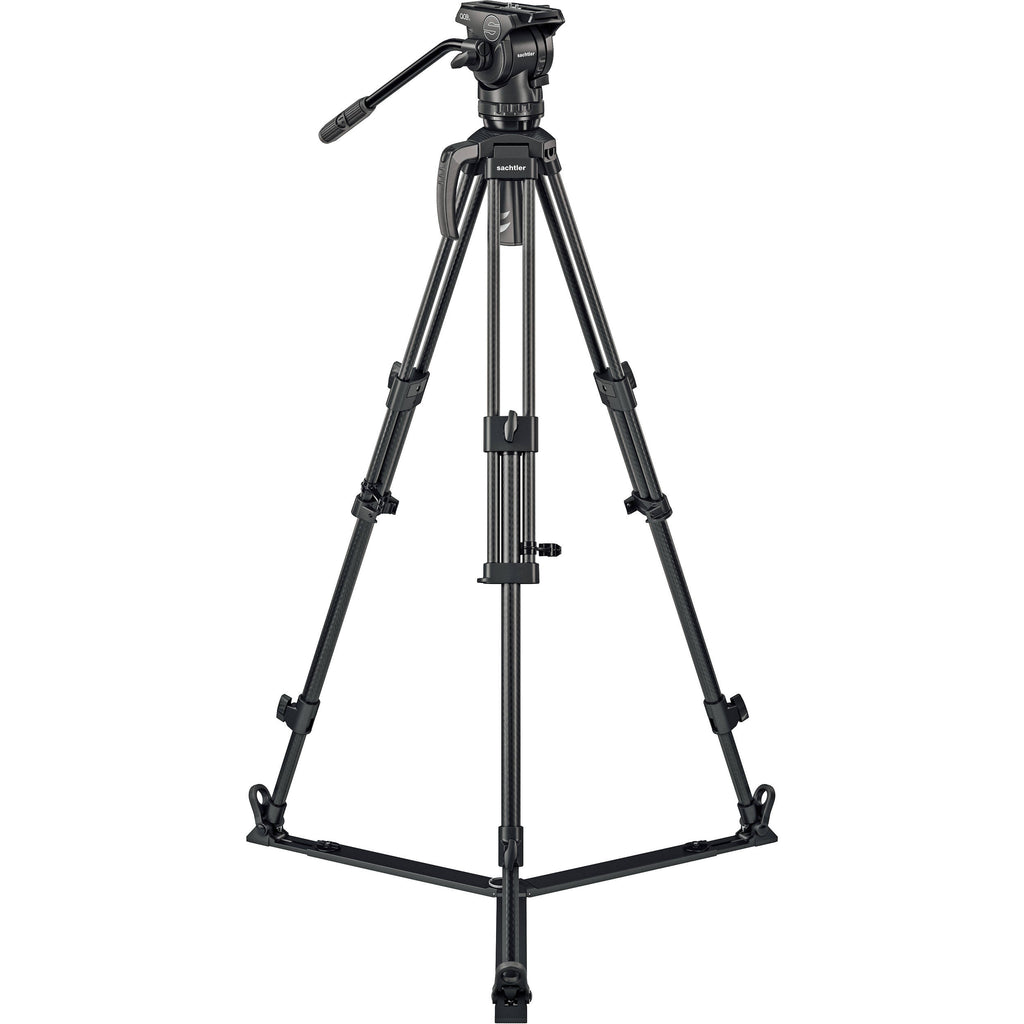

The 75/2 Mark II Carbon Fiber Tripod System with Ace XL Head & Ground Spreader from Sachtler pairs the Ace XL fluid head and the carbon fiber 75/2 tripod legs with a ground spreader. This kit offers a 17.6 lb load capacity for midsized camera rigs, as well as a balancing camera plate, 9-step + 0 counterbalance, and 3-step + 0 pan/tilt drag. Carry the system with the included handle and bag for easy transport to the set.

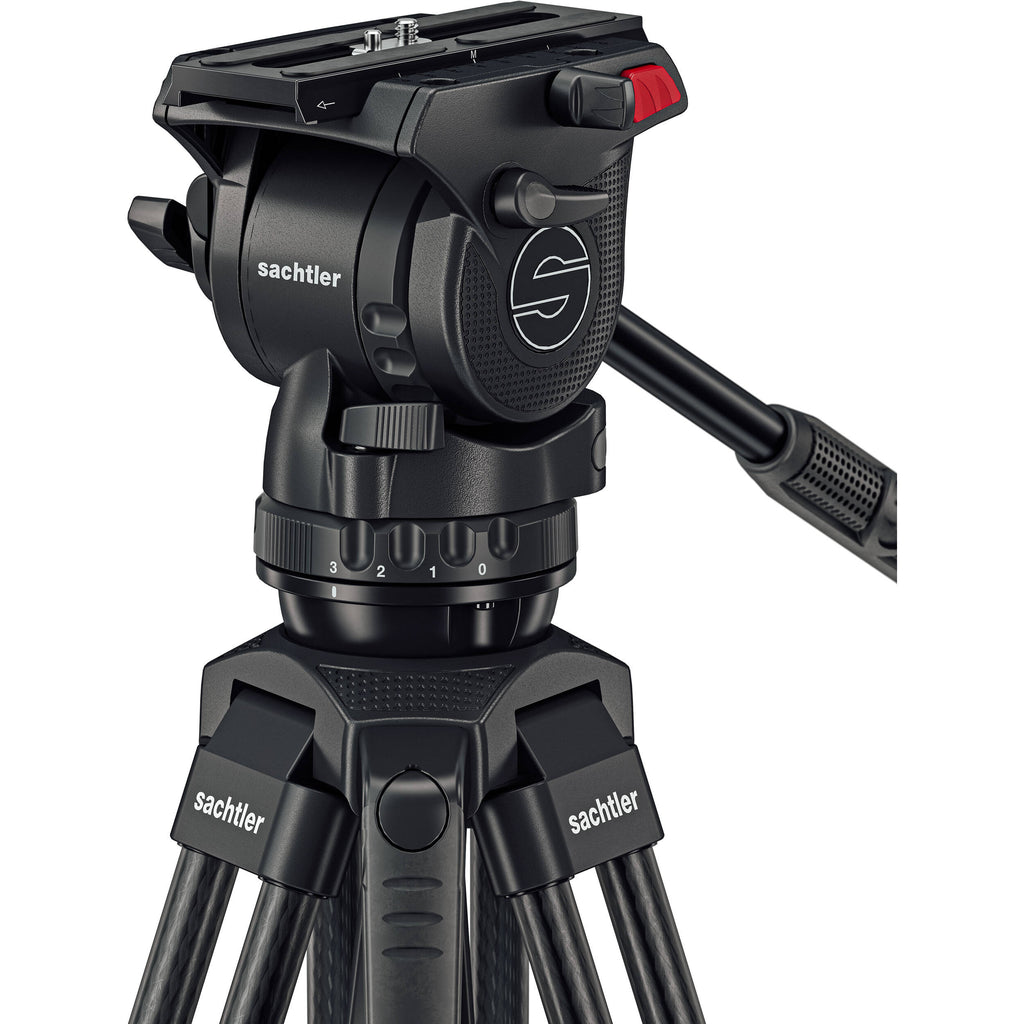

The Sachtler Ace XL Mark II Fluid Head is designed to facilitate smooth pan and tilt movements with your cine-style camera configurations thanks to its 17.6 lb load capacity. The fluid head can be secured to 75mm bowl mount tripods. It has 9 + 0 steps of counterbalance and 3 + 0 steps of pan/tilt drag adjustment. A total tilt range of +90° to -75° allows for intuitive framing of your shots.
Mount your camera using the slide-in balancing plate with a 1/4"-20 screw and locating pin. With a sliding range of 4.1", this head can adapt to any rig configuration. Additional features include a detachable pan bar and an illuminated bubble level. An integrated flat head base allows the Ace XL Mark II to be mounted onto a slider.
Designed to support ultra-light camcorders and DSLR/mirrorless camera builds, this 75/2 Mark II Carbon Fiber Tripod features a strong set of two-stage carbon fiber with a 44 lb load capacity. This tripod requires a separately available ground or mid-level spreader. Depending on which spreader you use, the height range can span 16.6 to 62.2" or 24.8 to 60.6", respectively. A 75mm bowl and three 3/8"-16 mounting threads help attach a fluid head of your choice. Use the carry handle to transport the tripod to the set.
The Sachtler SP 75 Ground Tripod Spreader fits all 75mm tripods except flowtech, Soom, and Ace M/MS, and it's used when shooting on a level surface such as a studio, city street, office, sports field, or stadium. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. The SP 75 spreader attaches directly to the bottom of a tripod's feet and its telescopic arms allow for the extension of the legs.
For Sachtler Ace Mark II and FSB fluid head users using the 75/2 Mark II tripod, this Carry Handle allows you to carry your tripod system with a single hand for easy transport on set. Attach the handle to one of the three 3/8"-16 mounting threads on your Mark II tripod bowl.
Items Included
- Sachtler Ace XL Mark II Fluid Head (75mm Bowl)
- Sachtler Pan Bar for Ace Tripods
- Slide-In Camera Plate
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Sachtler 75/2 Mark II Carbon Fiber Tripod (75mm)
- Sachtler Carry Handle for Ace Mark II Tripods
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Sachtler Spreader SP 75 Ground Tripod Spreader
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Sachtler Carry Handle for Ace Mark II Tripods
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Carrying Case
Additional Resources
No additional resources available
Sachtler Ace XL MKII Tripod System Specs
| Camera Mounting |
1/4"-20 Screw (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Drag Control |
Yes
|
| Load Capacity |
17.6 lb / 8 kg
|
| Weight |
3.7 lb / 1.7 kg
|
| Camera Mounting |
1/4"-20 Screw (Quick Release w/ Sliding Balance Plate)
|
| Head Type |
Fluid Head
|
| Base Mount |
Flat Base with 3/8"-16 Female (75 mm Half Ball via Included Adapter)
|
| Counter Balance |
Incremental 9-Step Plus 0
|
| Dimensions |
Camera Plate: 5.5 x 2" / 140.00 x 50.00 mm
|
| Drag Control |
Yes
|
| Vertical Tilt |
+90° to -75°
|
| Load Capacity |
17.6 lb / 8 kg
|
| Bubble Level |
Yes (Illuminated)
|
| Weight |
3.7 lb / 1.7 kg
|
| Package Weight |
6.895 lb
|
| Box Dimensions (LxWxH) |
17.8 x 10.3 x 7.5"
|
Sachtler Ace XL MKII Tripod System Specs
| Head Mount Type |
75 mm Bowl
|
| Primary Material |
Carbon Fiber
|
| Load Capacity |
44.1 lb / 20 kg
|
| Maximum Working Height |
62.2" / 158 cm
|
| Minimum Working Height |
16.9" / 43 cm
|
| Closed Length |
28.0" / 71 cm
|
| Weight |
4 lb / 1.8 kg
|
| Head Mount Type |
75 mm Bowl
|
| Primary Material |
Carbon Fiber
|
| Load Capacity |
44.1 lb / 20 kg
|
| Maximum Working Height |
62.2" / 158 cm
|
| Minimum Working Height |
16.9" / 43 cm
|
| Closed Length |
28.0" / 71 cm
|
| Spreader Support |
Ground/Mid-Level
|
| Weight |
4 lb / 1.8 kg
|
| Package Weight |
6.26 lb
|
| Box Dimensions (LxWxH) |
30.9 x 7.9 x 7"
|
Sachtler Ace XL MKII Tripod System Specs
| Payload |
88.2 lb / 40 kg
|
| Construction |
Plastic
Rubber |
| Type |
On-Ground
|
| Adjustable |
Yes
|
| Minimum Length |
13.0" / 33.0 cm
|
| Maximum Length |
22.8" / 57.9 cm
|
| Weight |
1.3 lb / 589.7 g
|
| Package Weight |
1.4 lb
|
| Box Dimensions (LxWxH) |
14.8 x 4.95 x 4.55"
|
Sachtler Ace XL MKII Tripod System Specs
| Compatibility |
Sachtler Ace Mark II / FSB / 75/2 Mark II Tripod
|
| Mounting |
1x 3/8"-16 Mounting Point
|
| Package Weight |
0.26 lb
|
| Box Dimensions (LxWxH) |
6.8 x 4.55 x 1.35"
|
