| ₹ 239.11 includes GST and import duties. | |
| B2B customers can avail ₹ 36.46 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

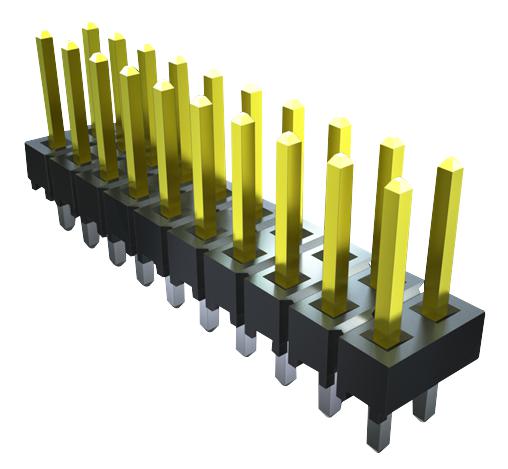

The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025" (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry's largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.
- Orderable with single/dual/triple rows (-S/-D/-T/-Q option)
- Pitch spacing is 2.54mm (1 to 50 contacts per row) with straight orientation
- High operating temperature range of -55?C to 125?C for 3?"gold flash plated contacts
- Terminal material is phosphor bronze
- Black glass filled polyester insulator material
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
- Locking lead and locking clip feature is optional
Industrial
Other details
| Brand | SAMTEC |
| Part Number | TSW-115-07-F-D |
| Quantity | Each |
| Technical Data Sheet EN |  |

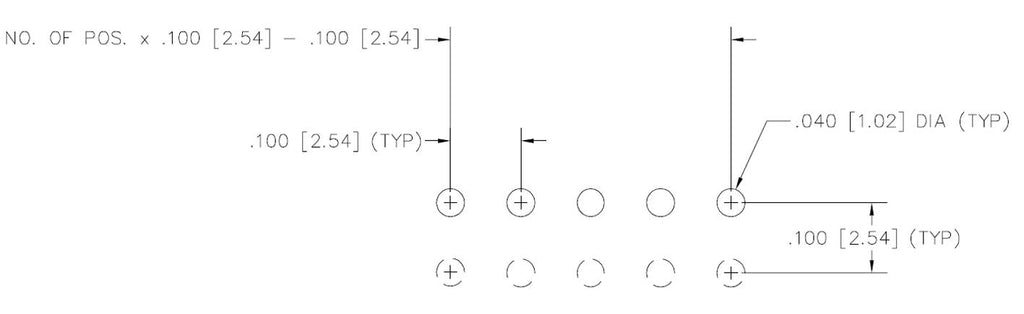

| Packaging / Drawing / Footprint EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 234.33 |
| 3-5 | ₹ 231.94 |
| 5-10 | ₹ 227.15 |
| 10+ | ₹ 222.37 |
Bulk discount will be automatically applied during checkout based on quantity.
