Description
Saramonic AX1 Overview
- 1Description
- 22-Channel Mixer
- 3Passive Design
- 4Simple Connectivity
- 5Independent Level Attenuators
- 6TRS and TRRS Output Cables
- 7Ultracompact and Lightweight
Simultaneously record two signals to a camera, DSLR, smartphone, tablet, or laptop with the Saramonic AX1 passive 2-channel audio mixer, an ultracompact and lightweight solution that won't slow you down on run-and-gun shoots, interview recordings, and more. It includes 3.5mm TRS and TRRS output cables to ensure compatible connectivity with cameras, portable recorders, and mobile devices.
Connect powered mics or wireless receivers to the two 3.5mm TRS mono input jacks or plug a stereo mic into the 3.5mm TRS stereo input. Route the 3.5mm output to your recording/shooting device. The output can be set to mono or stereo via a dedicated switch, allowing you to record the two input signals to separate channels or mix them together. It features left and right trim controls, and requires no power source. The integrated 1/4"-20 mount enables simple attachment to an accessory mount or tripod.
2-Channel Mixer
Passive Design
Simple Connectivity
Independent Level Attenuators
TRS and TRRS Output Cables
Ultracompact and Lightweight

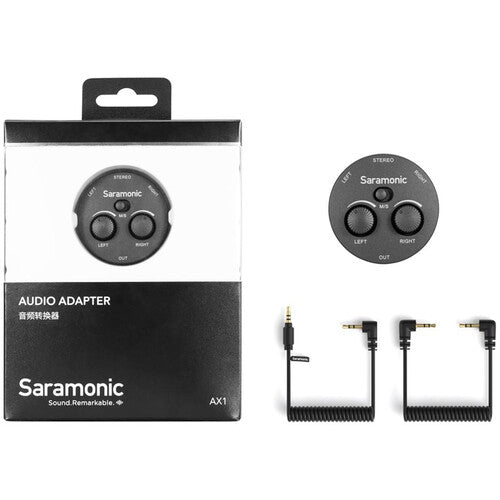

In the Box
- Saramonic AX1 Passive 2-Channel Audio Mixer for Cameras, Smartphones, Tablets, and Computers

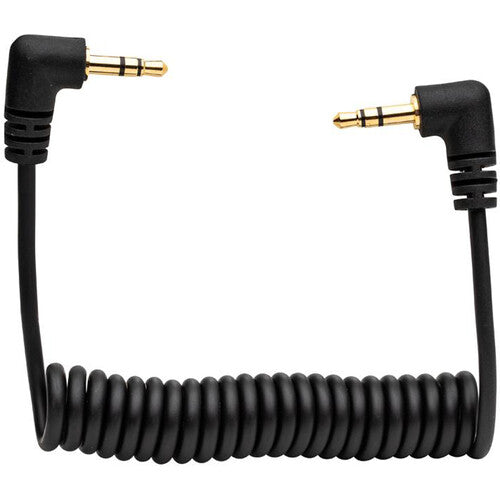

- 3.5mm TRS Output Cable
- 3.5mm TRRS Output Cable
- Limited 1-Year Warranty
- Description
- 2-Channel Mixer
- Passive Design
- Simple Connectivity
- Independent Level Attenuators
- TRS and TRRS Output Cables
- Ultracompact and Lightweight
Saramonic AX1 Specs
| Inputs | 2 x 1/8" / 3.5 mm TRS Female Mono Inputs 1 x 1/8" / 3.5 mm TRS Female Stereo Input |
| Outputs | 1 x 1/8" / 3.5 mm TRS Female Mono/Stereo Output |
| Frequency Response | 20 Hz to 20 kHz |
| Input Level | �35 dB |
| Gain | Unity (0 to -� dB) |
| Power Requirements | None (Passive) |
| Mount | 1/4"-20 |
| Dimensions (Diam. x H) | 1.9 x 1.0" / 4.8 x 2.5 cm |
| Weight | 0.7 oz / 19 g |
| Package Weight | 0.215 lb |
| Box Dimensions (LxWxH) | 8.9 x 5 x 1.1" |
