| ₹ 10198.25 includes GST and import duties. | |
| B2B customers can avail ₹ 1555.23 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

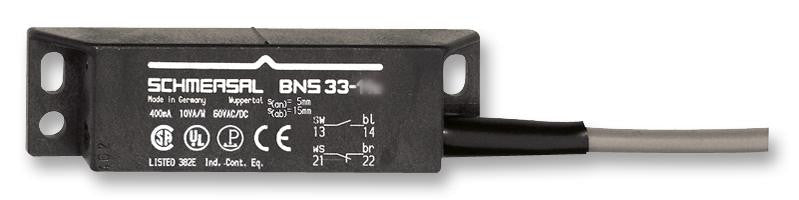

The BNS33-12Z-2187-2M is a Coded Magnetic Switch with quick-connect terminals, 1NO/2NC contacts and 2m cable. The BNS33 series coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array. Their tamper-resistant design prevents bypassing with a simple magnet or improperly coded magnetic field. In addition, the BNS module features an optional built-in LED display of switch status and a 1m long prewired pigtail to assure sealing integrity. The sealed compact BNS33 is ideal for use on movable machine guards in hostile environments or where space is limited.
- Compact size
- Sealed for submersibility - assures long-term reliability in the most hostile environments
- Rugged, corrosion-resistant housing - Tolerates most industrial environments
- With LED status indicator and individual contact outlet
- Shock and vibration tolerant - Designed to withstand mechanical abuse
Applications
Industrial
Product details
| Contact Current DC Max | 250mA |
| Operating Force Max | - |
| Contact Voltage DC Max | 100V |
| Contact Current AC Max | 250mA |
| Contact Configuration | 1NO / 2NC |
| Product Range | - |
| Limit Switch Actuator | - |
| Contact Voltage AC Max | 100V |
Other details
| Brand | SCHMERSAL |
| Part Number | BNS33-12Z-2187-2M |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9994.29 |
| 3-5 | ₹ 9892.3 |
| 5-10 | ₹ 9688.34 |
| 10+ | ₹ 9484.37 |
Bulk discount will be automatically applied during checkout based on quantity.
