Description
SCIENCE IMAGE Flow 2 Overview

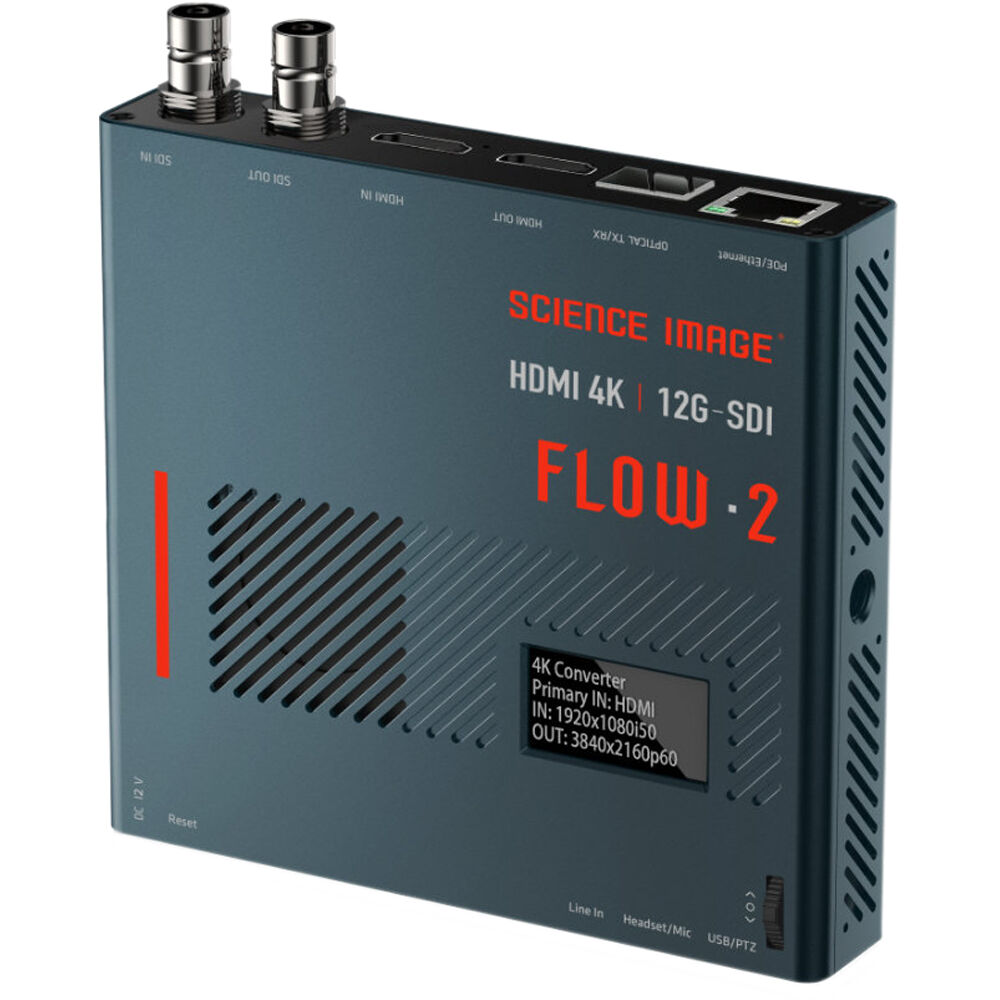

The FLOW 2 4K 12G-SDI/HDMI Up/Down/Cross Converter from SCIENCE IMAGE combines frequency conversion with an optical transceiver in one very compact device. As a worthy successor to the FLOW 4K, the device employs a user-friendly intelligent scroll wheel to facilitate operation using just one finger to scroll up and down to choose the menu and manage the settings without needing to enter the web UI.
Ideal for professional use in a broad range of applications, including broadcast and large events, video conferences, and variety shows, the unit performs up and down conversion in 35 formats at up to UHD 4K60 with support for 12G-SDI/HDMI inter-conversion and output with just a click. Capable of simultaneously transmitting and receiving 3G/6G/12G-SDI and HDMI 4K video, the unit handles maximum transmission to up to 12.4 miles.
An optical transceiver switch in the web UI enables users to easily select between operating as an HDMI or an SDI optical transceiver, with the scroll wheel facilitating SDI and HDMI input priority settings, transmission or reception, and selection of the desired output resolution. The optical transceiver also works as an SDI/HDMI bidirectional converter, giving you a very affordable solution for multiple tasks with broad flexibility and convenience. Power can be received by the device either through the Ethernet input (PoE) or the DC connection with the included 12 VDC power supply.
- Control over RJ45 Ethernet port
- 35 SMPTE and PAL/NTSC conversion formats supported
- Optical receivers can transmit and receive signals from up to 12.4 miles away

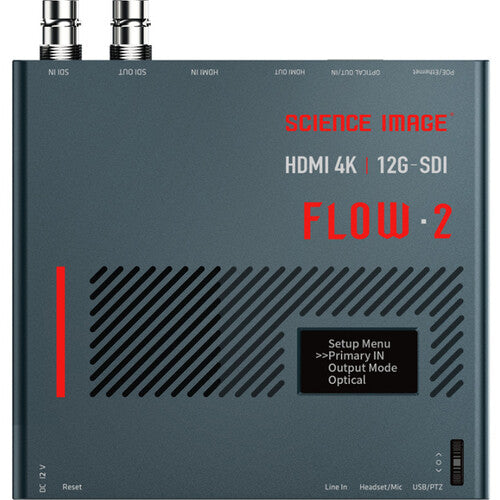

- OLED screen displays real-time status of encoding/decoding, input/output format, IP, and other information
- Integrated 1/4"-20 thread
- Supports 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats
- Compatible with multiple sampling formats (4:4:4, 4:2:2, 4:2:0)
- Accurate and fast signal recognition
- Adopts Xilinx FPGA SOC hardware , internal design, and embedded Linux system
- Aviation technology with aluminum integrated design and milling
Items Included
- SCIENCE IMAGE FLOW 2 4K 12G-SDI/HDMI Up/Down/Cross Converter
- 12 VDC Power Supply (with International Plug Adapters)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
SCIENCE IMAGE Flow 2 Specs
| Video I/O |
Input

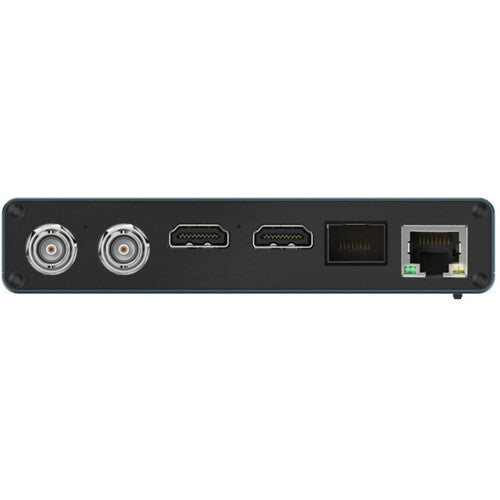

1x BNC (12G-SDI) Female 1x HDMI 2.0 Female Output 1x BNC (12G-SDI) Female 1x HDMI 2.0 Female Input/Output 1x Socket for SFP Module (12G-SDI) |
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS Analog Female Input/Output 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Analog Female |
| Video Resolution |
BNC Input/Output (4:4:4/4:2:2 RGB, YUV)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output (4:4:4/4:2:2 RGB, YUV) 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 56/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output (4:4:4/4:2:2 RGB, YUV) 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output: 48 kHz
|
| Broadcast System Compatibility |
NTSC, PAL
|
| Wireless |
No
|
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS Analog Female Input/Output 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Analog Female |
| Other I/O |
Input/Output
1x RJ45 (LAN) |
| Expansion Slots |
1x SFP Slot
|
| Video Resolution |
BNC Input/Output (4:4:4/4:2:2 RGB, YUV)
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps HDMI Input/Output (4:4:4/4:2:2 RGB, YUV) 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 56/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Fiber Input/Output (4:4:4/4:2:2 RGB, YUV) 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Audio Format |
Analog, Unspecified Digital Signal Input/Output: 48 kHz
|
| Embedded Audio |
Fiber/HDMI/SDI
|
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
|
| HDCP Support |
No
|
| HDR Support |
No
|
| Broadcast System Compatibility |
NTSC, PAL
|
| Wireless |
No
|
| Display |
1.3" OLED
|
| Power I/O |
1x Barrel (12 VDC ) Input
|
| Power Consumption |
Device: 12 W
|
| Operating Conditions |
37 to 72°F / 5 to 40°C up to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
4.9 x 4.5 x 0.9" / 125 x 115 x 24 mm
|
| Weight |
12.9 oz / 365 g
|
| Package Weight |
1.6 lb
|
| Box Dimensions (LxWxH) |
6.1 x 6.1 x 2.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
