Description

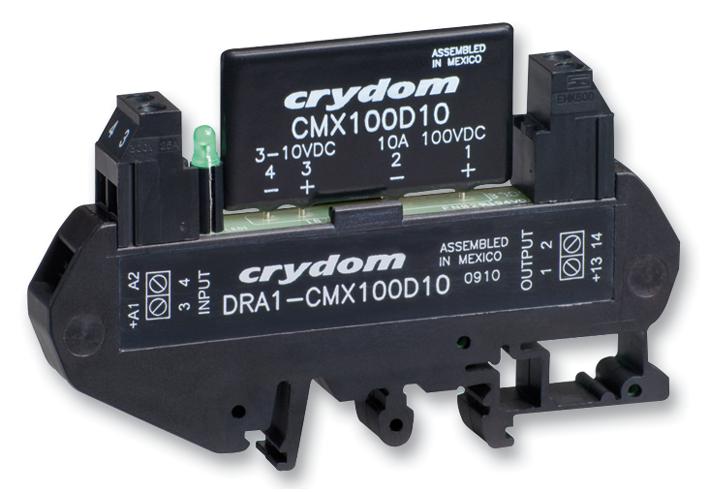

The DRA1CMXE60D10 is a 1-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact and cage clamp terminals. This DRA1 CMX-series DIN-rail-mount relay features LED status indicator and socket clip fits standard 35mm DIN-rail profiles. Cage style screw terminals for easy and reliable wire connection.
- 10mm Single channel
- 0.18VDC Maximum on-state voltage drop
- 2500Vrms Dielectric strength
- 780R Nominal input impedance
- 1ms Turn-on and 300µsec turn-off maximum time
- -30 to 80°C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Contact Configuration: SPST-NO |
| Load Current: 10A |
| Operating Voltage Max: 60VDC |
| Relay Mounting: DIN Rail |
| Relay Terminals: Cage Clamp |
| Switching Mode: - |
| Operating Voltage Min: 1VDC |
| Control Voltage Min: 20VDC |
| Control Voltage Max: 28VDC |
| Product Range: - |
Other details
| Brand | SENSATA/CRYDOM |
| Part Number | DRA1-CMXE60D10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
