Description
SHAPE CDJAW Overview

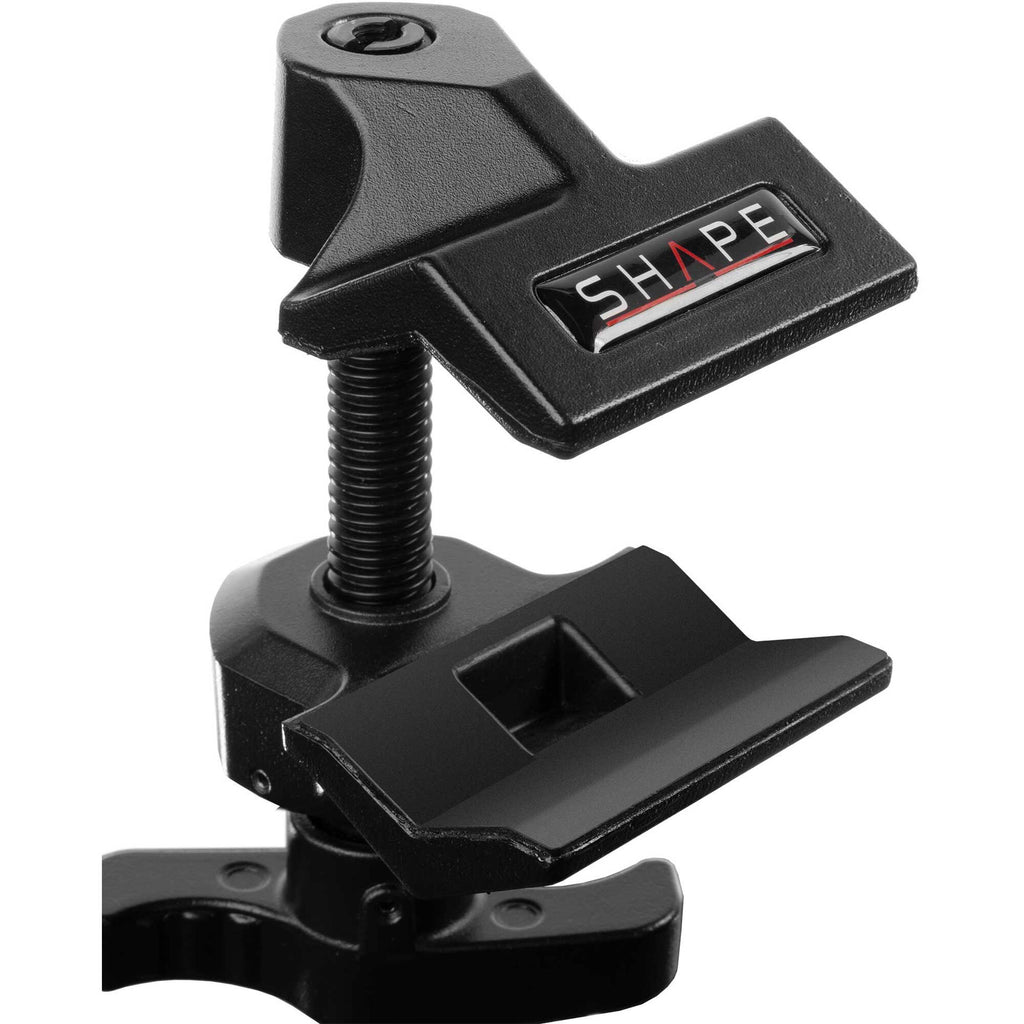

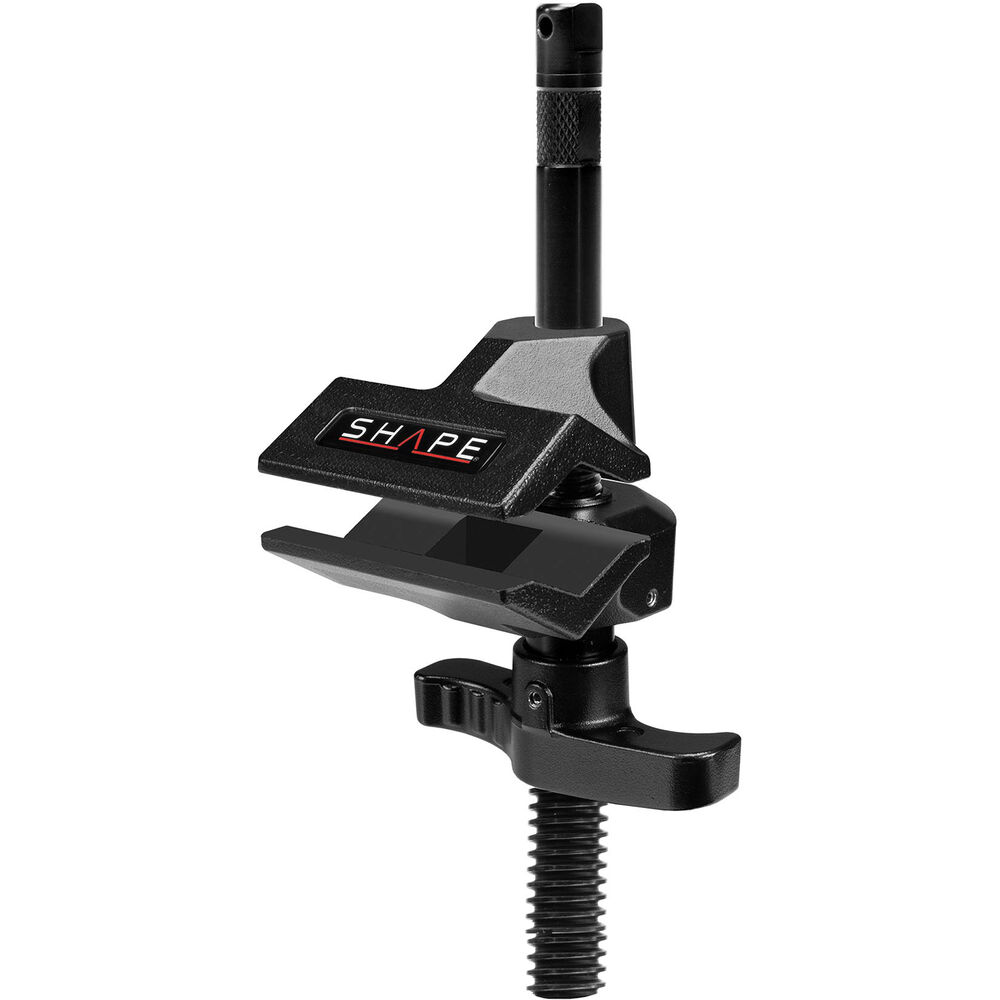

This 3" Shifter End/Center Jaw Clamp from SHAPE is a unique design offering both center and end jaw configurations. With both end and center jaw configurations, this clamp offers four setups in one, allowing for multiple rigging options. The lower jaw drive screw eliminates the need for additional tools when unclamping. This clamp grips square, round, or rectangular tubing, as well as other common and irregular shapes.

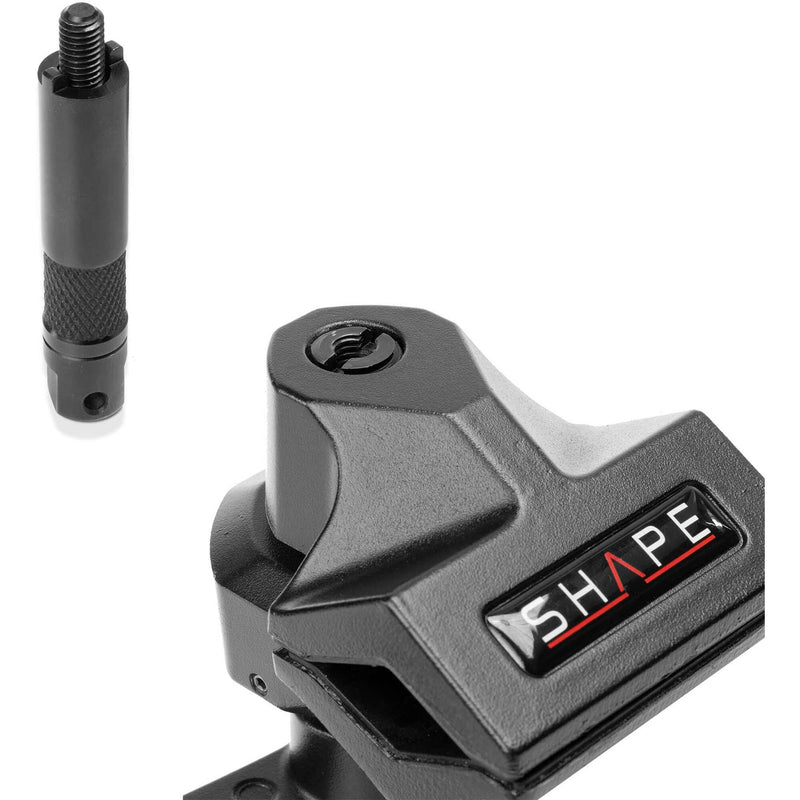

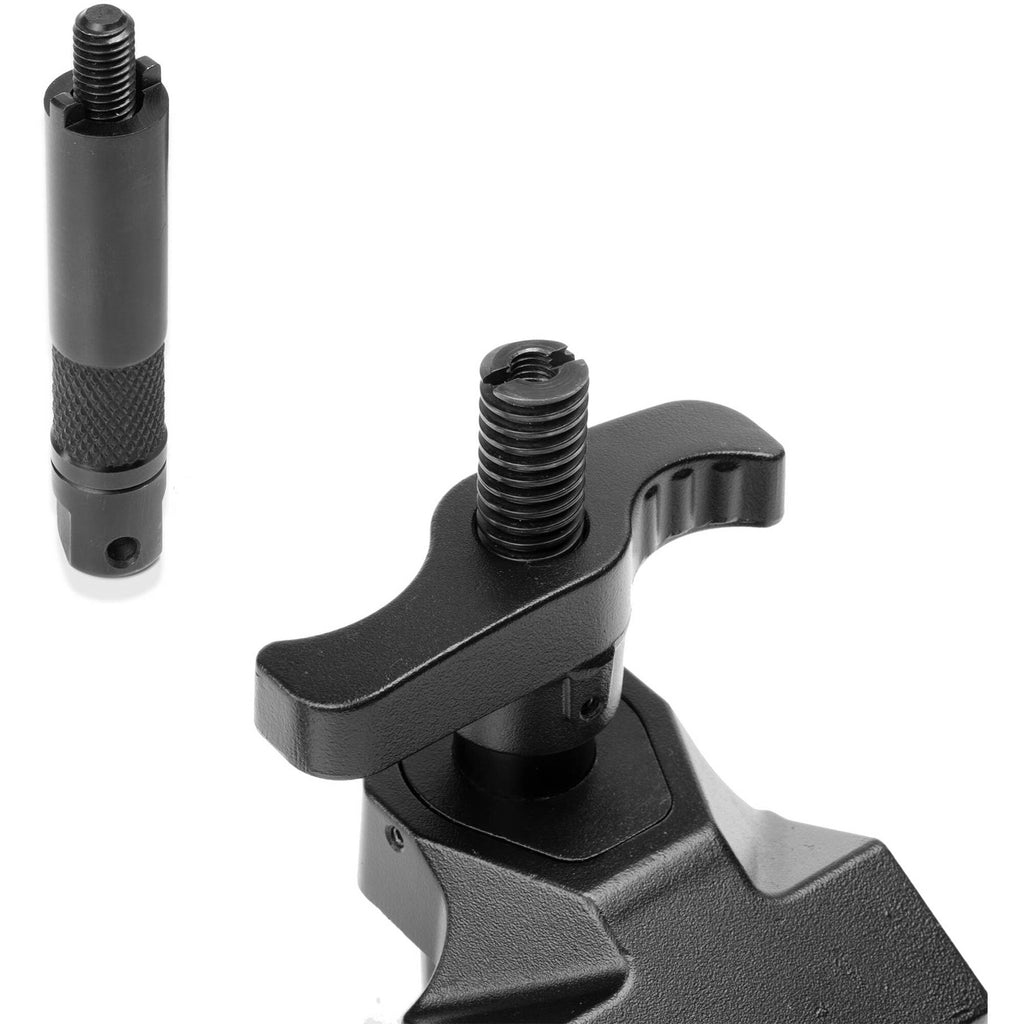

Made of solid steel, it features anti-slip vulcanized rubber inside the clamp for secure gripping on various surfaces. The 5/8" anti-rotating baby pin is lockable at both ends, providing stability in any setup. The shaft features 1/4"-20 female threads which allow the baby pin to be mounted on either end, or other accessories to be added on.
- 3" clamp offering both center and end jaw configurations
- Anti-slip vulcanized rubber material inside the clamp
- 5/8" anti-rotating baby pin capable of being locked at both ends

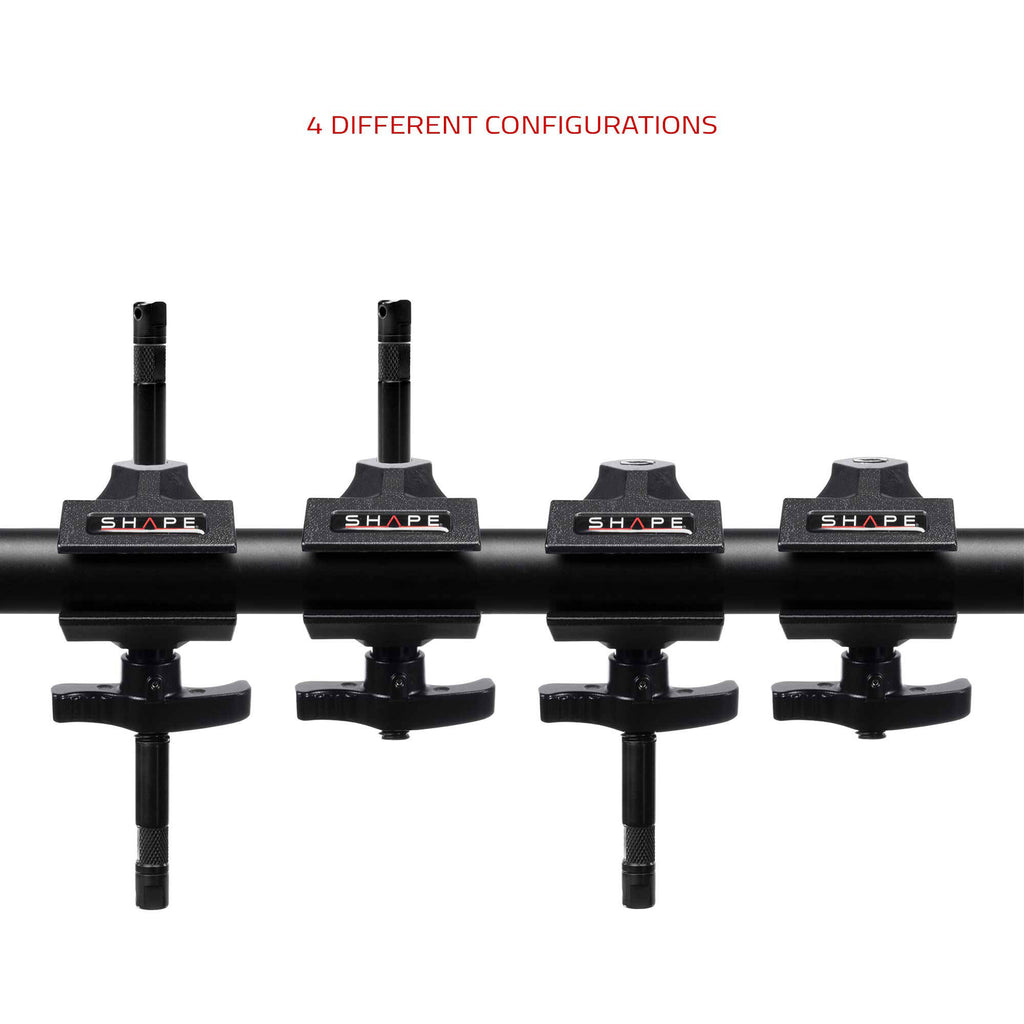

- Four configurations in one
- Drive screw for the lower jaw
- No tools are required to unclamp the lower jaw
- Clamps and spreads, providing endless rigging options
- Provides strong gripping for square, round, or rectangular tubing and many other common irregular shapes
- Jaw width: 3"
- Shaft length: 3.5"
- Length of 5/8" baby pin: 3"
- 1/4"-20 accessory female thread on the end of the shaft
- Additional 5/8" baby pin available separately
- Solid steel construction
Items Included
- SHAPE Shifter End/Center Jaw Clamp (3", Black)
- Limited Lifetime Warranty
Additional Resources
No additional resources available
SHAPE CDJAW Specs
| Clamp Type |
Jaw
|
| Color |
Black
|
| Mounting |
Light Mount: 1x 5/8" Stud
|
| Clamping Range |
3" / 7.6 cm
|
| Materials |
Rubber, Steel
|
| Dimensions |
9 x 4 x 3" / 22.9 x 10.2 x 7.6 cm
|
| Weight |
1.74 lb / 0.79 kg
|
| Package Weight |
2.09 lb
|
| Box Dimensions (LxWxH) |
11.1 x 6.5 x 3.7"
|
