Description
SHAPE FX6SM Overview
- 1Description
- 2SHAPE 15mm Lightweight Baseplate for Sony FX6
- 3SHAPE Quick Handle + Rod Block
- 4SHAPE Mini Composite Shoulder Pad
- 5SHAPE Back Pad
- 6SHAPE 15mm Rods (18", Pair)

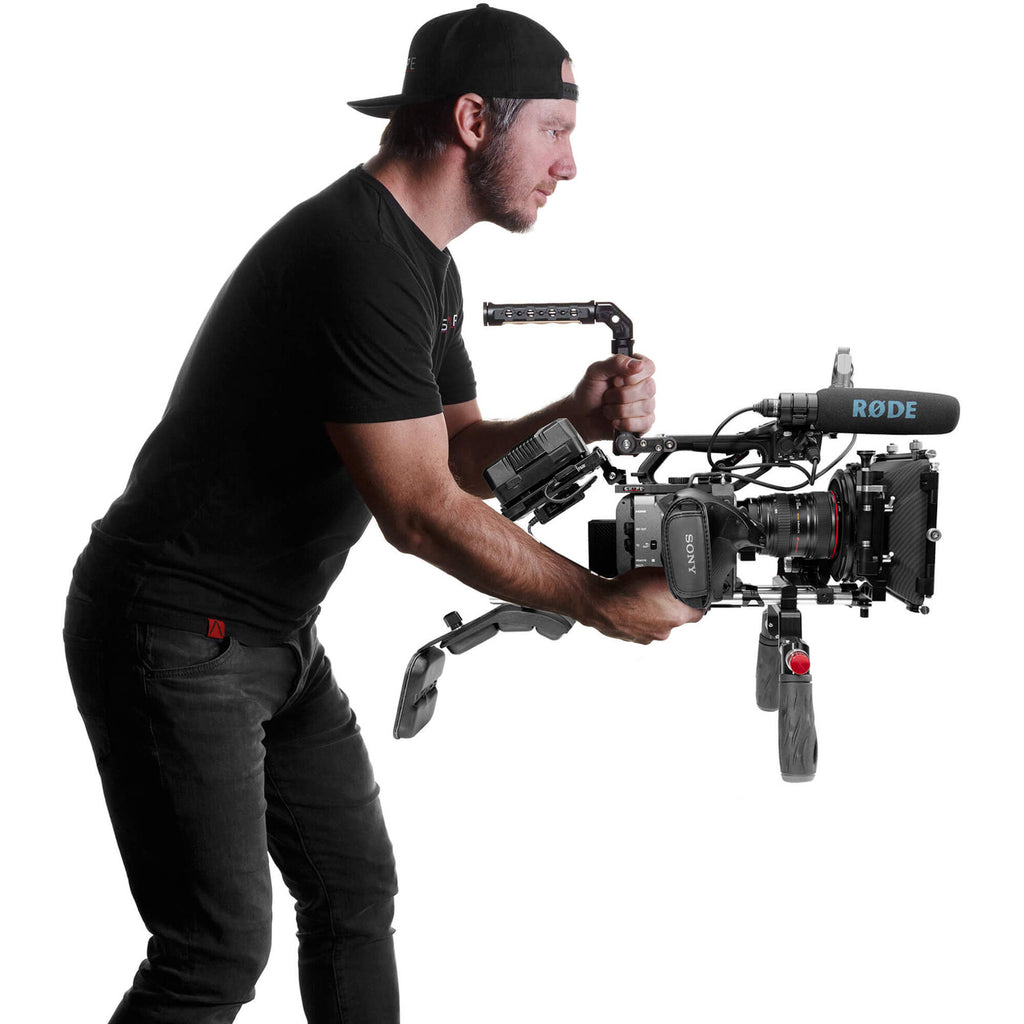

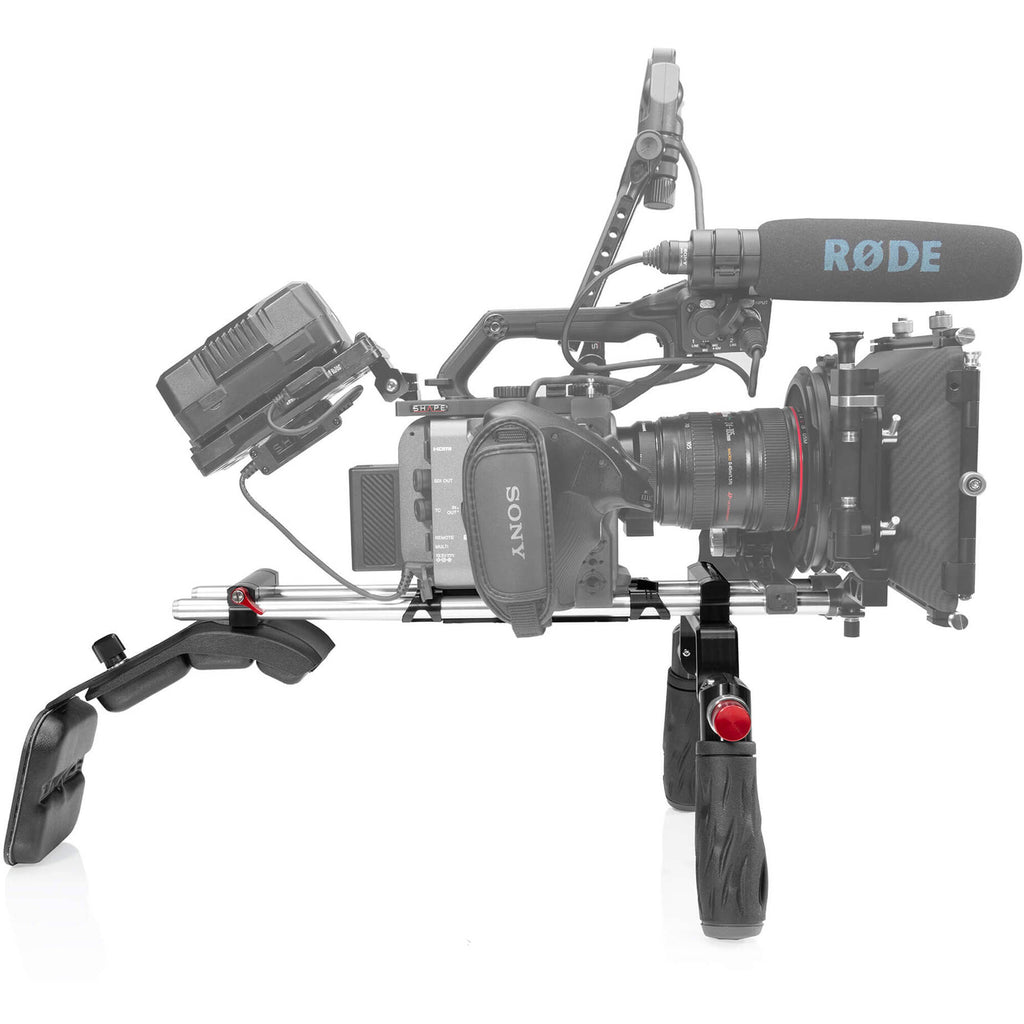

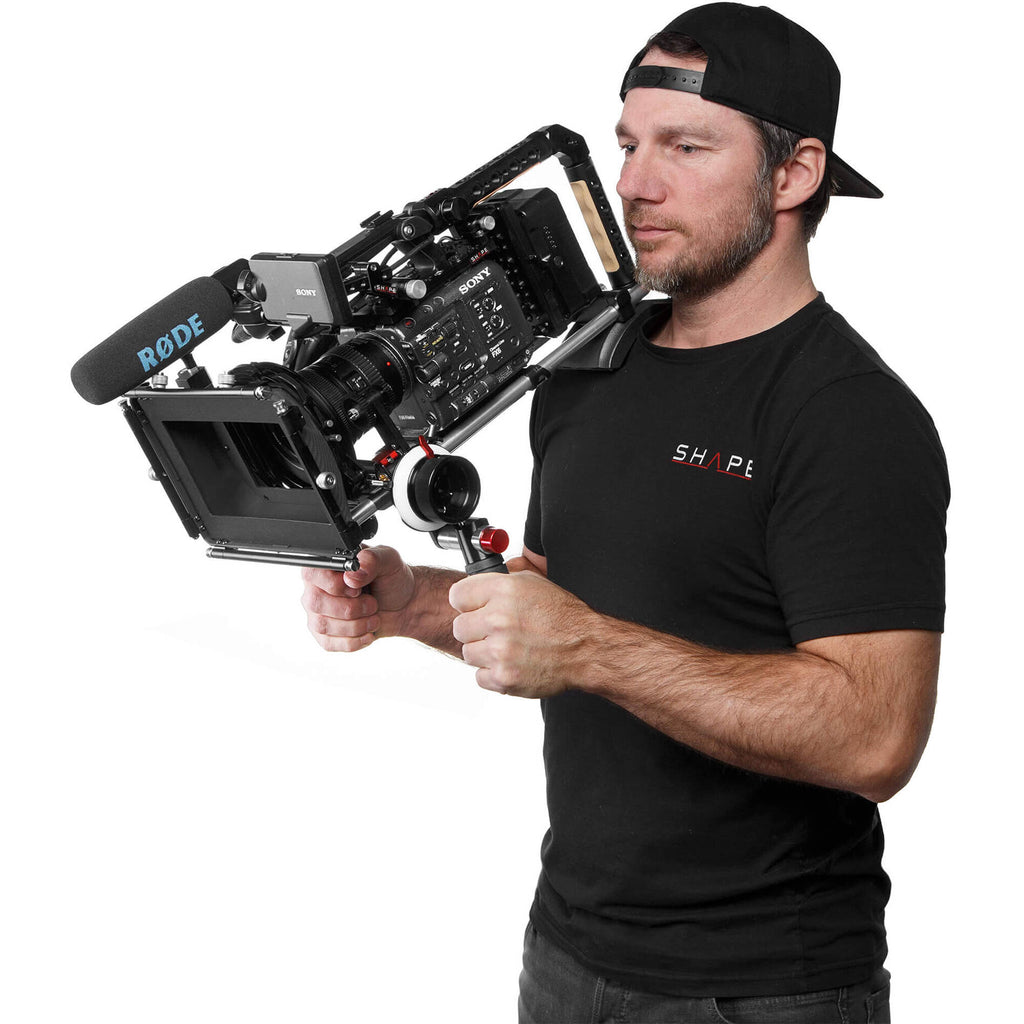

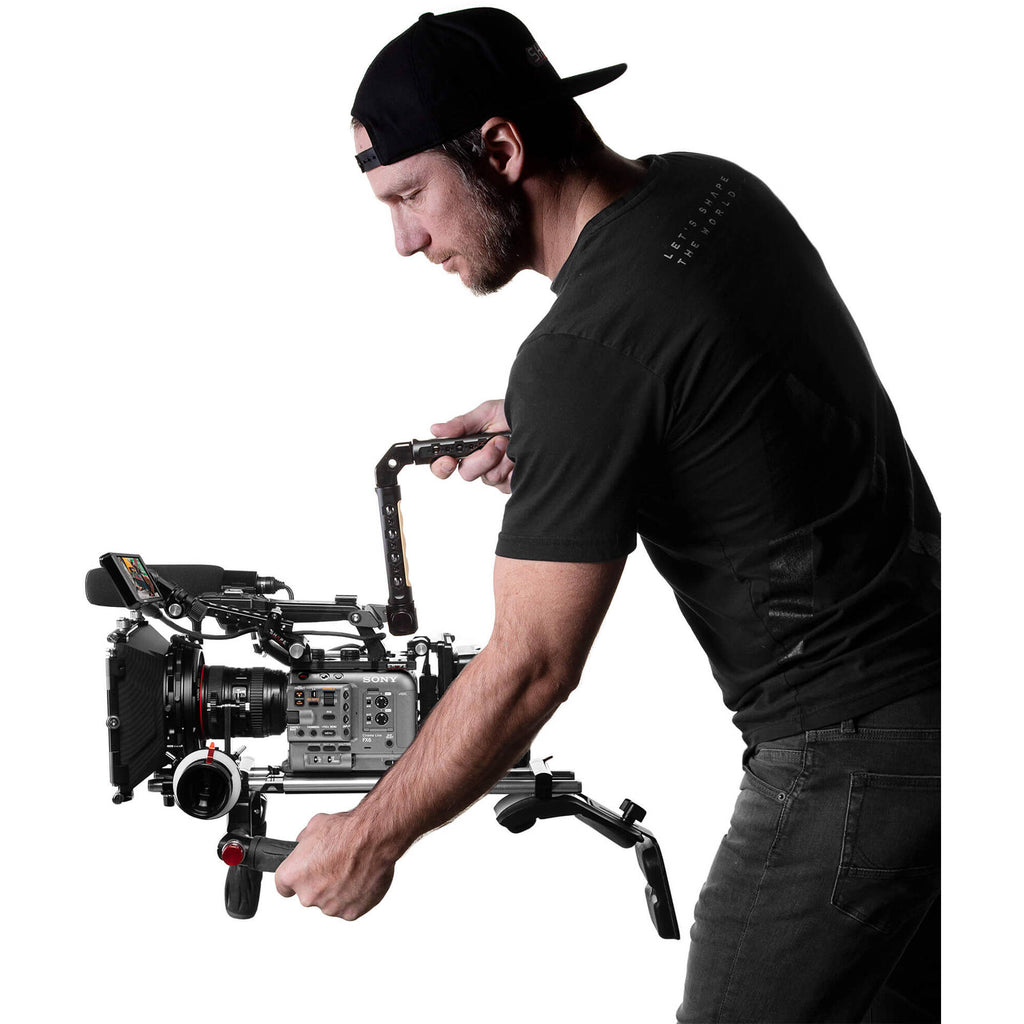

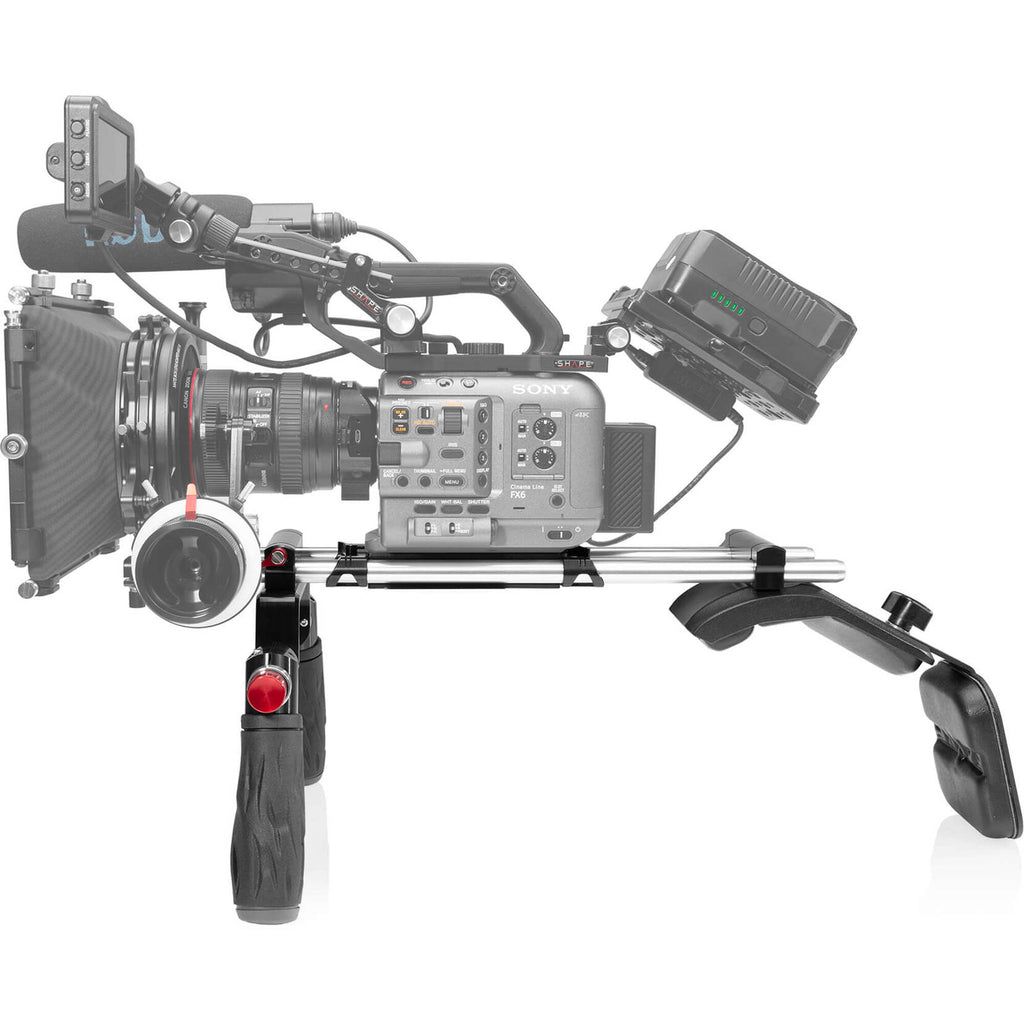

Add a compact 15mm LWS shoulder mount rig to your Sony FX6 camera with this Shoulder Mount from SHAPE. The mount is built around the baseplate and a set of four 8" 15mm rods, and it includes quick release handgrips, a shoulder pad, a back pad, a set of 12" 15mm rods, and a set of 18" 15mm rods.
The baseplate can be used to mount your camera or additional baseplate, there are tripod mounting threads underneath, and the included 18 or 12" long 15mm rods pass through the baseplate, depending on the requirements of your rig. For shoulder-mounted shooting, handles and a shoulder pad are included to mount onto the front and back of the rods. The handles feature rosettes and SHAPE's patented spring-loaded push-button technology that lets you quickly adjust the angle of the grips on the fly with just the push of your thumb. For additional support and comfort, a back pad is also included that attaches to the rear of the shoulder pad.
Read more below about the included items.
SHAPE 15mm Lightweight Baseplate for Sony FX6
Add 15mm LWS rods to support the Sony FX6 camera and add accessories with this 15mm Lightweight Baseplate from SHAPE. The aluminum baseplate features removable 15mm rod clamps on the front and back, and it secures your camera to the plate using 1/4"-20 and 3/8"-16 screws.
There are multiple 1/4"-20 and 3/8"-16 mounting threads underneath to mount your rig on a plate or tripod. The baseplate includes a pair of 12" 15mm rods that insert through the length of the baseplate and are secured with a locking thumbscrew.
SHAPE Quick Handle + Rod Block
The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.
Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle
Rod Block
SHAPE Mini Composite Shoulder Pad
The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.
SHAPE Back Pad
The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference � up to 2" vertically and 360° horizontally.
Compatible Support Series
- Composite
- Cameleon
- Sumo
- Spider
SHAPE 15mm Rods (18", Pair)
These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
In the Box
- SHAPE 15mm Lightweight Baseplate for Sony FX6
- SHAPE 15mm Aluminum Rods (Pair, 12")
- 2 x 15mm Rod Clamp
- Limited Lifetime Warranty
- SHAPE Quick Handle + Rod Block
- Lifetime Warranty
- SHAPE Mini Composite Shoulder Pad
- SHAPE Rod Block
- SHAPE Camera Screw Knob (1/4"-20)
- Lifetime Warranty
- SHAPE Back Pad
- Limited Lifetime Warranty
- SHAPE 15mm Rods (18", Pair)
- Limited Lifetime Warranty
- Description
- SHAPE 15mm Lightweight Baseplate for Sony FX6
- SHAPE Quick Handle + Rod Block
- SHAPE Mini Composite Shoulder Pad
- SHAPE Back Pad
- SHAPE 15mm Rods (18", Pair)
SHAPE 15mm Lightweight Baseplate for Sony FX6 Specs
| Support Type | Baseplate, Rod Support System |
| Grip Type | None |
| Camera Compatibility | Sony FX6 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 2 x 12" / 30.48 cm 15 mm Aluminum Rod |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
| Tripod Mounting | Baseplate: 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | Baseplate, Front: 2 x 15 mm Rod Port Baseplate, Rear: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Construction | Aluminum |
| Dimensions | 12 x 3.25 x 1" / 30.5 x 8.26 x 2.5 cm |
| Weight | 1.05 lb / 476 g |
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 12.6 x 4.3 x 2.3" |
SHAPE Quick Handle + Rod Block Specs
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" |
SHAPE Mini Composite Shoulder Pad Specs
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" |
SHAPE Back Pad Specs
