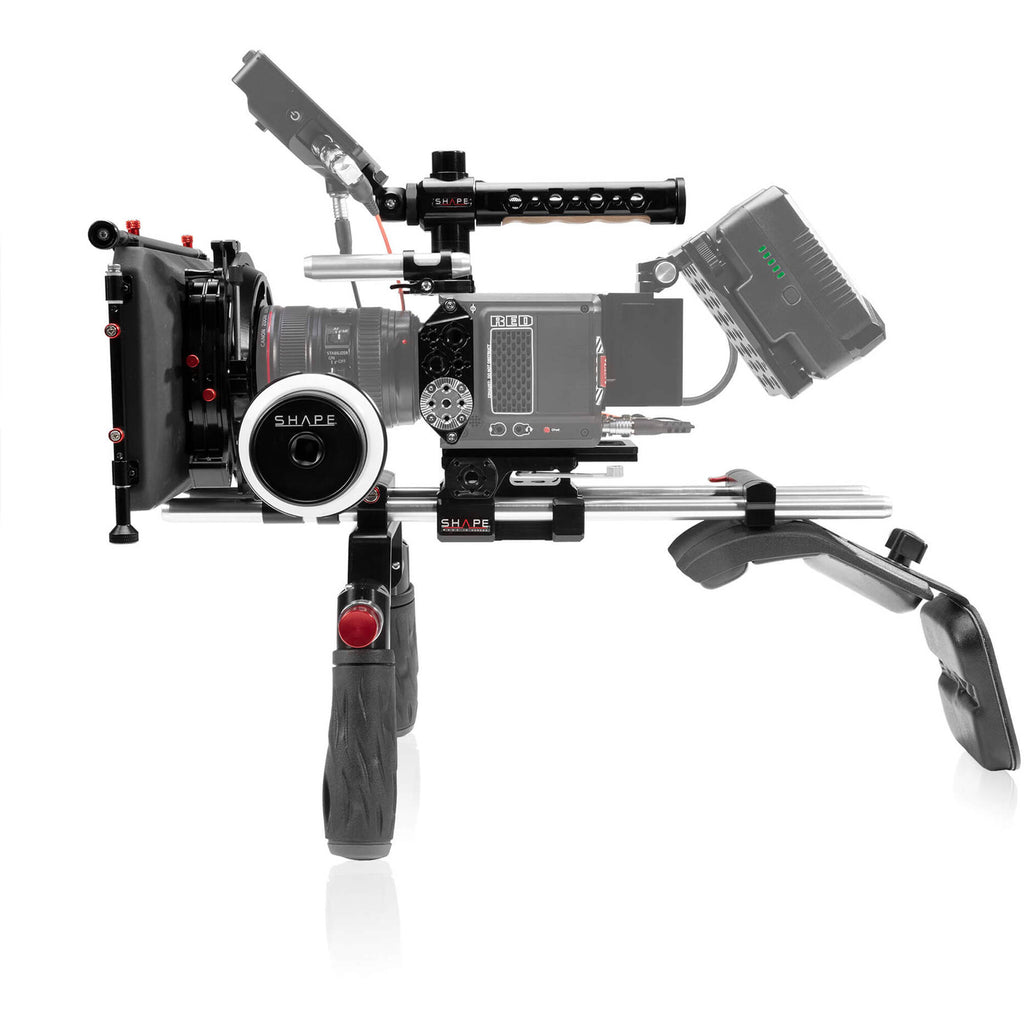

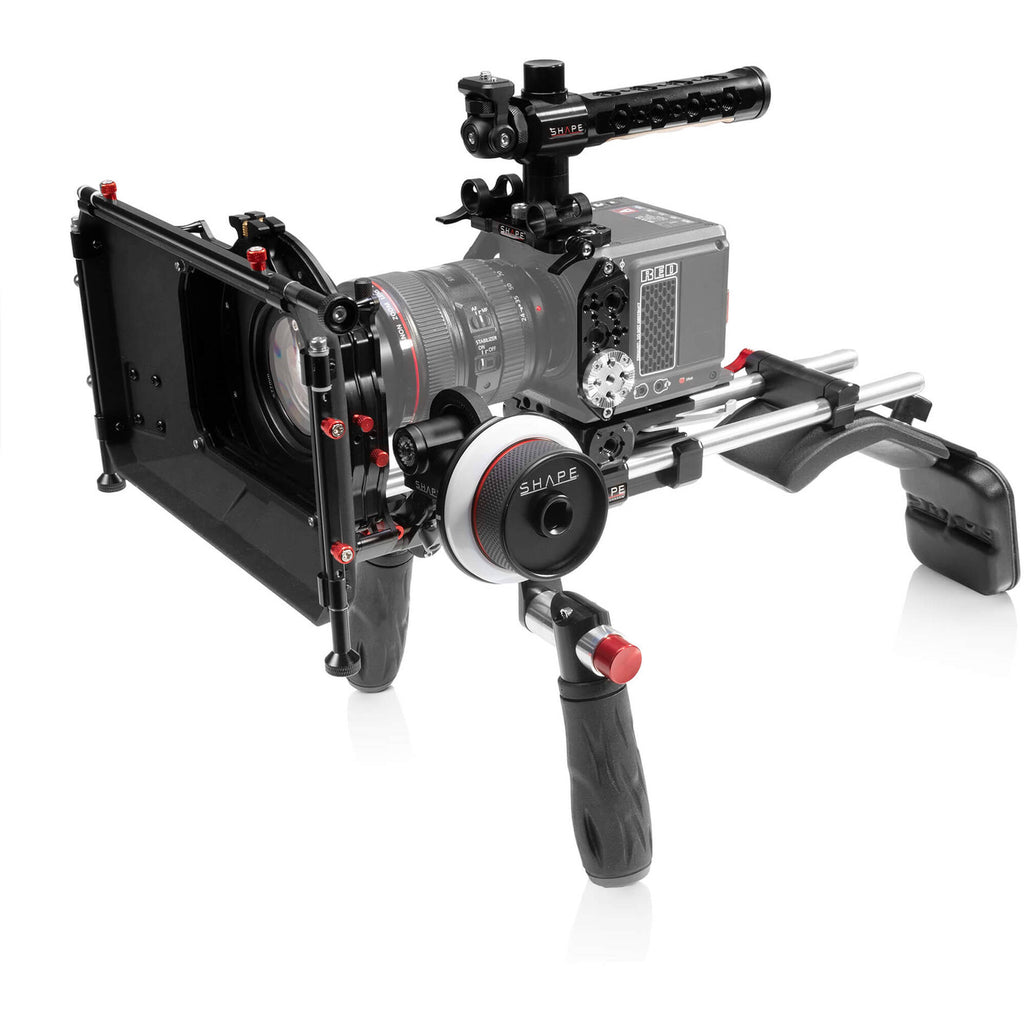

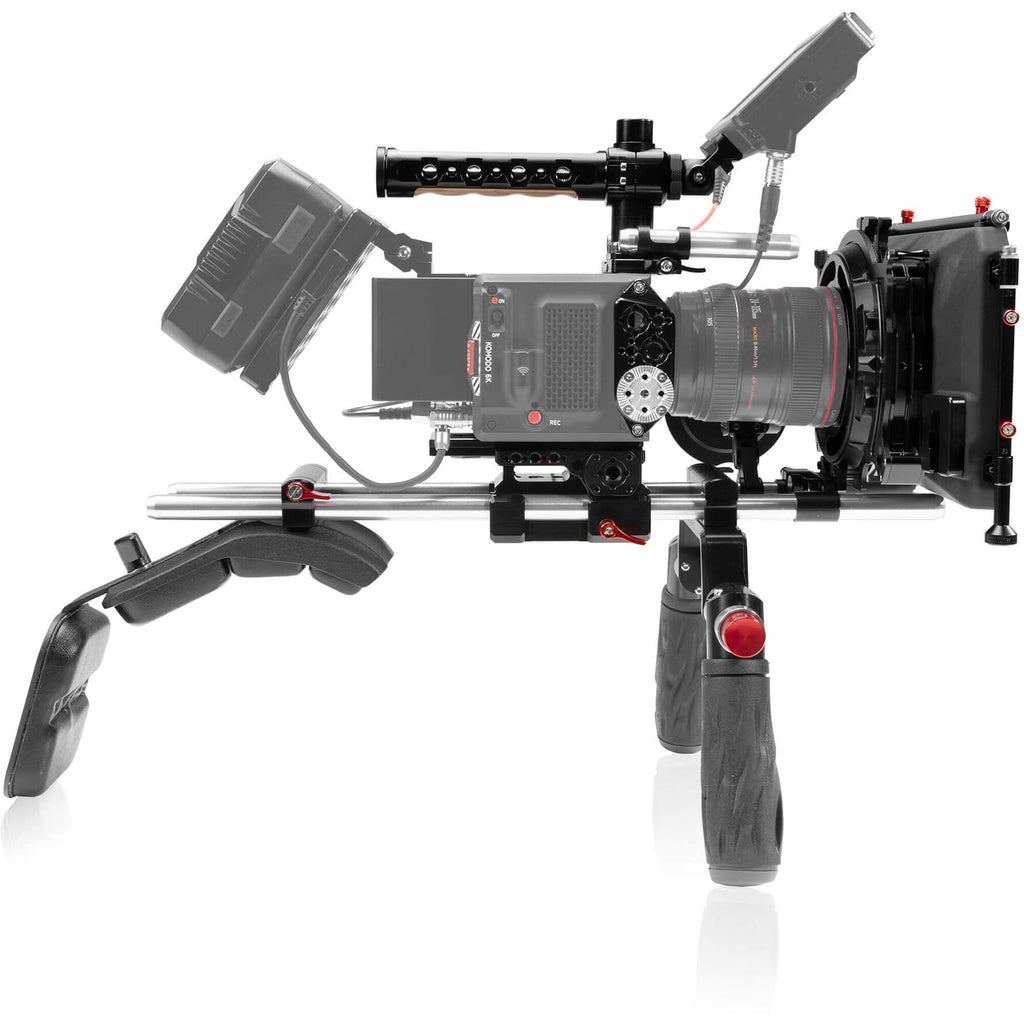

SHAPE Shoulder Mount System with Matte Box & Follow Focus Kit for RED KOMODO

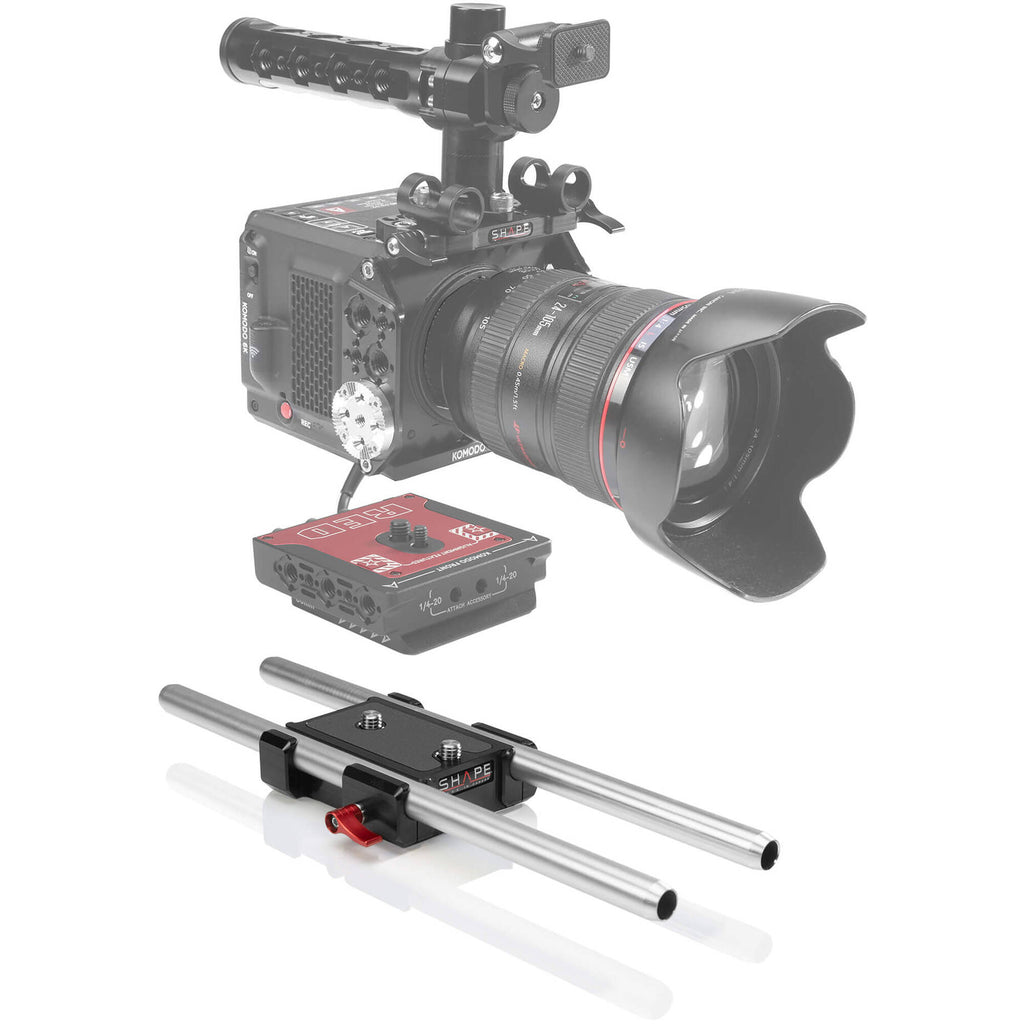

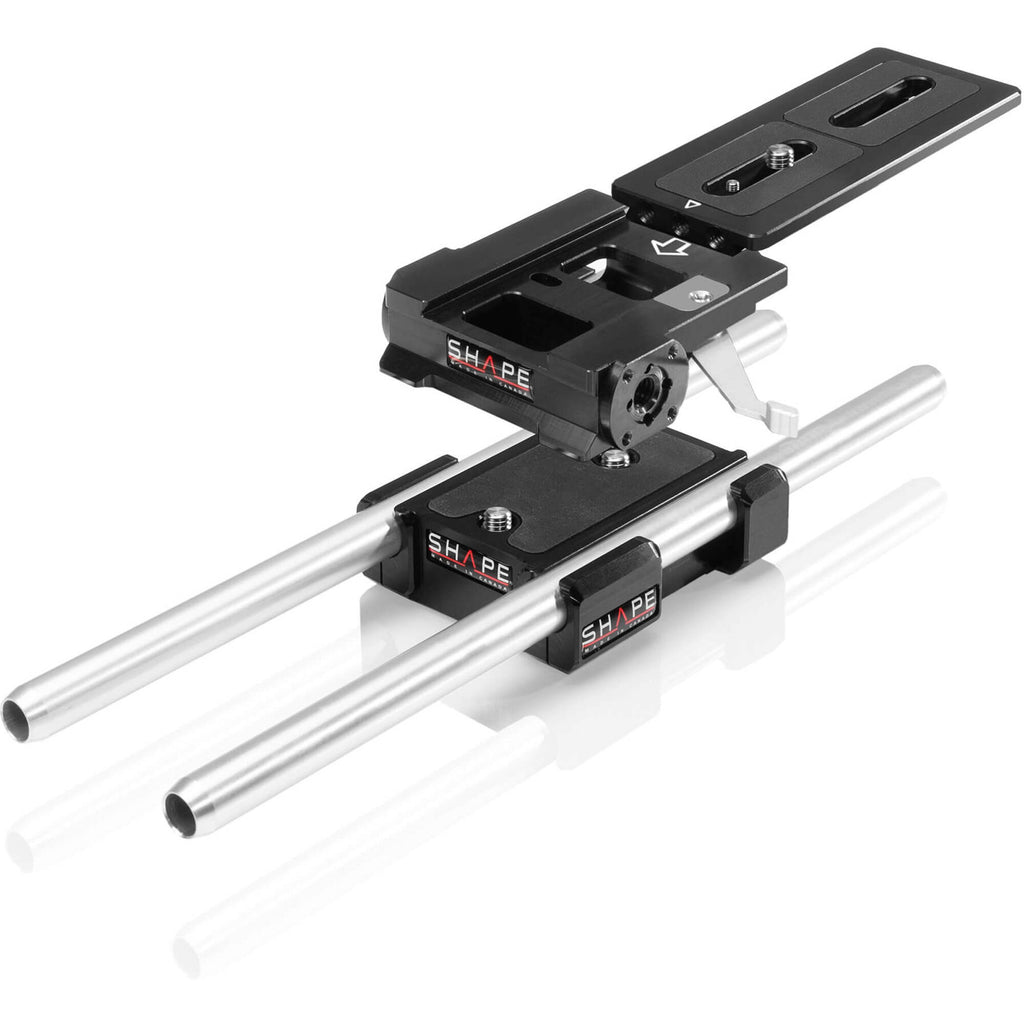

The SHAPE 15mm Lightweight Baseplate for RED KOMODO is a flexible system designed so you can easily swap your camera between a lightweight Ronin 2 gimbal system and a tripod-mounted system without having to swap baseplates. It features a dovetail plate, an adapter plate, and a lightweight baseplate with rod clamps. The dovetail adapter mounts onto the 15mm lightweight baseplate, and the dovetail plate mounts on your camera enabling you to move between your gimbal and your tripod.

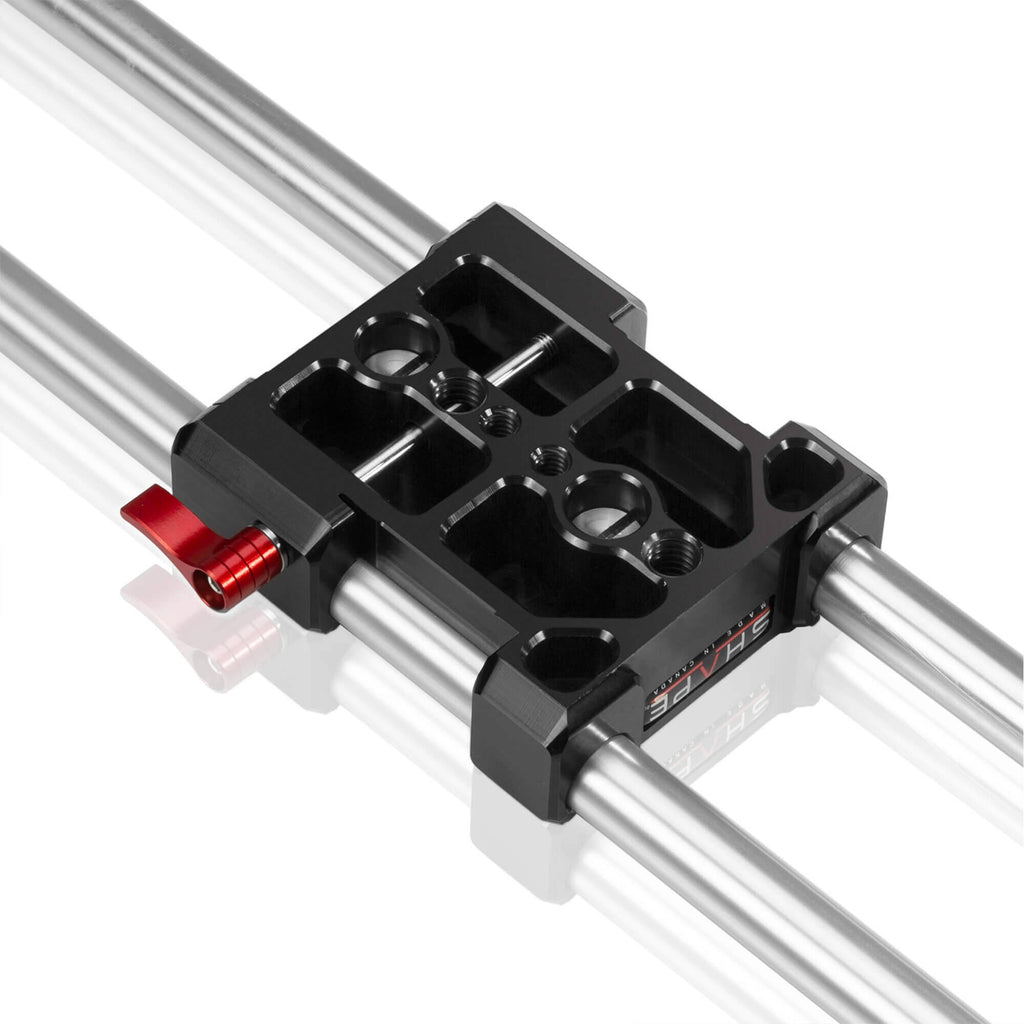

The adapter plate features two 3/8"-16 threaded mounting holes with ARRI-style anti-twist divots, one on each side of the plate, that accept a variety of accessories as well as optional SHAPE ARRI-style rosette inserts for attaching handgrips for handheld use. The lightweight baseplate mounts on your tripod/tripod plate via 1/4"-20 and 3/8"-16 threaded holes, and it has integrated 15mm LWS rod clamps for the included aluminum rods.

Compatibility

Mounting

Add flexible carrying and improved accessory mounting, while protecting your RED KOMODO cinema camera with this SHAPE Camera Cage with Top Handle for RED KOMODO. The top handle features SHAPE's well-known push-button release system, which is fast, secure, and won't slow down your shoot. The top handle also features a tilting bracket suitable for adding a monitor, light, or even a microphone to your rig, keeping your rig light and compact by avoiding additional accessory mounting equipment.

The durable 3-piece cage is built around the top plate that you mount on your KOMODO, and this allows you to mount the side riser panels and the included 15mm rod clamps. Once mounted on your camera, you've created a sturdy external cage that provides accessory mounting holes, as well as ARRI-compatible rosettes on each side for mounting optional grips to help you when handholding the rather boxy camera.

The Top Handle

Cage

Accessorize

Accessory Mounting on the Cage

Rod Clamps

The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.

Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into.

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference � up to 2" vertically and 360° horizontally.

Compatible Support Series

Use the compact SHAPE Follow Focus Kit with Single 15mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens.

At the core of the kit is a rubber, anti-slip follow focus wheel attached to a single aluminum 15mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses.

Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.

For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.

The SHAPE 2-Stage 4 x 5.6" Clip-On and 15mm LWS Rod-Mounted Matte Box provides filmmakers flare and glare protection when creating their images, whether in a minimal configuration or on a large studio shoot. The matte box can be used either as a clip-on matte box when not using rods or with 15mm LWS rod supports, providing you the flexibility to use the same matte box in either shooting situation. The matte box comes with 114 and 84mm clip-on adapter rings.

The matte box features two rotating 4 x 5.6" filter stages, ideal for use with polarizers, grad, and effect filters. The two included 4 x 5.65" filter holders feature a spring-latch system to hold your filters securely, and each filter stage has a locking knob that enables you to precisely set the height of your filter in the stage. The matte box accepts lenses with a front diameter up to 114mm, and it includes an 82mm filter ring. It comes with six step-down rings that allow you to use lenses with an outer diameter of 52, 58, 62, 67, 72, and 77mm, preventing light from sneaking past the lens from behind the camera and degrading your image.

Compatibility

These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
