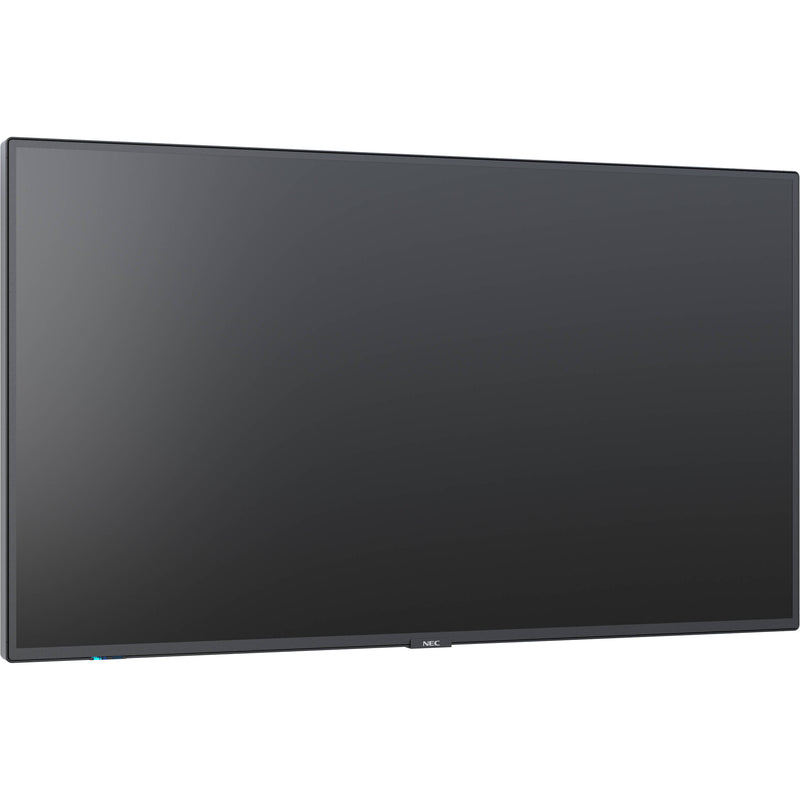

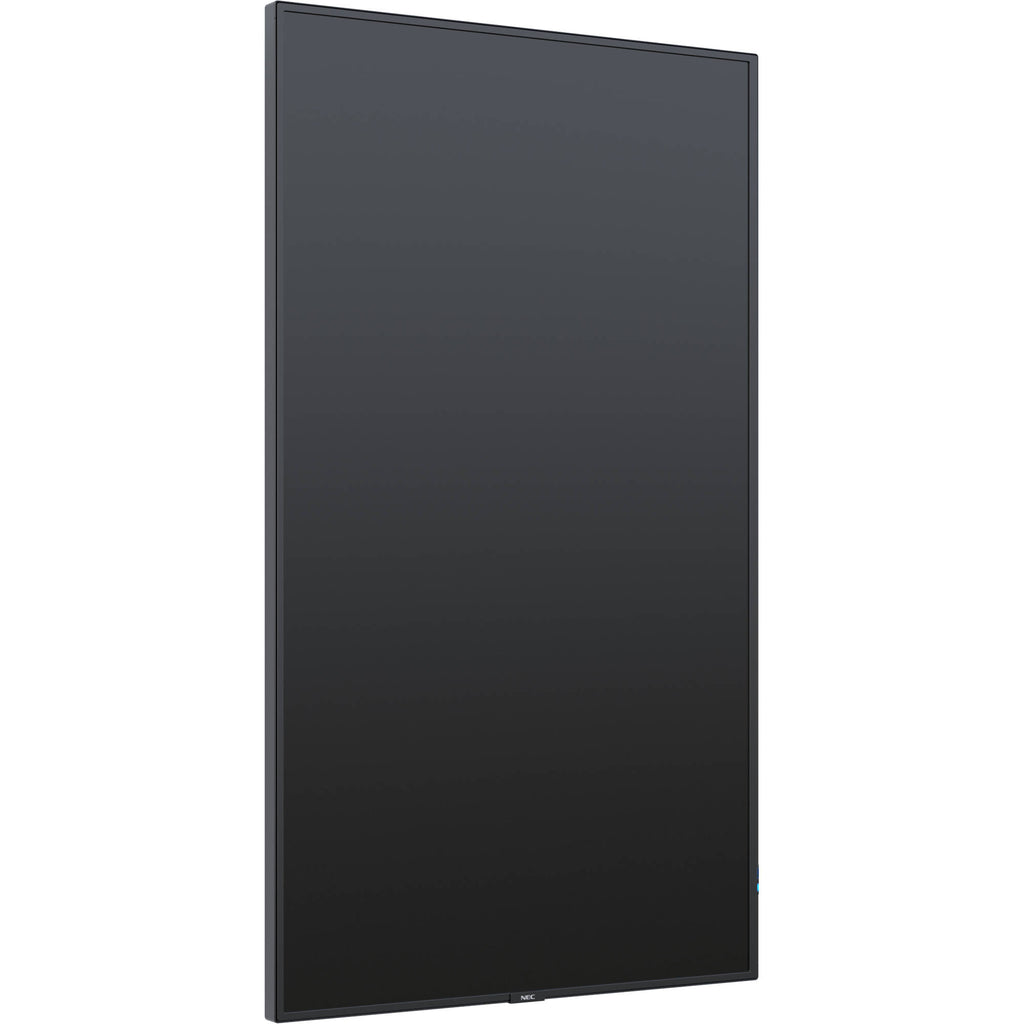

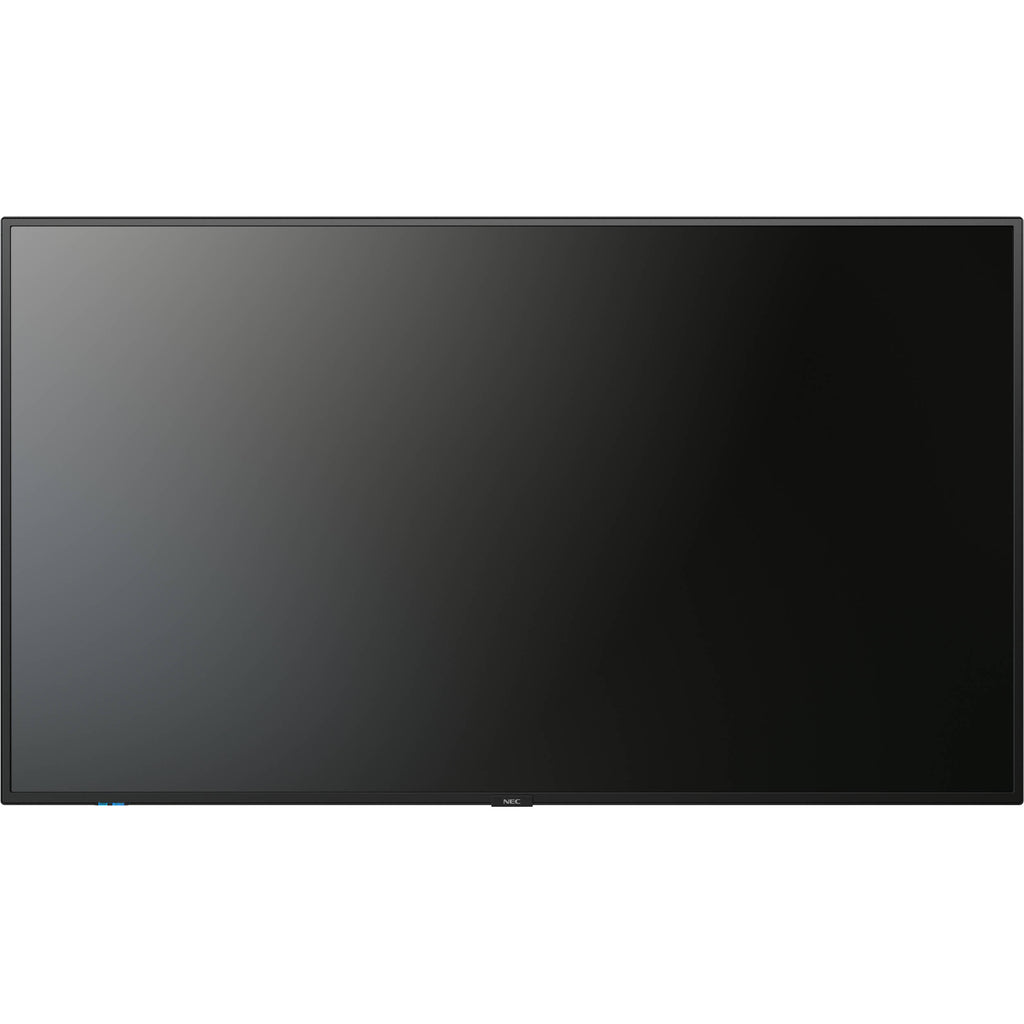

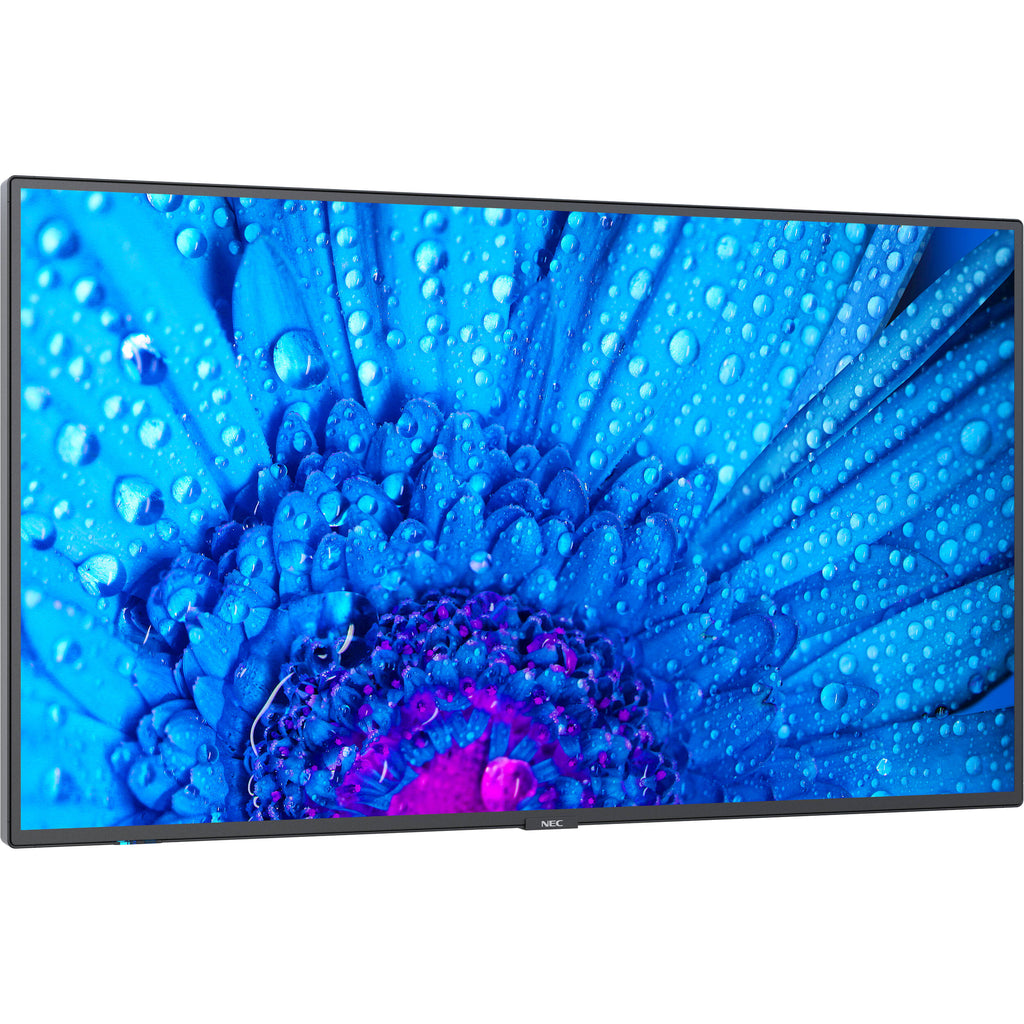

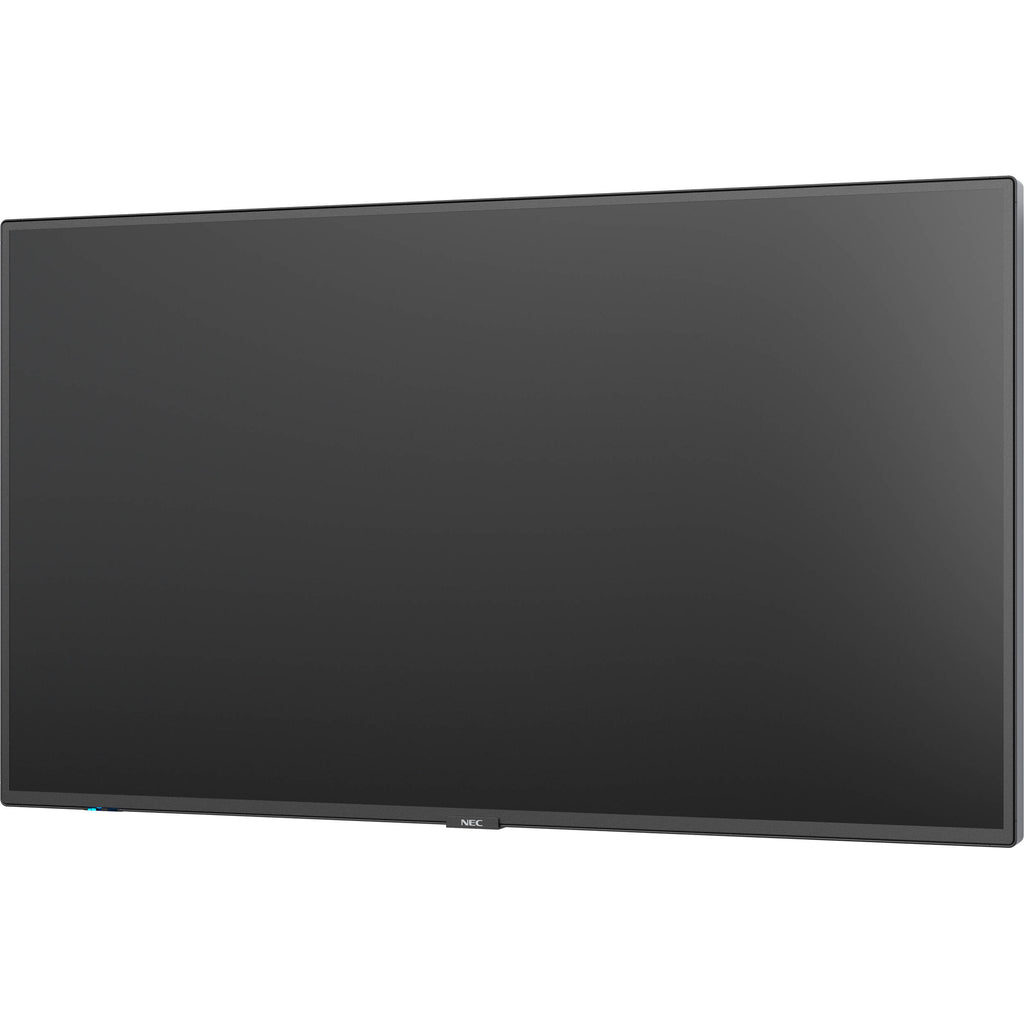

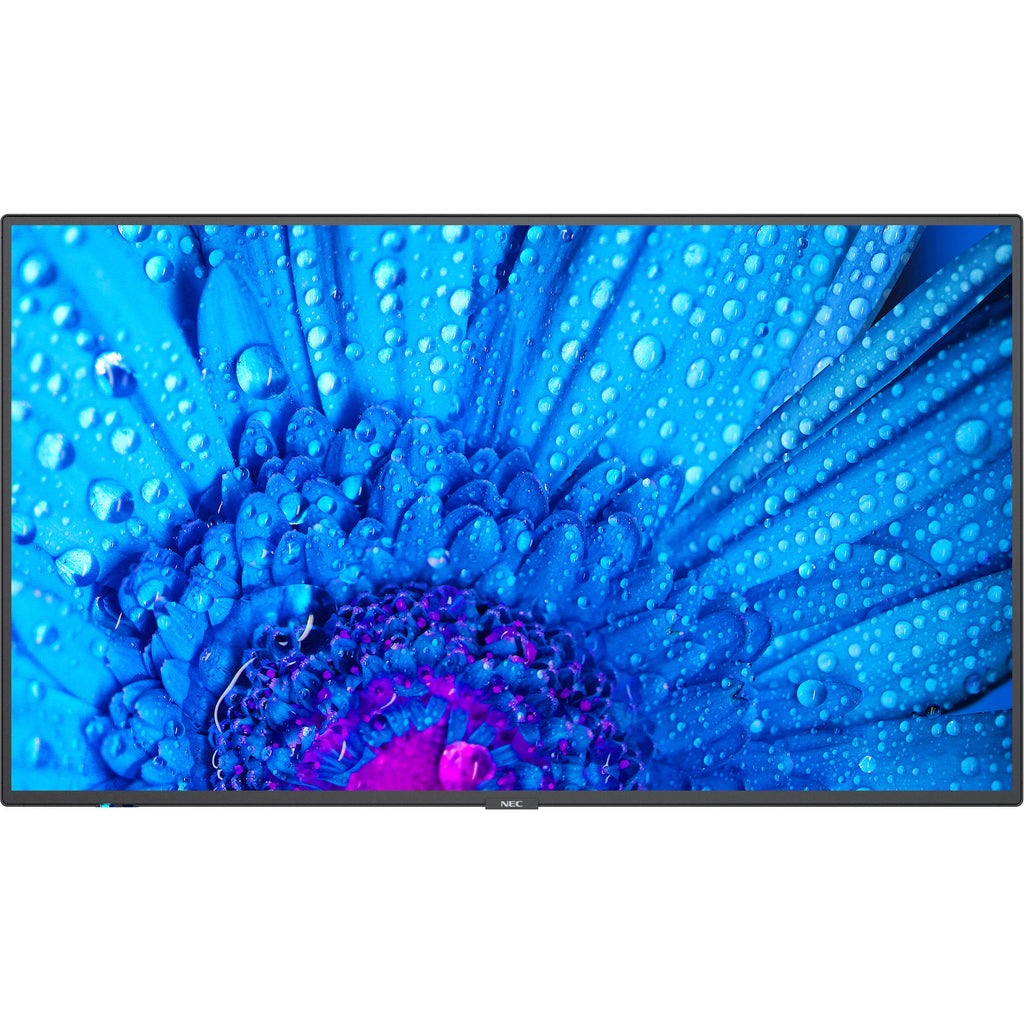

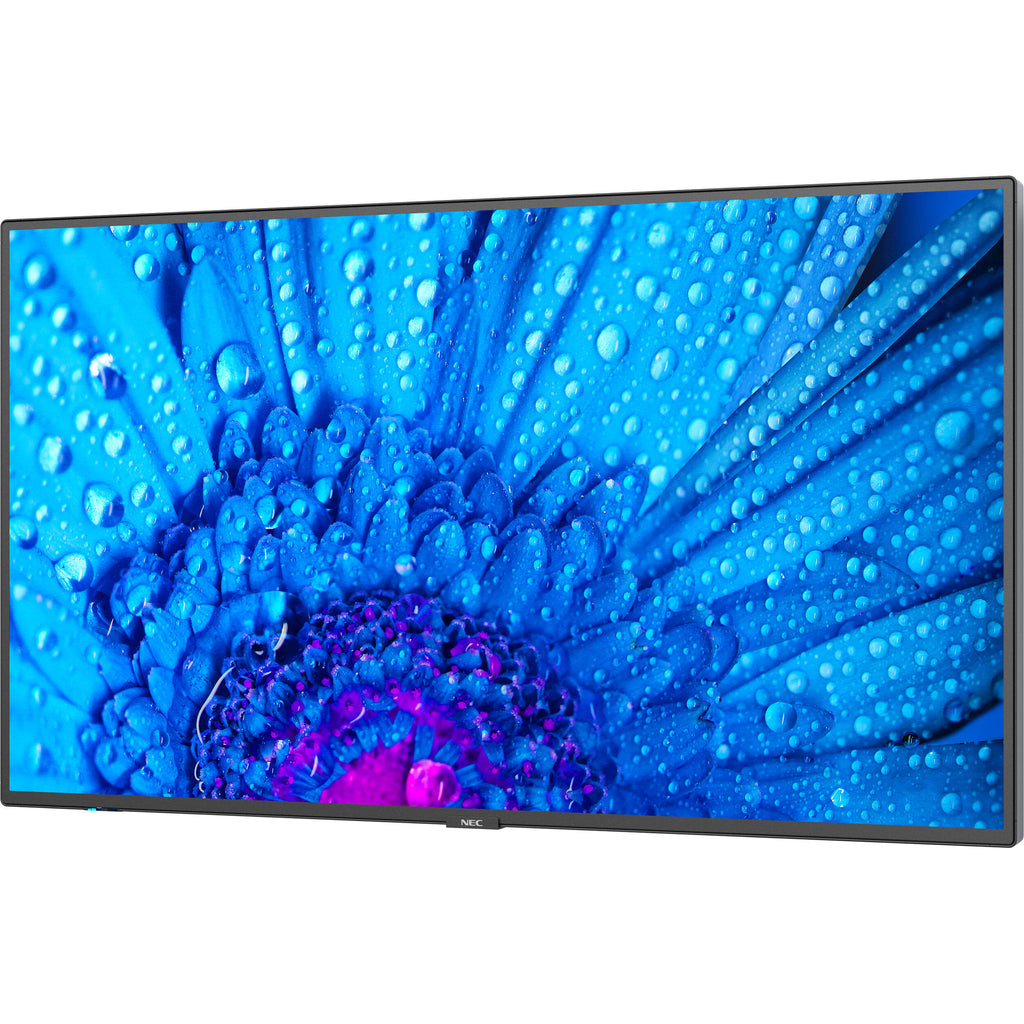

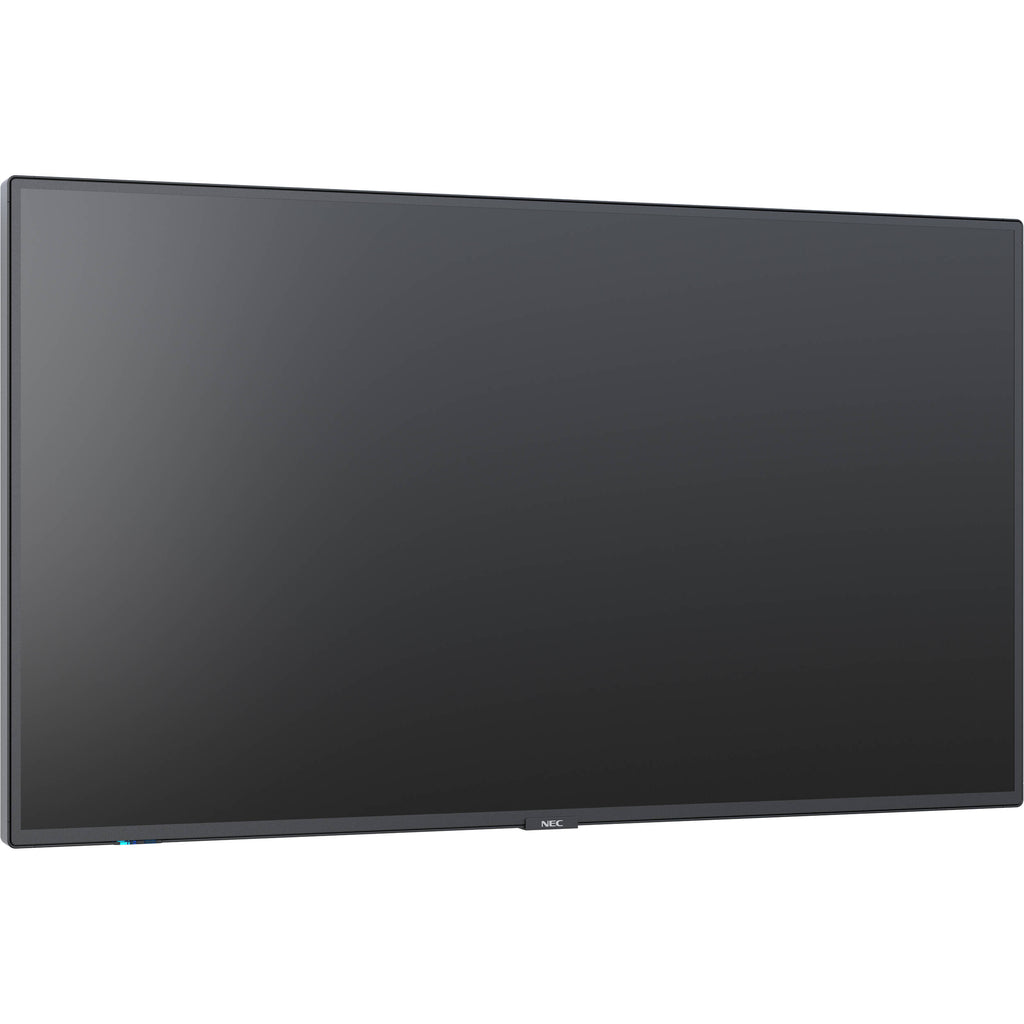

Sharp M551-2 55" UHD 4K HDR Commercial Monitor

Full Commercial Build

The M551-2 is ready for installation in commercial environments with a rugged full-metal chassis and integrated carrying handles that reduce the likelihood of damage during installation. On top of that, built-in temperature sensors and active cooling fans ensure the display remains cool and at a constant brightness output in order to maintain professional level image quality.

Modular Expandability

The M Series accepts Intel Smart Display Modules, both large and small, through integrated slots for sleek all-in-one functionality. Audio, video, control, and power signals are all internal from the Intel SDM through to the display, simplifying installations and allowing for clean and easy set-up.

The M series also expands on the success of earlier display line-ups by allowing for the optional implementation of a Raspberry Pi Compute Module 4 directly into each display. The Raspberry Pi Compute Module 4 outperforms previous versions by offering gigabyte network speeds, faster CPU processing, and true 4K support.

Input Detect Functionality

This feature allows users to prioritize up to three inputs so, if a primary source goes down, the display will automatically switch to whatever input has been prioritized next. The first detect option also allows for the display to automatically turn on to any source that plugs into it, allowing the display to wake on any signal.

NaViSet Administrator 2

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on-demand control options. Control your entire NEC ecosystem through this free optional asset management software.

Naviset Server Edition (NASE) expands on the device management capabilities of Naviset Administrator 2 by providing enterprise level display management such as: Multi-user support with secured communications and logging, running as an on-premises server with remote access, a browser-based interface aimed at mobile devices for management on the go, REST API support for interfacing with other applications and management systems, and support for secure access to remote devices on other networks via the Internet.

Additional Features

• AMX support
• Automated email alert function
• HDMI ARC support
• Crestron RoomView support
• Display browser control
• Display wall calibrator compatible
• OSD rotation for portrait orientation
• PJ Link support
• Removable logo
• Real time clock
• Local dimming
• Tile matrix
• SNMP
• CEC
• Integrated USB media player
• Integrated temperature sensor
• Programmable gamma
• ENERGY STAR 8.0
• Scheduler function
• Off timer
• Vacation switch

Sharp M551 Specs

Display Size	54.6"
Native Resolution	3840 x 2160
Maximum Brightness	500 nits / cd/m2
Inputs	2x HDMI 2.0 1x DisplayPort 1.2
Outputs	1x 1/8" / 3.5 mm (Analog Audio)
Wireless	IR
USB I/O	1x USB-A 2.0 (Audio/Charging/Photo/Video/Service)
Ethernet I/O	1x RJ45 10/100 Mb/s Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input 1x 1/8" / 3.5 mm IR Input
Built-In Speakers	Yes, 2x 10 W
Media Card Reader	No

Display Size	54.6"
Panel Type	VA LCD
Aspect Ratio	16:9
Display Orientation	Landscape, Portrait
Native Resolution	3840 x 2160
Maximum Brightness	500 nits / cd/m2
HDR Support	Yes, HDR10/Hybrid Log Gamma
Contrast Ratio	8000:1
Response Time	< 8 ms (GtG)
Refresh Rate	60 Hz
Color Support	1.07 Billion Colors (8-Bit+FRC)
Color Gamut	72% NTSC
Viewing Angle (H x V)	178 x 178°
Screen Area	47.6 x 26.8" / 1209.6 x 680.4 mm
Horizontal Frequency	15 to 136 kHz
Vertical Frequency	23 to 76 Hz
Pixels Per Inch (ppi)	81 ppi
Finish	Anti-Glare / Matte

Haze Level

25%

TV Tuner

No

Inputs	2x HDMI 2.0 1x DisplayPort 1.2
Outputs	1x 1/8" / 3.5 mm (Analog Audio)
HDCP Support	Yes, Version 2.2
Wireless	IR
NFC	No
USB I/O	1x USB-A 2.0 (Audio/Charging/Photo/Video/Service)
Ethernet I/O	1x RJ45 10/100 Mb/s Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input 1x 1/8" / 3.5 mm IR Input
Number of OPS/Expansion Slots	2
Ambient Light Sensor	No
Multi-Input Support (PIP/PBP)	No

Built-In Speakers	Yes, 2x 10 W
Speaker Configuration	2-Channel

Smart TV	Yes
Media Card Reader	No
Built-In Mic	No

Supported Video File Types	H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, TS, WMV, WMV3
Supported Audio File Types	AAC, LPCM, MP1, MP2, MP3, WMA, WMA Pro, WMA9
Supported Photo File Types	JPE, JPEG, JPG

Power Consumption	Typical: 120.0 W Maximum: 265.0 W Network Standby: 2.0 W Standby: 0.5 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Certifications	FCC, CE, UKCA, WEEE
Mounting-Hole Pattern	400 x 400 mm
Impact Resistance	No
Lock Slot	Yes, Kensington
Bezel Thickness	13.9 mm
Duty Cycle	24 Hours / 7 Days
Dimensions	48.9 x 28.1 x 2.5" / 1242.1 x 713.7 x 63.5 mm
Weight	43.7 lb / 19.8 kg

Package Weight	59 lb
Box Dimensions (LxWxH)	56 x 36 x 9.8"
