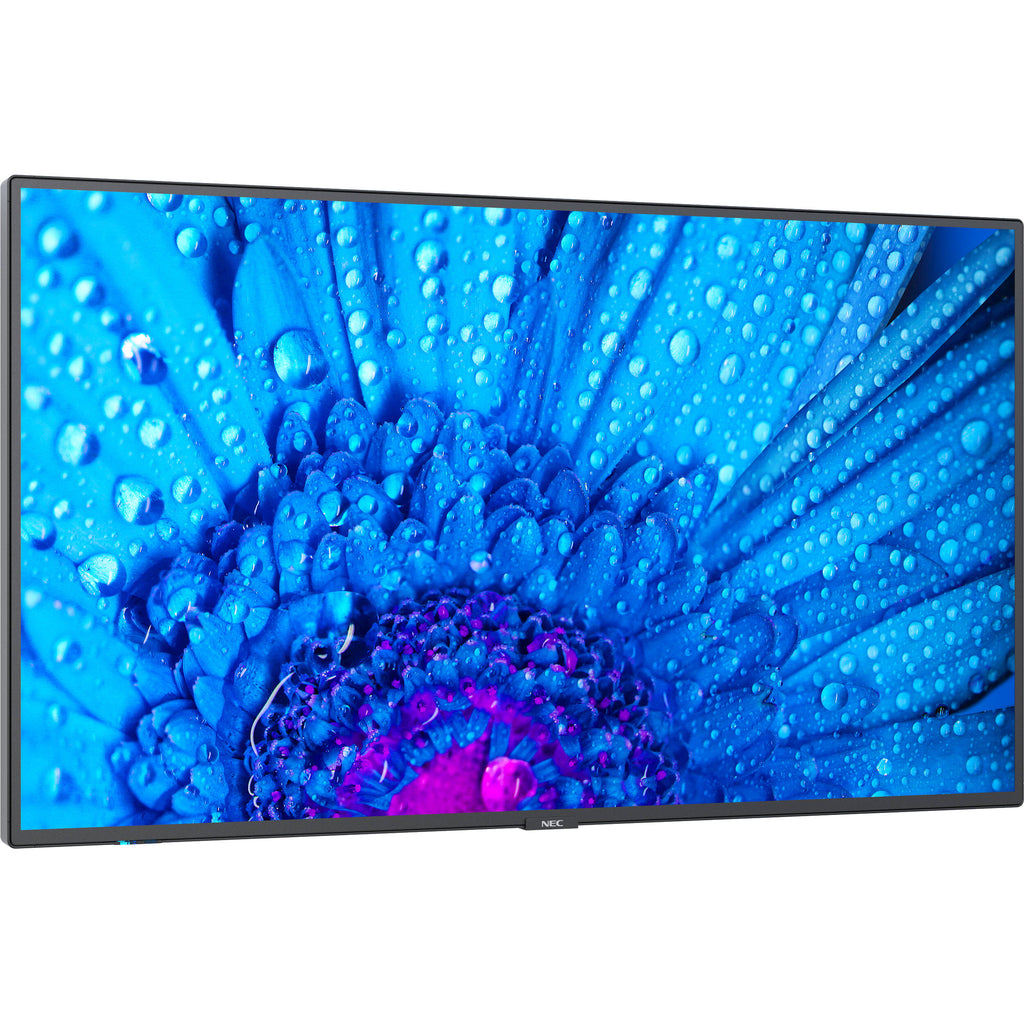

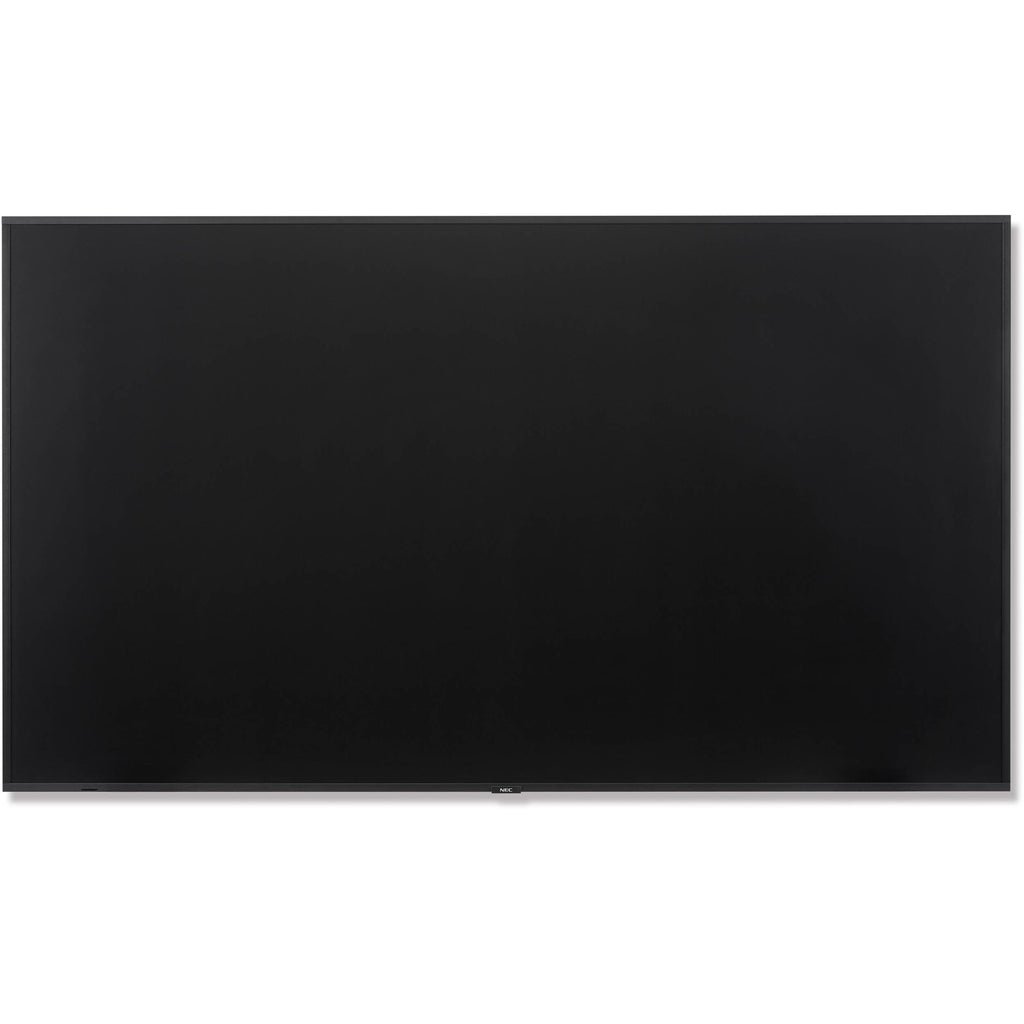

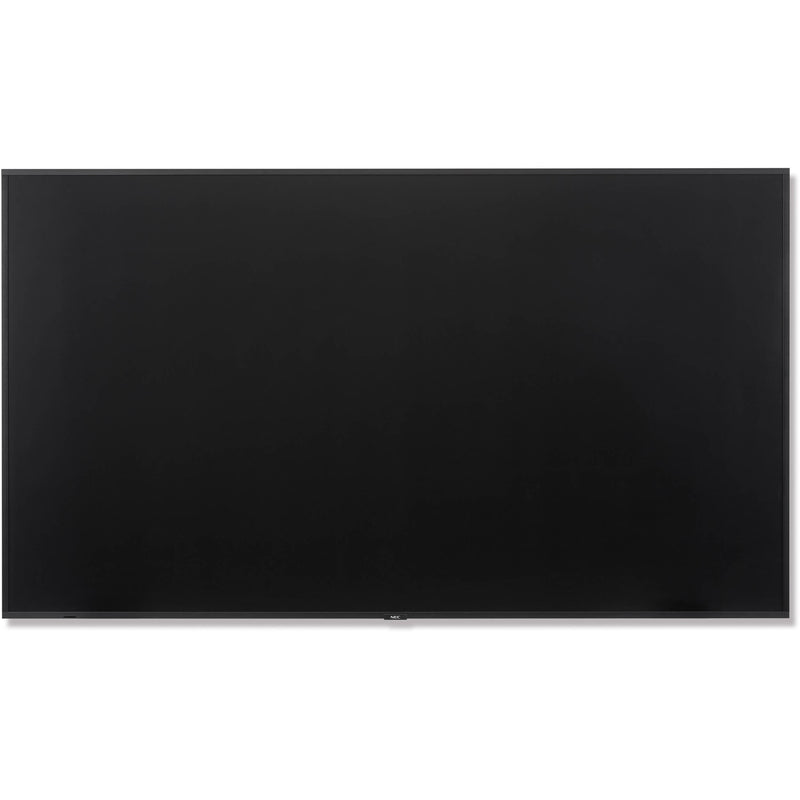

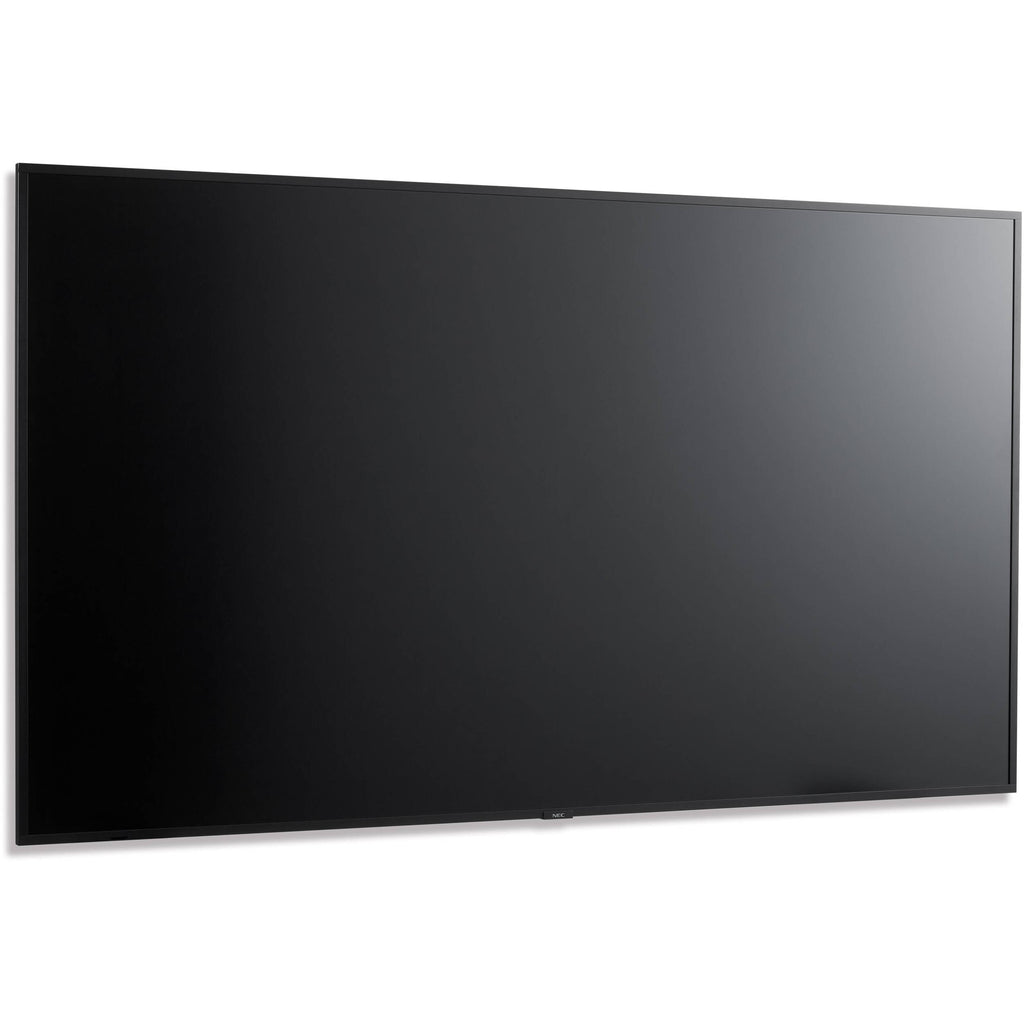

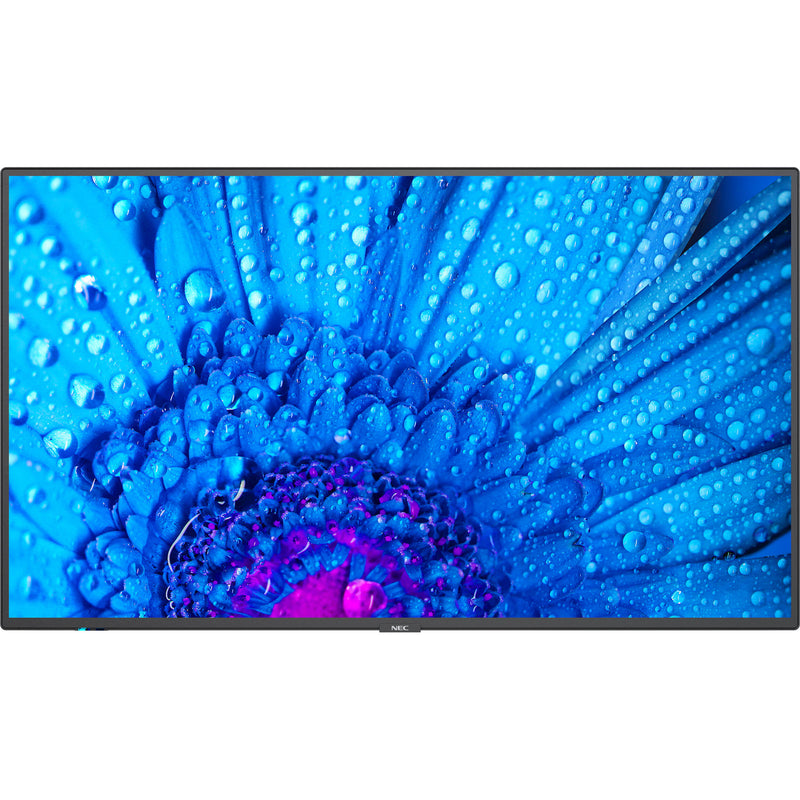

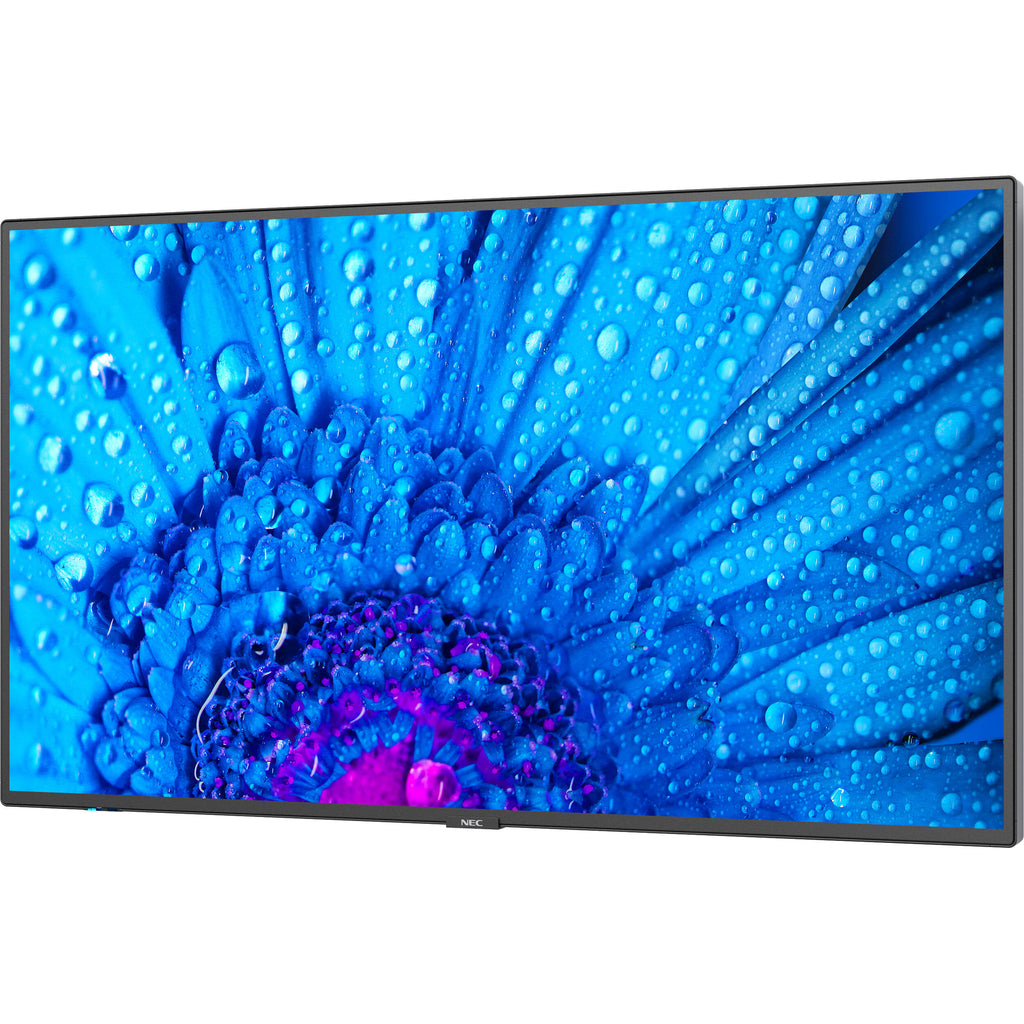

Sharp M751 75" Class UHD 4K HDR Commercial Monitor

Industrial-Strength, Premium-Grade Panel

A full metal mechanical chassis allows for the ruggedness needed for true commercial environments while integrated carrying handles reduce the likelihood of damage during installation. On top of that, integrated temperature sensors and active cooling fans ensure that the display remains cool and at a constant brightness in order to maintain professional-level image output and allow for 24/7 operation.

Enhanced Daisy Chain Capabilities

The M751 display contains the ability to directly daisy chain both the HDMI and DisplayPort input signals. The DisplayPort daisy chain is enhanced due to DisplayPort 1.4 connectivity and HBR3 capabilities. This allows for multi-stream transport capabilities that can drive up to four independent displays from a single DisplayPort source by multiplexing several video streams into a single stream and sending it to the display that then acts as a branch device to demultiplex the signals into the original streams. This allows for up to four independent content pieces to be driven off of a single source. On top of this, simultaneous output and signal conversion through dual daisy chain functionality can allow for immediate source switching if multiple displays are needed to be used at once. LAN daisy chain functionality can be used to tie displays together from a control perspective.

Spectraview Engine

The large-sized NEC M series panels contain professional color control through proprietary Spectraview Engine technology. Spectraview Engine allows for 6-axis color trim functionality of RGBCYM for hue, offset, and saturation adjustments. Also, it can allow for up to five different programmable picture modes to be saved and recalled when necessary. These picture modes can have individual CIE Color settings, intensity, gamma, and white point settings if desired.

Multi-Picture Mode

NEC MultiSync M series displays can support multiple simultaneous images at the same time, like picture-in-picture or picture-by-picture, through Multi-Picture Mode. This, in conjunction with SpectraView Engine Technology, can allow for each separate image to even have different defined color settings if necessary. This means that each part of the display can be optimized for the type of content that is being displayed.

NaViSet Administrator

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on demand control options. Control your entire NEC ecosystem through this free optional asset management software. NaViSet Server Edition (NASE) expands on the extensive device management capabilities of NaViSet Administrator 2 by providing enterprise level display management such as, multi-user support with secured communications and logging, running as an on-premises server with remote access, a browser-based interface aimed at mobile devices for management on the go, REST API support for interfacing with other applications and management systems, and support for secure access to remote devices on other networks via the internet.

Intel SDM Compatible

The M751 accepts Intel Smart Display Modules through clever mechanical and electrical design allowing for sleek all-in-one intelligence and interoperability in a small form factor setting. This allows for the flexible implementation of Intel processor-based products directly into the NEC M series products without having to deal with the hassles of mounting external devices and running video or audio cabling. Audio, video, control, and power signals are all internal from the Intel SDM through to the display, simplifying installations and allowing for clean and easy set-up.

Raspberry Pi Compatible

As another option, the M751 allows for the implementation of a Raspberry Pi Compute Module 4 directly into each display. The Raspberry Pi Compute Module 4 offers gigabit network speeds, faster processing than previous versions, and true 4K support. This version also comes imaged with the user-friendly NEC Mediaplayer. Through an intuitive user-interface, the NEC Mediaplayer allows you to load, schedule and edit playlists, access internal storage, access online media through an internal browser, or even image the Raspberry Pi to qualified CMS partner platforms. This can all be done through the supplied NEC remote control or remotely through a web interface.

Additional Features

• AMX support
• Automated email alert function
• Crestron Connected
• Display browser control
• Display wall calibrator compatible

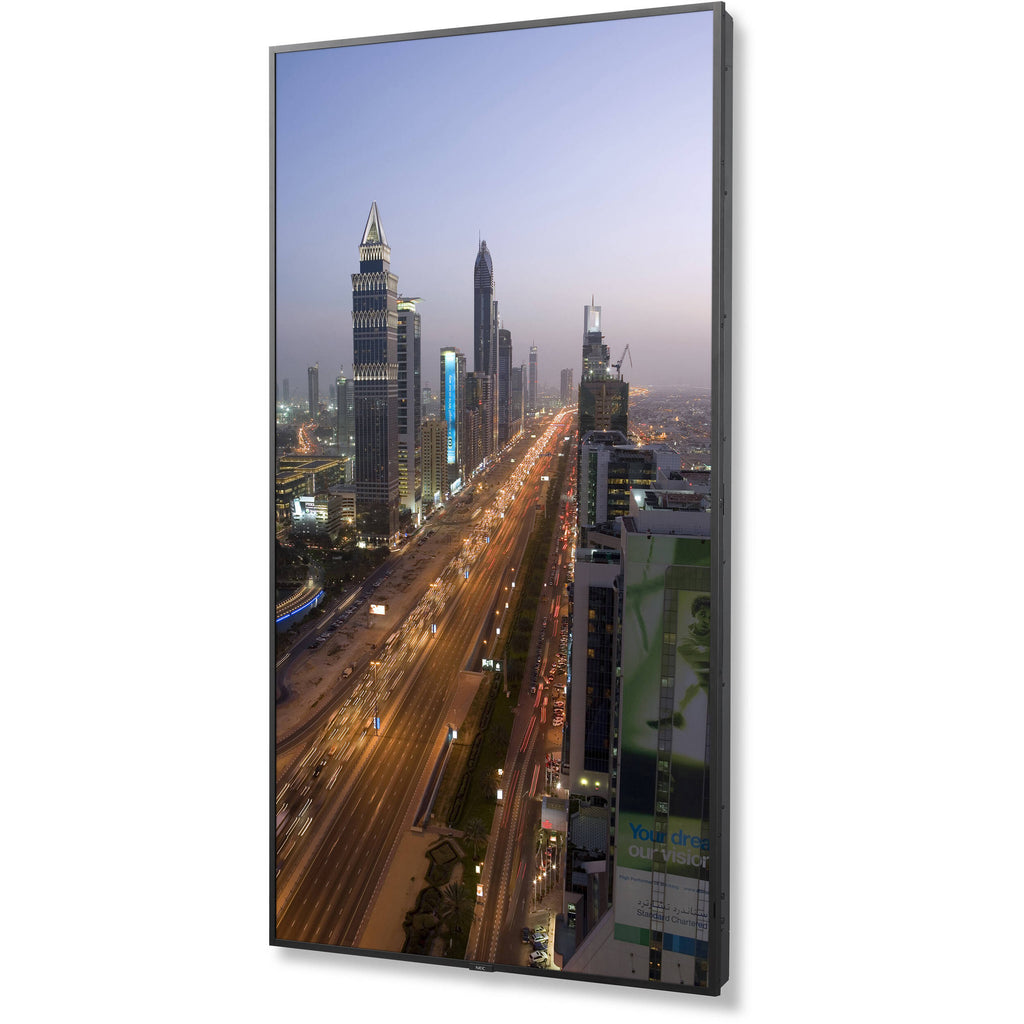

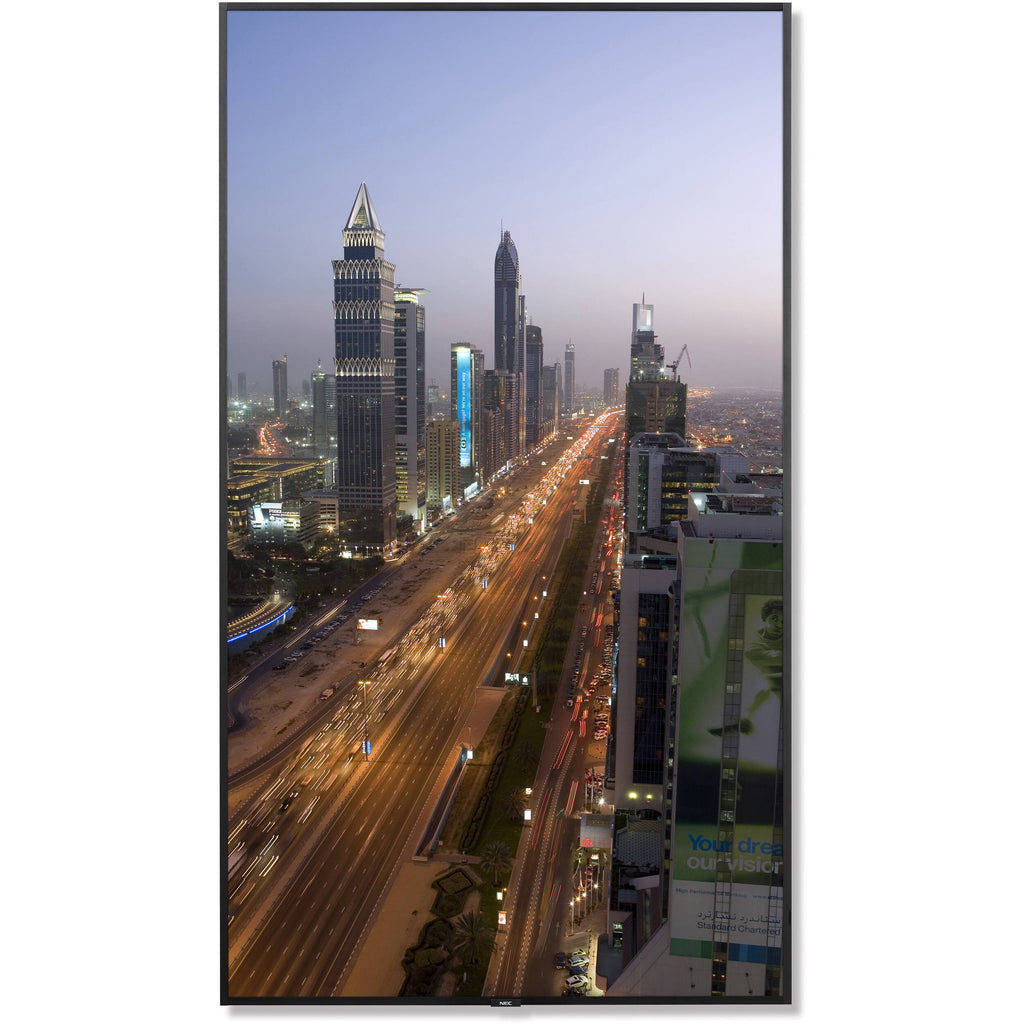

• OSD rotation for portrait orientation
• PJ Link support
• Low-latency mode
• Removeable logo
• Real-time clock
• Local dimming
• TileMatrix
• Cisco Webex compatible
• SNMP
• CEC through HDMI
• Pivot feature through G-sensor
• Full input detect functionality
• Programmable gamma
• Internet time server
• Quick start
• Energy Star 8.0
• Color vision emulation
• 6-axis color trim
• Uniformity adjustment
• Scheduler function
• Off timer
• Vacation switch

Sharp M751 Specs

Display Size	75"
Native Resolution	3840 x 2160
Maximum Brightness	500 nits / cd/m2
Inputs	2x HDMI 2x DisplayPort
Outputs	1x HDMI 1x DisplayPort 1x 1/8" / 3.5 mm
Wireless	No
USB I/O	1x USB-A (Unspecified Version) (Charging/Control) 1x USB-B (Unspecified Version) (Charging/Control) 1x USB-A (Unspecified Version) (Service)
Ethernet I/O	1x RJ45 10/100 Mb/s Ethernet
Built-In Speakers	Yes, 2x 10 W
Media Card Reader	No

Display Size	75"
Panel Type	IPS-Type LCD
Aspect Ratio	16:9
Display Orientation	Landscape, Portrait
Native Resolution	3840 x 2160
Maximum Brightness	500 nits / cd/m2
HDR Support	Yes, HDR10/Hybrid Log Gamma
Contrast Ratio	8000:1
Refresh Rate	60 Hz
Screen Area	64.95 x 36.53" / 1649.66 x 927.94 mm
Horizontal Frequency	15 to 135 kHz
Vertical Frequency	23 to 76 Hz
Pixels Per Inch (ppi)	59 ppi

Haze Level

28%

TV Tuner

No

Inputs	2x HDMI 2x DisplayPort
Outputs	1x HDMI 1x DisplayPort 1x 1/8" / 3.5 mm
Wireless	No
NFC	No
USB I/O	1x USB-A (Unspecified Version) (Charging/Control) 1x USB-B (Unspecified Version) (Charging/Control) 1x USB-A (Unspecified Version) (Service)
Ethernet I/O	1x RJ45 10/100 Mb/s Ethernet
Number of OPS/Expansion Slots	1
Ambient Light Sensor	Yes
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP), Picture-by-Picture (PBP)

Built-In Speakers	Yes, 2x 10 W
Speaker Configuration	2-Channel
External Speaker Output	2x 15 W

Mobile App Compatible	No
Media Card Reader	No
Built-In Mic	No

Power Consumption	Typical: 205.0 W Maximum: 410.0 W Standby: 0.5 W
Power Adapter Type	Internal

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 10 to 80% Humidity
Mounting-Hole Pattern	No
Lock Slot	No
Bezel Thickness	14.3 mm (Right/Top/Left) 14.8 mm (Bottom)
Duty Cycle	24 Hours / 7 Days
Dimensions	66.2 x 37.8 x 3.3" / 1682.3 x 961.1 x 83.2 mm
Weight	84.2 lb / 38.2 kg

Package Weight	109.5 lb
Box Dimensions (LxWxH)	71 x 42 x 9"
