Description

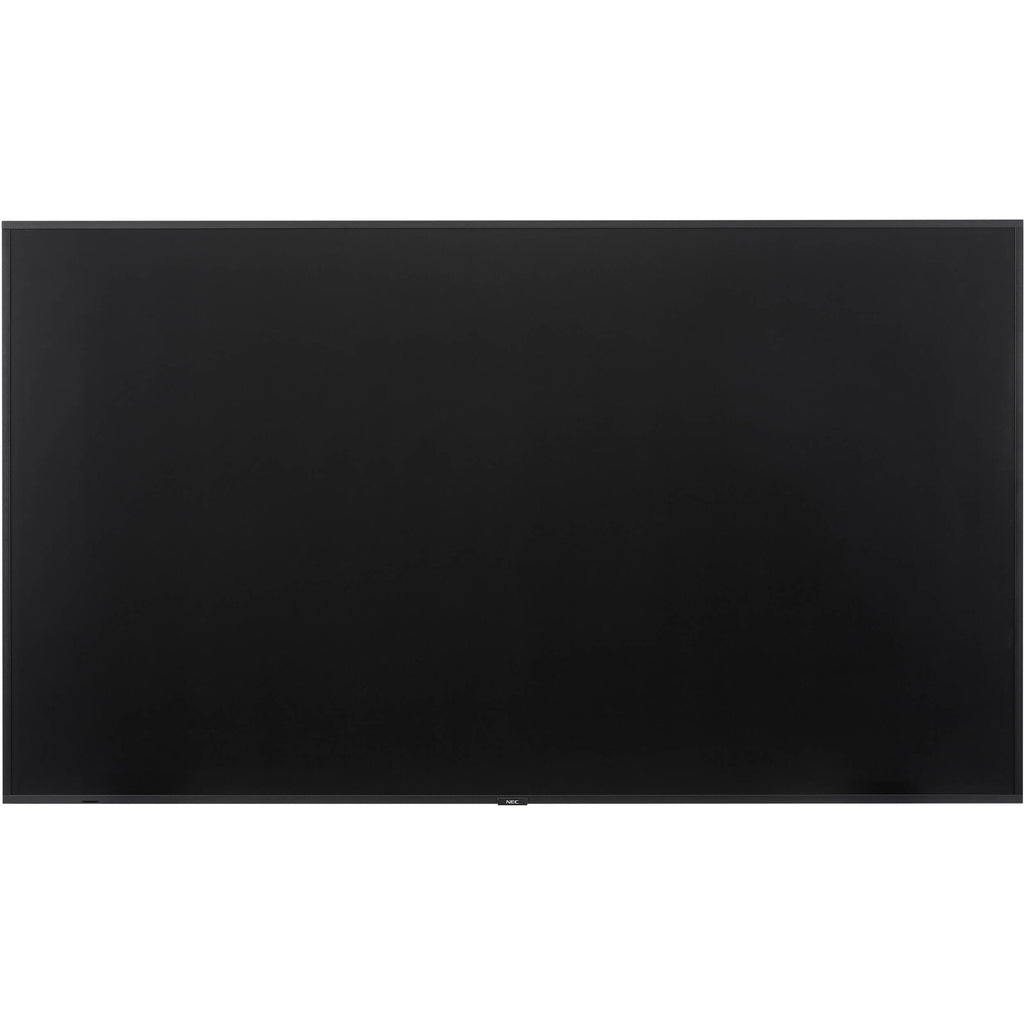

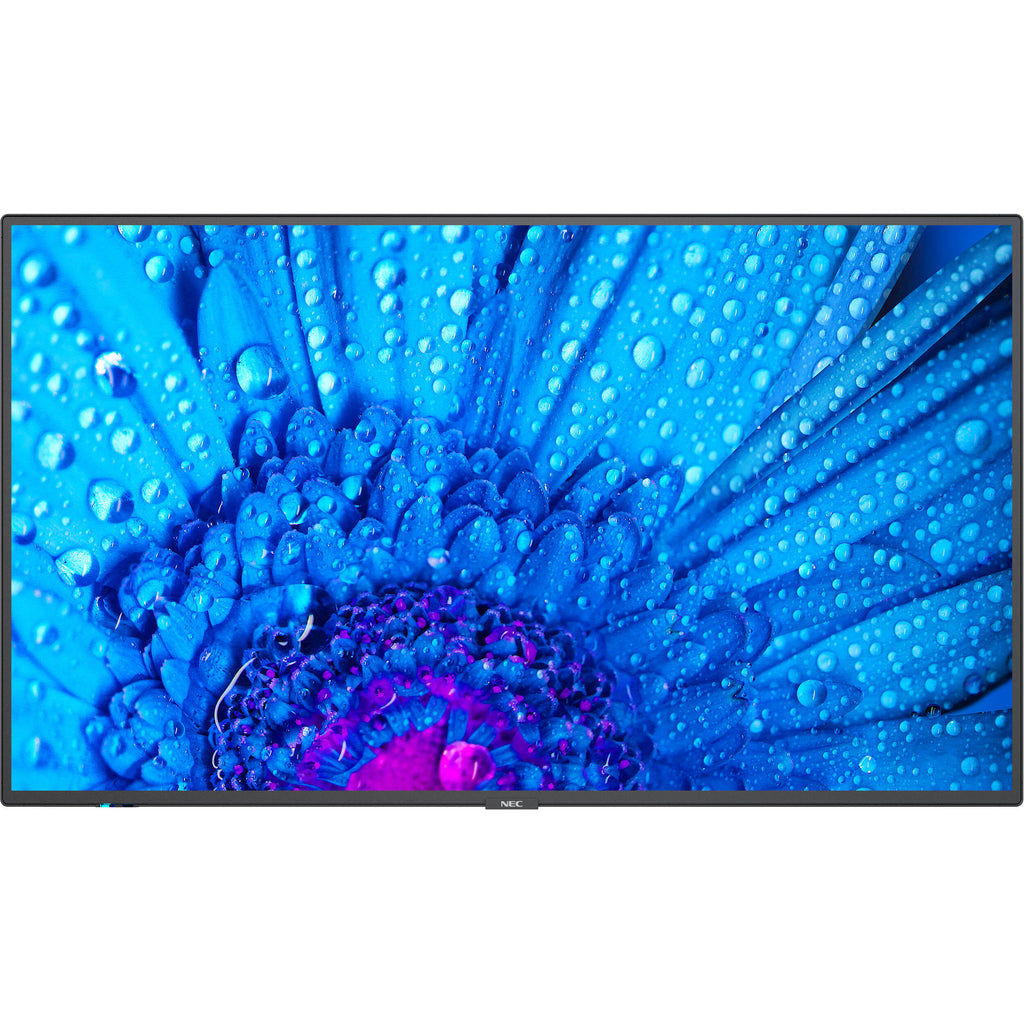

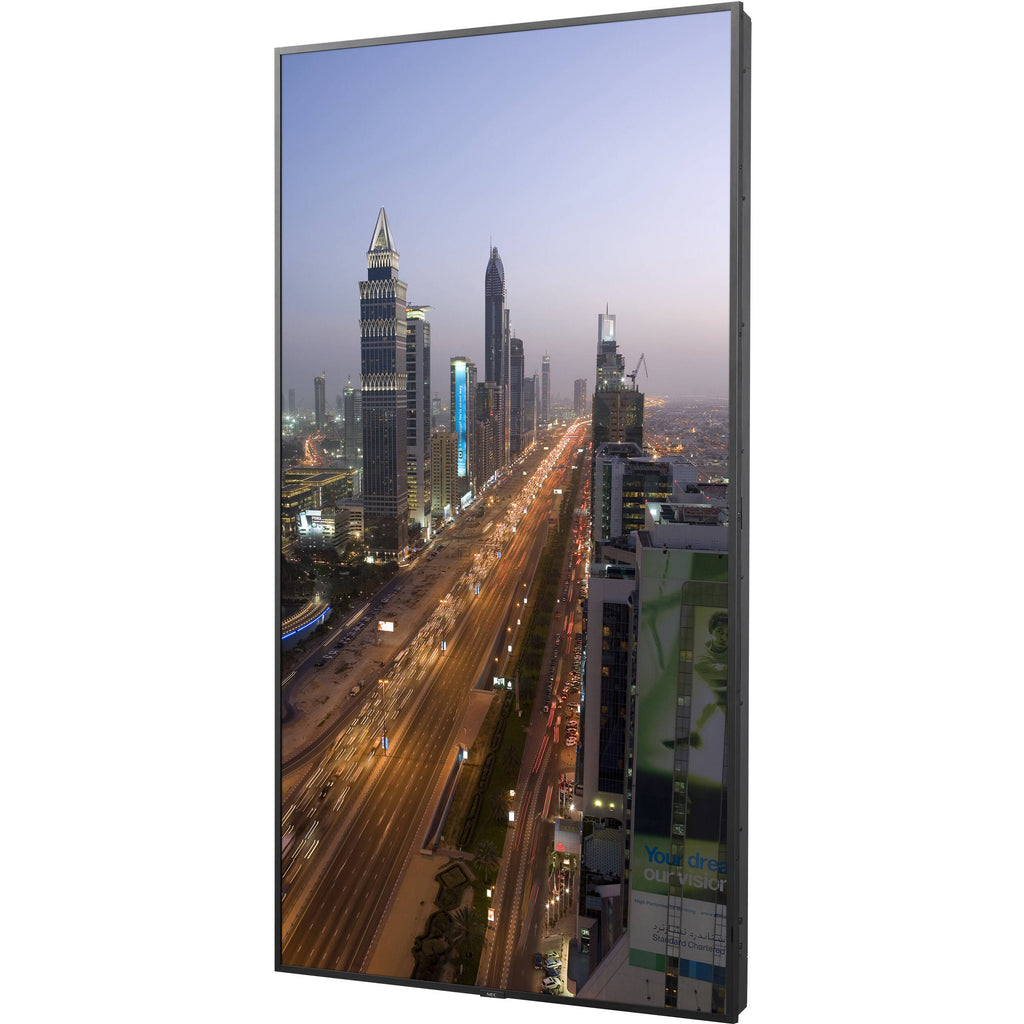

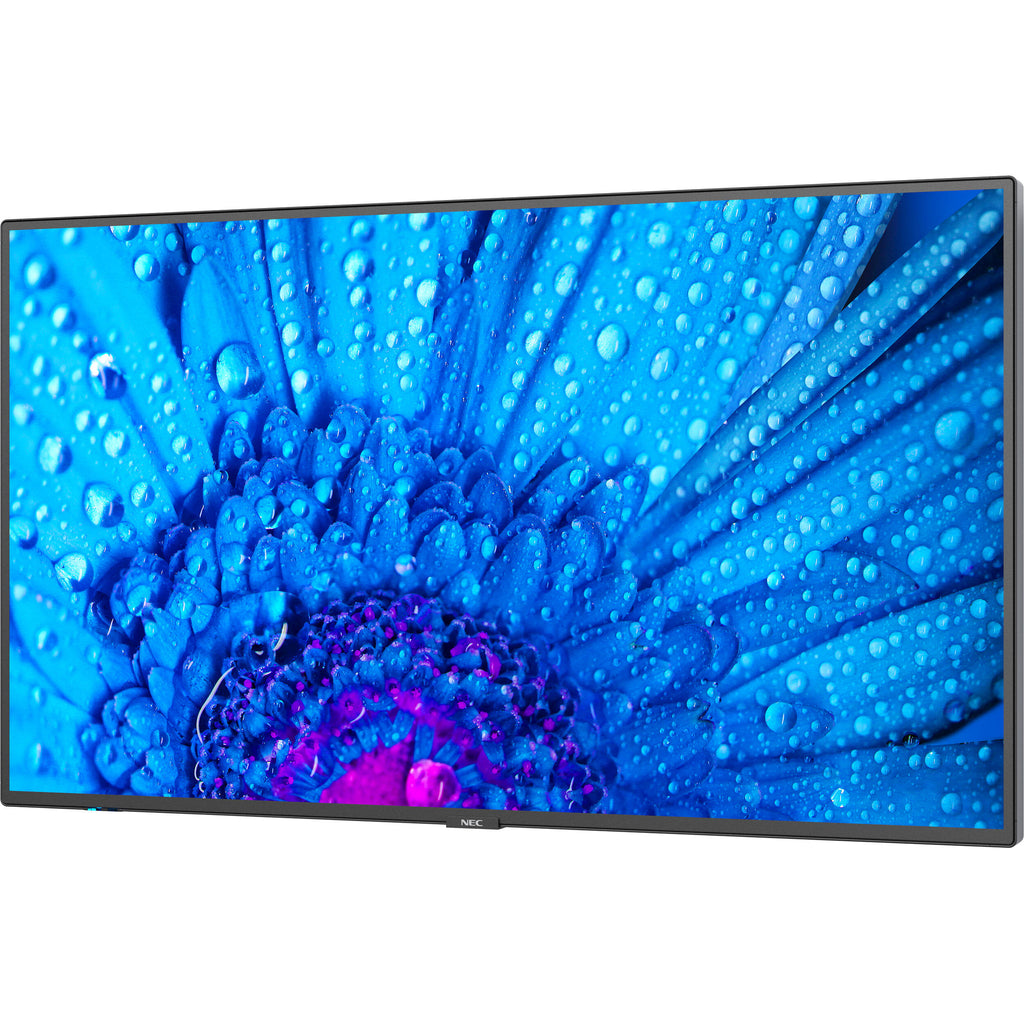

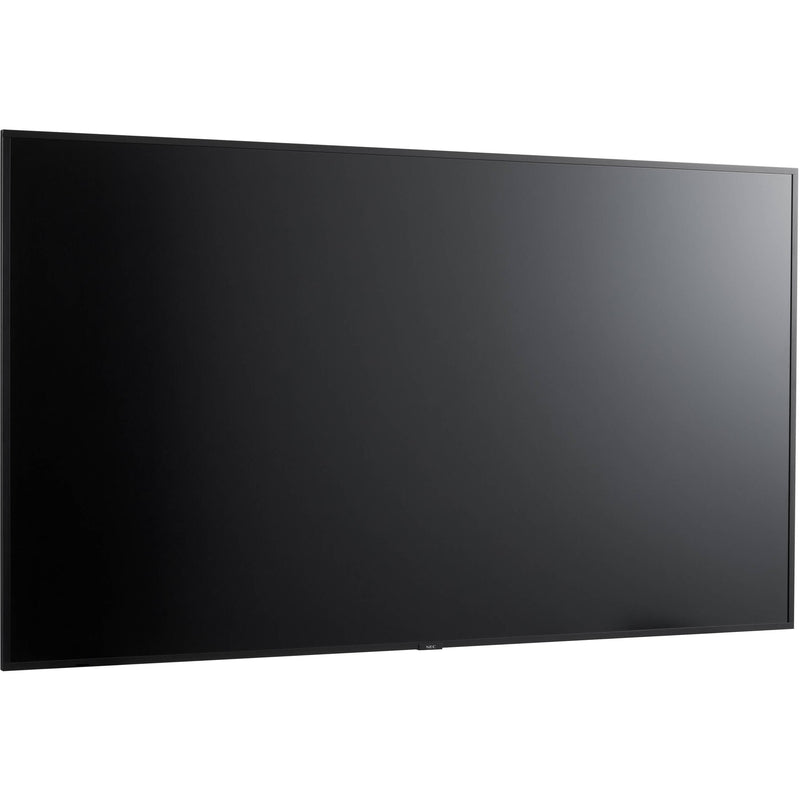

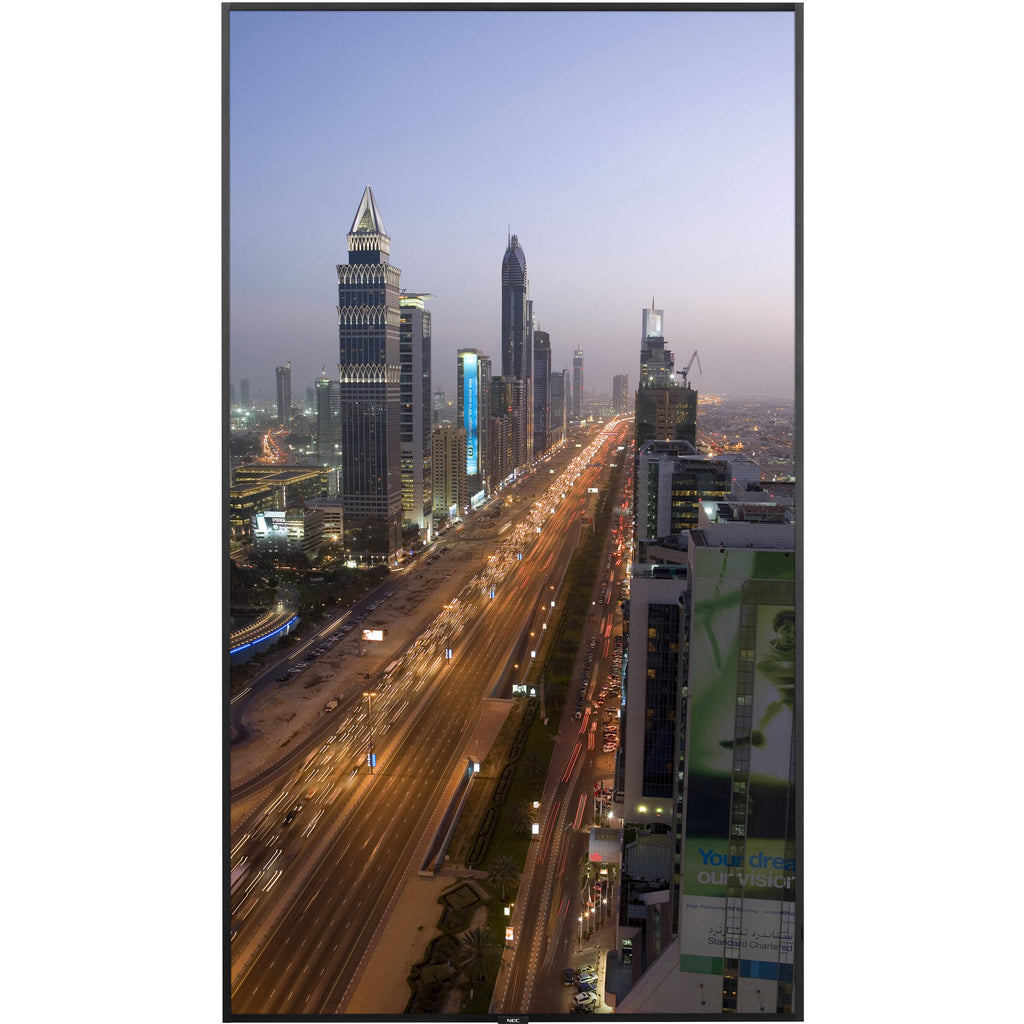

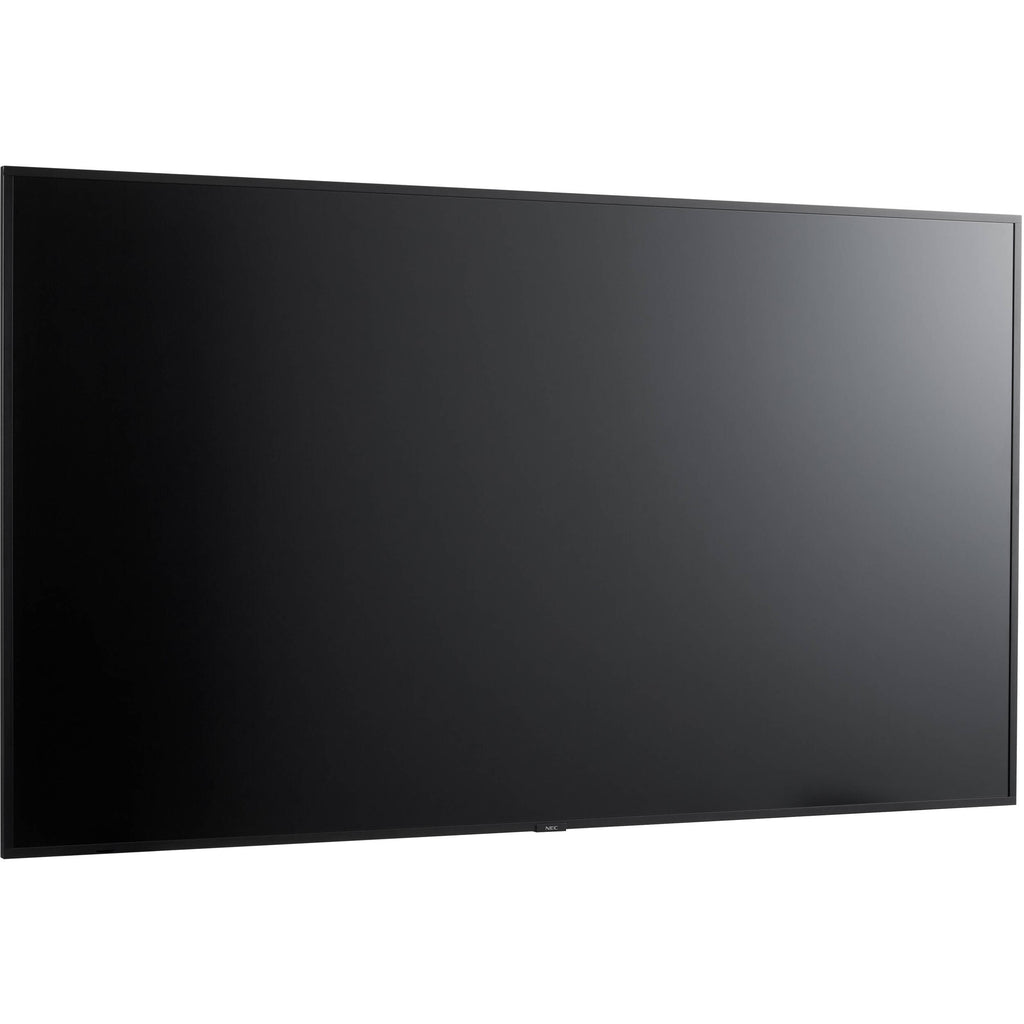

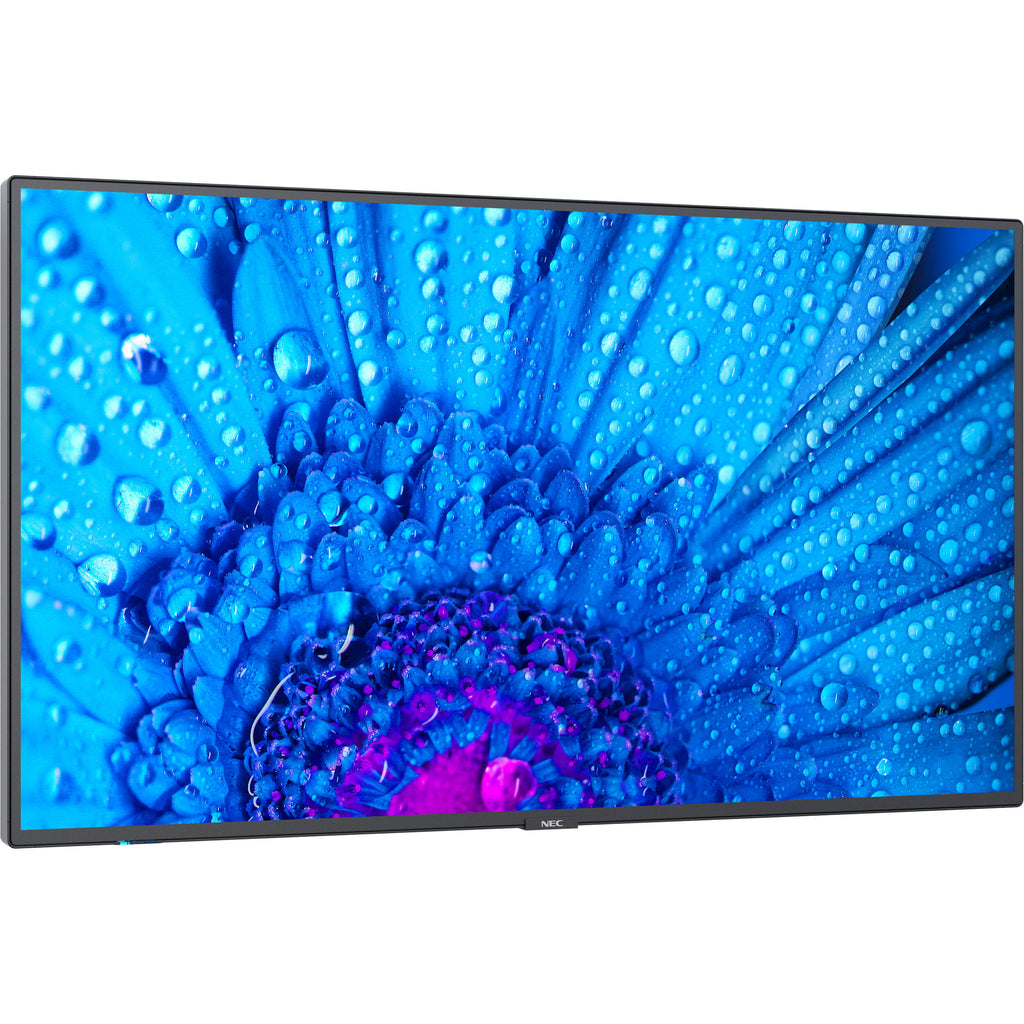

Sharp M861 Overview
The M861 86" UHD 4K HDR Commercial Monitor from NEC is a 500 nits bright, large format, digital signage display capable of 24/7 continuous operation; making it ideal for high-end presentation in corporate, command and control, higher education, and healthcare environments. Connect a variety of devices via HDMI, DisplayPort, or USB, as well as slots for optional Intel SDM and Raspberry Pi Compute Modules. RS-232 control and bidirectional LAN capability allow for easy and compatible deployment with most major integration systems, such as Crestron, AMX, and PJ Link. The M861 supports portrait and landscape orientation for flexible installation with input failover capability, so your message is always on. Additionally, HDMI and DisplayPort outputs allow for enhanced daisy chain capabilities, with tile matrix support built in.
Industrial-Strength, Premium-Grade Panel
A full metal mechanical chassis allows for the ruggedness needed for true commercial environments while integrated carrying handles reduce the likelihood of damage during installation. On top of that, integrated temperature sensors and active cooling fans ensure that the display remains cool and at a constant brightness to maintain professional-level image output and allow for 24/7 operation.
Enhanced Daisy Chain Capabilities
The M861 display contains the ability to directly daisy chain both the HDMI and DisplayPort input signals. The DisplayPort daisy chain is enhanced due to DisplayPort 1.4 connectivity and HBR3 capabilities. This allows for multi-stream transport capabilities that can drive up to four independent displays from a single DisplayPort source by multiplexing several video streams into a single stream and sending it to the display that then acts as a branch device to demultiplex the signals into the original streams. This allows for up to four independent content pieces to be driven off of a single source. On top of this, simultaneous output and signal conversion through dual daisy chain functionality can allow for immediate source switching if multiple displays are needed to be used at once. LAN daisy chain functionality can be used to tie displays together from a control perspective.
Spectraview Engine
The large-sized NEC M series panels contain professional color control through proprietary Spectraview Engine technology. Spectraview Engine allows for 6-axis color trim functionality of RGBCYM for hue, offset, and saturation adjustments. Also, it can allow for up to five different programmable picture modes to be saved and recalled when necessary. These picture modes can have individual CIE Color settings, intensity, gamma, and white point settings if desired.
Multi-Picture Mode
NEC MultiSync M series displays can support multiple simultaneous images at the same time, like picture-in-picture or picture-by-picture, through Multi-Picture Mode. This, in conjunction with SpectraView Engine Technology, can allow for each separate image to have different defined color settings if necessary. This means that each part of the display can be optimized for the type of content that is being displayed.
NaViSet Administrator 2
This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on-demand control options. Control your entire NEC ecosystem through this free optional asset management software. NaViSet Server Edition (NASE) expands on the extensive device management capabilities of NaViSet Administrator 2 by providing enterprise-level display management such as, multi-user support with secured communications and logging, running as an on-premises server with remote access, a browser-based interface aimed at mobile devices for management on the go, REST API support for interfacing with other applications and management systems, and support for secure access to remote devices on other networks via the internet.
Intel SDM Compatible
The M861 accepts Intel Smart Display Modules through clever mechanical and electrical design, allowing for sleek all-in-one intelligence and interoperability in a small form factor setting. This allows for the flexible implementation of Intel processor-based products directly into the NEC M series products without having to deal with the hassles of mounting external devices and running video or audio cabling. Audio, video, control, and power signals are all internal from the Intel SDM through to the display, simplifying installations and allowing for clean and easy set-up.
Raspberry Pi Compatible
As another option, the M861 allows for the implementation of a Raspberry Pi Compute Module 4 directly into each display. The Raspberry Pi Compute Module 4 offers gigabit network speeds, faster processing than previous versions, and true 4K support. This version also comes imaged with the user-friendly NEC Mediaplayer. Through an intuitive user interface, the NEC Mediaplayer allows you to load, schedule, and edit playlists, access internal storage, access online media through an internal browser, or even image the Raspberry Pi to qualified CMS partner platforms. This can all be done through the supplied NEC remote control or remotely through a web interface.
Additional Features
- AMX support
- Automated email alert function
- Crestron Connected
- Display browser control
- Display wall calibrator compatible
- OSD rotation for portrait orientation
- PJ Link support
- Low-latency mode
- Removable logo
- Real-time clock
- Local dimming
- TileMatrix
- Cisco Webex compatible
- SNMP
- CEC through HDMI
- Pivot feature through G-sensor
- Full input detect functionality
- Programmable gamma
- Internet time server
- Quick start
- Energy Star 8.0
- Color vision emulation
- 6-axis color trim
- Uniformity adjustment
- Scheduler function
- Off timer
- Vacation switch
UPC: 805736077568
Items Included
- Sharp M861 86" UHD 4K HDR Commercial Monitor
- Power Cord (9.8')
- HDMI Cable (9.8')
- RU-M125 Remote Control
- 2 x AAA Battery
- Limited 3-Year Manufacturer Warranty (NEC Advanced Exchange)
Additional Resources
Sharp M861 Specs
Key Specs
| Display Size |
86"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Inputs |
2x HDMI 2.0
2x DisplayPort 1.4 |
| Outputs |
1x HDMI
1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| Wireless |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Control/Charging)
1x USB-B (Unspecified Version) (Control/Charging) 1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
2x RJ45 10/100 Mb/s Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
1x 1/8" / 3.5 mm IR Input |
| Built-In Speakers |
Yes, 2x 10 W
|
| Media Card Reader |
No
|
Display
| Display Size |
86"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Contrast Ratio |
8000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
74.61 x 41.97" / 1895.09 x 1066.04 mm
|
| Horizontal Frequency |
15 to 135 kHz
|
| Vertical Frequency |
23 to 76 Hz
|
| Pixels Per Inch (ppi) |
51 ppi
|
| Finish |
Anti-Glare / Matte
|
Surface
| Haze Level |
25%
|
Video
| Video System |
NTSC / ATSC
|
| TV Tuner |
No
|
Connectivity
| Inputs |
2x HDMI 2.0
2x DisplayPort 1.4 |
| Outputs |
1x HDMI
1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-A (Unspecified Version) (Control/Charging)
1x USB-B (Unspecified Version) (Control/Charging) 1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
2x RJ45 10/100 Mb/s Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
1x 1/8" / 3.5 mm IR Input |
| Number of OPS/Expansion Slots |
1
|
| Ambient Light Sensor |
Yes
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP)
|
Speaker
| Built-In Speakers |
Yes, 2x 10 W
|
| Speaker Configuration |
2-Channel
|
| External Speaker Output |
2x 15 W
|
Hardware
| Mobile App Compatible |
No
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: 320.0 W
Maximum: 560.0 W Standby: 0.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 2.6 to 6.6 A
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 80% Humidity
|
| Mounting-Hole Pattern |
600 x 400 mm
|
| Lock Slot |
No
|
| Bezel Thickness |
15.9 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
75.9 x 43.3 x 3.3" / 1927.6 x 1099.1 x 83.2 mm
|
| Weight |
