Description
Shimbol MEMORY 7 PRO Overview
Add pro monitoring tools and record your camera output with the Memory 7 Pro 7" Touchscreen 4K HDMI/3G-SDI Recording Monitor with 3D LUT Output from Shimbol. This ultra-bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 2200 cd/m² brightness, and the ability to input and output up to UHD 4K30 video via HDMI or up to 1080p via 3G-SDI. The monitor is designed with an all-aluminum chassis that will endure all conditions in the studio or on location. You can also record your video input to the SD card slot in MP4 format.
Other features include 3D LUT support with custom LUT import via SD card, a 3.5mm headphone jack, a dual L-series battery plate, an 1800:1 contrast ratio, HDR/HLG mode monitoring, DCI-P3 and Delta E1 color gamut support, SDI to HDMI cross conversion, and an easy-to-use UI with numerous monitoring tools such as RGB parade, false color, anamorphic ratio, waveforms, masking, and more.

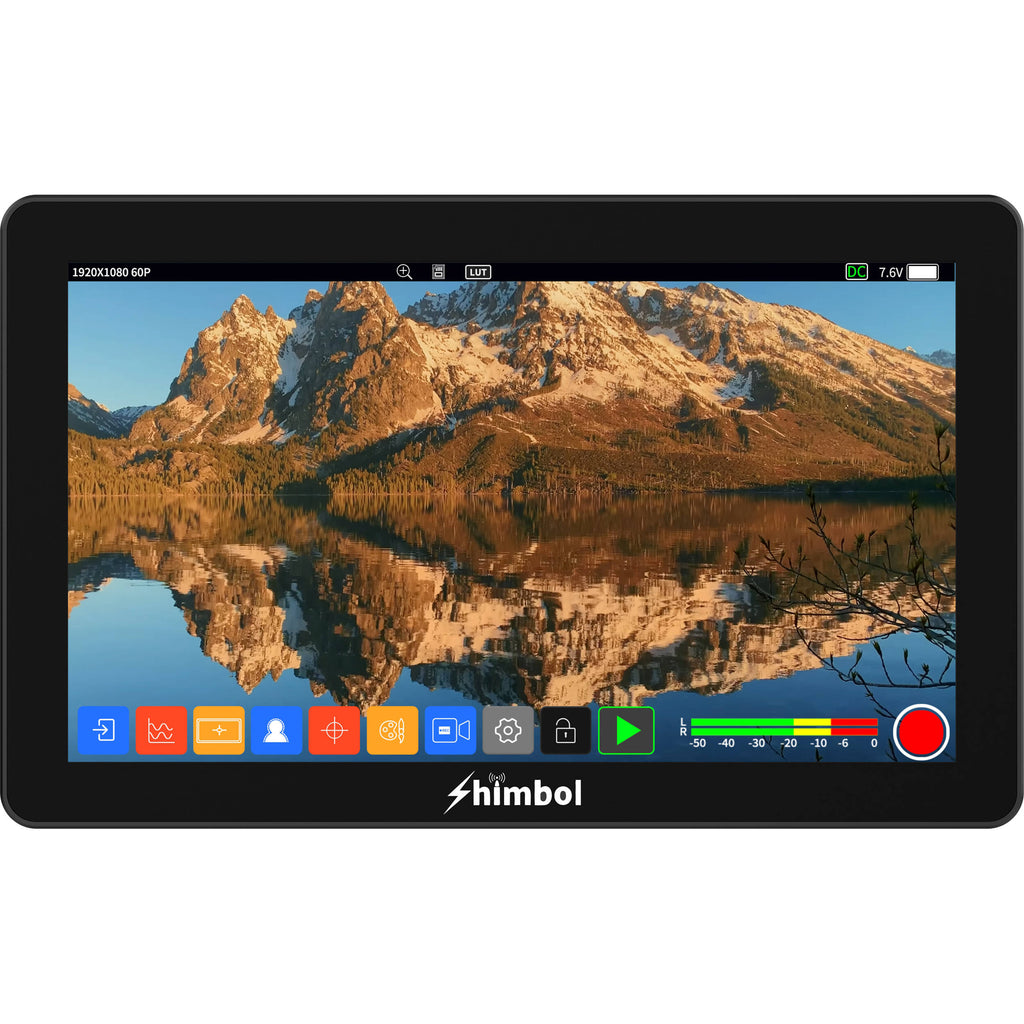

High-Bright 7" Touchscreen Monitor
This 7" LCD on-camera monitor features 2200 cd/m² and an 1800:1 contrast ratio for daylight visibility.
Up to 4K Video
Supports HDMI input/output up to DCI 4K25 or UHD 4K30 and 3G-SDI input/output up to 1080p.
Recording

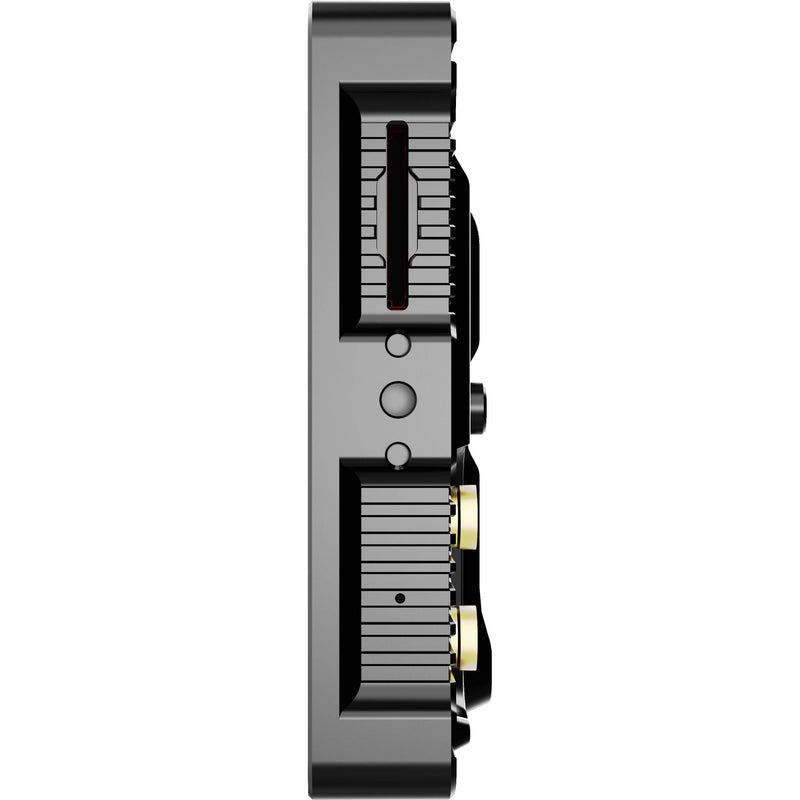

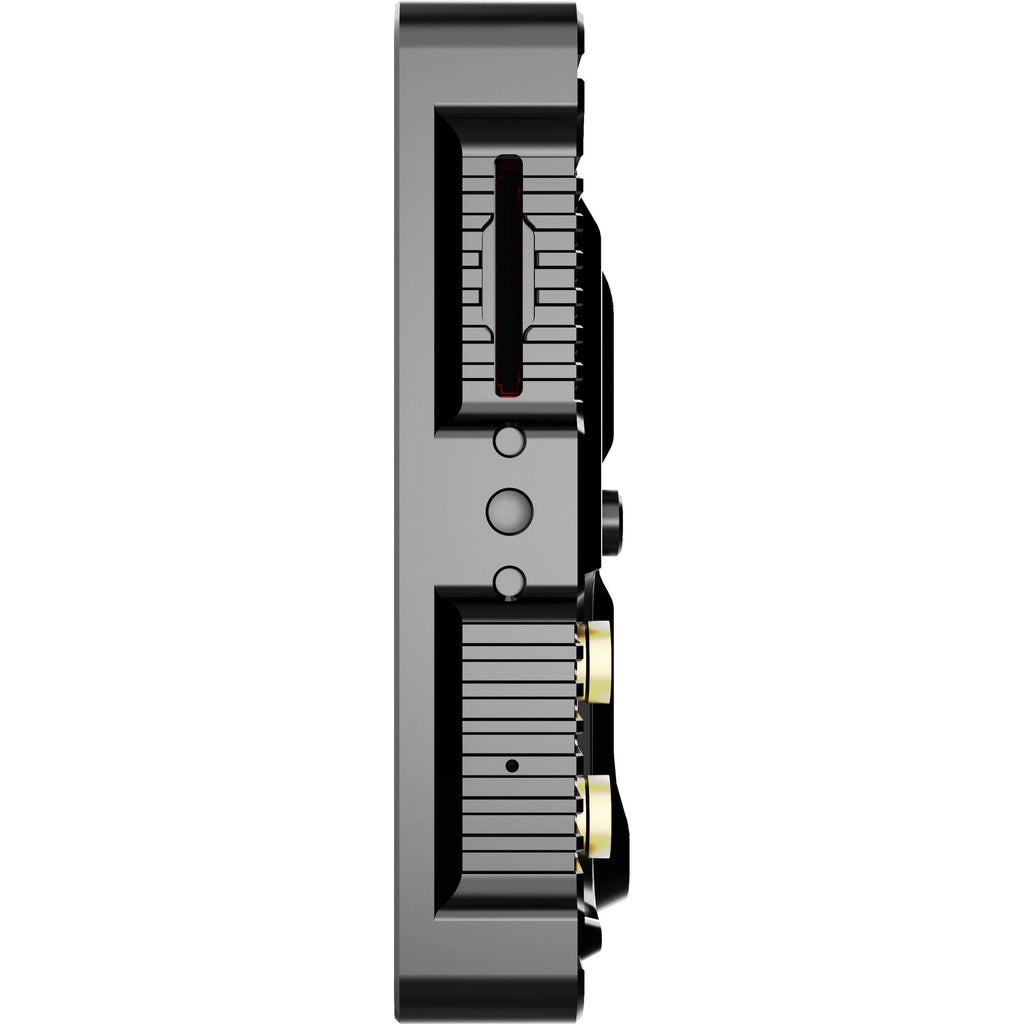

Record your input to an optional SD card via the SD card slot in MP4 format.

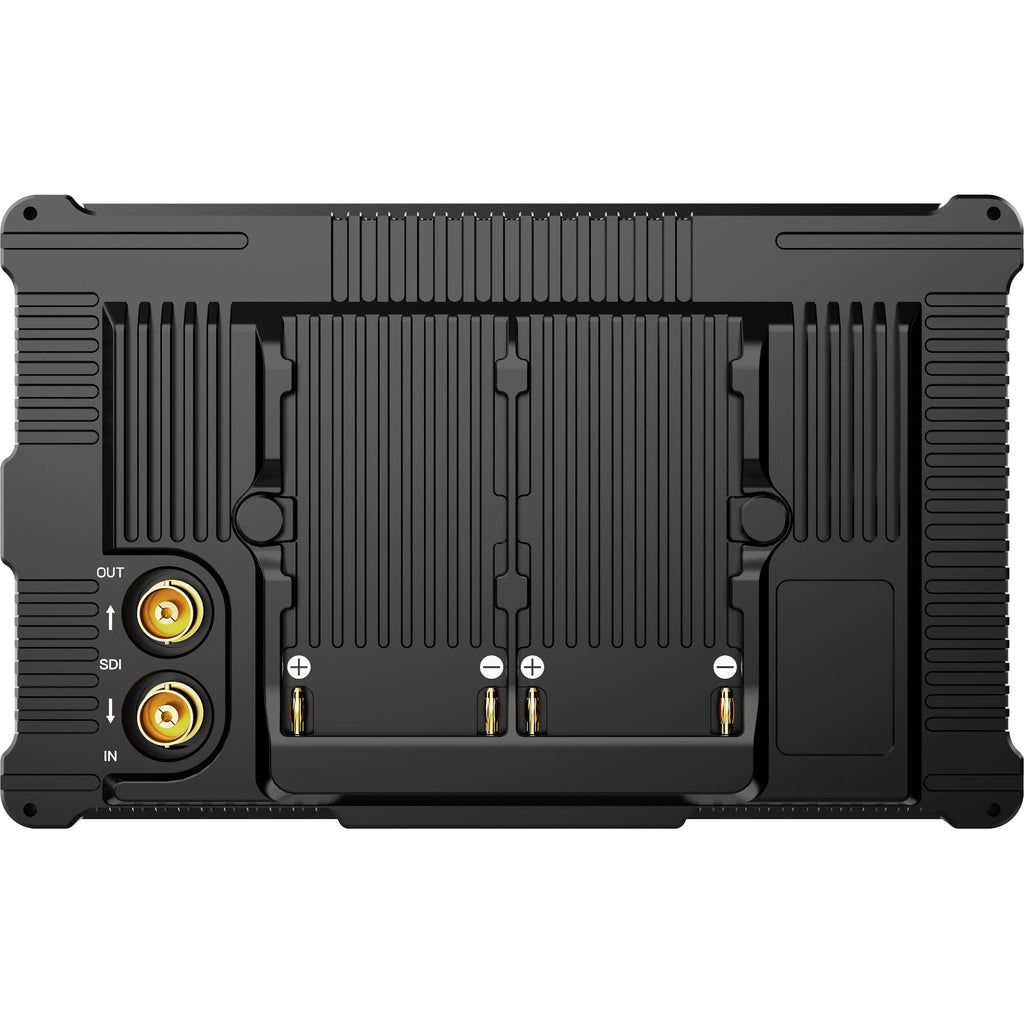

Dual L-Series Battery Plate
Power with the built-in dual L-Series battery plate or power your camera with a separately available power adapter using the DC output.
3D LUT Support
The monitor features 3D LUT support and provides an SD card and SD card slot to load custom 3D LUTs to apply for monitoring and output.
Cross Conversion
The monitor supports SDI to HDMI signal cross conversion.
Aluminum Chassis
The chassis is made from aluminum for durability in the field.
Image Tools
- 3D LUT support with custom LUTs via USB
- Peaking
- False color
- Luma
- Waveform
- Anamorphic de-squeeze
- Center marker
- Safe area
- Color temperature
- Brightness
- Sharpness
- Cropping
- Check field
- Zebra
- Zoom
- Vectorscope
- Luma histogram
- Custom RGB
- Audio meters
- HDR/HLG support
Items Included
- Shimbol Memory 7 Pro 7" Touchscreen 4K HDMI/3G-SDI Recording Monitor with 3D LUT Output
- Tempered Screen Protector
- HDMI Cable
- SDI Cable
- Tilting Shoe Mount
- SD Card
- Cleaning Cloth
- Carry Case
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Recording Media
- Essential Batteries
Additional Resources
Shimbol MEMORY 7 PRO Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Phantom Power |
No
|
| Built-In Battery |
No
|
| Battery Type |
2x L-Series
|
| Power Consumption |
10 W
|
| Mounting |
1x 1/4"-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170° (85/85)
Vertical: 170° (85/85) |
| Touchscreen |
Yes
|
| Maximum Brightness |
2200 nits / cd/m2
|
| Contrast Ratio |
1800:1
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Color Gamut |
100% DCI-P3
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
|
Inputs/Outputs

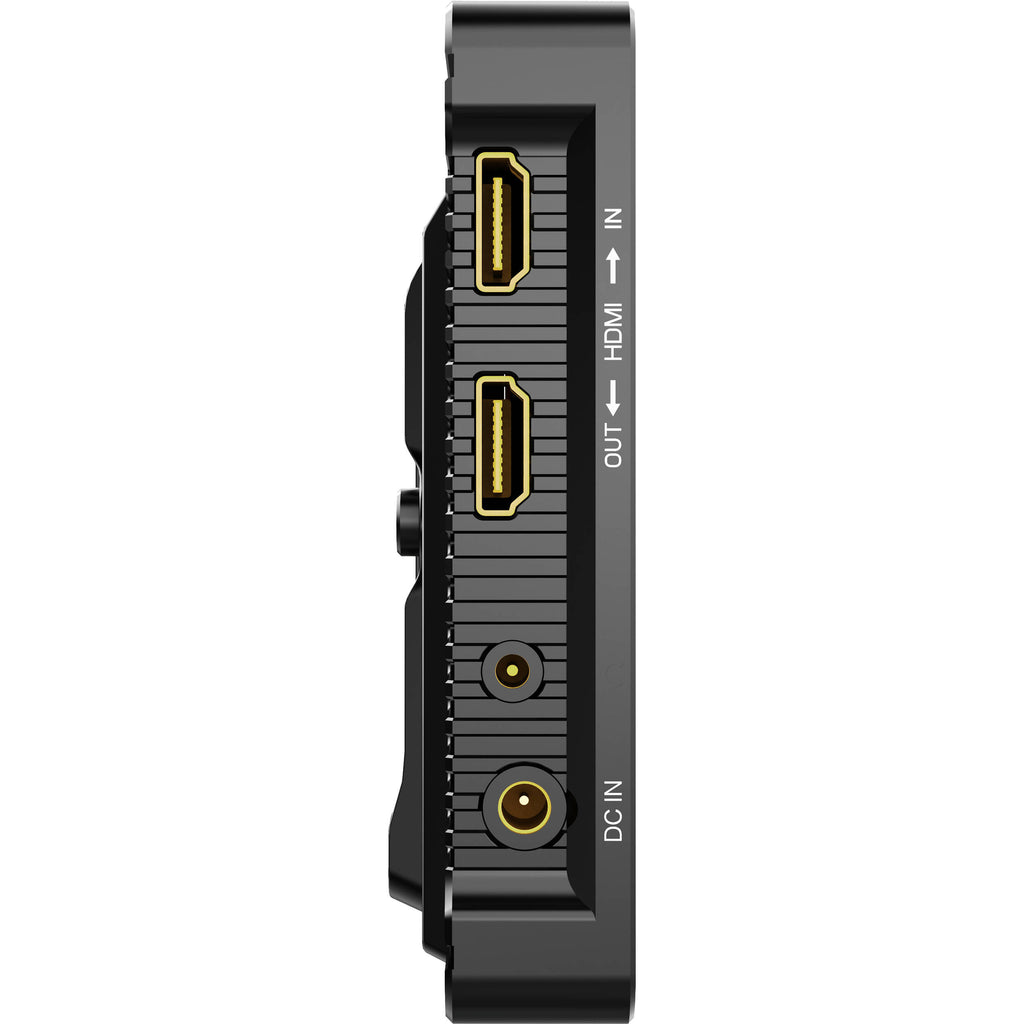

| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (16 VDC) Input
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| File System Support |
exFAT
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Timecode Support |
No
|
Recording
| Pulldown Conversion |
No
|
| Camera Trigger |
No
|
| Pre-Roll Record |
No
|
| Encoding Formats |
x
H.264 |
| Phantom Power |
No
|
Power
| Input Power |
7 to 16 VDC
|
| Built-In Battery |
No
|
| Battery Type |
2x L-Series
|
| Power Consumption |
10 W
|
Mounting
| Mounting |
1x 1/4"-20 Female
|
General
| Environmental Resistance |
No
|
| Material of Construction |
Plastic
|
| Dimensions |
7 x 4.4 x 0.8" / 178.8 x 110.8 x 20.3 mm
|
| Weight |
16.05 oz / 455.00 g
|
Packaging Info
| Package Weight |
2.245 lb
|
| Box Dimensions (LxWxH) |
11.8 x 6.3 x 2.4"
|
