Description

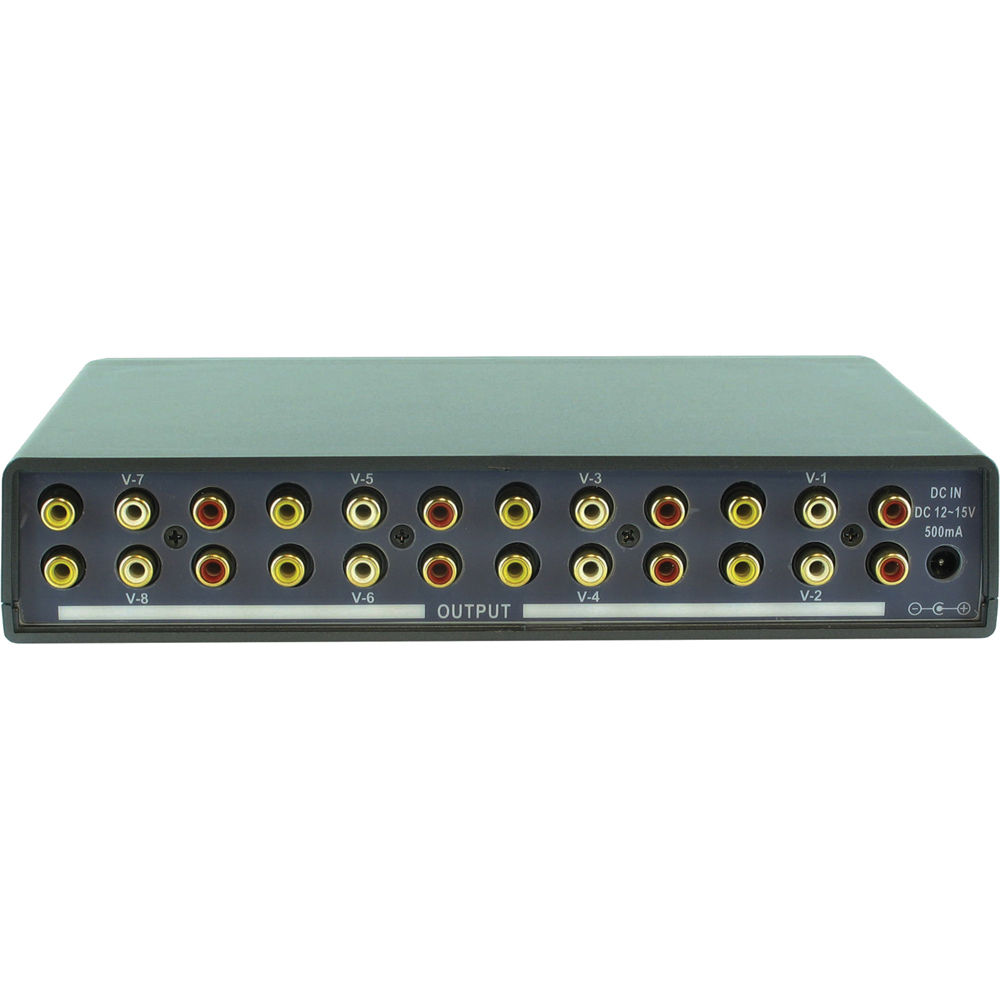

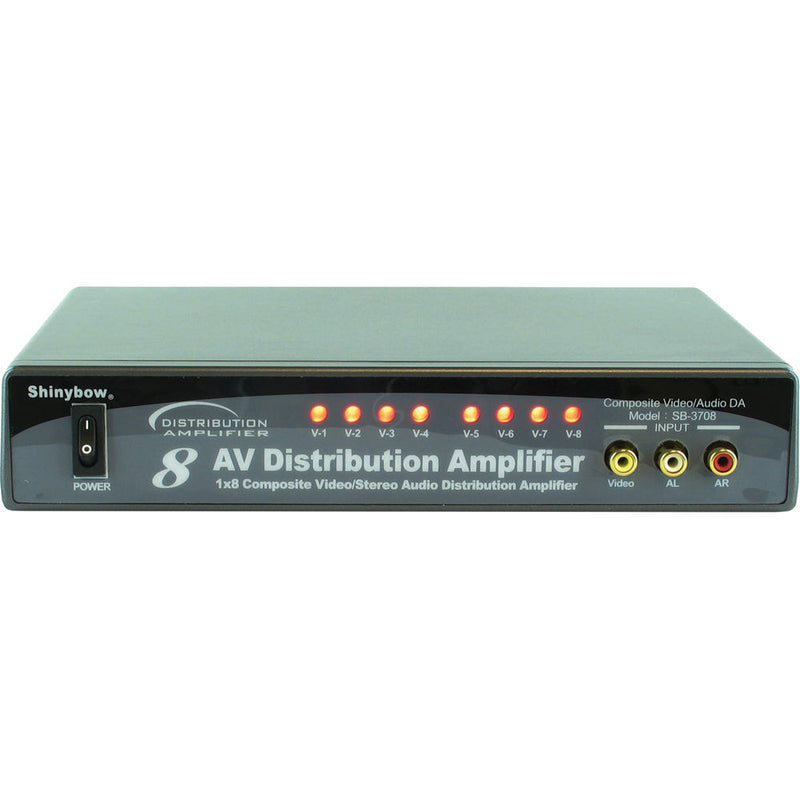

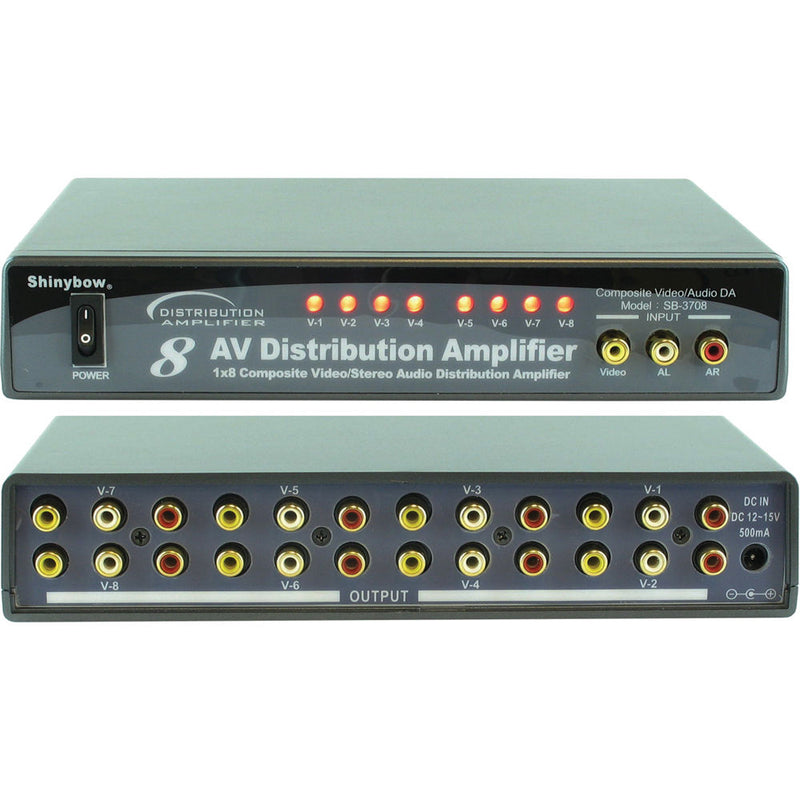

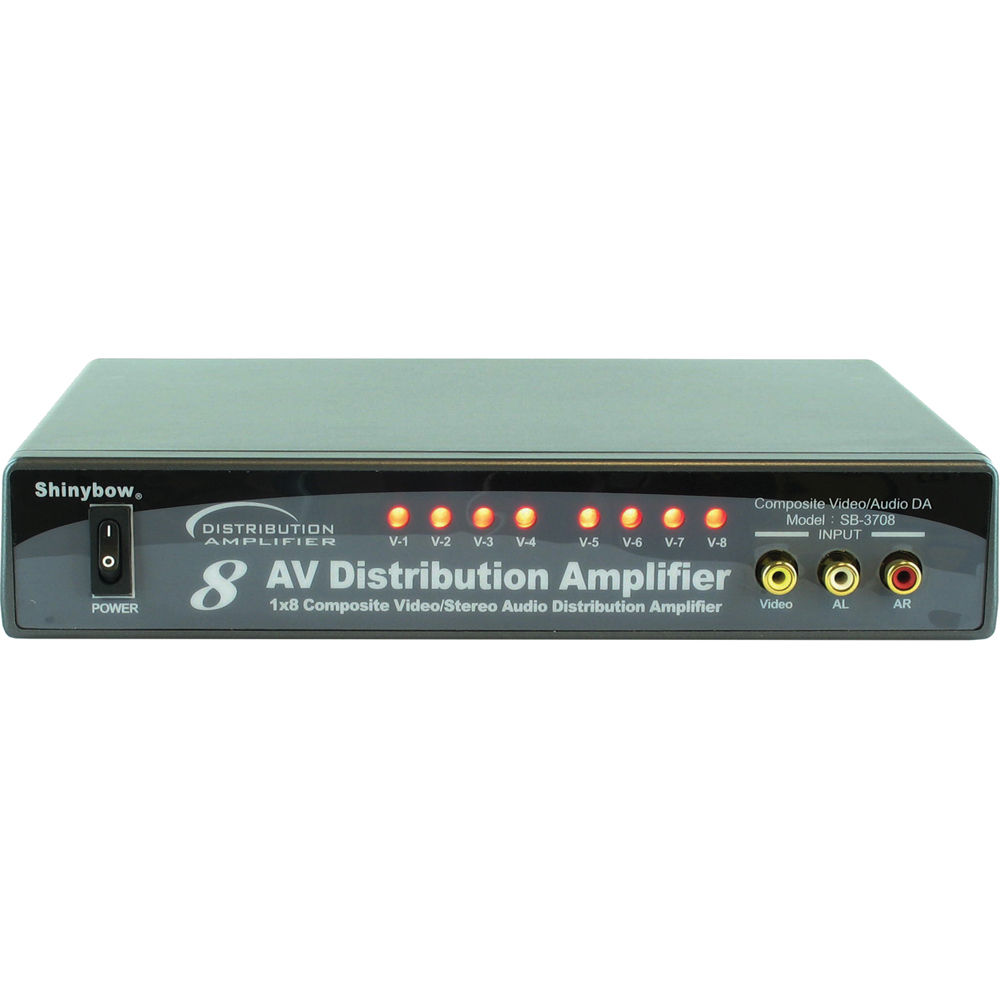

Shinybow SB-3708 Overview
The Shinybow SB-3708 1 x 8 Composite Video Audio Distribution Amplifier supports a video bandwidth of 440 MHz. It has 1 individual input with 8 individual outputs. As it is a distributor, 1 input may be distributed to any 8 outputs at the same time. It eliminates the need to constantly move around composite video and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing AV signals from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box devices in addition to HD (High-Definition) TVs with 480p, 720p 1080i, and 1080p resolutions, or HD display monitor applications.
Support 1 x 8 composite video-stereo audio distribution amplifier
Distributing composite video and stereo audio (AR / AL) signals
Supports HDTV with for 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
Video Bandwidth: 440 MHz (-3 dB), 200 mVpp
Audio Bandwidth: 60 MHz
Audio Frequency Respond: 20 Hz to 20 KHz
Application source devices from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box
Suitable for distributing to HD high resolution video player devices and HDTV, TV, and HD monitor displays
Power switch control via selection pushbuttons with LED readout
Enclosure Type: Supports 19" (48.26 cm) ear
Supports lower power consumed full load under 450 mA
Power supply offer a universal type 100 to 230 VAC switch
In the Box
- Shinybow SB-3708 1 x 8 Composite Video Audio Distribution Amplifier
- Limited 3-Year Manufacturer Warranty
Shinybow SB-3708 Specs
| Distribution | Type: 1 input to 8 outputs Distribution Amplifier |
| Signals | Type: Composite Video via 1x RCA Female Connector Stereo Audio (AR/AL) via 2x RCA Female Connectors |
| Video Bandwidth | 440 MHz, (-3 dB) 2 Vpp |
| Audio Bandwidth | 60 MHz (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz) |
| Audio Frequency Response | 20 Hz to 20 KHz |
| Crosstalk | All Hostile: -56 dB @ 5 MHz, -45 dB @ 50 MHz |
| Scan Rates Accepted | 50 or 60 Hz |
| Slew Rate | 1,000 V/us, fixed internal gain of 2 |
| Controls | Power switch selection via pushbuttons with LED readout |
| Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) |
| Dimensions | 9.37 x 5.95 x 1.73" (304 x 150 x 44 mm) |
| Weight | 34.56 oz (980 g) with metal case |
Packaging Info
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 11.181 x 10 x 2.913" |
