Description

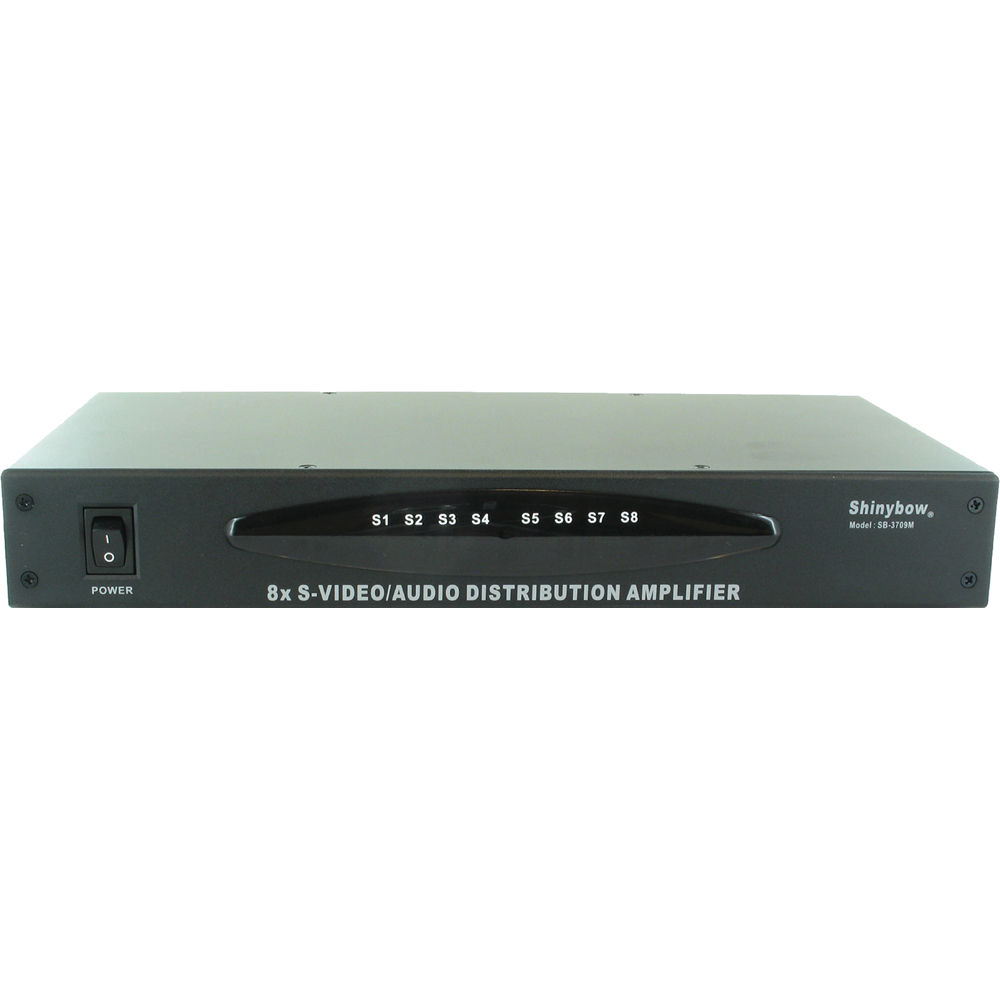

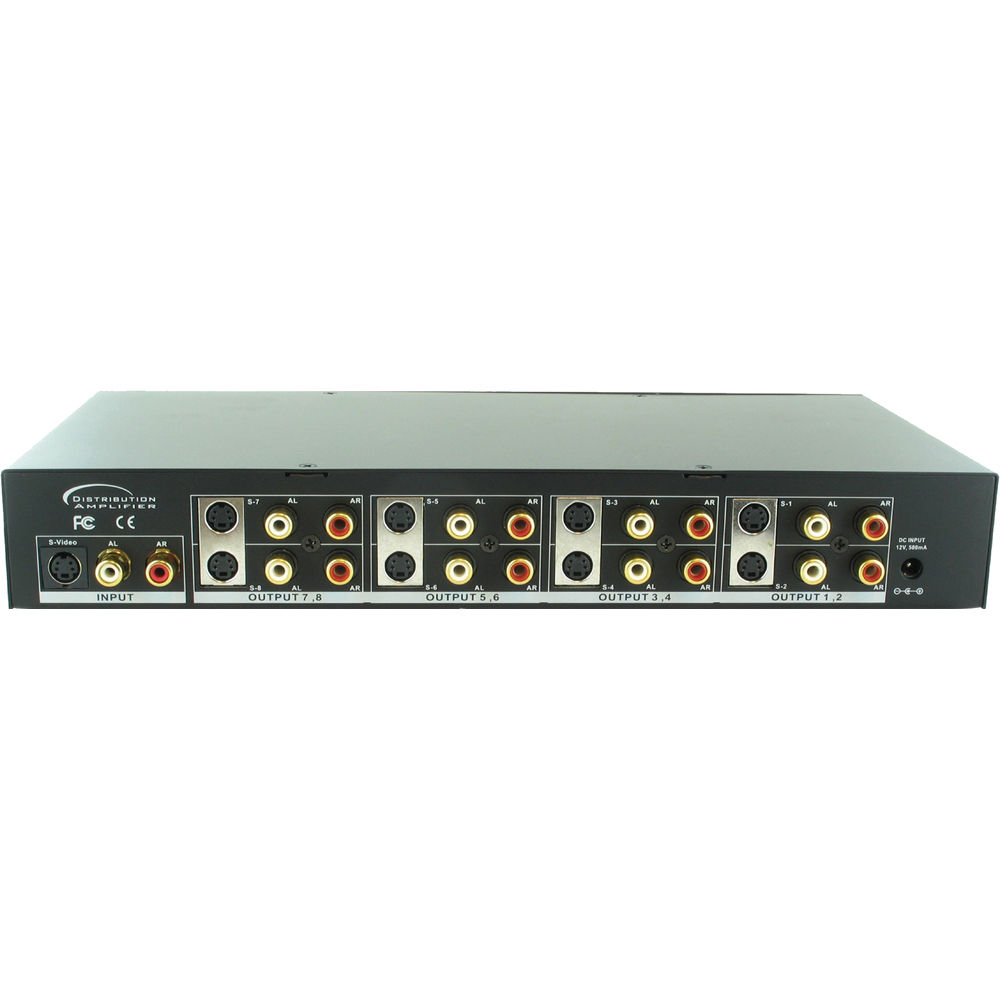

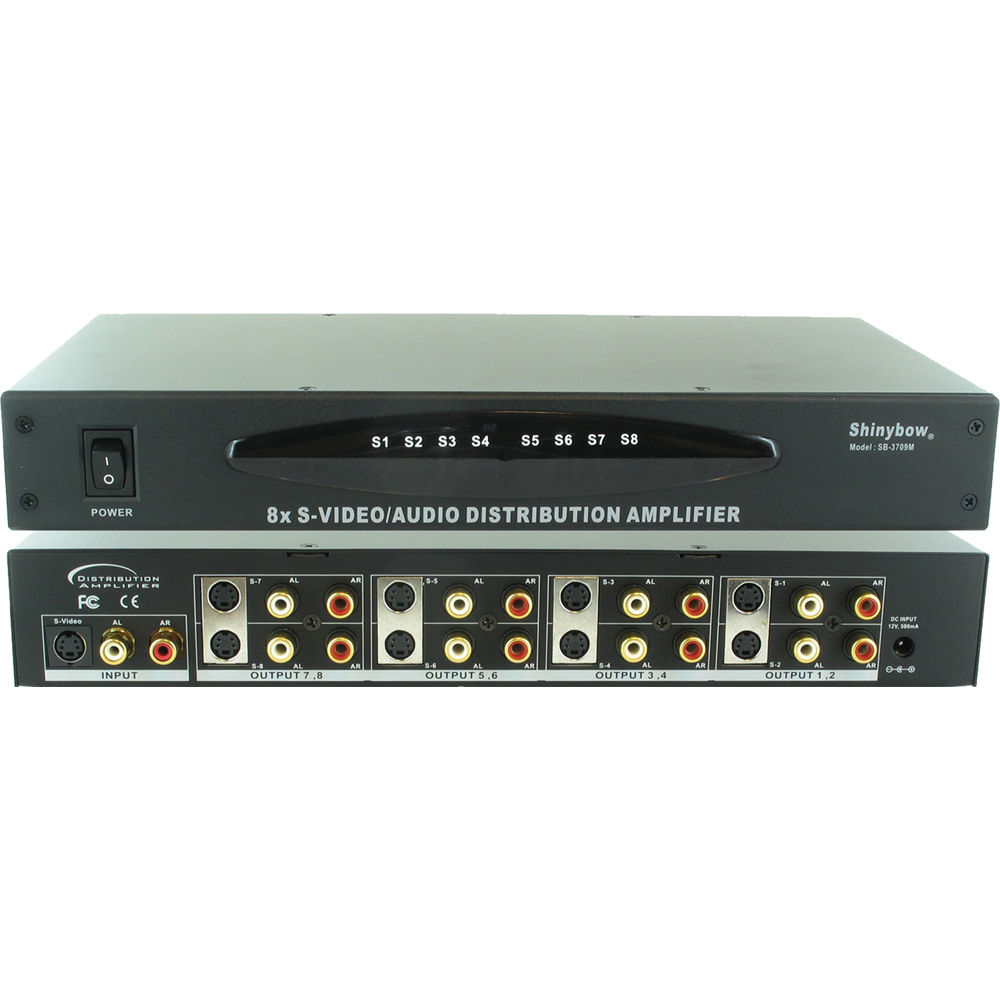

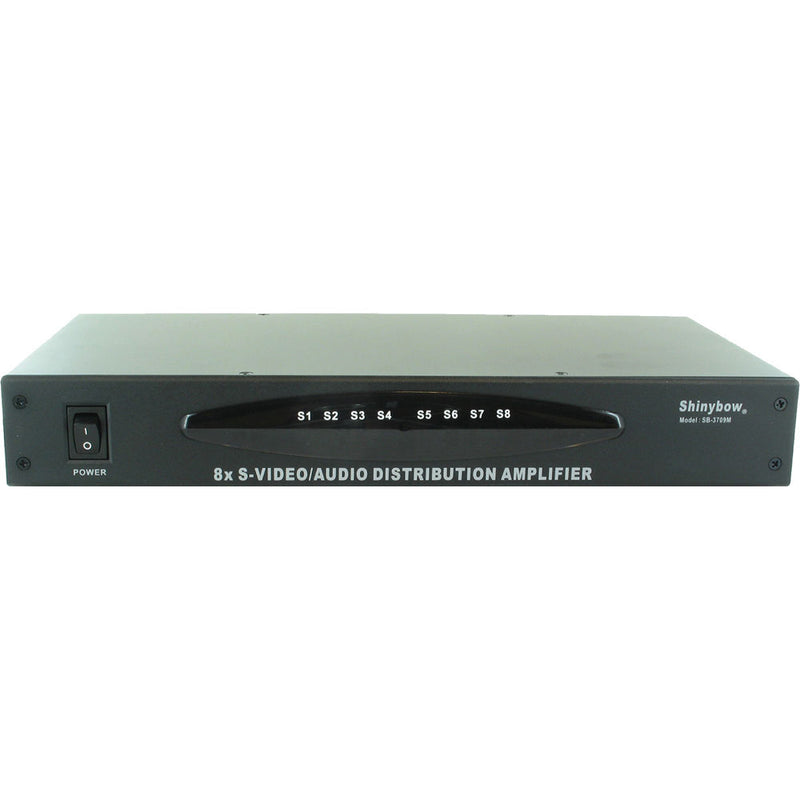

Shinybow SB-3709M Overview
The Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier amplifies and distributes a single S-Video input over 8 outputs. It has a video bandwidth of 440 MHz, and completely eliminates the need to constantly move around S-video and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing AV signals from VCRs, camcorders, video game consoles, video CDs, DVDs, satellite receivers, CATV set-top box devices to HD (High-Definition) LCD TVs with 480p, 720p 1080i, and 1080p resolutions, or HD plasma monitor applications. This amplifier comes with a rack ear pair (1U-300L) and 19� (48.26 cm) MRM 1 RU rack mount.
Amplifies and distributes a single S-Video and Stereo Audio signal over eight outputs
Supports HDTV with 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
S-Video Bandwidth: 440 MHz (-3 dB), 200 mVpp
Can be used with VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, and CATV set-top boxes
Suitable for distributing signals to HD high-resolution video players and HDTV, LCD TV, plasma TV, HD displays
Power switch control via selection pushbuttons with LED readout
Enclosure Type: Supports 1U-300L rack ear pair & 1 RU rack mount panel
Supports low power consumption (full load under 480 mA)
Universal power supply with a 100 to 230 VAC switch
In the Box
- Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier
- Rack Mount Kit
- Limited 3-Year Manufacturer Warranty
Shinybow SB-3709M Specs
| Switcher | Type: 1 input to 8 outputs |
| Signal | S-Video (Y / C) via 1x RCA Female Connector Stereo Audio (AR / AL) via 2x RCA Female Connector |
| Video Bandwidth | S-Video: 440 MHz, (-3 dB) 2 Vpp |
| Audio Bandwidth | 60 MHz (-3 dB) (Audio-Right = 60 MHz, Audio-Lift = 60 MHz) |
| Audio Frequency Response | 20 to 20,000 Hz |
| Crosstalk | All Hostile: -56 dB @ 5 MHz, -45 dB @ 50 MHz |
| Scan Rates Accepted | 50 or 60 Hz |
| Slew Rate | 1000 V/us, fixed internal gain of 2 |
| Controls | Power switch selection via pushbuttons with LED readout |
| Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) |
| Power Voltage Input | 12 VDC @ 0.66 A |
| Dimensions | 17.32 x 7.87 x 1.73" (440 x 200 x 44mm) |
| Weight | 34.56 oz (980 g) with metal case |
Packaging Info
| Package Weight | 4.65 lb |
| Box Dimensions (LxWxH) | 13 x 10.2 x 3" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 46657.8 |
| 3-5 | ₹ 46181.7 |
| 5-10 | ₹ 45229.5 |
| 10+ | ₹ 44277.3 |
Bulk discount will be automatically applied during checkout based on quantity.
