Description
- With IR Remote Control

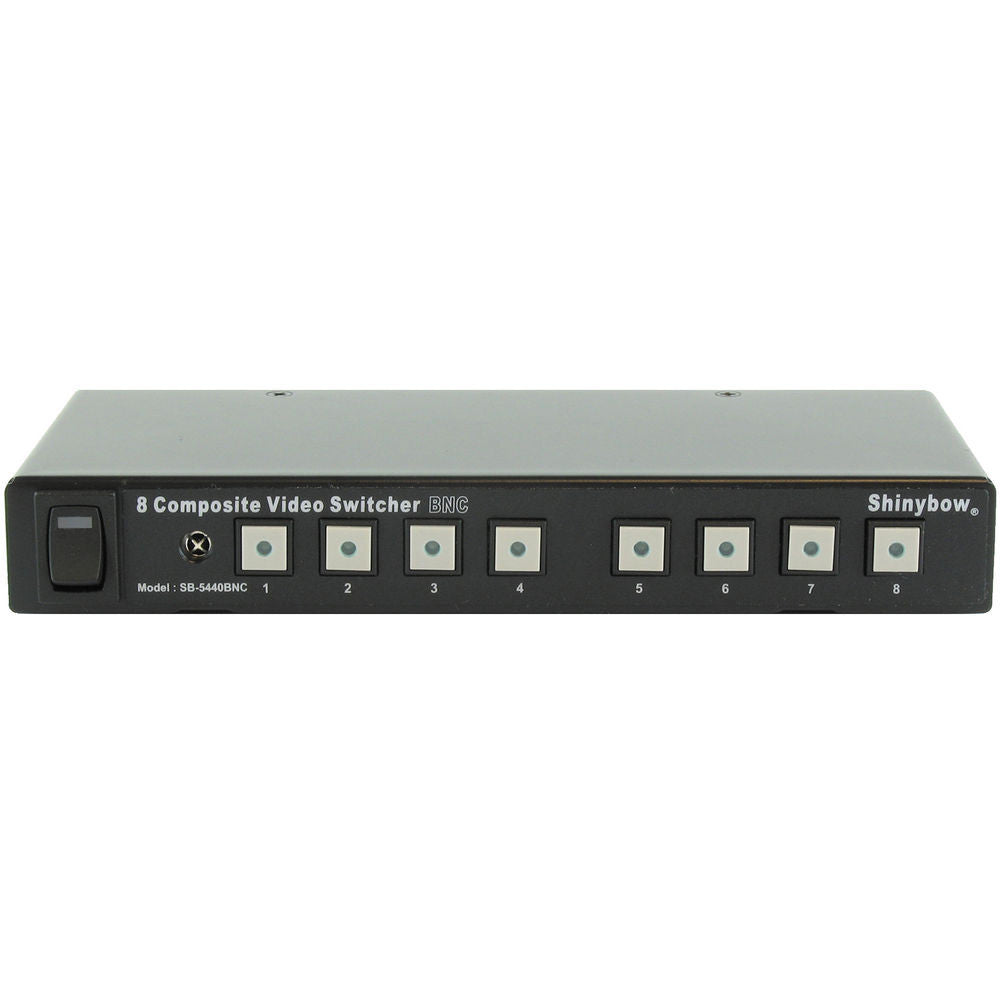

The Shinybow SB-5440BNC 8 x 1 Composite Video (BNC) Switcher is a compact composite video/BNC distribution amplifier which supports 8 inputs and 1 output. It is ideal for distributing video signals from security cameras, DVDs, video game consoles, satellite receivers, cable/satellite boxes, and other such devices, to up to 8 screens. The Shinybow composite splitter is designed to support high-resolution videos for up to 200' (60.96 m) output cable runs.
- Supports 8 inputs to 1 output BNC composite video switcher
- Control by front pushbuttons with LCD readout
- Supports lower power consumption at full load under 500 mA
- Ideal for home theater integration
- Remote control
- Easy to install and simple to operate

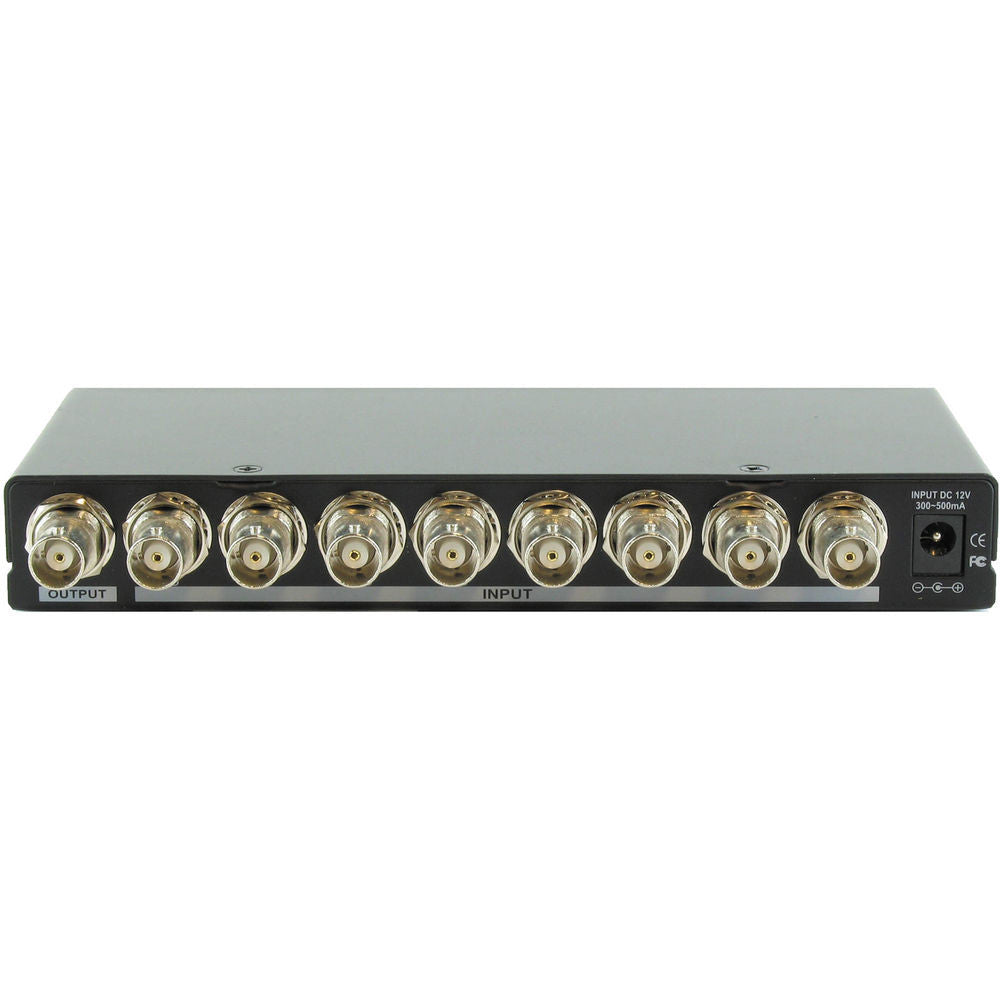

| Input | 8x BNC female port |
| Output | 1x BNC female port |
| Function | Menu & IR Remote controller |
| Video Signal | Composite Video (BNC connectors) |
| IR Frequency | 38 KHz |
| Distortion | Video Distortion: <0 .5 dB |
| Channel Isolation | >60 dB, 6.5 dB Gain between any input and output |
| Signal to Noise Ratio | >60 dB |
| Video Crosstalk | >-55 dB at 5 MHz |
| In/Out Connections | BNC female connectors |
| Power Consumption | 200 mA maximum |
| Power Source | 12 VDC @300 to 1000 mA |
| Scan Rates Accepted | 50 or 60 Hz |
| Enclosure Type | Metal: Wall mountable ear panels attached |
| Regulatory Approvals | CE, FCC, and RoHS (2002/95/EC) |
| Dimensions | 6.9 x 3.2 x 1.0" (17.5 x 8.1 x 2.5 cm) |
| Weight | 1.10 lb (0.49 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.15 lb |
| Box Dimensions (LxWxH) | 9.4 x 7.2 x 1.5" |
In the Box
Shinybow SB-5440BNC 8 x 1 Composite Video (BNC) Switcher

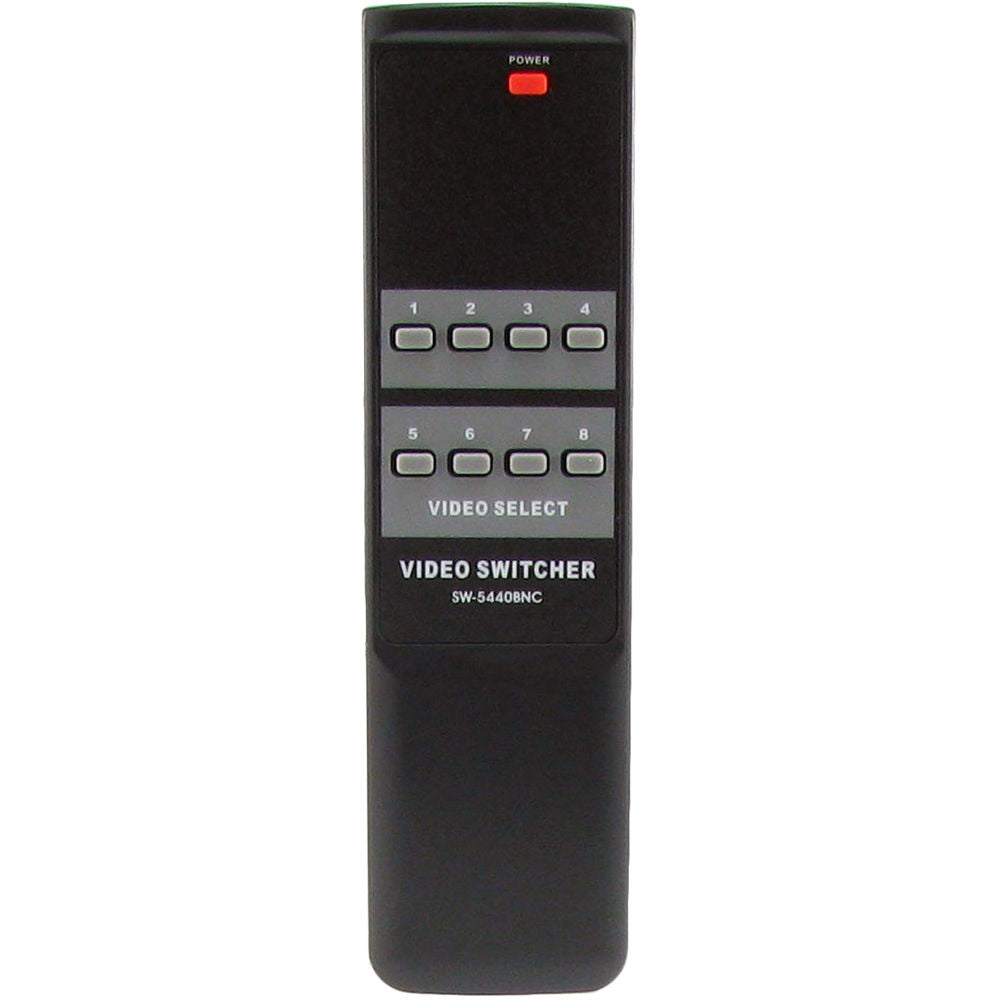

- IR Remote Control
- AC/DC Adapter (12 VDC, 300 mA)
- Limited 3-Year Warranty
