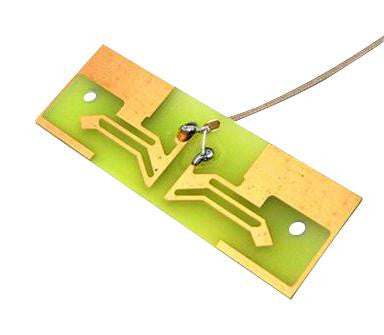

Embedded antenna suitable for system integration
- Frequencies: 850, 868, 900, 1800, 1900MHz, 2.1, 2.4GHz
- GSM/GPRS, 3G/UMTS,WiFi/WLAN
- Polarization: Vertical
- Lead: 100mm, 1.13mm coax
- Connection: UFL
- Dimensions: 75x25x0.6mm
Product details
| Input Impedance |
50ohm |
| Frequency Min |
850MHz |
| Antenna Type |
GSM |
| Antenna Mounting |
Cable |
| Gain |
2dBi |
| Input Power |
- |
| Antenna Polarisation |
Vertical |
| VSWR |
- |
| Product Range |
Echo 2 Series |
| Frequency Max |
2.4GHz |
| Antenna Applications |
GSM, 3G |
Other details
| Brand |
SIRETTA |
| Part Number |
ECHO2/0.1M/UFL/S/S/1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
