Sirui BCH10 Tripod System Overview
The Sirui BCT-2003 Aluminum Tripod & BCH-10 Video Head Bundle features a professional 3-section tripod with a 75mm bowl and a broadcast quality fluid head with a 13.2 lb payload. The tripod includes a ground spreader and mid-level spreader and offers a 17-63" working height. The head comes with a pan bar and provides stepped counterbalance and 0-3 grades of pan and tilt drag.

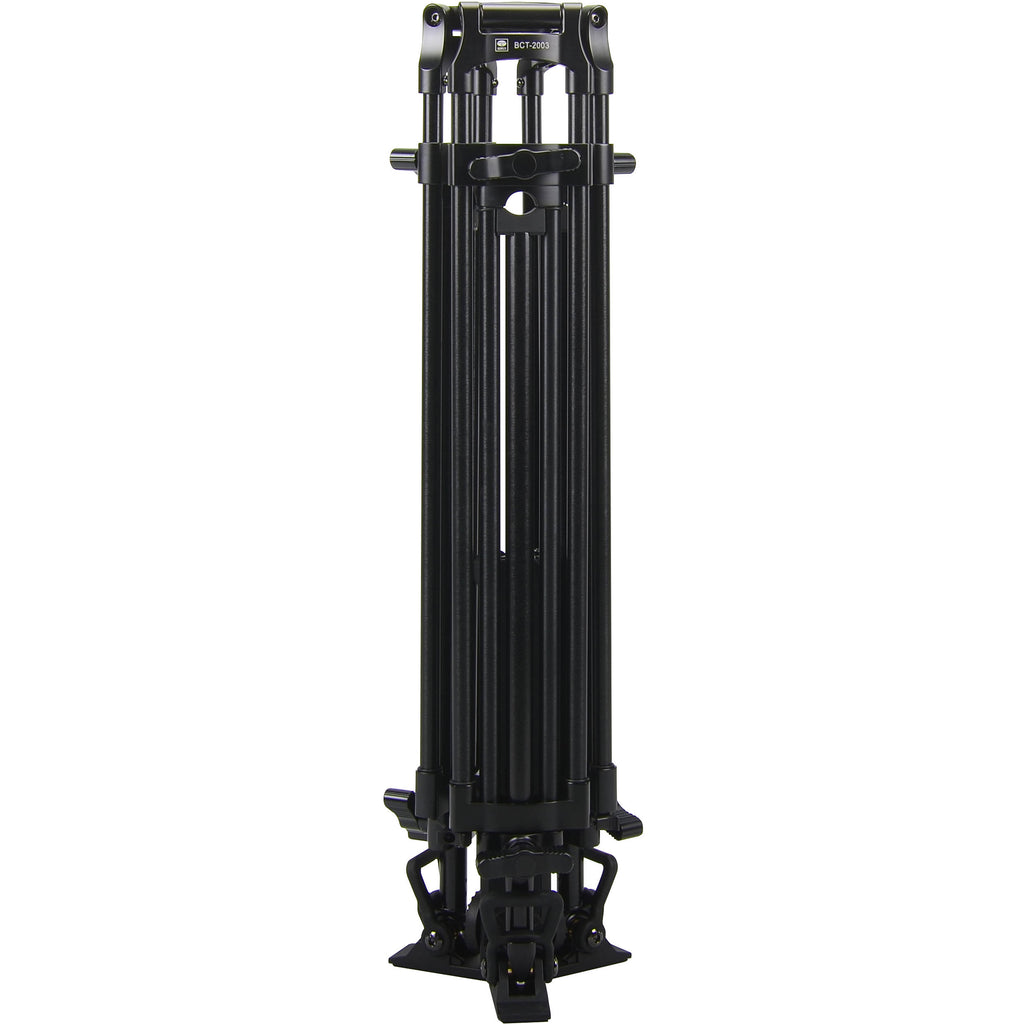

Sirui BCT-2003 Professional 3-Section Aluminum Video Tripod with 75mm Bowl
The BCT-2003 Professional 3-Section Aluminum Video Tripod from Sirui features a 75mm bowl for compatible fluid heads and supports up to 22 lb loads. It offers a 17 to 63" height range and comes with ground and mid-level spreaders, both of which are removable. The ground spreader has a rubber underside for safer and more secure placement on flat surfaces. When the ground spreader is removed, dual-spiked feet are revealed for use on soft ground.
The aluminum tripod is designed with multi-tube legs for enhanced stability and reduced vibration. Each leg is adjustable individually and secured with oversized twist leg locks that are easy to handle.
Key Features
Removable ground and mid-level spreaders included
Oversized twist leg locks

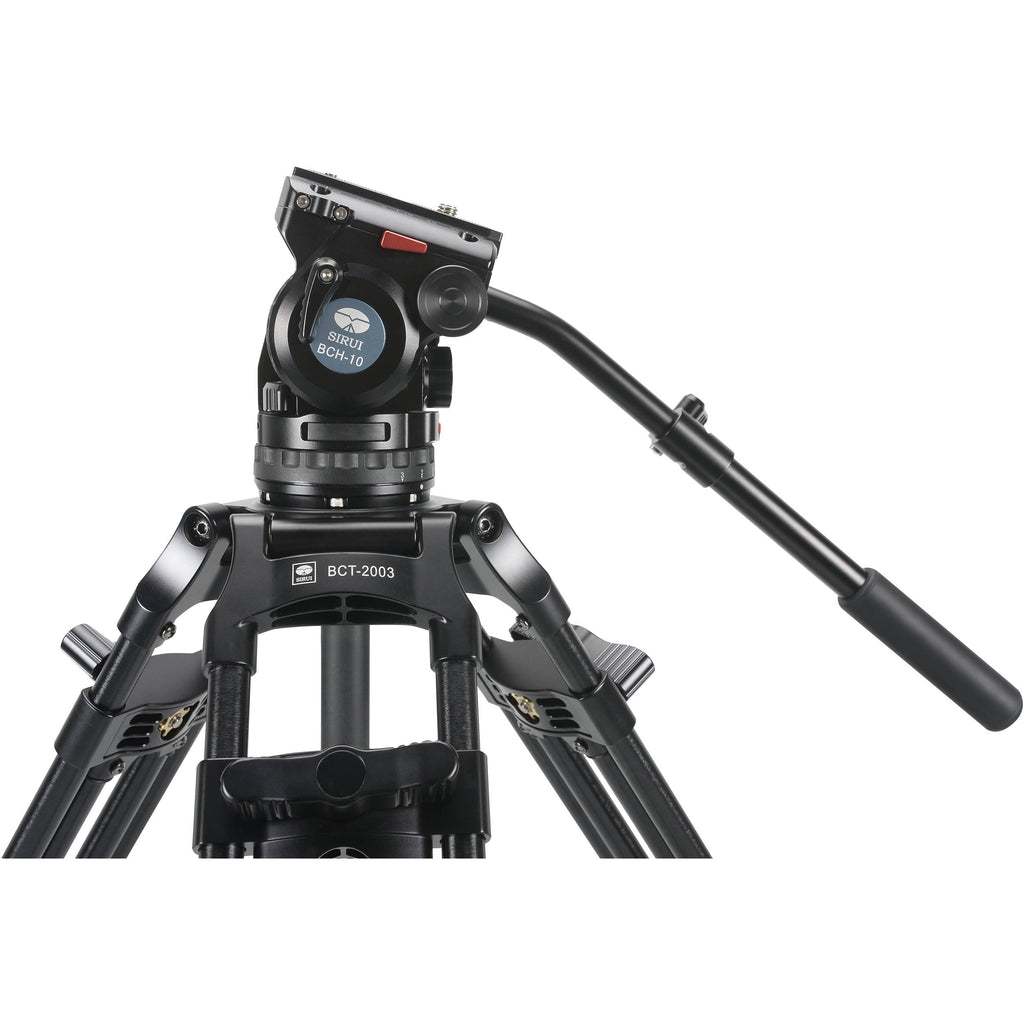

Sirui BCH-10 Video Head
For professional video applications, the Sirui BCH-10 Video Head is based off a 75mm ball mount for use on compatible tripod legs or other accessories such as sliders and jibs. Friction adjustment can be applied in 3 steps, with the 0 setting providing nearly-frictionless movement. A 3-step adjustable counterbalance can compensate for cameras weighing up to 13 pounds. The rosette-mounted pan handle easily extends for greater leverage and a second rosette on the side can be used to mount a second handle. The calibrated camera platform secures the camera plate with dual locks, preventing the camera from accidentally falling off the head during adjustment. To save time when balancing your camera, the platform is etched with calibrated measurements. Aluminum alloy is used in the construction for durability while maintaining a manageable weight.
Features
3 levels of friction control for panning and tilting, with 0 position for near-frictionless operation
3 levels of counterbalance adjustment
Dual bubble levels: Illuminated base bubble level and second top bubble level
Dual Safety Lock Quick Release Platform: Prevents the camera from sliding off the head while aligning for proper balance
Calibrated Quick Release Platform: Easily reposition your equipment using the etched scale on the platform
Integrated 75mm ball mount
Separate pan and tilt-lock knobs
Quick-release plate included
In the Box
- Sirui BCT-2003 Professional 3-Section Aluminum Video Tripod with 75mm Bowl
- Ground Spreader
- Mid-Level Spreader
- Limited 6-Year Warranty
- Sirui BCH-10 Video Head
Sirui BCT-2003 Professional 3-Section Aluminum Video Tripod with 75mm Bowl Specs
General
| Head Mount Type |
75 mm Bowl |
| Load Capacity |
22 lb / 10 kg |
| Maximum Working Height |
63" / 160 cm |
| Minimum Working Height |
17" / 43.2 cm |
| Folded Length |
29.5" / 74.9 cm |
| Materials |
Aluminum |
| Weight |
8.8 lb / 4 kg |
Legs
| Leg Lock Type |
Rotating Locking Lever |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Leg Diameter |
0.9" / 22 mm |
| Feet Features |
Spiked |
| Spreader |
Mid-Level, Ground (Included) |
Packaging Info
| Package Weight |
17 lb |
| Box Dimensions (LxWxH) |
44.25 x 10.5 x 10" |
Sirui BCH-10 Video Head Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate |
Tripod Platform
| Base Mount |
75 mm Half Ball |
Pan & Tilt
| Drag Control |
3-Step |
| Vertical Tilt |
+90° to -90° |
Physical
| Counter Balance |
Incremental 3-Step |
| Dimensions |
15.2 x 5.8 x 12.3" / 385 x 149 x 312 mm |
| Weight |
4 lb / 1.8 kg |
Packaging Info
| Package Weight |
5.33 lb |
| Box Dimensions (LxWxH) |
16.05 x 7.7 x 5.05" |
