| ₹ 180320.0 includes GST and import duties. | |
| B2B customers can avail ₹ 27498.8 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

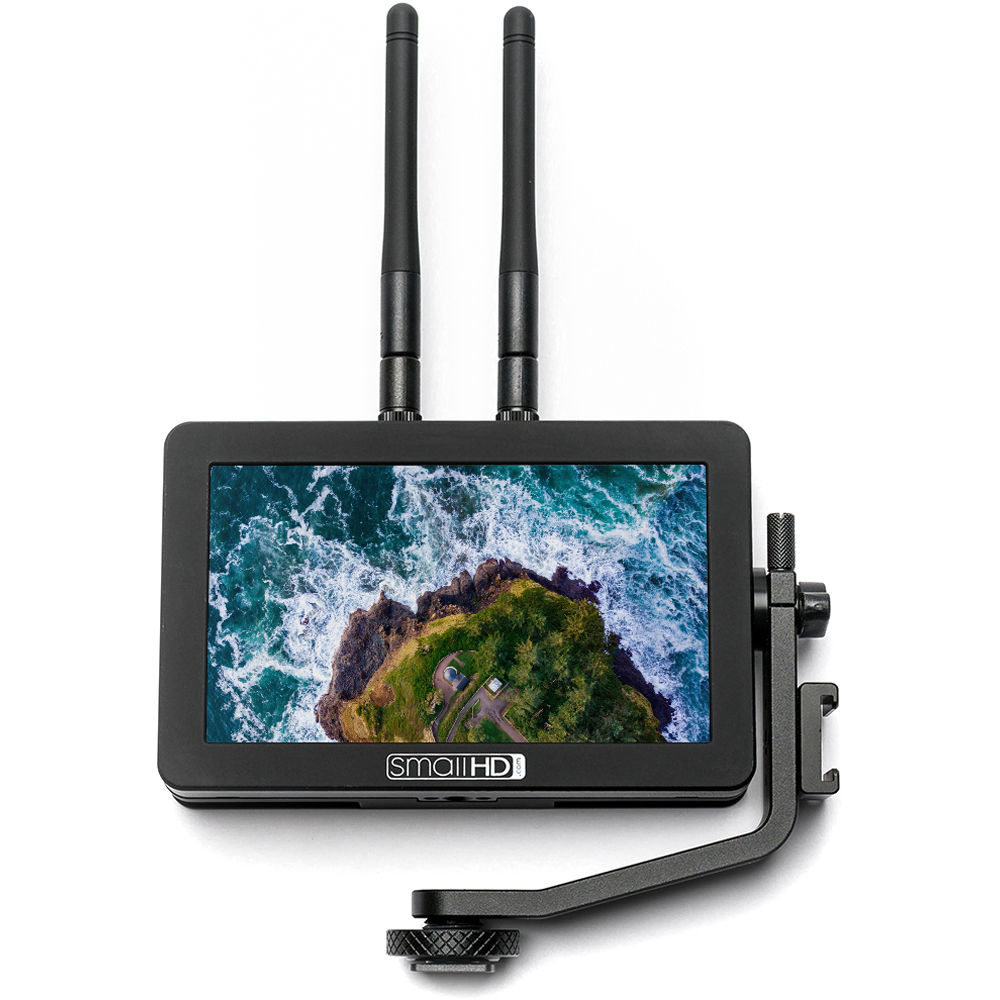

SmallHD Focus Bolt Overview
The SmallHD FOCUS Bolt 500 TX On-Camera Monitor combines SmallHD's popular FOCUS monitor with Teradek's Bolt 500 wireless transmitter, all in a single unit. Using the built-in transmission, the Focus Bolt can send uncompressed 10-bit 4:2:2 HD video to a Teradek Bolt 500, Bolt 500 LT, Bolt 500 XT, or Sidekick II receiver, or to a SmallHD FOCUS Bolt 500 RX or 703 Bolt monitor, up to 500' away. What's more is this monitor fits right atop your camera's accessory shoe using the included tilt-arm. An L-series battery kit, cable clips, matte and glossy screen protectors, a cleaning cloth, and an assortment of HDMI cables are included as well.

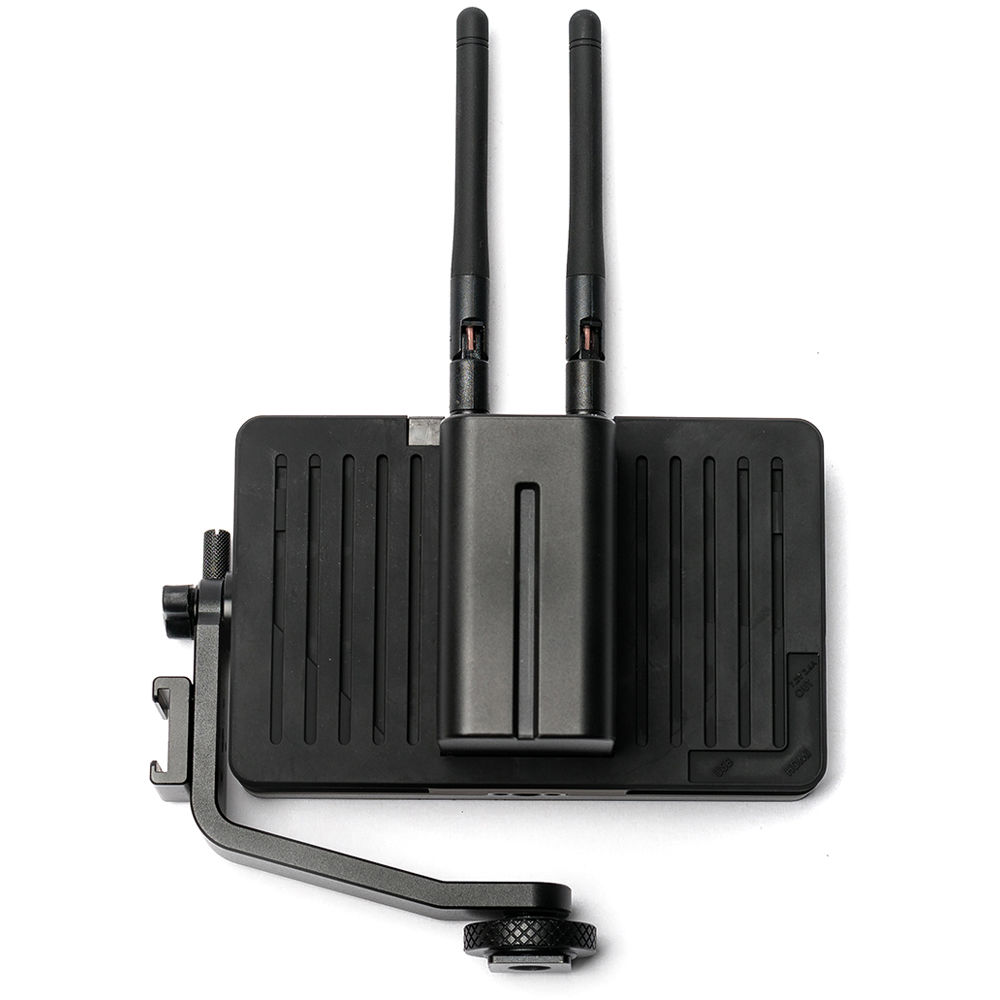

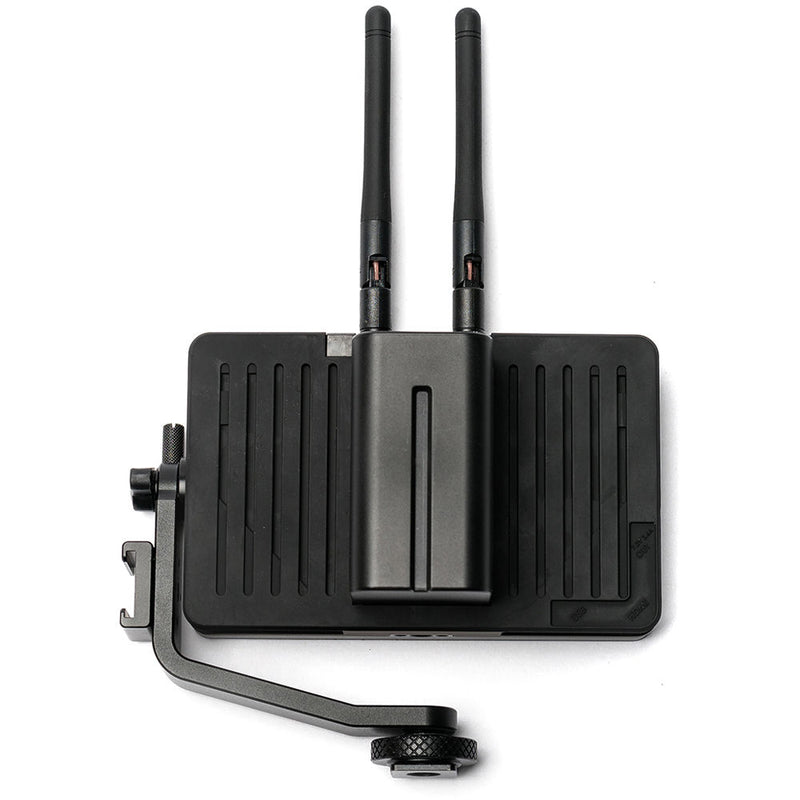

Display-wise, the FOCUS Bolt 500 TX is based off the same display and I/O as the well-regarded standard FOCUS models. The bright, 800 cd/m2, 1280 x 720 touchscreen IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts the included available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler.

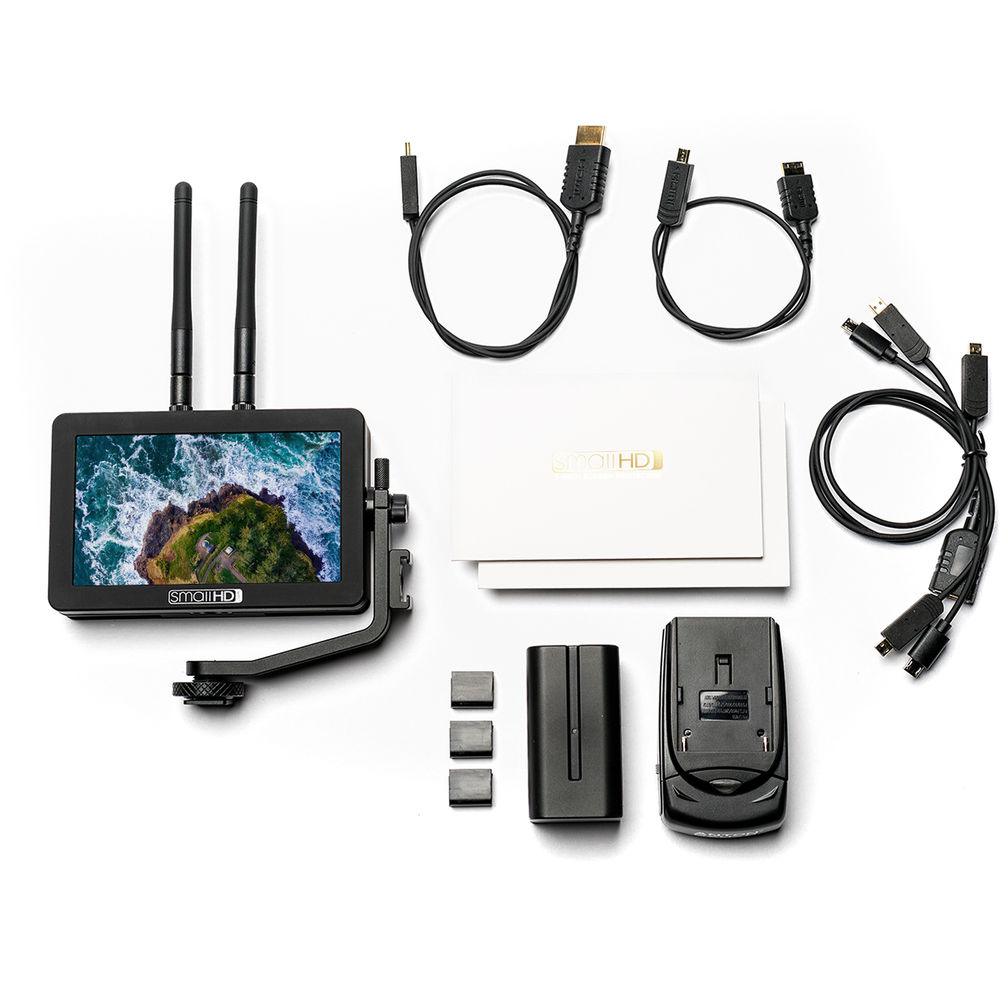

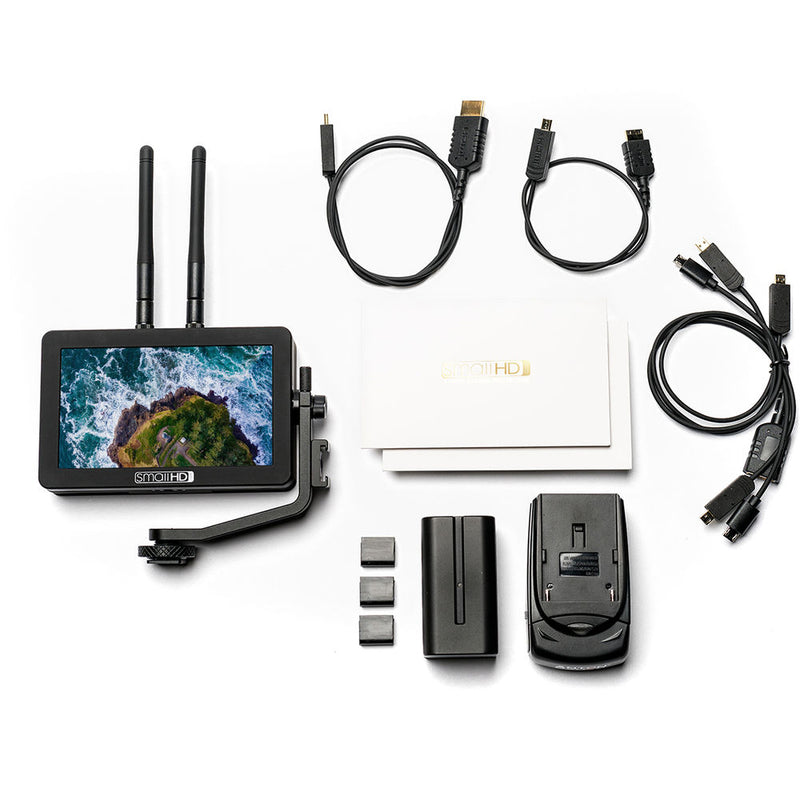

Items Included
- SmallHD FOCUS Bolt 500 TX On-Camera Monitor
- SmallHD L-Series Battery & Charger Kit
- Cable Management Clips
- SmallHD FOCUS Tilt Arm
- SmallHD Flexible Matte Screen Protector for FOCUS Monitors
- SmallHD UltraClear Screen Protector for FOCUS 5" Monitor
- SmallHD Microfiber Cleaning Cloth
- SmallHD Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
- SmallHD Micro-HDMI to HDMI Cable (3')
- SmallHD Micro-HDMI Cable (3')
- SmallHD Micro-HDMI to Mini-HDMI Cable (3')
- Limited 1-Year Manufacturer Warranty
Additional Resources
SmallHD Focus Bolt Specs
| Display |
5" / 12.7 cm IPS LCD
|
| Resolution |
1280 x 720
|
| Pixel Density |
294 PPI
|
| Aspect Ratio |
16:9
|
| Brightness |
800 cd/m²
|
| Contrast Ratio |
Not specified by manufacturer
|
| Color Gamut |
Not specified by manufacturer
|
| Bit Depth |
10-bit
|
| Viewing Angle |
160°
|
| Backlight |
White LED
|
| Temperature Adaptive Color |
No
|
| Inputs |
1 x HDMI Type D (micro-HDMI)
|
| Outputs |
1 x 3.5 mm stereo headphone
|
| Other I/O |
1 x Micro-USB
|
| Input Signal |
HDMI: 8/10/12-bit color
3840 x 2160 23.98/29.97/30 1080p 23.98/24/25/30/50/59.94/60 1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120) 720p 50/59.94/60 (high-speed: 720p 100/119.88/120) 576p 50 (high-speed: 576p 100/200) 480p 59.94/60 (high-speed: 480p 100/119.88/120/239.76/240) NTSC (high-speed: 480i 119.88/120/239.76/240) PAL (high-speed: 576i 100/200) Audio: HDMI embedded |
| Frequency Band |
5 GHz
|
| RF Power |
22 dBm EIRP
|
| Range |
Up to 500' line-of-sight
|
| Latency |
< 1/1000 second
|
| Video Resolution |
Up to 1080p, 60 fps
|
| Audio Sampling |
24-bit, 48 kHz
|
| Channel Selection |
AFS (Automatic Frequency Selection)
|
| Encryption |
AES-128
|
| Battery Support |
1 x NP-F (Sony L) battery bay
|
| Voltage |
6-8.4 VDC
|
| Storage |
SD card slot
|
| Dimensions |
3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm
|
| Weight |
3.75 oz / 106 g (without battery)
|
| Package Weight |
3.395 lb
|
| Box Dimensions (LxWxH) |
10.15 x 7.2 x 5.05"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 176713.6 |
| 3-5 | ₹ 174910.4 |
| 5-10 | ₹ 171304.0 |
| 10+ | ₹ 167697.6 |
Bulk discount will be automatically applied during checkout based on quantity.
