Description
SmallHD ULTRA 7 RX 1500 Overview

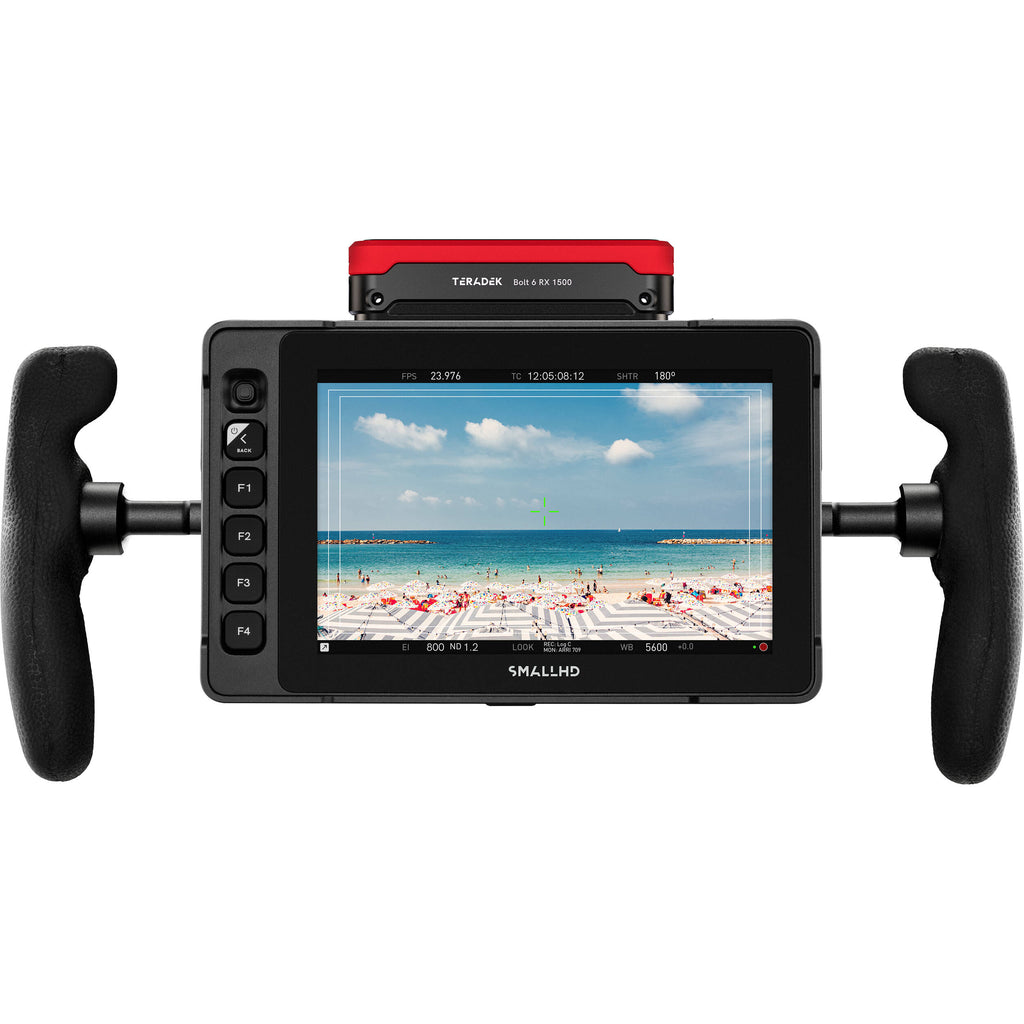

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 7 Bolt 6 RX 1500 Monitor. The unit features an ULTRA 7 bright 7" on-camera monitor, an integrated Bolt 6 receiver from Teradek, and a V-mount battery plate. The monitor features a bright 2300 cd/m² display, a 1920 x 1200 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in receiver module supports wireless image transmission from up to 1500' away from a separately available transmitter module. Separately available camera control kits can enable you to control an ARRI, VENICE, or RED camera. The module can receive via the 6 GHz wireless band alongside up to six other Teradek Bolt 6 series receivers, as well as 5 GHz receivers such as the Teradek Bolt 4K series. It features a powerful internal V-antenna for high-quality, low-latency transmissions, and its unibody design is water and dust resistant.
Features
The Ultra 7 Bolt 6 RX 1500 integrates a Bolt 6 1500 receiver directly inside an Ultra 7 monitor, allowing you to wirelessly receive images from a camera up to 1500' away
Daylight-viewable, 7" touchscreen on-camera monitor with 2300 cd/m² brightness
Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel

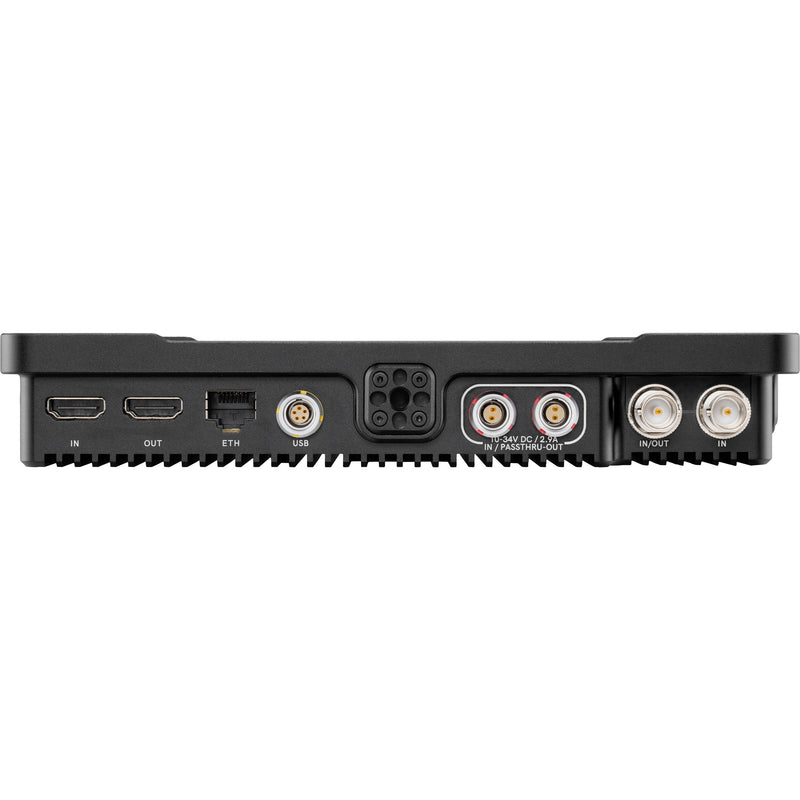

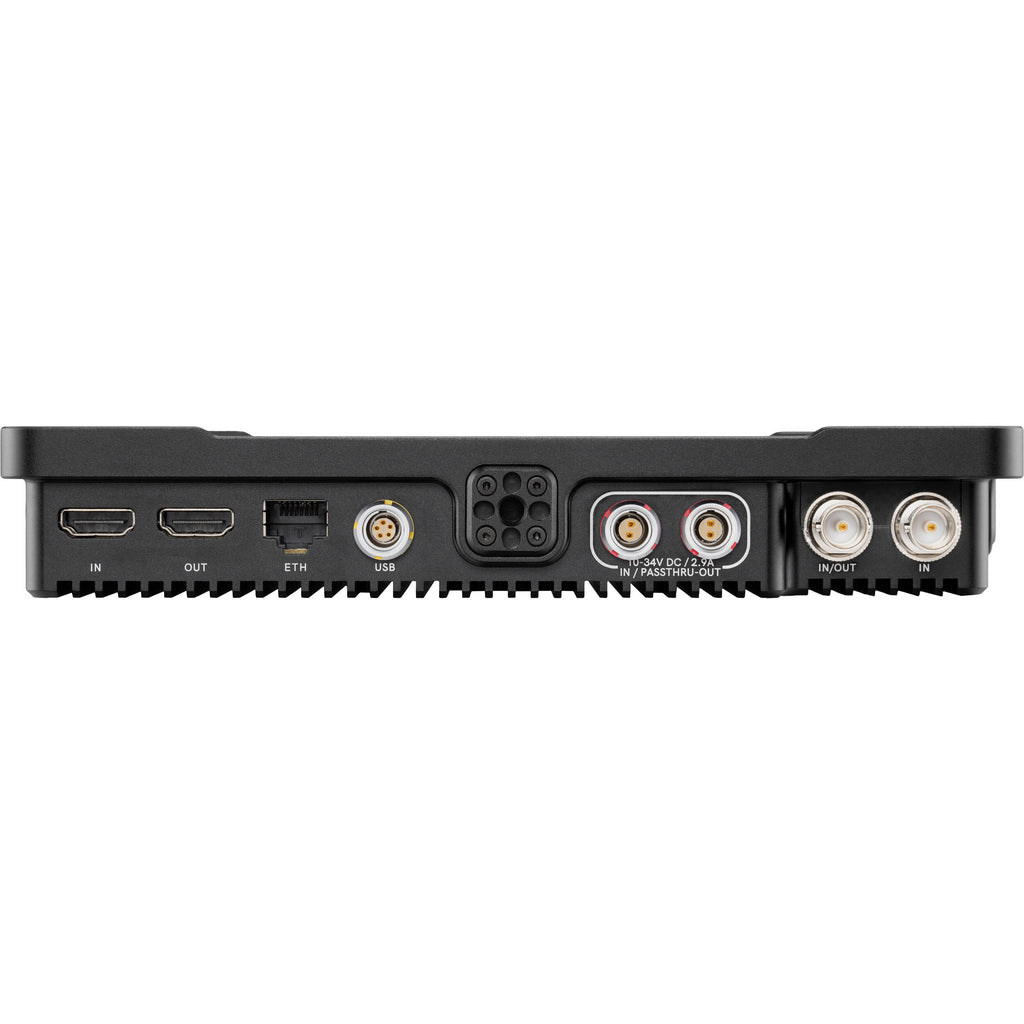

HDMI and 6G-SDI inputs and outputs
The Bolt 6 1500 RX is a real-time wireless video receiver that supports video signals up to 4K30 via HDMI with no image delay, allowing you to view color-accurate, True HDR images in less than 0.001 seconds
Tactile buttons around the monitor allow you to use the monitor in any condition
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

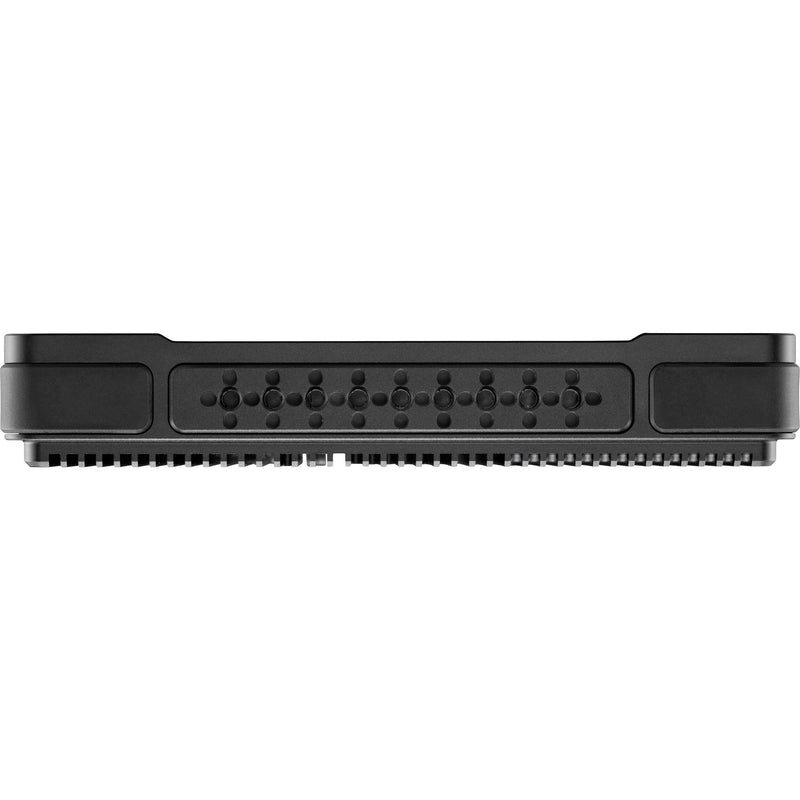

1/4"-20 mounting threads on the left, right, bottom of the monitor
Power using a 2-pin power input or included V-mount battery plate
Optional RED camera control via the 5-pin USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminum chassis
Display Tools
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels
UPC: 811786033959
In the Box
- SmallHD ULTRA 7 Bolt 6 RX 1500 Monitor (V-Mount)
- V-Mount Battery Plate
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Ultra Clear Screen Protector for Ultra 7
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallHD ULTRA 7 RX 1500Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x BNC (6G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x BNC (6G-SDI) Input 1x HDMI (Unspecified Signal) Input |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Video Format |
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/24/23.98 DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 100/60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 HDMI (8/10/12/16-Bit 4:4:4) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Built-In Battery |
No
|
| Mounting |
2x 1/4"-20 Female (Bottom)
2x 1/4"-20 Female (Left) 2x 1/4"-20 Female (Right) |
Display
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2300 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Color Gamut |
95% DCI-P3
98% Rec. 709 |
| Image Controls |
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
|
Inputs / Outputs
| Video I/O |
1x BNC (6G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x BNC (6G-SDI) Input 1x HDMI (Unspecified Signal) Input |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |

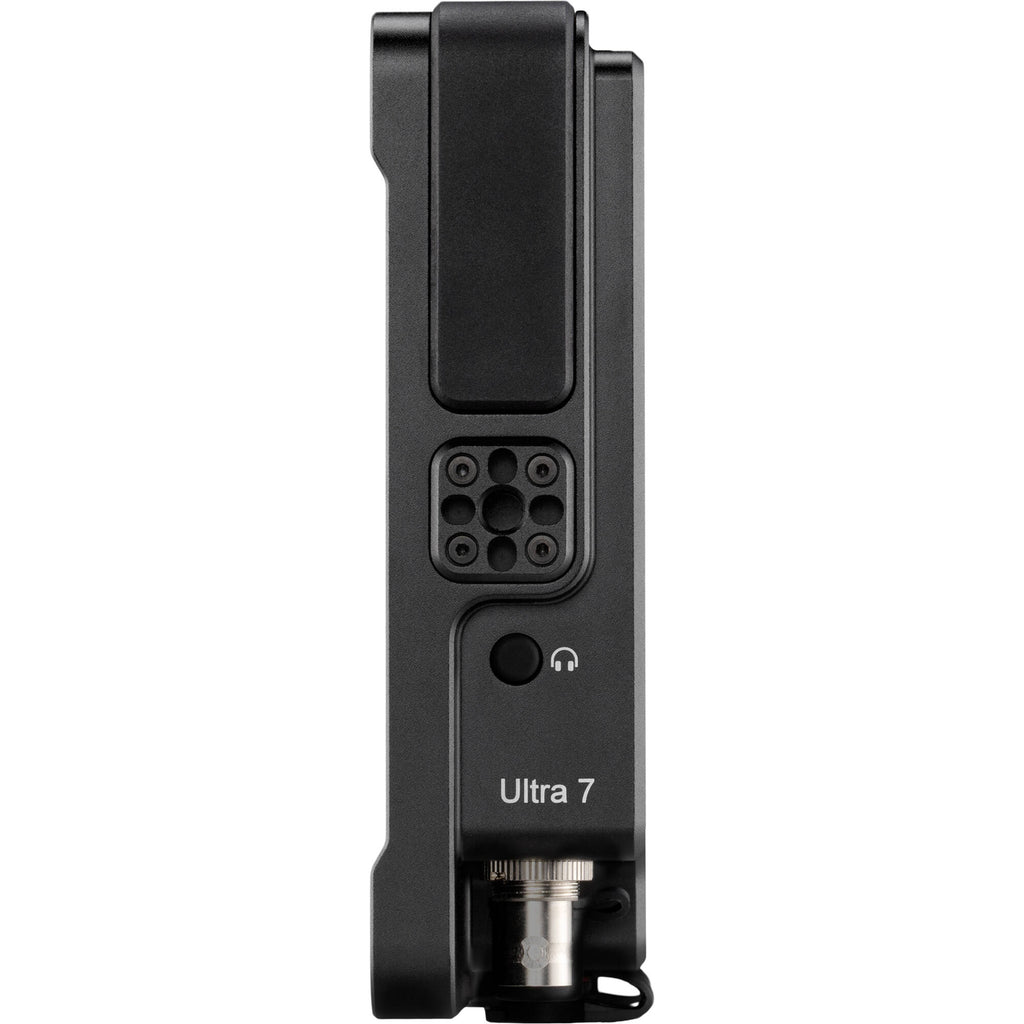

1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input
|
| Other I/O |
1x LEMO 5-Pin (Camera Control) Output
1x RJ45 (Camera Control) Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Encryption |
No,
|
Wireless
| Wireless Range |
1500' / 457.2 m
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/24/23.98 DCI 2K: 60/59.94/50/48/47.95 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 100/60/59.94/50/30/29.97/25/24/23.98 480i: 59.94 576i: 50 HDMI (8/10/12/16-Bit 4:4:4) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Audio Format |
2-Channel
|
Power
| Input Power |
10 to 34 VDC at 2.1 A
|
| Built-In Battery |
No
|
Mounting
| Mounting |
2x 1/4"-20 Female (Bottom)
2x 1/4"-20 Female (Left) 2x 1/4"-20 Female (Right) |
General
| Environmental Resistance |
Dust/Water-Resistant (IP53)
|
| Certifications |
CE, FCC, IC, RoHS
|
| Material of Construction |
Aluminum
|
| Weight |
1.98 lb / 900.00 g
|
Packaging Info
| Package Weight |
4.485 lb
|
| Box Dimensions (LxWxH) |
13 x 8.4 x 3.6"
|
