Description
SmallRig 3204B Overview

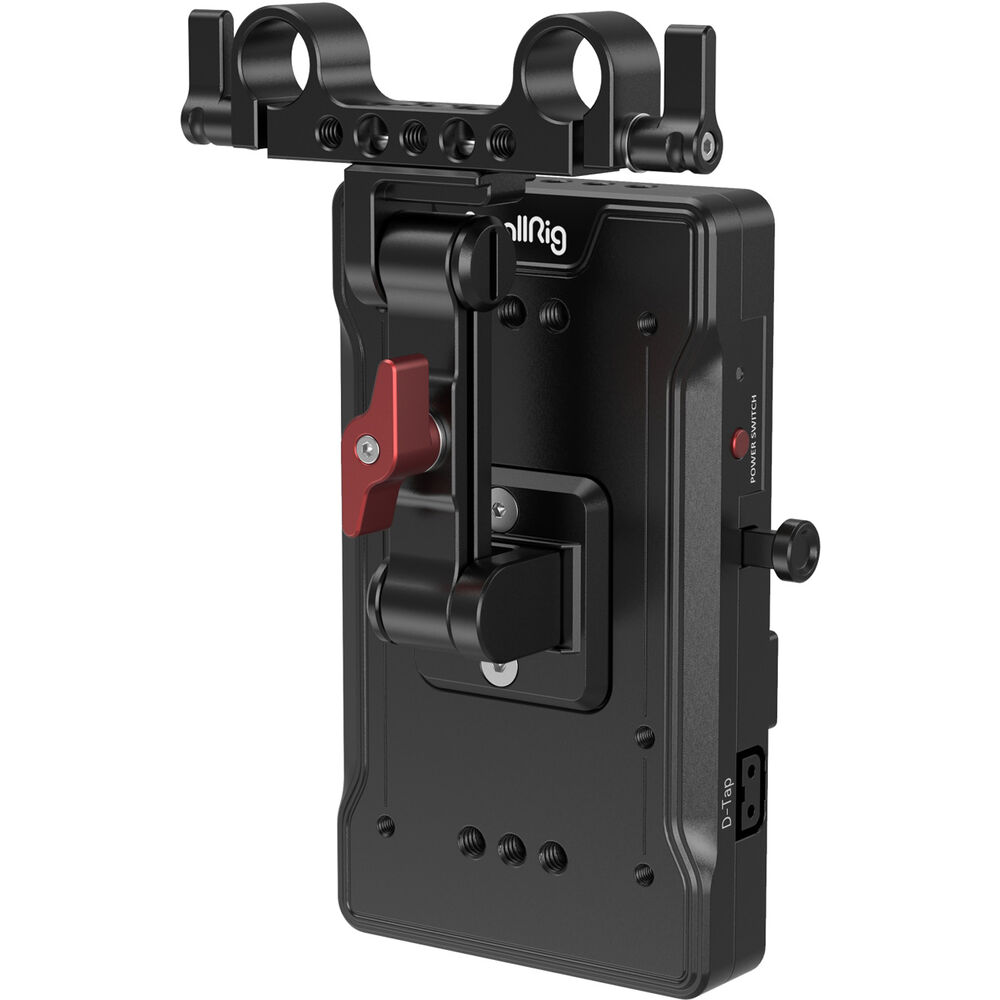

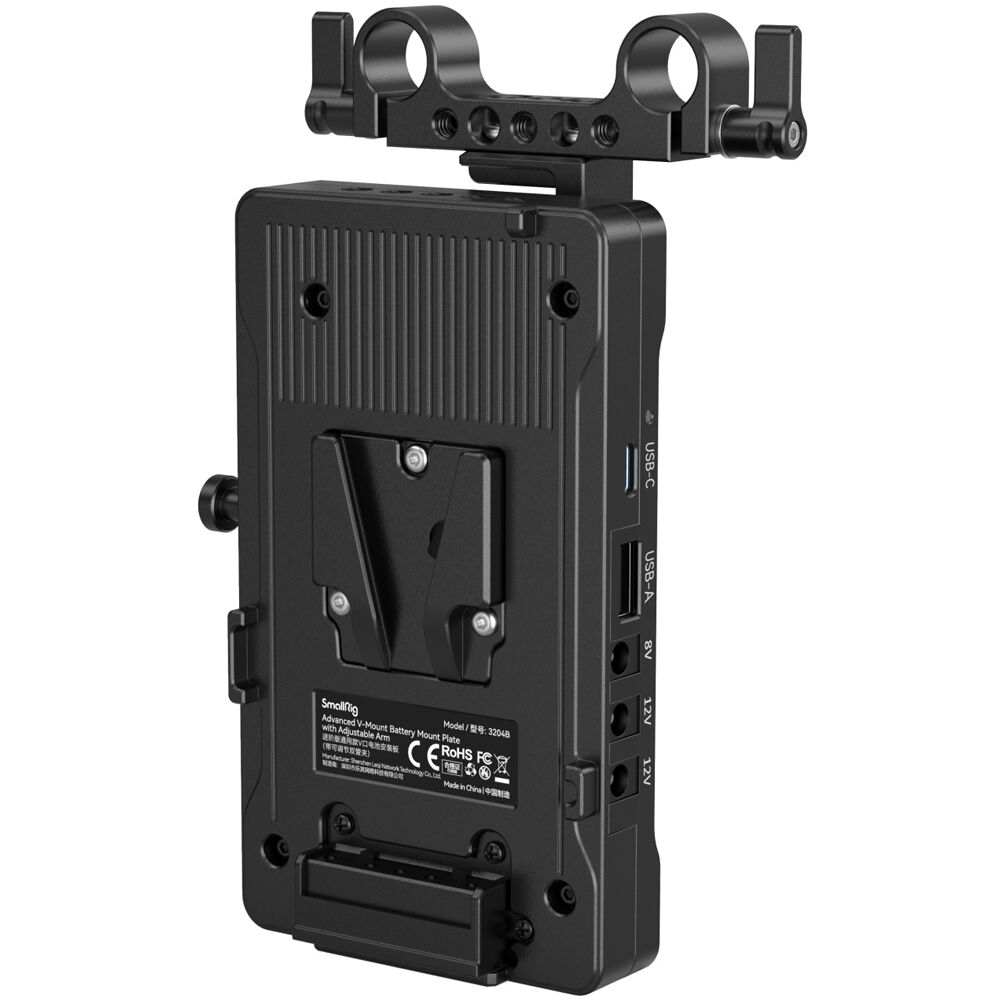

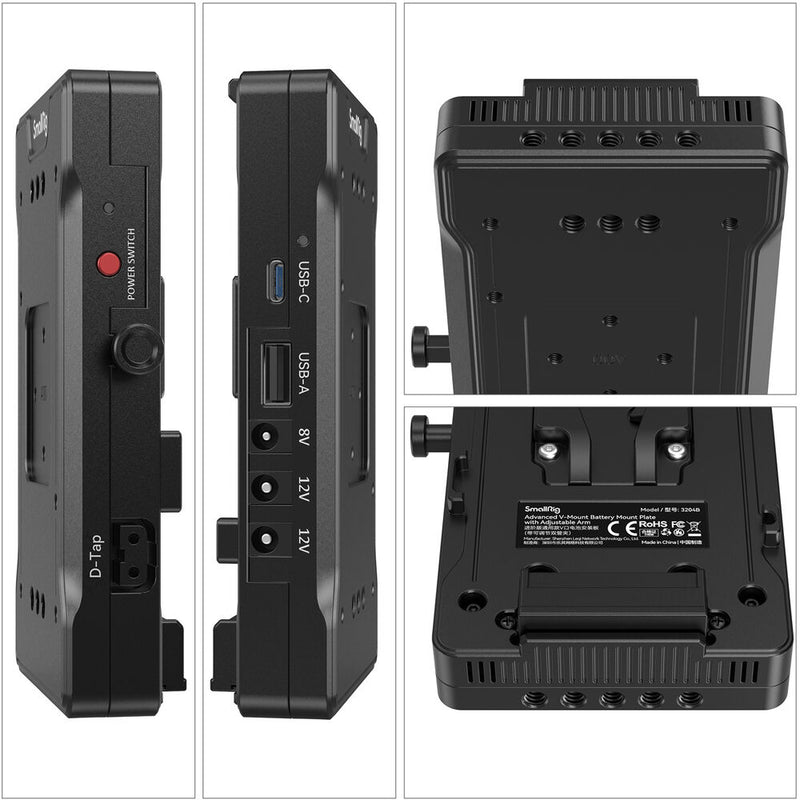

Power your camera and a variety of accessories from a single high-capacity V-mount battery with the V-Mount Battery Adapter Plate with 15mm LWS Rod Clamp & Adjustable Arm from SmallRig. The battery plate provides a V-mount for a single V-mount battery and one 14.8V D-Tap input/output, one 65W USB-C input/output, one USB-A 36W QC input/output, one 8 VDC barrel output, and two 12 VDC barrel outputs around the sides of the plate.
The aluminum plate features multiple 1/4"-20 and M4 threads around the plate to mount it onto a variety of arms, cages, clamps, or rigs. The attached adjustable arm allows you to quickly adjust the position of the clamp, and the attached 15mm LWS rod clamp allows you to mount the assembly onto standard, separately available 15mm LWS rods using locking levers. The rod clamp also features multiple 1/4"-20 accessory mounting threads for additional mounting options. The plate features a power button on the side, so you can quickly cut the power from the battery.

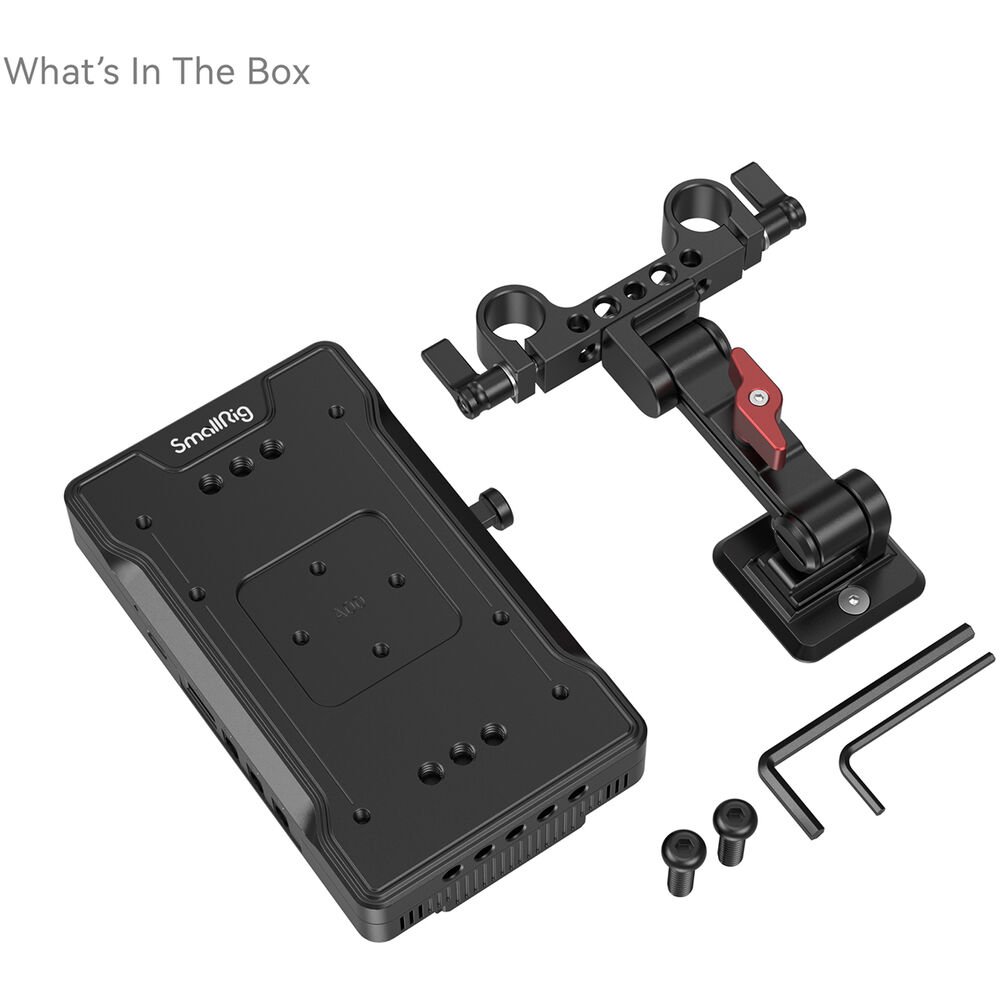

Items Included
- SmallRig V-Mount Battery Adapter Plate with 15mm LWS Rod Clamp & Adjustable Arm
- SmallRig 942 Super Lightweight 15mm LWS Rod Bracket v3
- Adjustable Arm
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallRig 3204B Specs
| Maximum Load |
65 W
|
| Power Output |
D-Tap: 14.8 VDC
USB-A: VDC USB-C: VDC DC Jack: 8 VDC DC Jack: 12 VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Power Input |
V-Mount: VDC
USB-A: VDC USB-C: VDC D-Tap: VDC at 10 A |
| Maximum Load |
65 W
|
| Power Output |
D-Tap: 14.8 VDC
USB-A: VDC USB-C: VDC DC Jack: 8 VDC DC Jack: 12 VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x D-Tap
1x USB-A 1x USB-C 3x DC Jack |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
1/4"-20 Female, 15 mm Rod Clamp
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female, M4 Female
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 5.6 x 3.7" / 15 x 14.2 x 9.3 cm
|
| Weight |
14.1 oz / 399 g
|
| Package Weight |
1.255 lb
|
| Box Dimensions (LxWxH) |
6.8 x 6 x 3.7"
|
