Description
Smart-AVI HDX-LX Overview

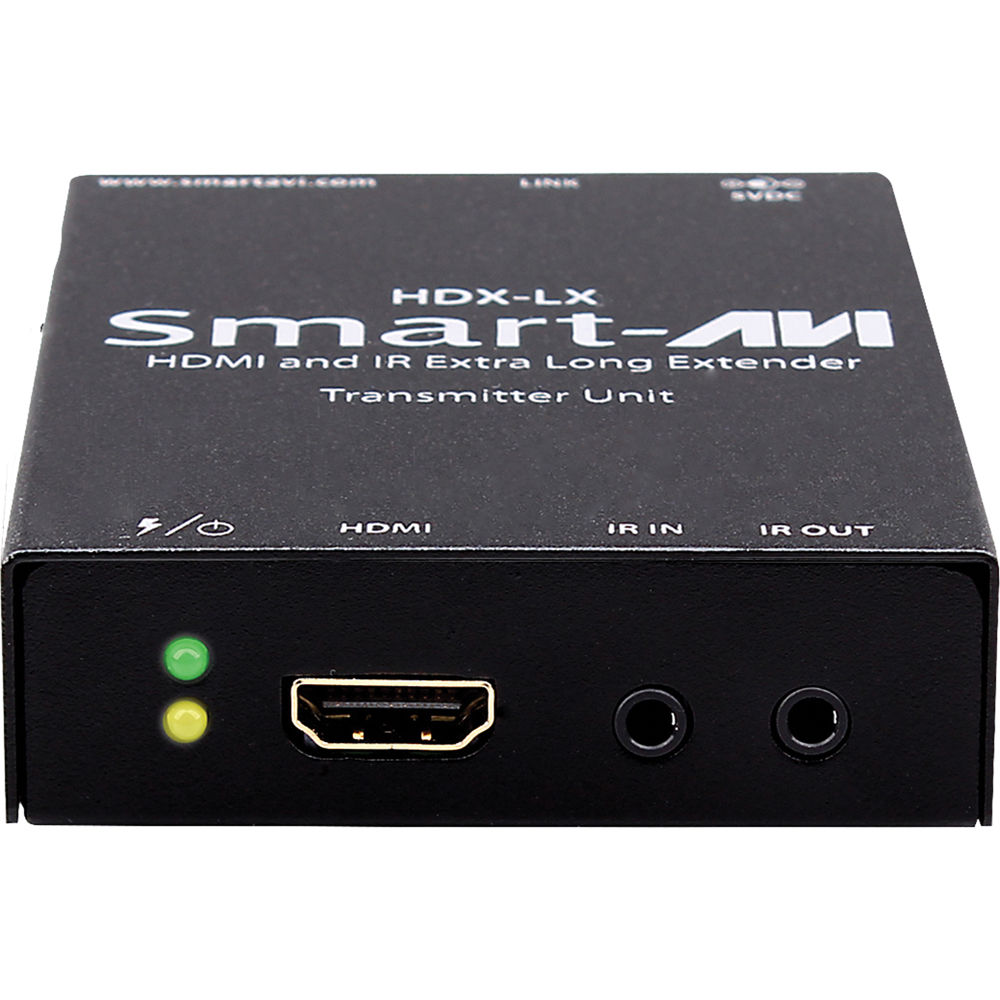

The HDX-LX-TX HDMI and IR Transmitter from Smart-AVI uses a single CAT5 UTP cable to extend HDMI output to up to 250' (76m) from the source using HDBaseT technology when paird with the HDX-LX-RX Receiver. It is capable of transmitting uncompressed HD video up to 1080p (60 Hz @ 48-bit, and 3D) at up to 3.4 Gb/s. It also supports transmitting Dolby TrueHD and DTS-HD MA audio signals.
The transmitter is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, isolated industrial workstations, information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments that require remote displays.
- Extends HDMI output over a single CAT5 UTP cable when paired with HDX-LX-RX (available separately)
- Transmits uncompressed HD video up to1080p (60 Hz @ 48-bit and 3D)
- Transmits 1080p video signal to up to 250� (76m) from the source
- Data signals up to 3.4 Gb/s
- Uses HDBaseT technology
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Extends IR control signals for remote control
- HDMI 1.3 and HDCP compliance
- Supports bi-directional IR communication
- Designed and manufactured in USA
- Home theater
- Corporate or educational presentations
- Call centers
- Industrial (long-range workstation isolation)
- Information terminals / kiosks
- Airport installations (ATC or passenger information)
- Educational environments with remote displays
In the Box
- Smart-AVI HDX-LX-TX HDMI and IR Transmitter
- Smart-AVI PS5VD2A 5V 2A Power Supply
- Limited 1-Year Manufacturer Warranty
Smart-AVI HDX-LX Specs
| Resolution | 800 x 600, 1024 x 768 , 1280 x 1024, 1366 x 768, 1920 x 1200, 480i, 720p, 1080i, 1080p, and 3D |
| Color Depth | Deep color 36/30/24-bit at 1080p and 3D |
| Audio Format | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| IR Range | 38 kHz, 56 kHz |
| Video Bandwidth | 10.2 Gb/s |
| Input Video Signal | 1.2 Vpp |
| Input DDC Signal | 5 V (TTL) |
| Input Interface | 1 x HDMI-A (19-pin socket) 1 x 2.5 mm DC jack 1 x 3.5 mm jack for IR receiver |

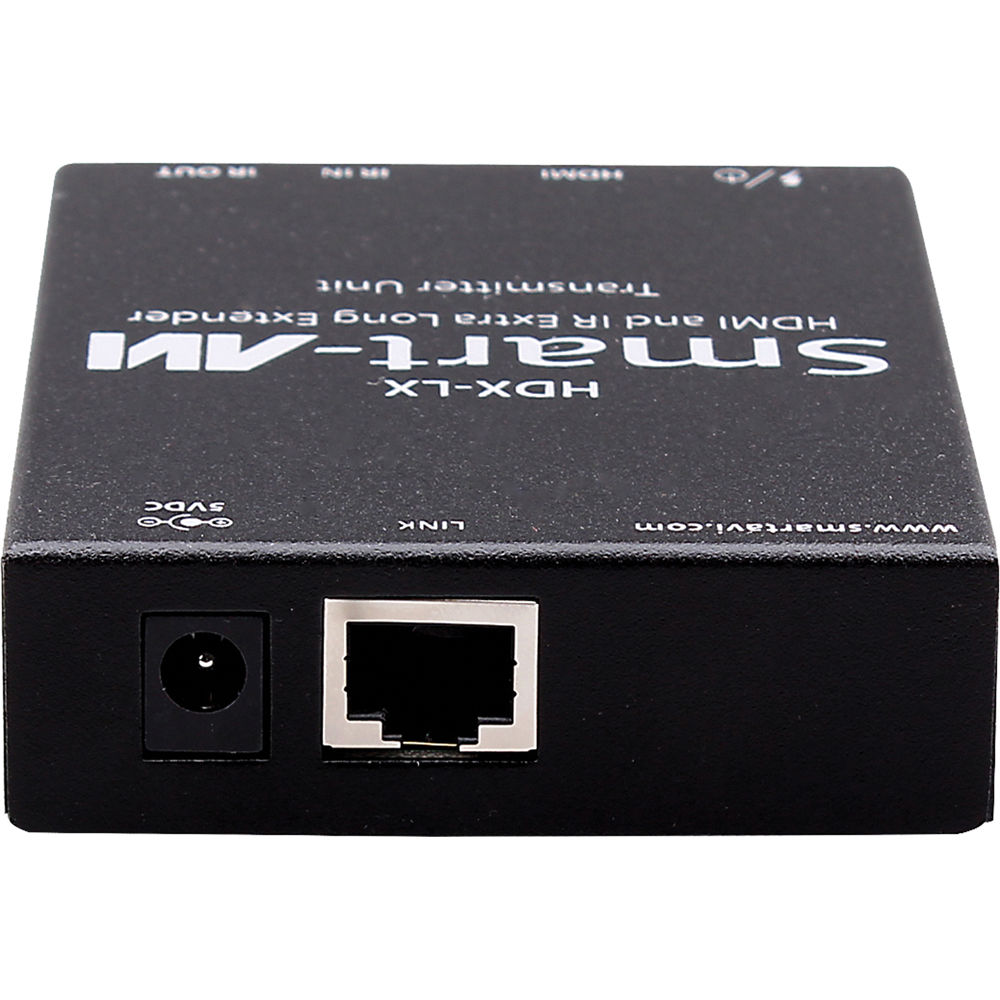

| Output Interface | 1x RJ45 jack 1x 3.5 mm jack for IR emitter |
| Range | 250' (76 m) |
| Certificates | FCC, CE, RoHS |
| Power Adapter | UL, CE, FCC, RoHS |
| Power | External: 5 VDC, 2 A |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10 to 85% (non-condensing) |
| Dimensions | 0.9 x 2.9 x 3.7" (2.3 x 7.4 x 9.4 cm) |
| Weight | 4.2 oz (120.0 g) |
