Description

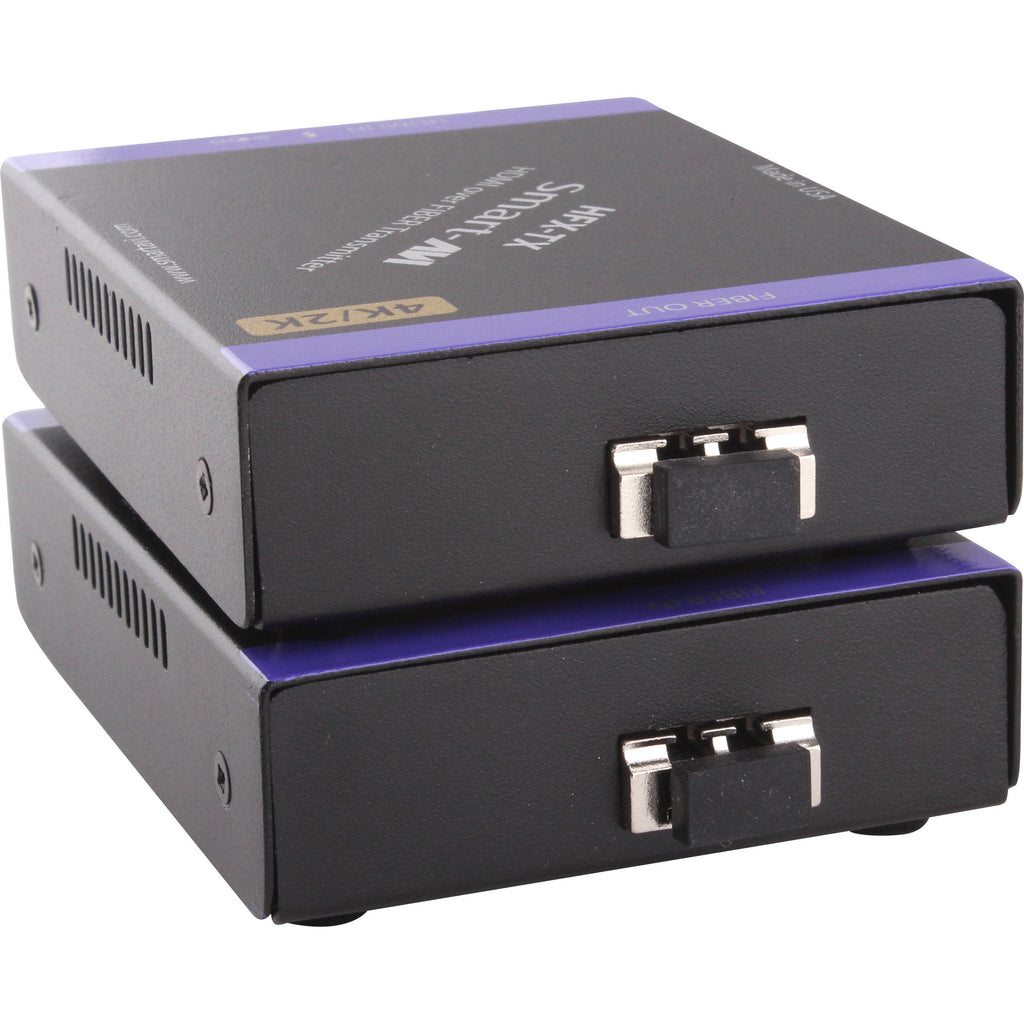

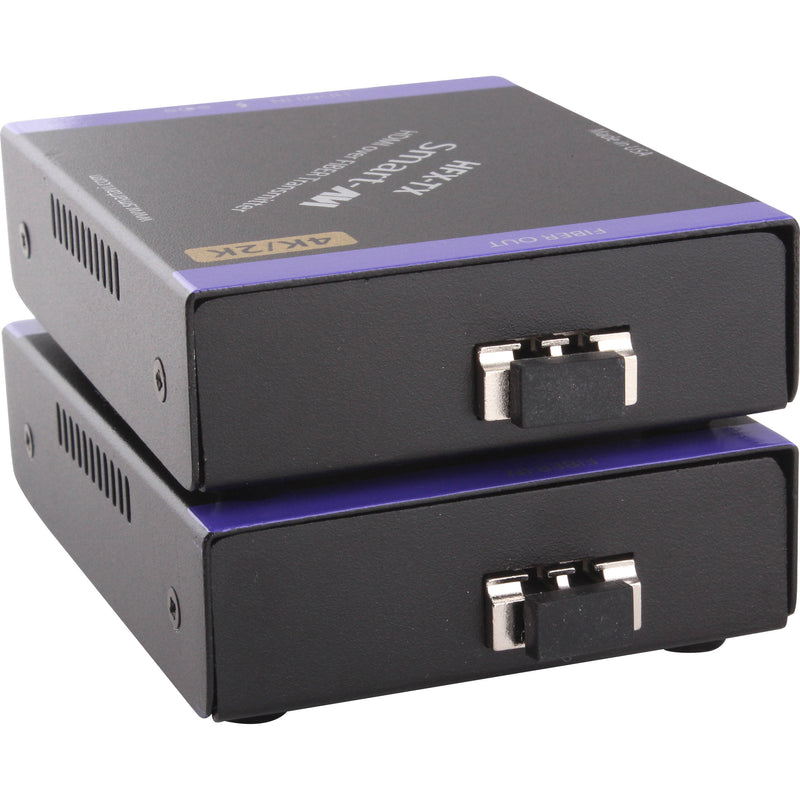

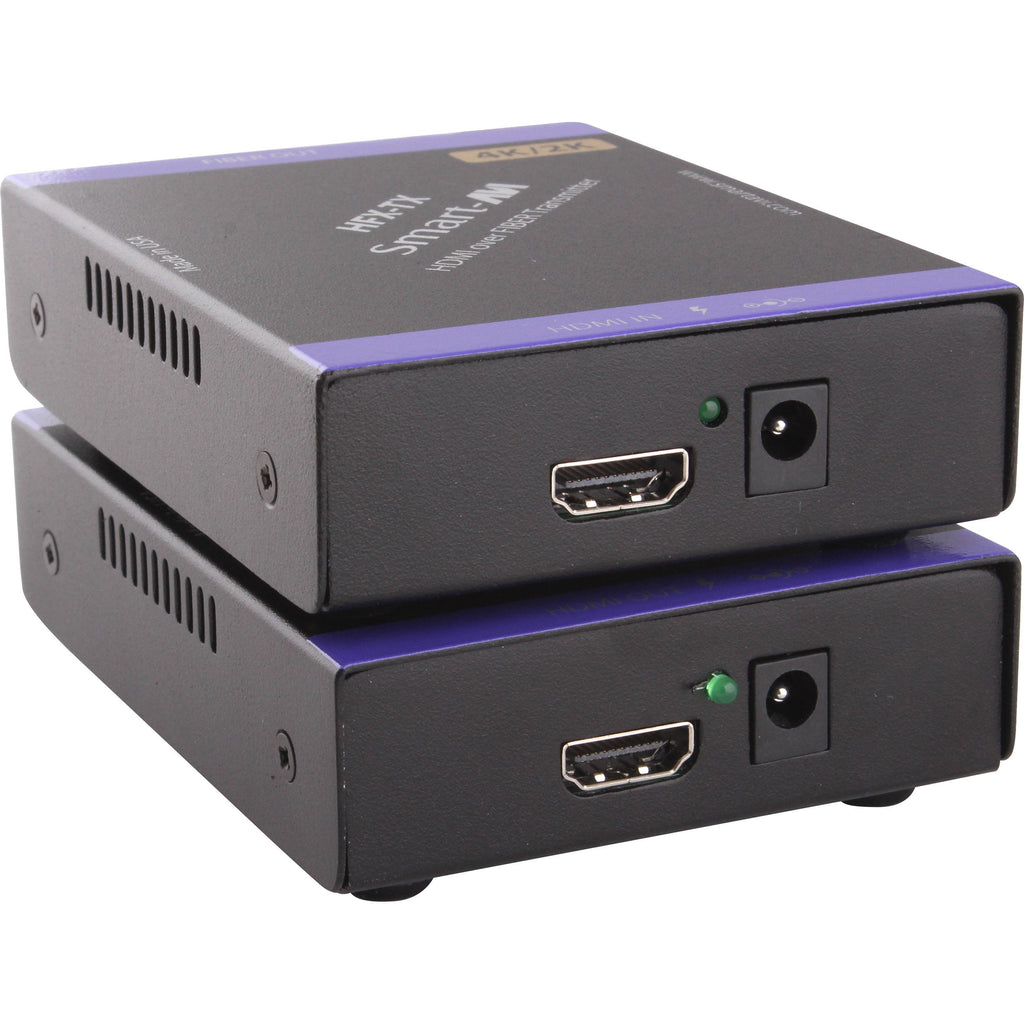

The HFX-S 4K HDMI over Fiber Cable Extender Set from Smart-AVI is a point-to-point fiber optic 4K HDMI extender which comes with both a transmitter and receiver unit. Without the need for any other hardware or software, the HFX-S provides an uncompressed long-distance HDMI signal, up to 1,000', with fiber optic extension capabilities. Supported resolutions extend up to 4K Ultra HD @ 30Hz, as well as 3D HD video. High-quality digital audio is also transmitted via the extender, making it ideal for home theater, corporate/educational presentations, call centers, information terminals/kiosks, airport installations, medical campuses, recording studios, and financial applications.
- Supports HDMI 1.4a
- HDCP compliant
- Extends HDMI signals up to 1,000 feet at 10.3 Gbps with OM3 multi-mode fiber optic cabling
- Supports resolutions up to 4K Ultra HD @30 Hz
- Hot-pluggable
- EMI/RFI resistant
- LC type fiber optic connector
- Plug-and-play
- Quick and easy setup
- Designed and manufactured in the USA
- 2 x PS5VD2A 5V 2A Power Supply
- Limited 1-Year Warranty
| Format | Video: HDMI 1.4 and HDCP compliant Audio: Dolby TrueHD, DTS-HD MA |
| Resolutions | 480p, 720p, 1080i, 1080p @ 60 Hz 48-bit 4K x 2K @ 30 Hz |
| Refresh Rate | 130 Hz |
| Wavelength | 850 nm |
| Bit Error Rate | 1.00 E-12 |
| Interfaces | Transmitter Unit: 19-Pin female, HDMI video input (with integrated audio) LC-Type, fiber optic port DC power input Receiver Unit: 19-Pin female, HDMI video output (with integrated audio) LC-Type, fiber optic port DC power input |
| Cable Length | Input: 40' (12.2 m) Maximum Output: 40' (12.2 m) Maximum |
| Cable Requirements | Multi-mode, OM3 |
| Maximum Length | 1000' (300 m) |
| Laser | Output Power: Class 1 EN 60825-1 2007; EN 60825-2 A2 2010 |
| Power Supply | External, 5 VDC, 2 A @ 10 W |
| Approvals | UL, CE, ROHS Compliant |
| Temperature | Operating: 32 to 131�F (0 to 55�C) Storage: -4 to 185�F (-20 to 85�C) |
| Maximum Humidity | 95% |
| Dimensions | Each Unit: 1.1 x 5.0 x 4.1" (2.9 x 12.7 x 10.5 cm) |
| Weight | Each Unit: 1 lb (0.5 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
