Description
Smart-AVI SM-MST-4D-S Overview

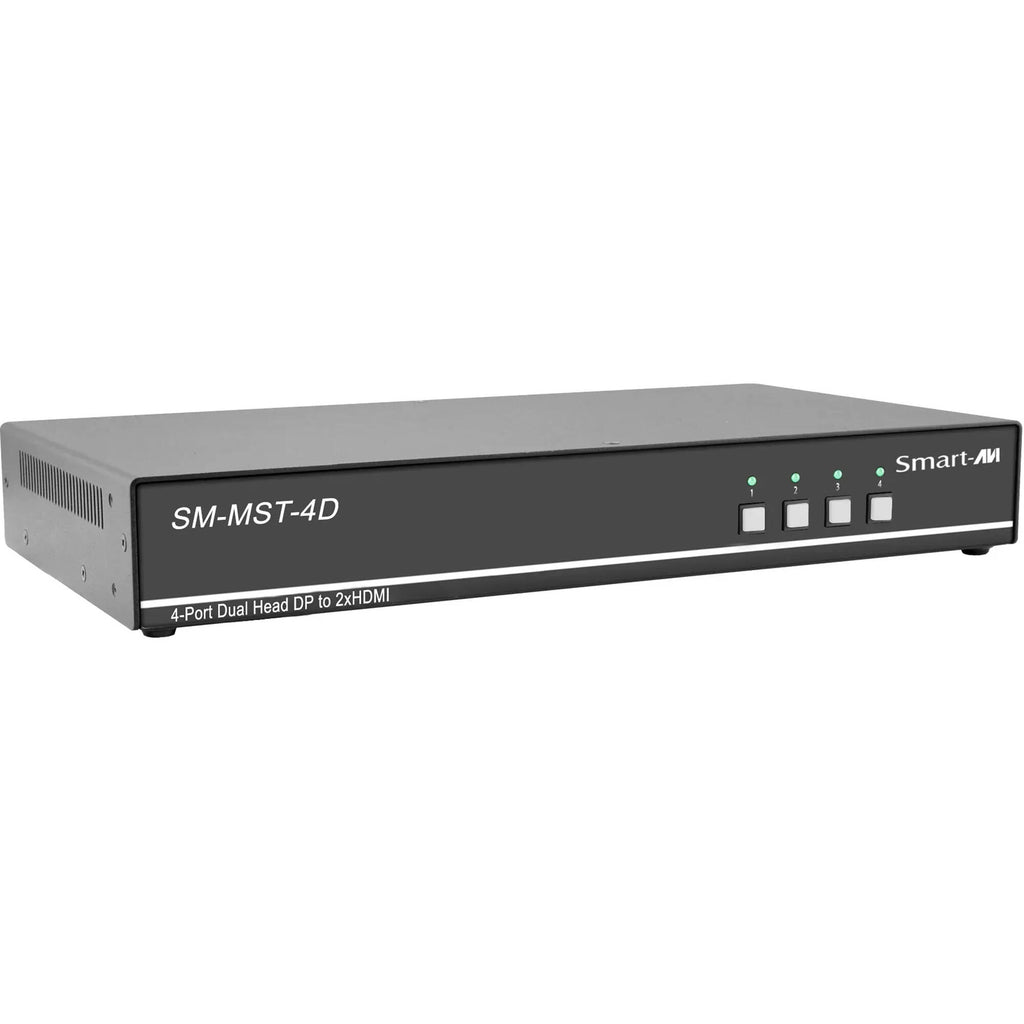

Connect and manage up to four systems from a single access point with the Smart-AVI SM-MST-4D-S 4-Port Quad-Head DP MST KVM Switch. With features like front-panel keys and LEDs, USB 1.1 and 2.0 emulation and connectivity, support for resolutions up to 4K UHD (3840 x 2160 at 30 Hz), and RGB or YCbCr support, this KVM switch greatly benefits individuals looking to take greater control of their Windows 7 or 10 systems.
Front-Panel Control

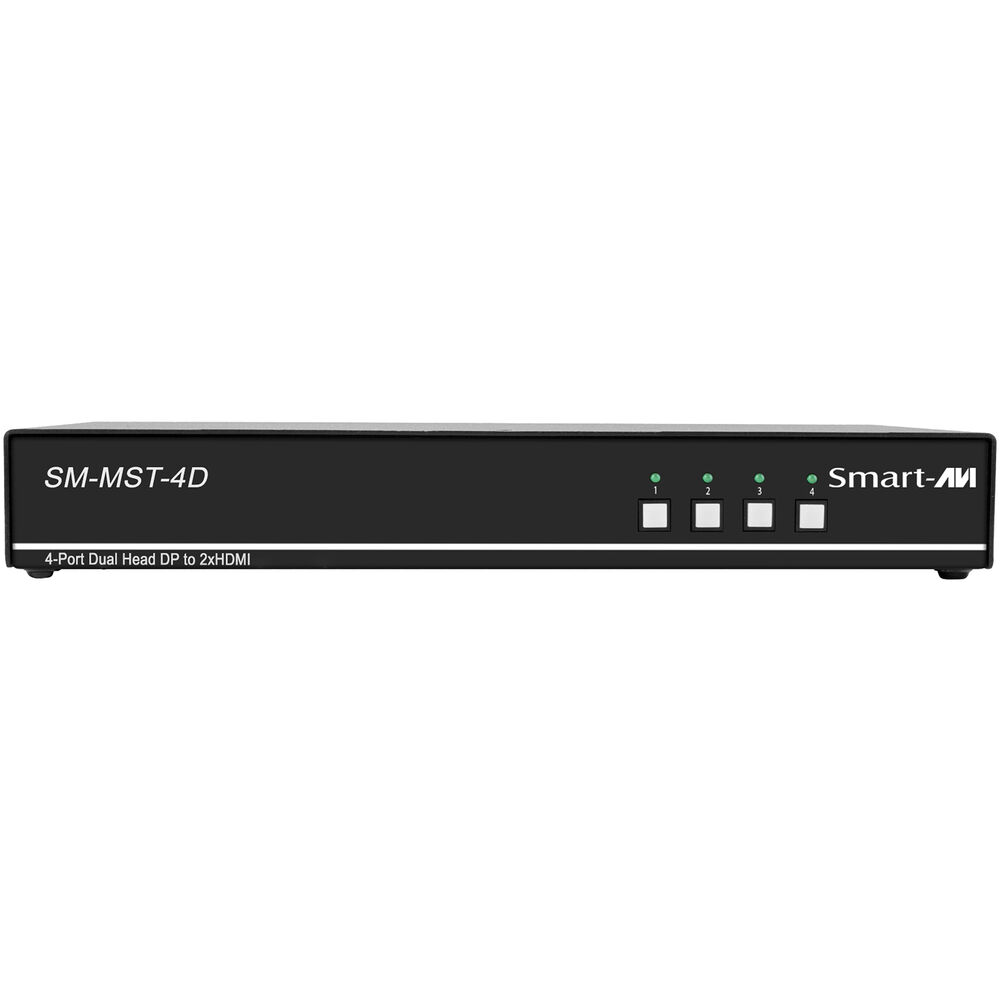

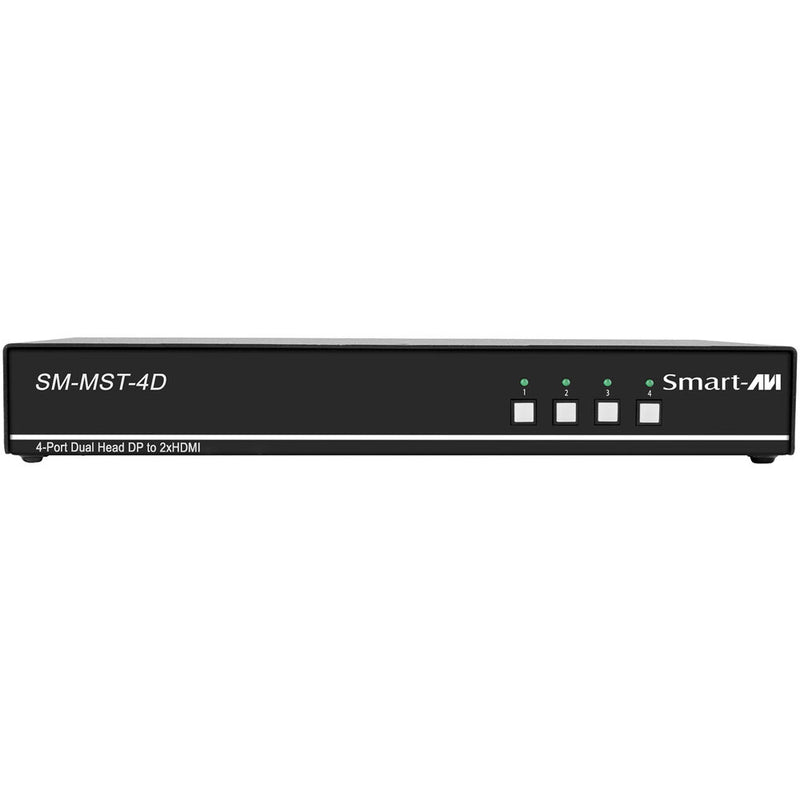

This KVM switch features front-panel keys for manual port selection. Additionally, the LEDs on the front panel inform you of your port connection status.
Custom Hotkey Triggers
Users can customize the keys that trigger Hotkeys for manual port selection.
RS-232 Serial Control
This KVM switch may also be controlled via RS-232 commands from HyperTerminal or an alternate terminal application.
Additional Features
- DisplayPort 1.2a dual-mode receiver
- HDMI/DVI operation up to 320 MHz
- Max video input resolution 4K at 60 Hz
- Multi-Stream Transport supports up to two streams
- Supports RGB or YCbCr
- Supports balanced speakers output and switching
- External power supply - level VI efficiency
UPC: 813280025034
Items Included
- Smart-AVI SM-MST-4D-S 4-Port Quad-Head DP MST KVM Switch
- 3.5mm to DB9 Cable
- 12 VDC, 2A Power Adapter with Center-Pin Positive Polarity
- Limited 1-Year Manufacturer Warranty
Additional Resources
Smart-AVI SM-MST-4D-S Specs
Key Specs
| # of Systems Supported |
4
|

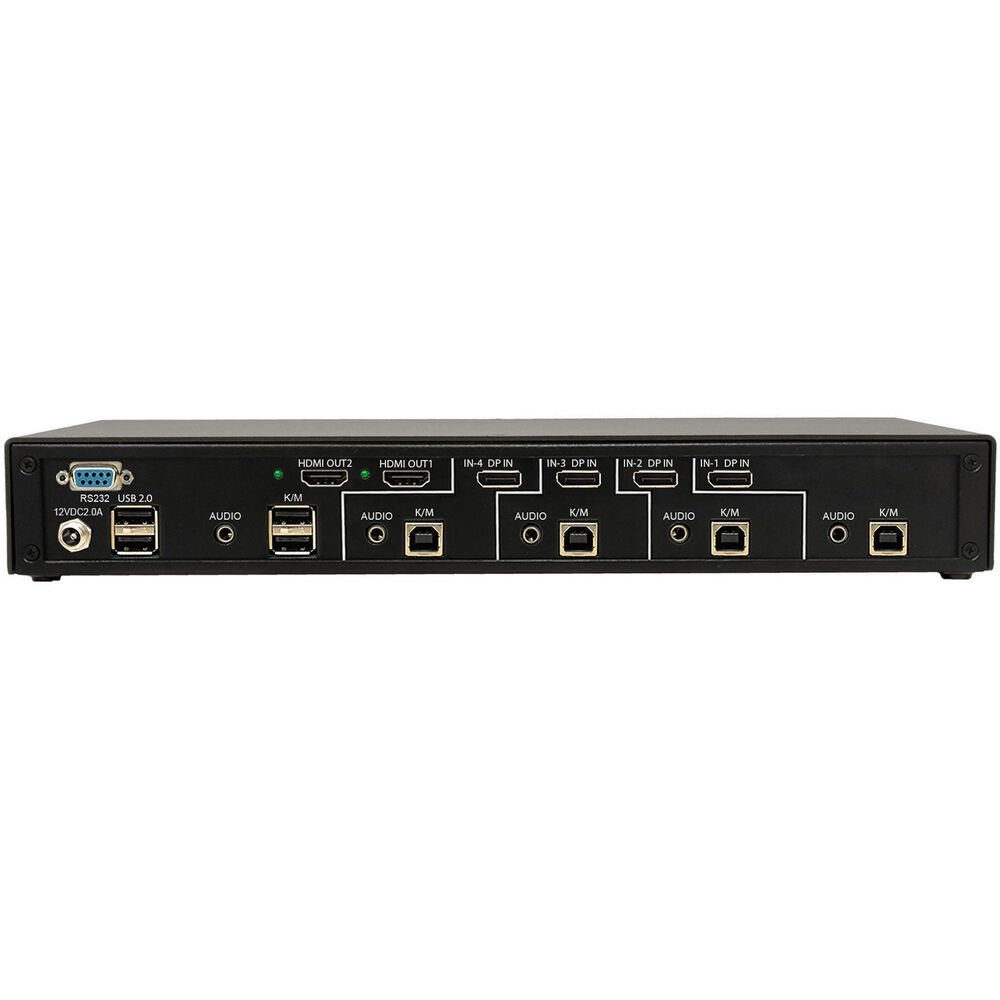

| KVM I/O |
4x DisplayPort
4x USB-B 4x 1/8" / 3.5 mm |
| Console I/O |
2x HDMI
2x USB-A 1x 1/8" / 3.5 mm |
| Supported Resolutions |
3840 x 2160 @ 30 Hz
|
General
| # of Systems Supported |
4
|
| KVM I/O |
4x DisplayPort
4x USB-B 4x 1/8" / 3.5 mm |
| Console I/O |
2x HDMI
2x USB-A 1x 1/8" / 3.5 mm |
| Supported Resolutions |
3840 x 2160 @ 30 Hz
|
| USB Keyboard/Mouse Emulation |
Yes
|
| OS Compatibility |
Windows 7
Windows 10 |
Power
| Power Source |
AC Adapter
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
24 W
|
Physical
| Cable Length |
20' / 6.1 m
|
| Certifications |
UL, CE, RoHS
|
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 80% Humidity
|
| Operating Current |
2 A
|
| Dimensions |
12.57 x 6.69 x 1.76" / 31.93 x 16.99 x 4.47 cm
|
| Weight |
4.2 lb / 1.9 kg
|
