Description
Sonifex RB-MA1 Overview
Elevate your mic signals with the RB-MA1 from Sonifex, a single-channel low-noise mic preamp that converts line-level to mic-level signals, ideal for stages or long cable runs. With a rugged metal chassis and recessed controls, the RB-MA1 is designed to withstand the rigors of backline use, studio work, and touring.

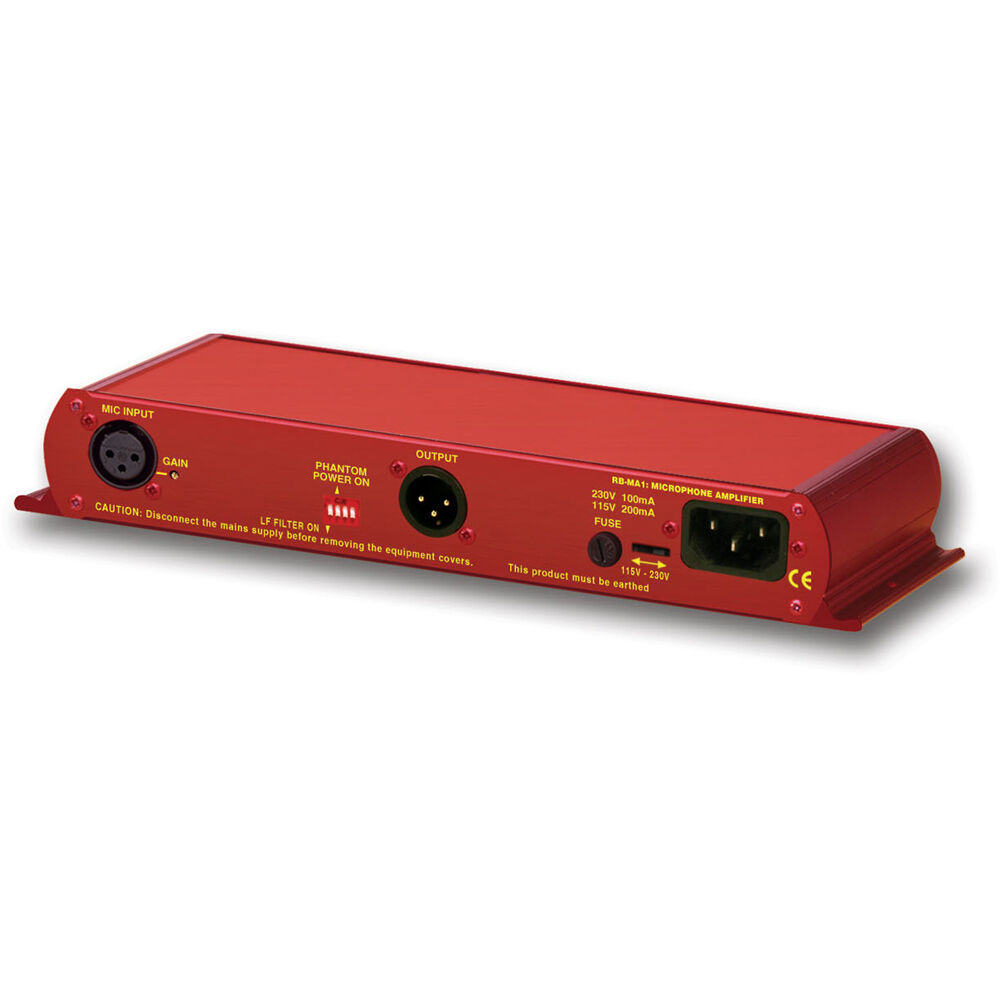

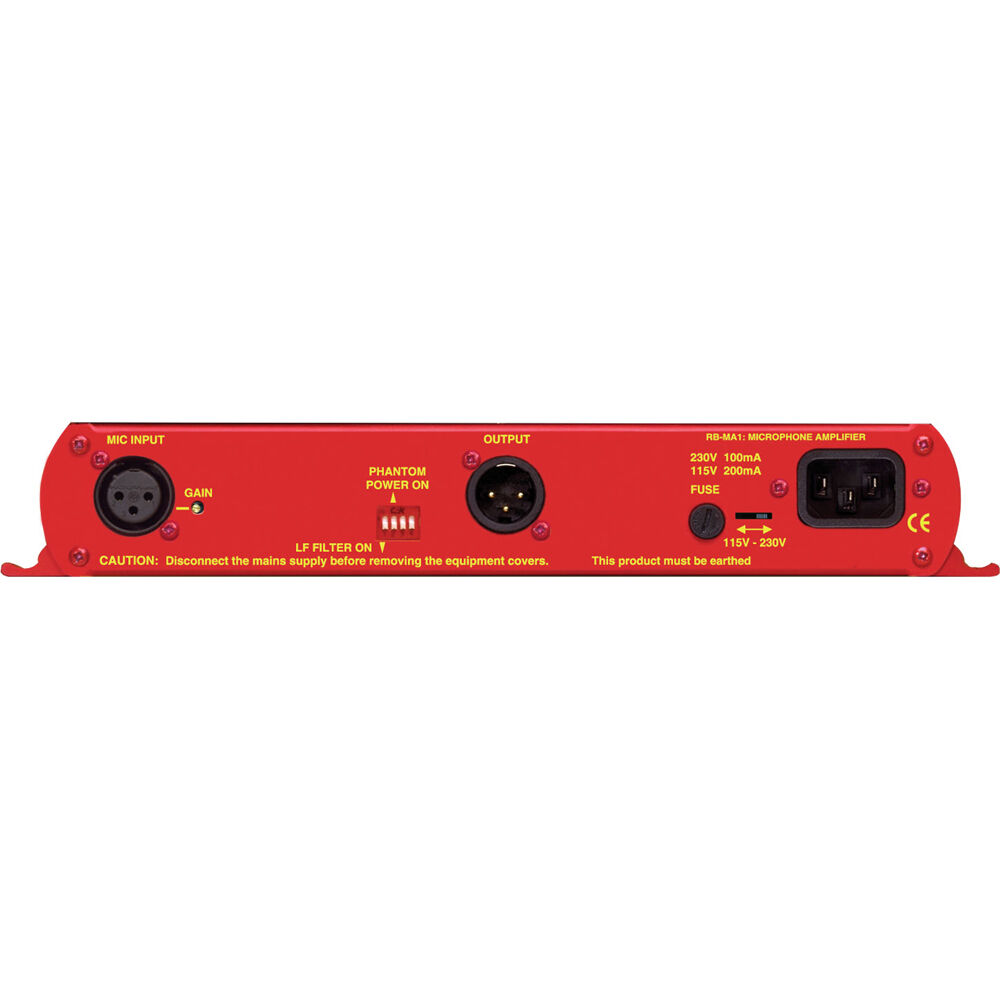

The RB-MA1 sports one electronically balanced XLR 3-pin female input and one balanced XLR output. The XLR output can be rewired to be unbalanced by grounding the nonphase pin, allowing for both balanced and unbalanced output. A recessed potentiometer allows for adjusting input gain from 36 to 75 dB, and DIP switches are provided for activating +48V phantom power and the 125 Hz high-pass filter. The AC input voltage can be selected for global compatibility, between 115 and 230 VAC.
- Pin 1: screen
- Pin 2: phase
- Pin 3: nonphase
In the Box
- Sonifex RB-MA1 Single-Channel Microphone Preamplifier
- IEC Power Cable
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Additional Resources
Sonifex RB-MA1Specs
| Frequency Response |
20 Hz to 20 kHz (±0.1 dB, 600-Ohm Load, at 1 kHz)
|
| Maximum Input Level |
-10 dBu
|
| Maximum Output Level |
+28 dBu
|
| Input Impedance |
2 Kilohms
|
| Output Impedance |
<50 Ohms
|
| EIN |
130 dB
|
| THD |
0.01% (at 1 kHz)
|
| Audio I/O |
1x XLR 3-Pin Mic Input (Balanced)
1x XLR 3-Pin Line Output (Balanced or Unbalanced) |
| Power Source |
AC Input
|
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
6 W (Maximum)
|
| Mounting |
Bottom: 2x Standard Rackmount Hole
|
| Color |
Red
|
| Material of Construction |
Metal
|
| Environmental Resistance |
No
|
| Dimensions |
11 x 4.3 x 1.7" / 28 x 10.8 x 4.2 cm
|
| Weight |
2 lb / 0.9 kg
|
