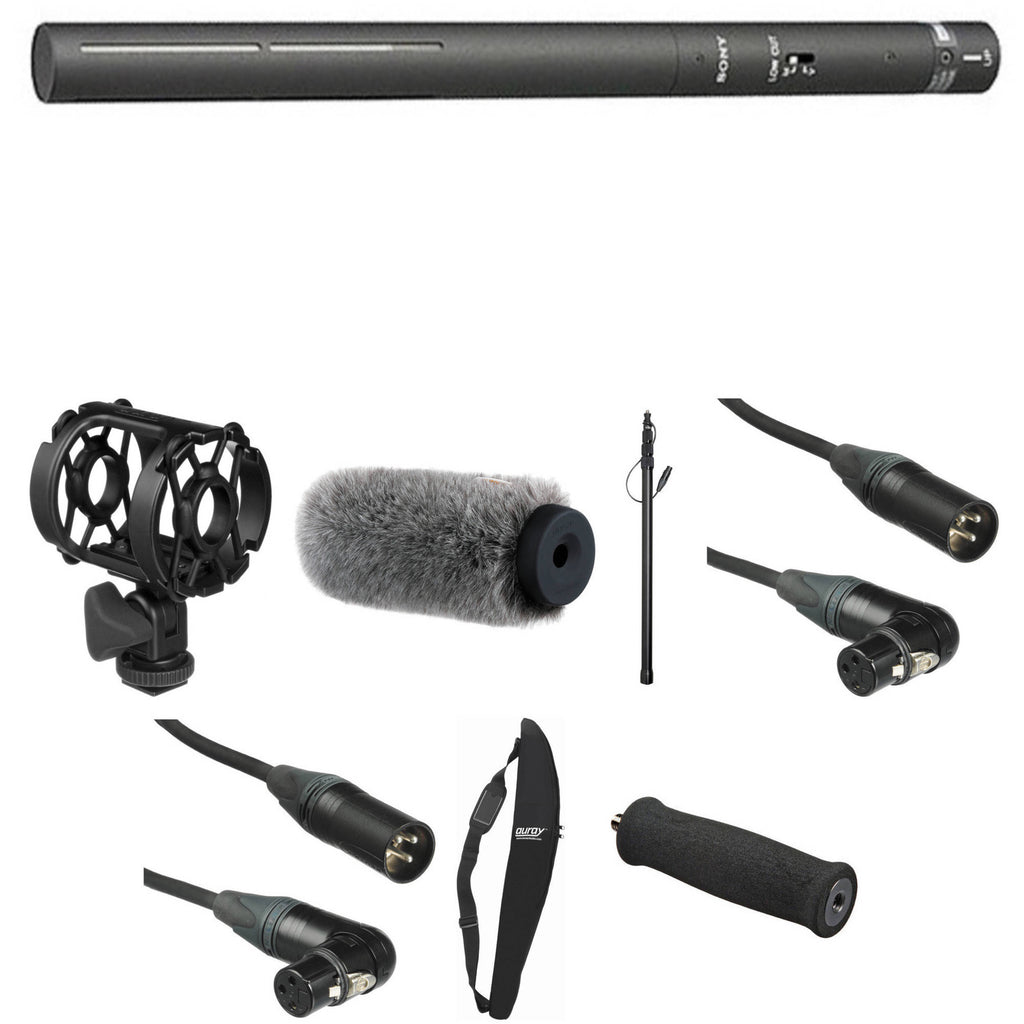

Sony ECM-674 Shotgun Microphone Location Recording Kit

ECM-674 Shotgun Microphone

Shoe/Pole Shockmount & Furry Windshield

Aluminum Cabled Boompole & Pistol Grip

Long & Short XLR Cables, Boompole Bag

Basic Tips for Recording Audio for Video | Audio for Video, Part 1 Choosing a Mic for Video Production | Audio for Video, Part 2 How to Get Great Audio Levels | Audio for Video, Part 3 Recording Sound to Your Camera vs. an Audio Recorder | Audio for Video, Part 4

Designed as a complete microphone setup for location recording in budget film work and broadcasting, electronic news gathering (ENG), and field production applications, this B&H Kit eliminates the guesswork in configuring a shotgun microphone system that offers quality, reliability, and switchable low-cut filtering as well as compatibility with boompole and camera-mount configurations.

It features the Sony ECM-674 battery-/phantom-powered shotgun microphone, a furry windshield, a universal shoe/pole shockmount, a pistol grip, an aluminum cabled boompole, a boompole bag, and short and long right-angled XLR cables to provide the you with everything necessary for capturing audio for video, film, and sound design applications.

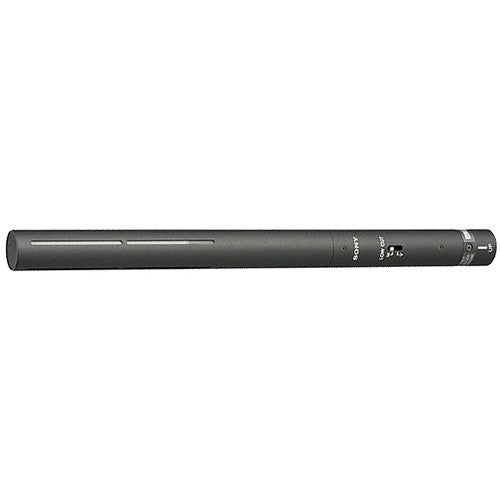

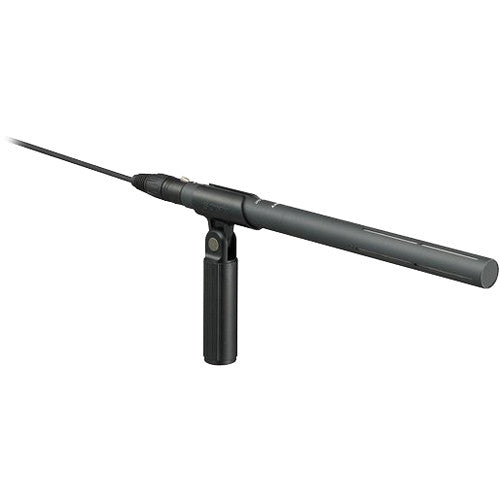

Sony ECM-674 Shotgun Microphone

With a form and tone well suited for event video shoots, indie film production, TV and documentary shooting, court room depositions, and more, the Sony ECM-674 shotgun microphone offers strong, clean output signal for recording with camcorders, multitrack field recorders, and portable audio recorders.

The ECM-674 features a supercardioid polar pattern for excellent directivity and minimal noise at the off-axis sections of the capsule, resulting in intelligible voice pickup even in noisy environments. The microphone's wide, flat frequency response yields smooth, accurate signal reproduction with crisp detail and minimal coloration.

The ECM-674 can be powered with a single AA battery (available separately) or 40 to 52 VDC phantom power, making it compatible with a variety of consumer and professional devices. It includes microphone spacers and a mic holder to accommodate camera-mount and stand-mount configurations.

Lightweight Design The ECM-674 has been designed as a highly directional and lightweight shotgun microphone, measuring 10.6" in length and weighing 6.5 ounces to ensure good balance even when mounted on compact camcorders. Smooth Frequency Response With its flat and wide frequency response of 40 Hz to 20 kHz, the ECM-674 provides sound reproduction that is smooth and natural. High Sensitivity The ECM-674 offers an excellent sensitivity of -36 dB and low self-noise level of less than 17 dB SPL, allowing the microphone to be used for clear voice capture even in noisy environments. Onboard Low-Cut Filter The onboard two-position (M, V) low-cut switch provides users with a simple method of reducing the effects of undesired ambient noise such as rumble. AA Battery or Phantom Powered The two-way powering capability allows the ECM-674 to be driven by 40 to 52 VDC phantom power or a single AA battery, making it suitable for both camcorder mounting and many other sound-gathering applications. Built-In Battery Liquid Leakage Protection Circuit Considering that old batteries can leak and damage the equipment they power, the ECM-674 prevents this by continually detecting the output voltage of the battery and shutting off the power supplied to the electric circuit whenever the voltage drops beneath a certain threshold. Included Accessories The ECM-674 is supplied with a windscreen that attenuates wind noise by approximately 5 dB, a short XLR cable, a microphone holder (for use on a mic stand), two stand adapters, a molded-type microphone spacer, and a sheet-type microphone spacer. UPC: 027242702240 Auray DUSM-1 Universal Shockmount for Camera Shoes and Boompoles

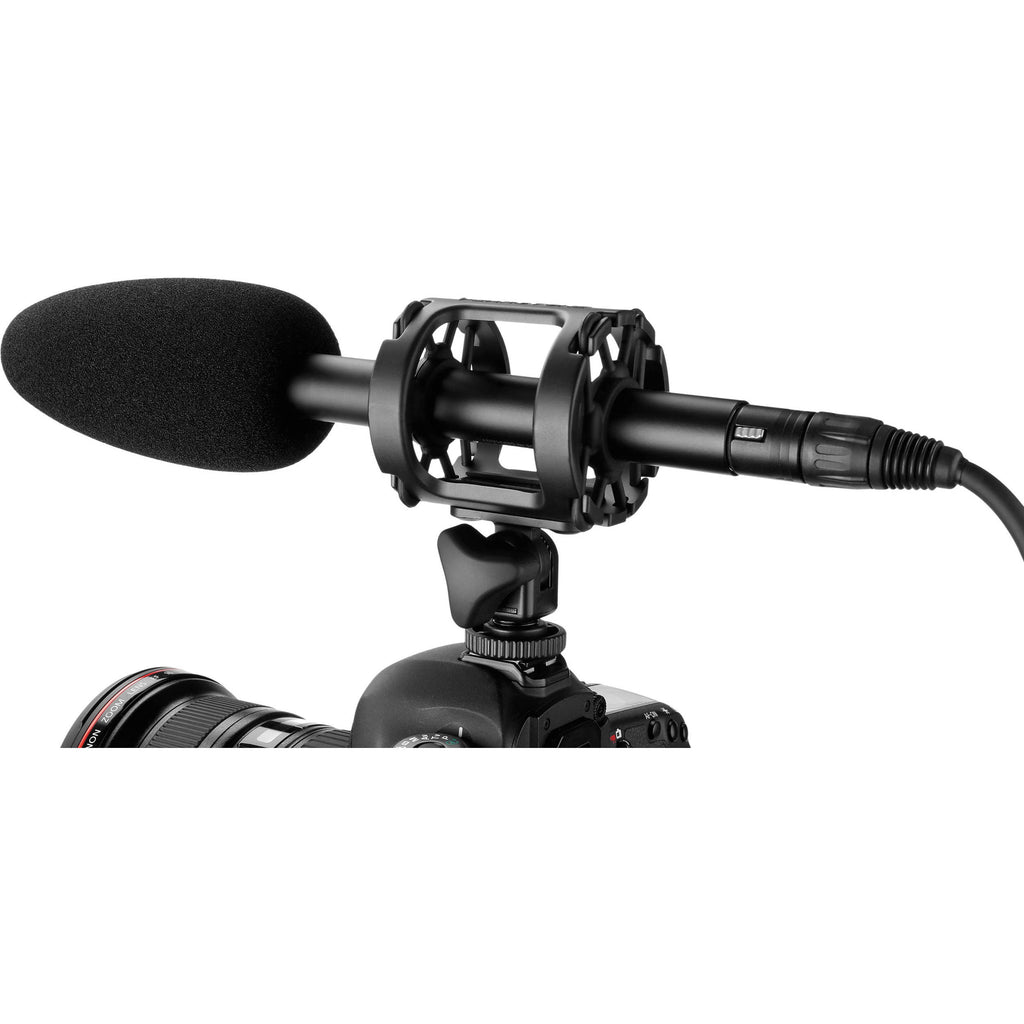

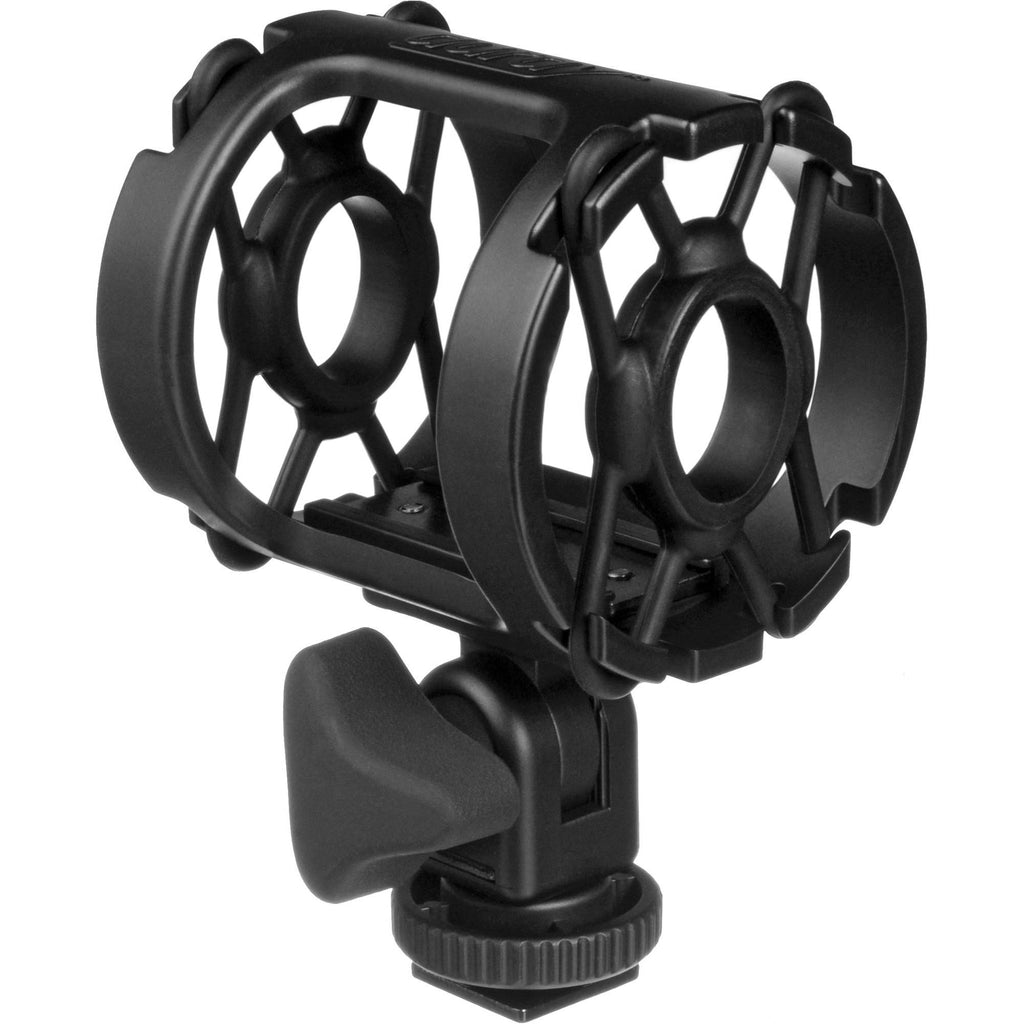

The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal handgrips.

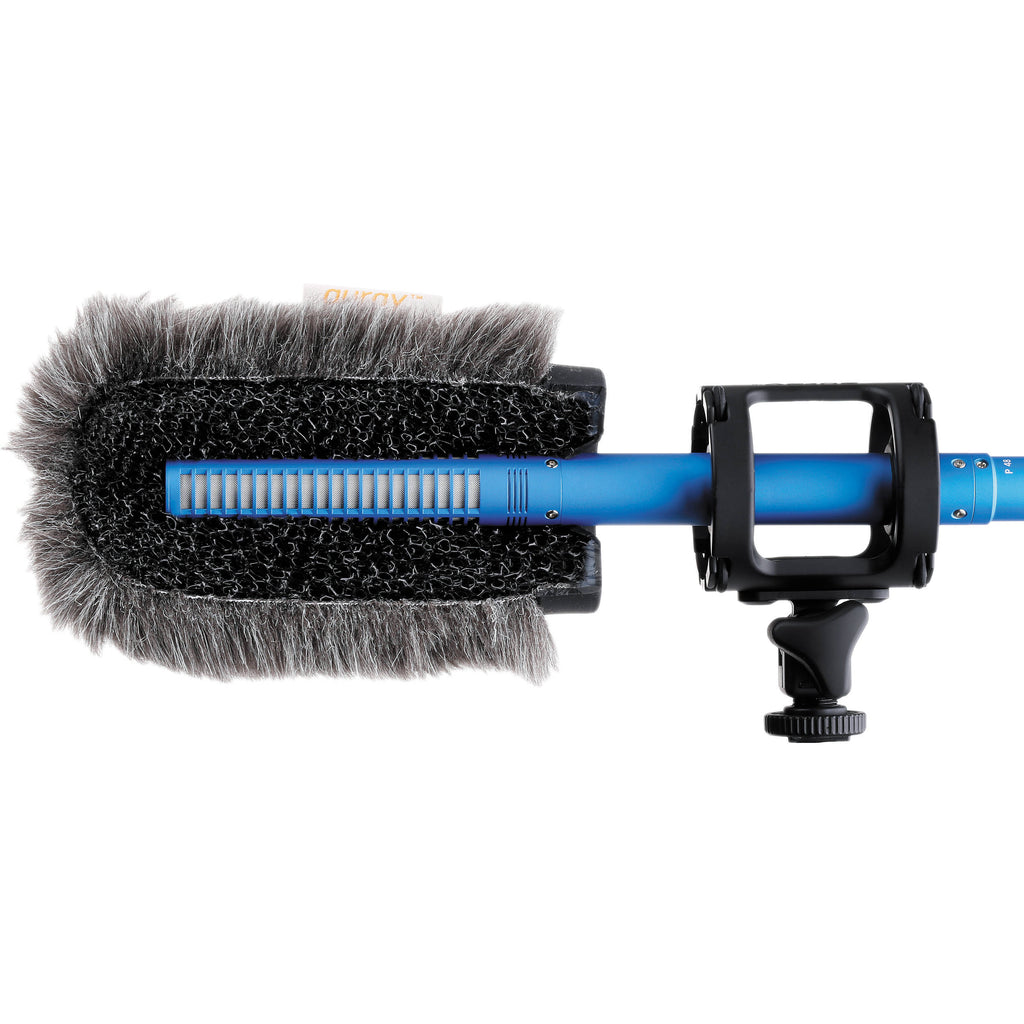

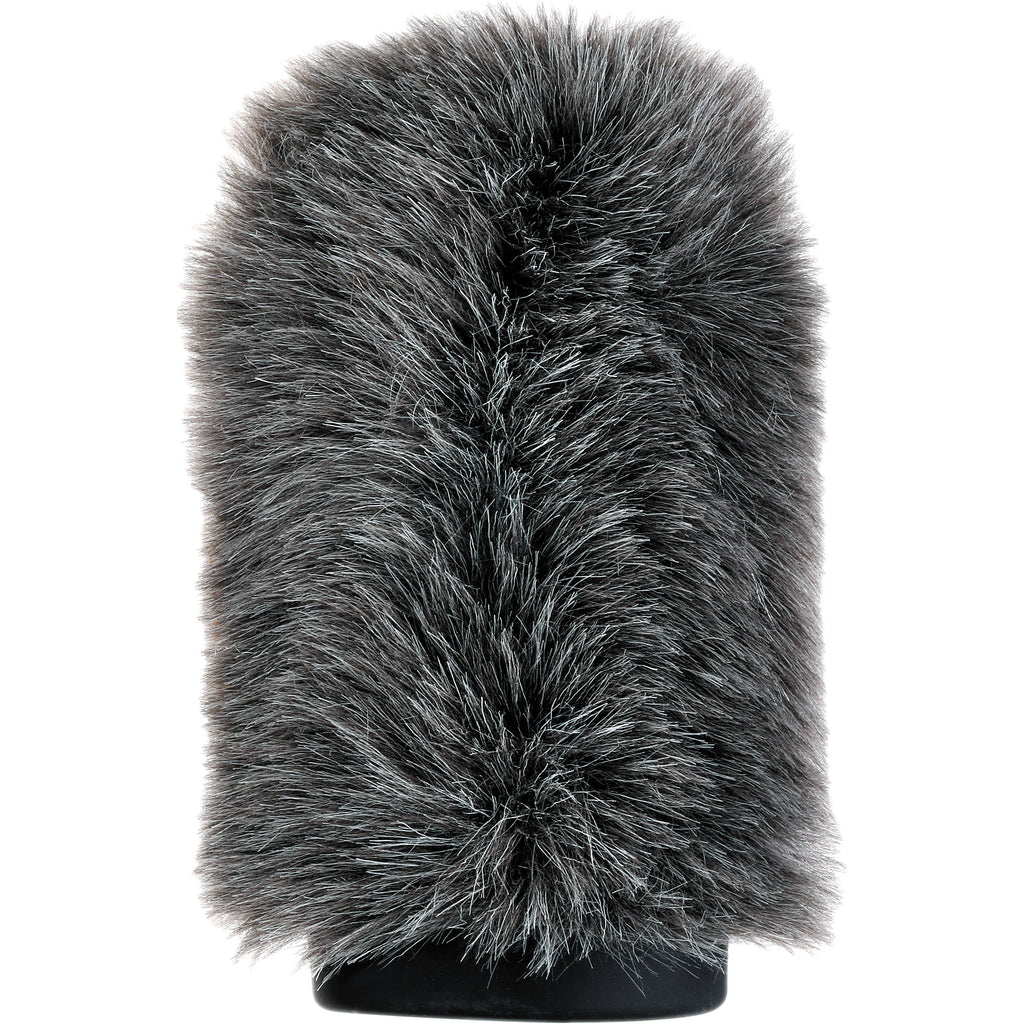

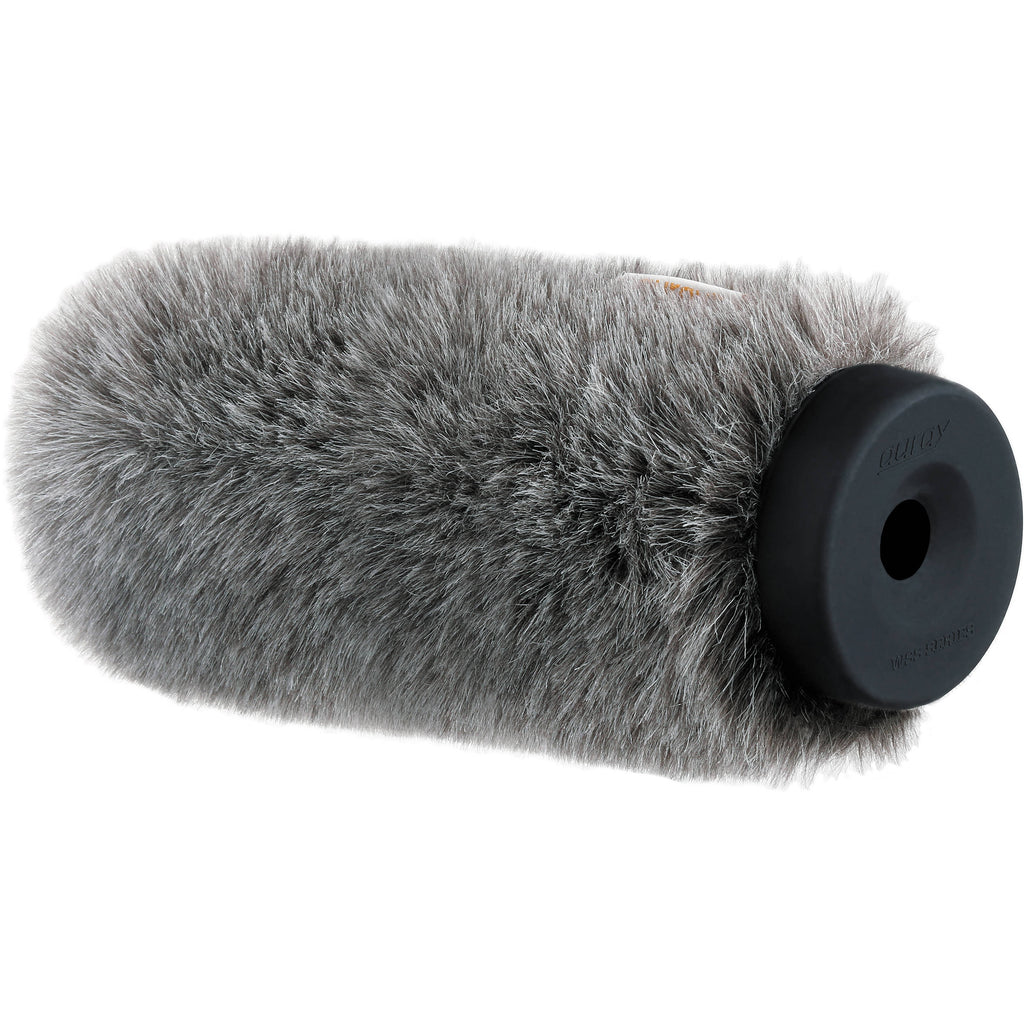

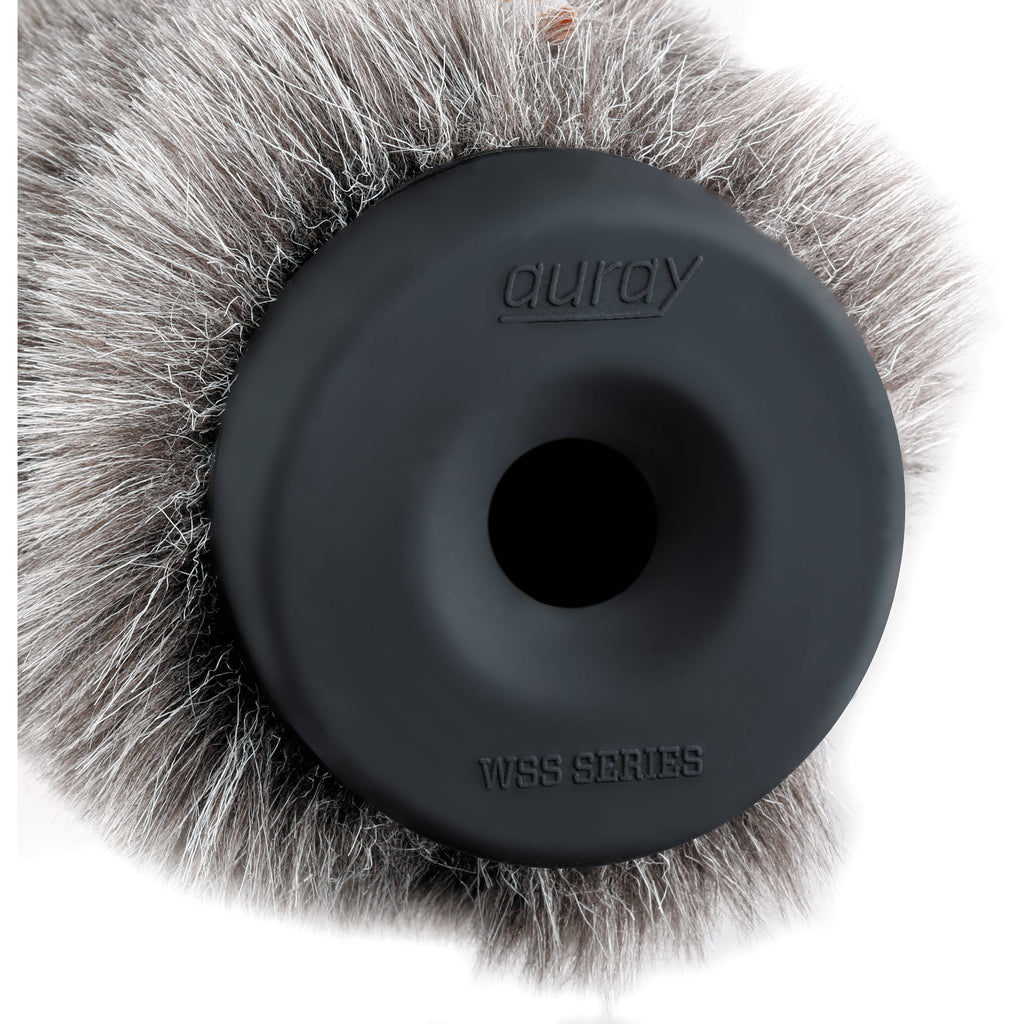

UPC: 847628562776 Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)

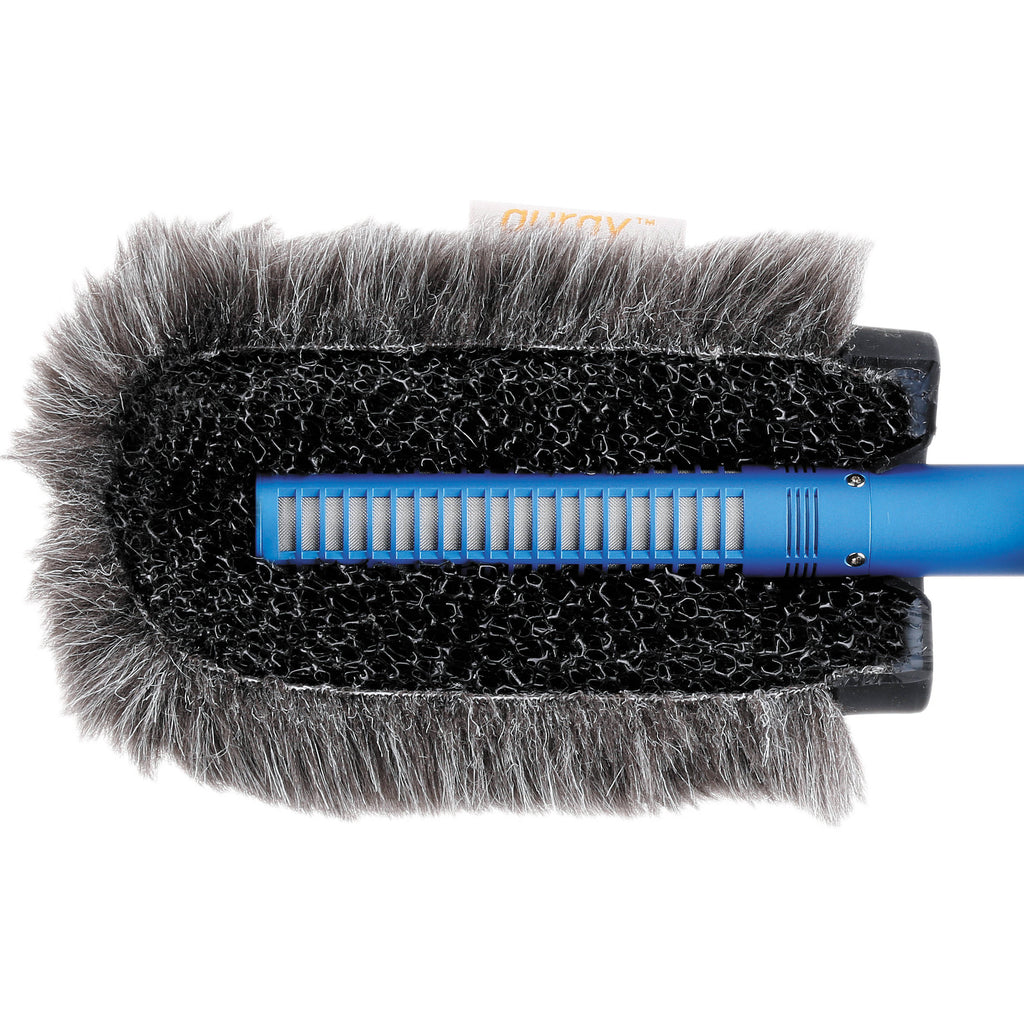

The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

This WSS-2012 Professional Windshield has an inside depth of 12cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

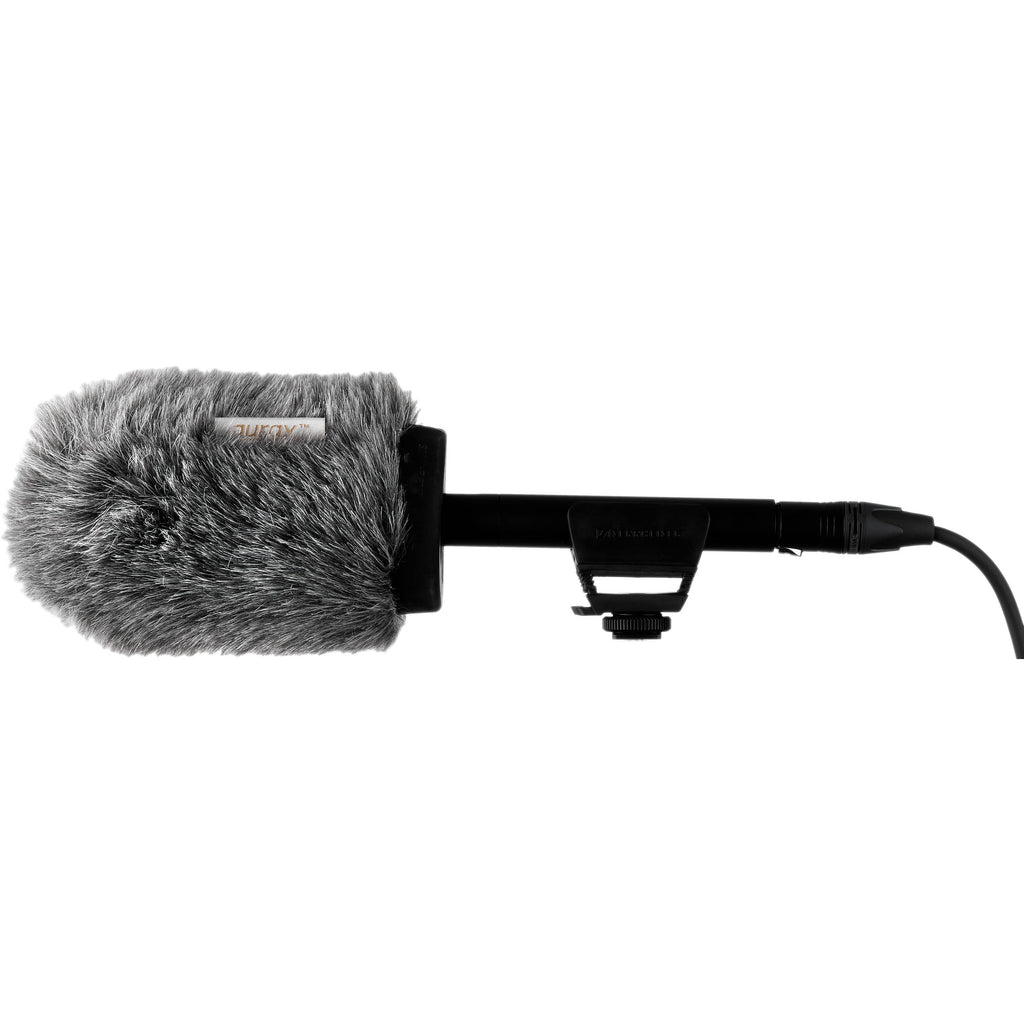

When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

In addition to superior 360° wind protection, the WSS-2012 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio Technica, Sennheiser, Sony and others.

The WSS-2012 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.

Fits these and other similar sized microphones: Audio-Technica BP4073, AT875R, AT 877, MC-230 Azden SGM-PD2 Ikegami HL DNS-201W, HL DV-7W, HLV 9, 55, 77, MC-10, 11, 230 Panasonic AJ HDC 27, AJ HDX 900, AJ MC 700P, 900P, AJD-700, 800, 910, DV 200, DVC200 Schoeps CMIT 5U Shure VP82 Sennheiser MKH-8060, MKE-600 Sony ECM 673, 674, ECM NV1 (Camera Mic for BVP-550, 570, 950, DSR 130P, 200, 250, 300, PD150, 170, HVR A1U, V1, UVW-100) Zoom SGH-6 (Capsule for H6) UPC: 847628552708 K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

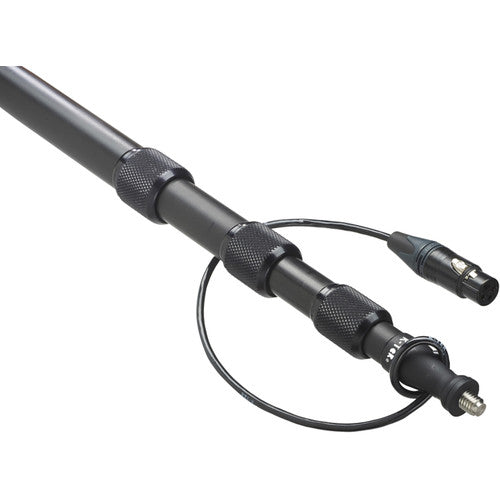

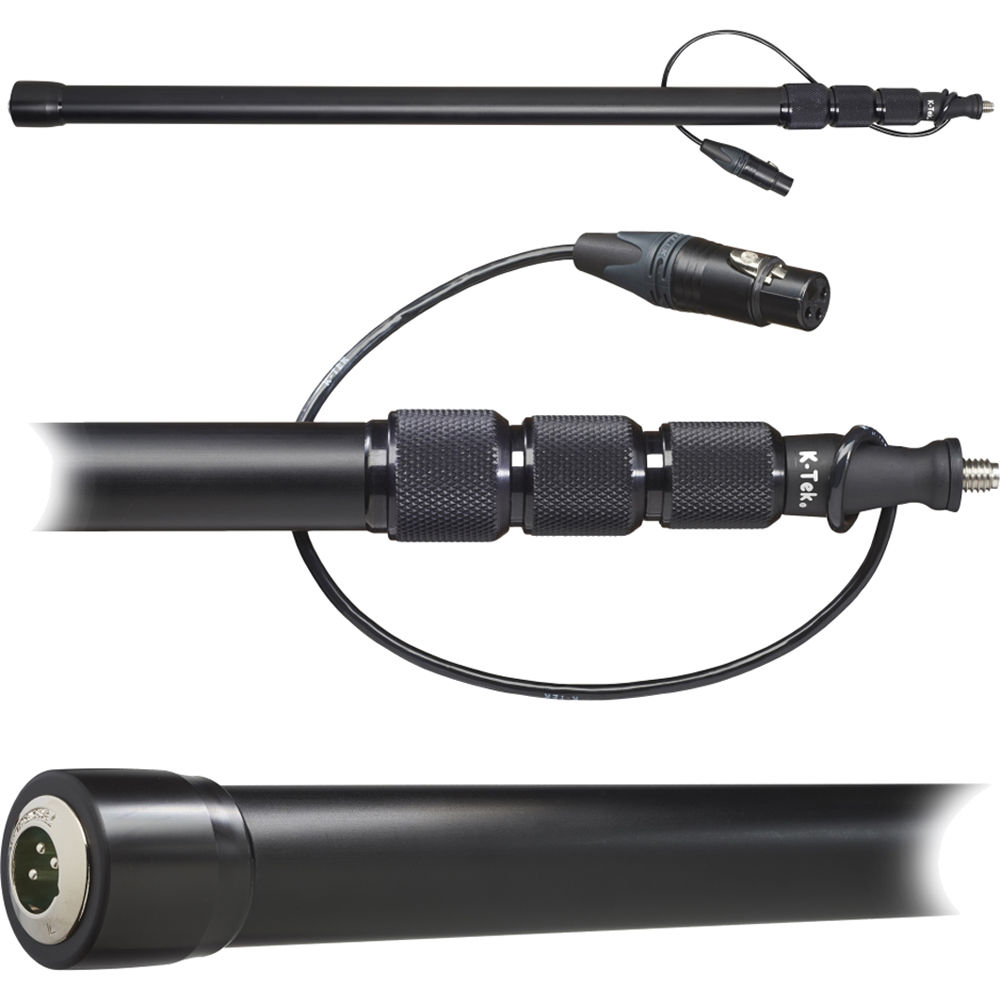

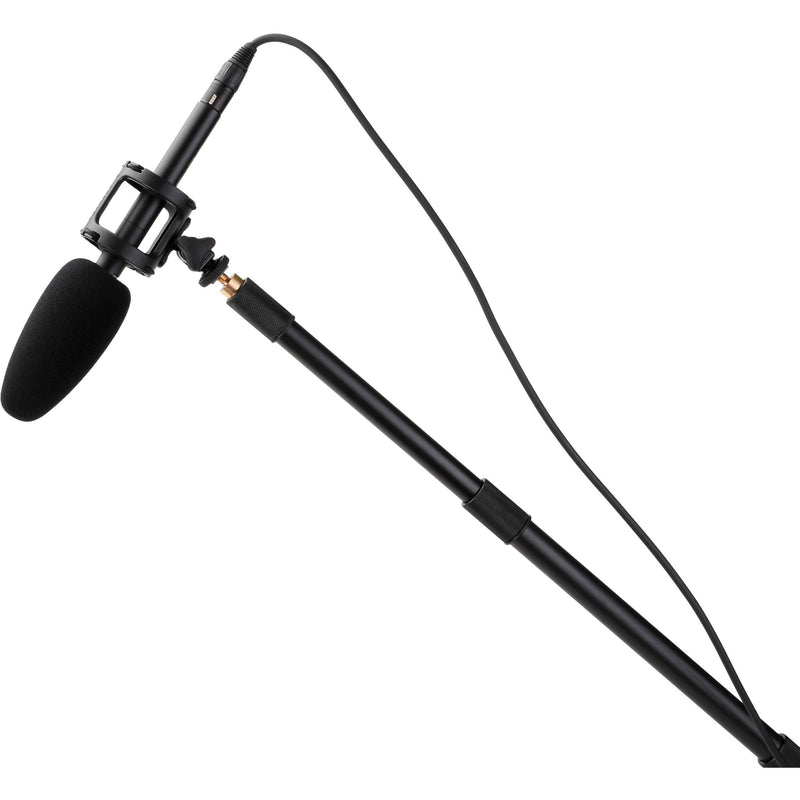

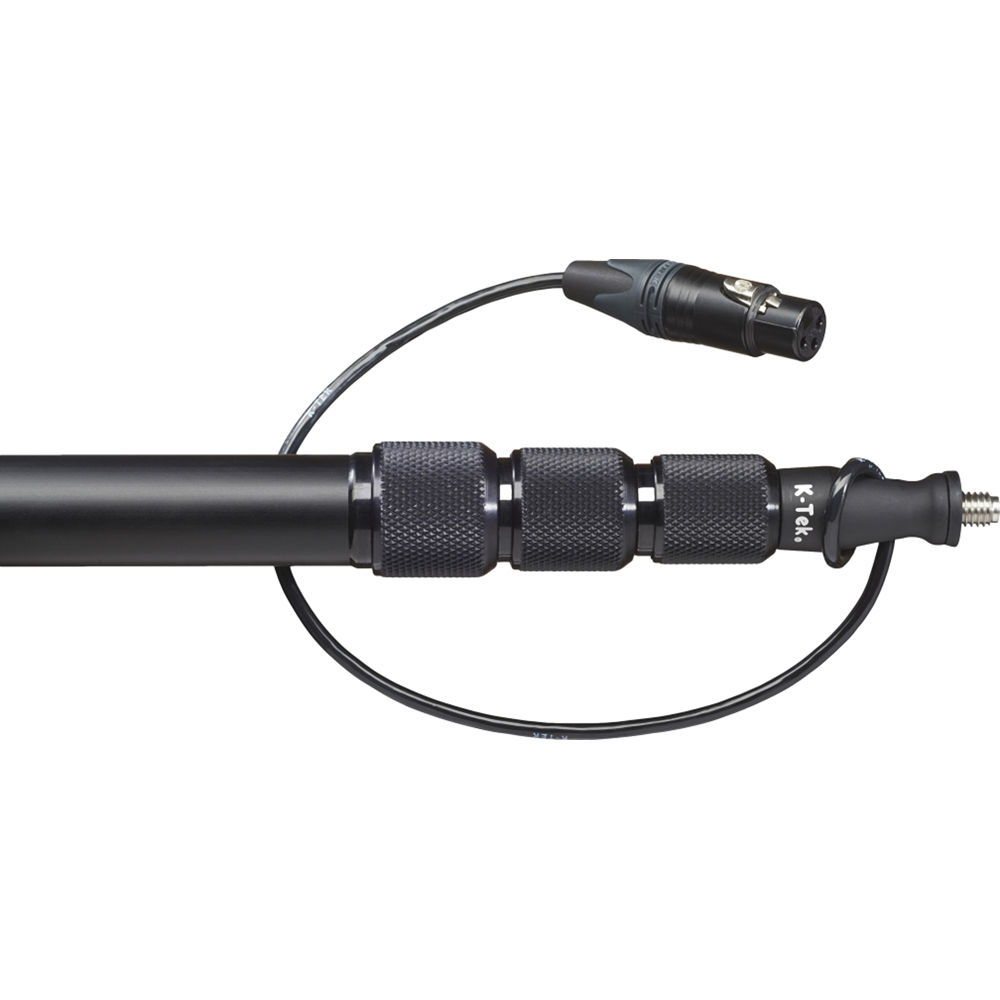

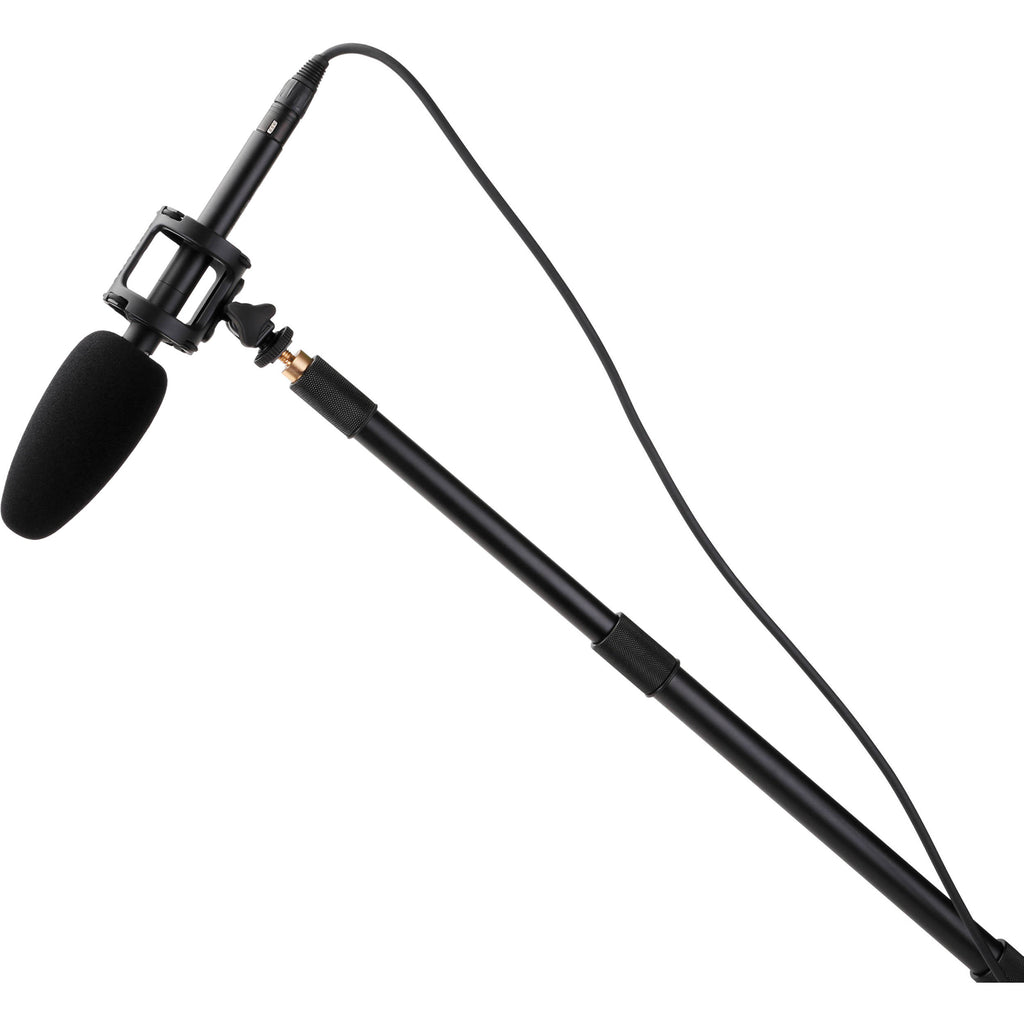

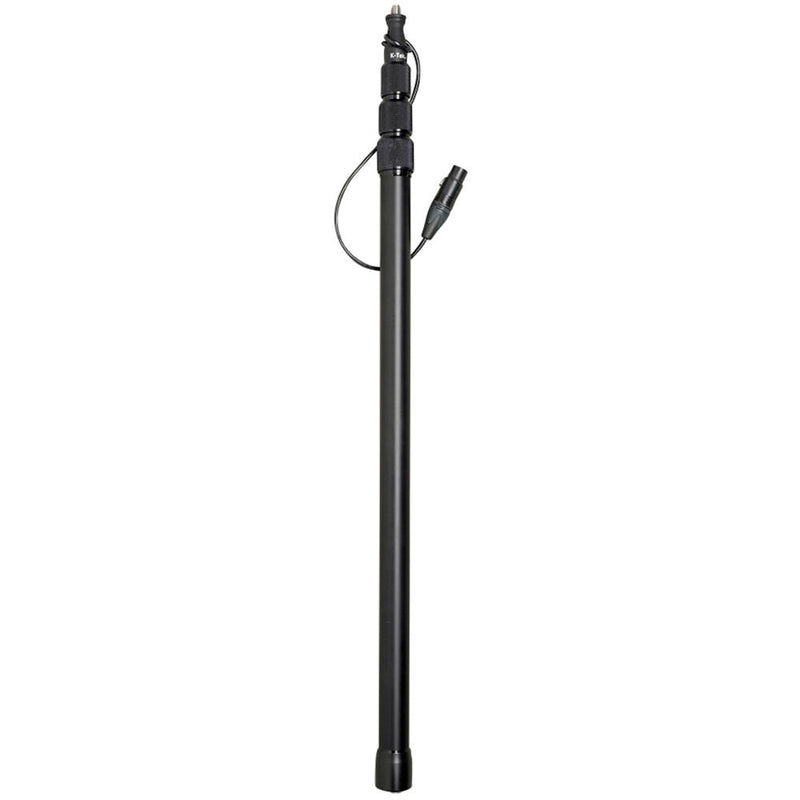

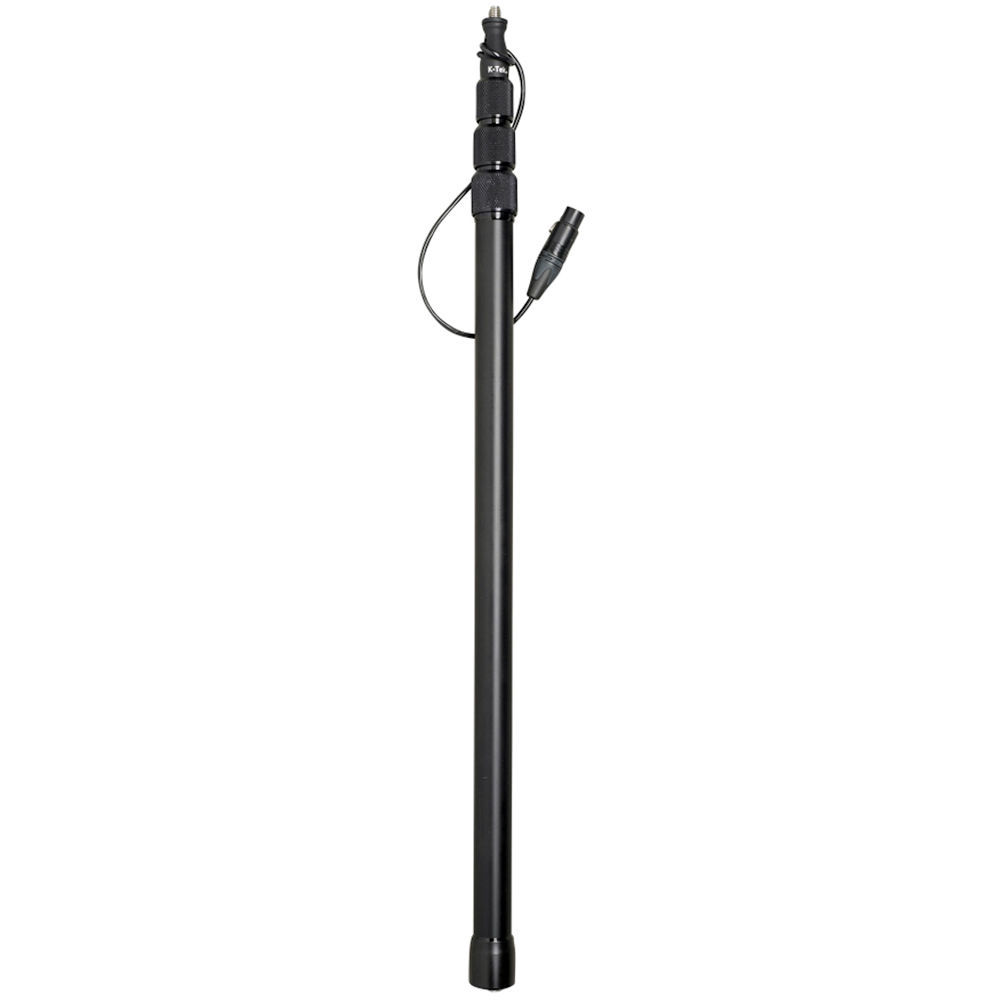

The K-Tek KE-89CC Avalon Series Aluminum Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy aluminum design is tough enough to endure the rigors of road use, while remaining lightweight and travel-worthy. This pole features an internal coiled cable and an XLR connection at the base of the pole. A total of four aluminum sections telescope between 2' 5" to 7' 6" and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.

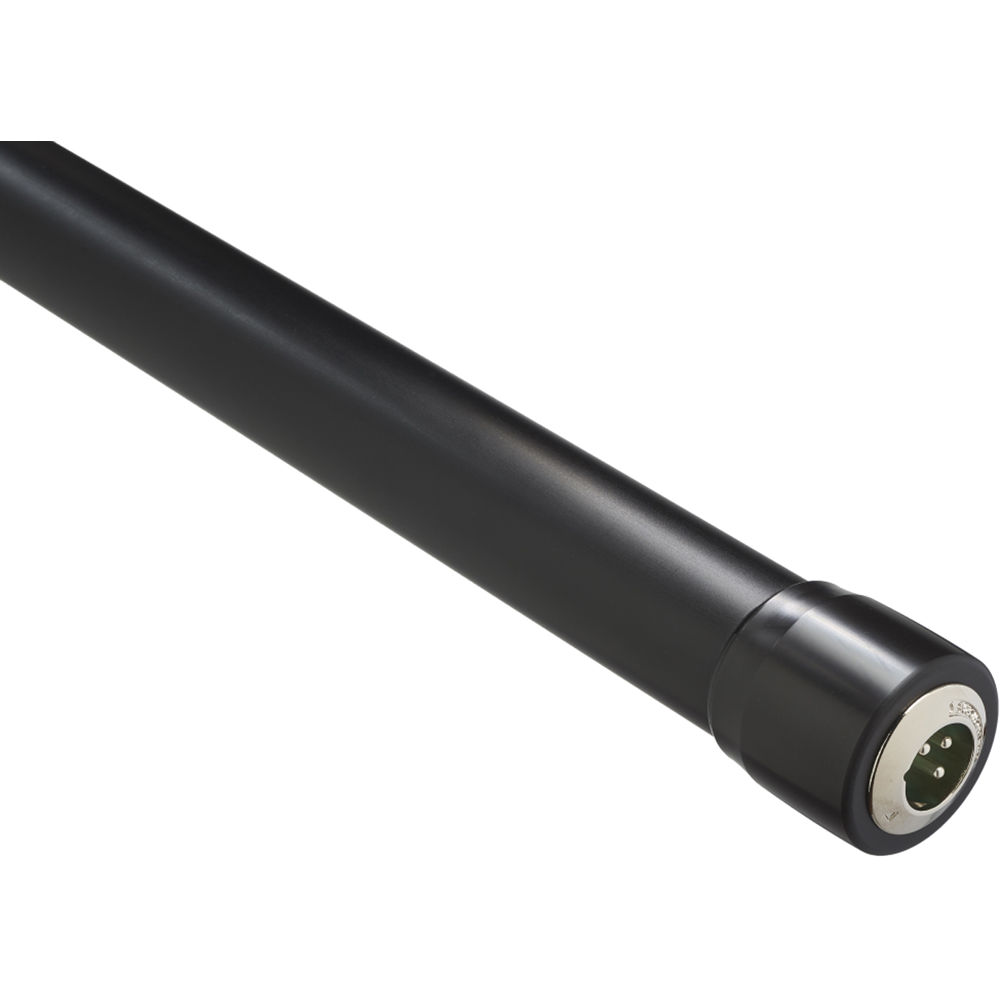

Internal coiled XLR cable and connection at the base The KE-89CC features a bottom-mounted three-pin XLR connection Designed to fit in any standard equipment case, for ENG, EFP, and DV location production work Jam-resistant collar coupling Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud UPC: 791090332033 Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

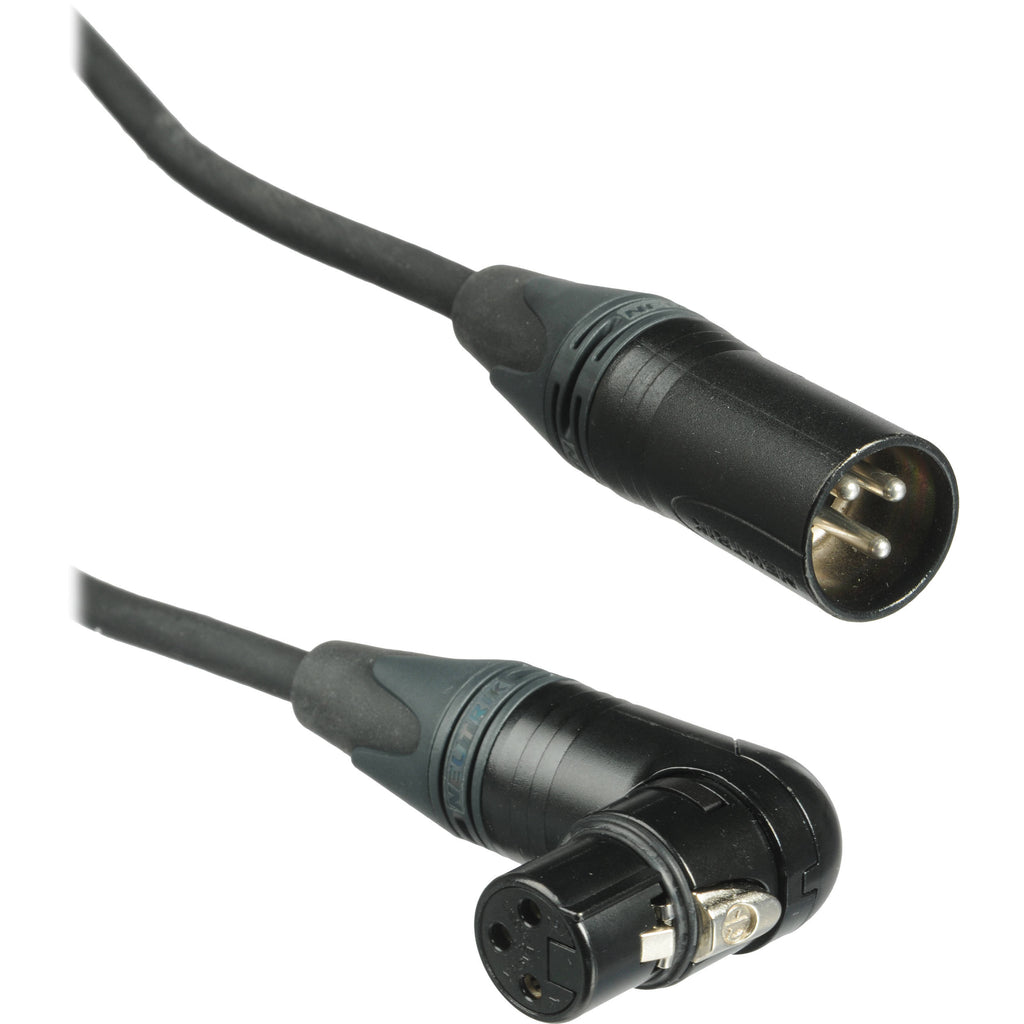

The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

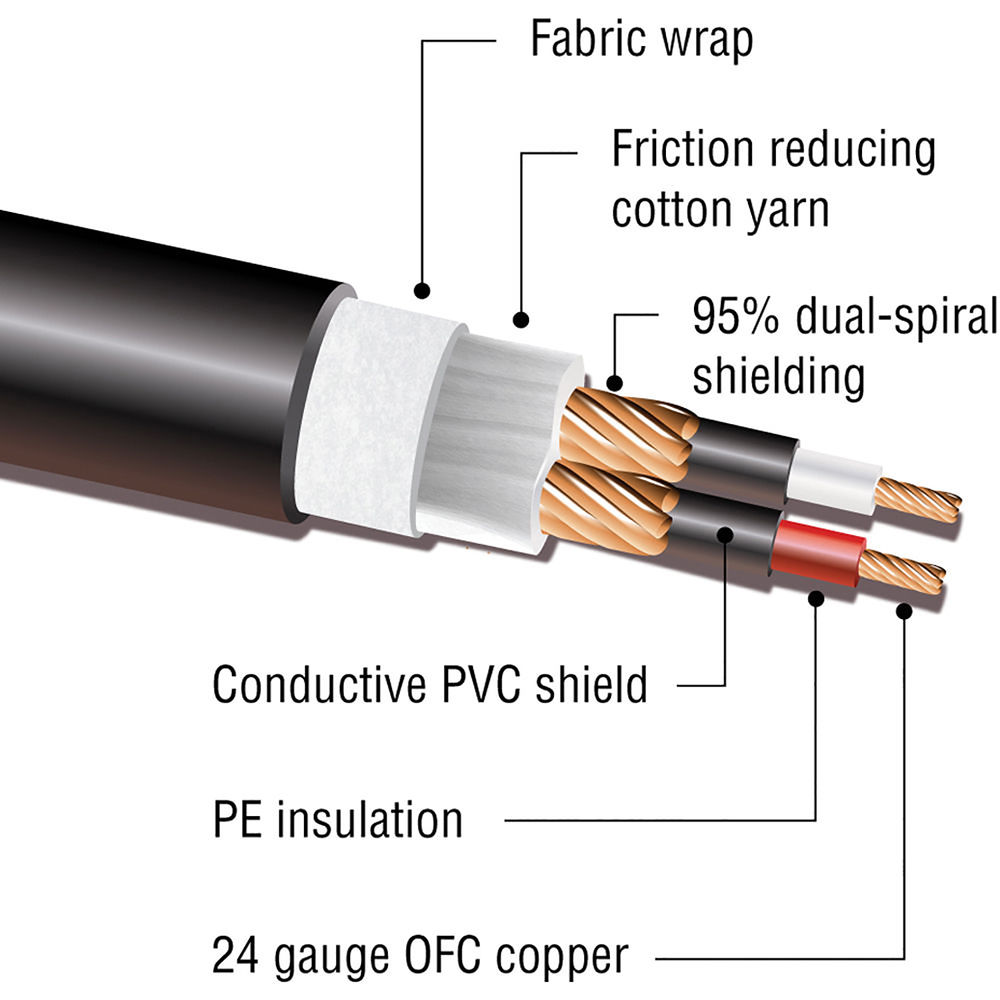

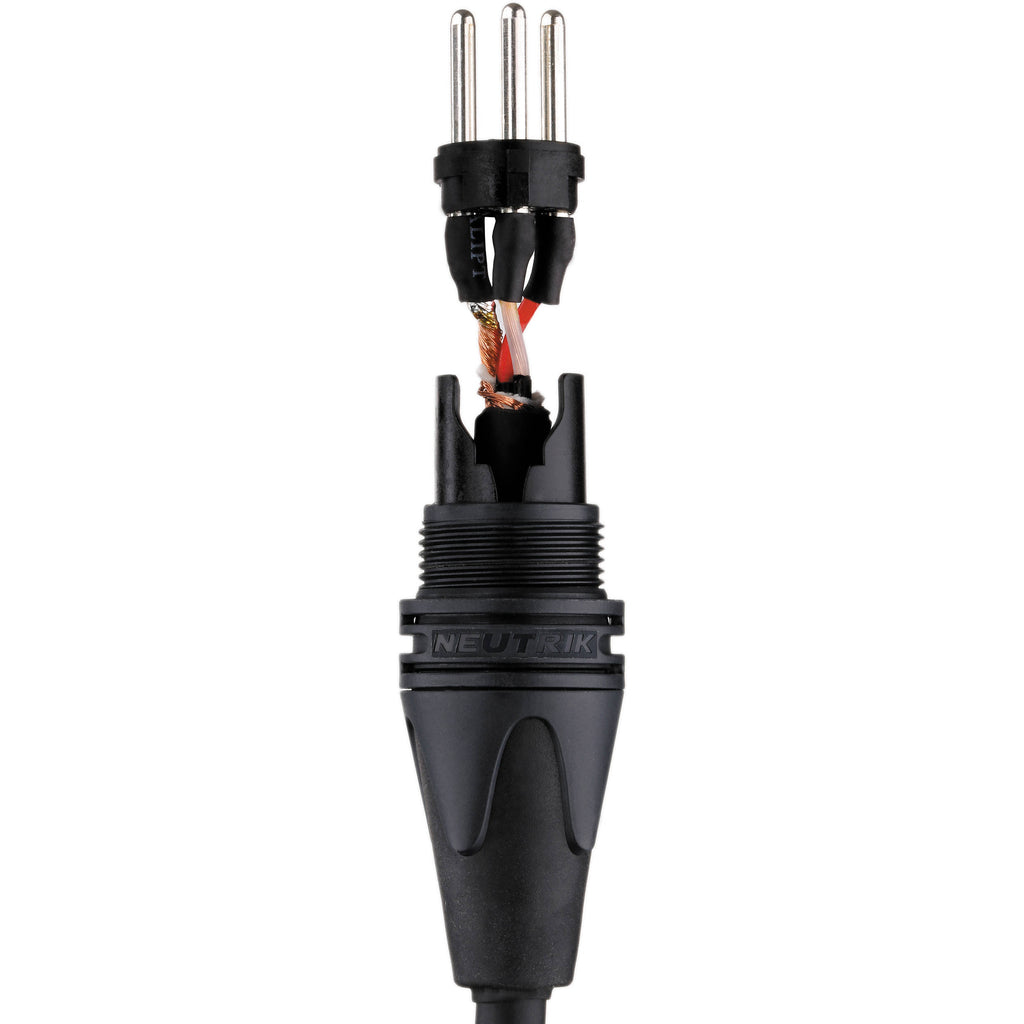

Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.

95% dual-spiral shielding offers protection from EMI and RFI noise. Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core. 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity. Cotton yarn reduces electrostatic and microphonic noise. All solder points shrink-wrapped for protection. Neutrik XX silver connectors offer high conductivity. Caged type contact and improved ground contact. UPC: 847628558298 Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.

95% dual-spiral shielding offers protection from EMI and RFI noise. Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core. 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity. Cotton yarn reduces electrostatic and microphonic noise. All solder points shrink-wrapped for protection. Neutrik XX silver connectors offer high conductivity. Caged type contact and improved ground contact. UPC: 847628558229 Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

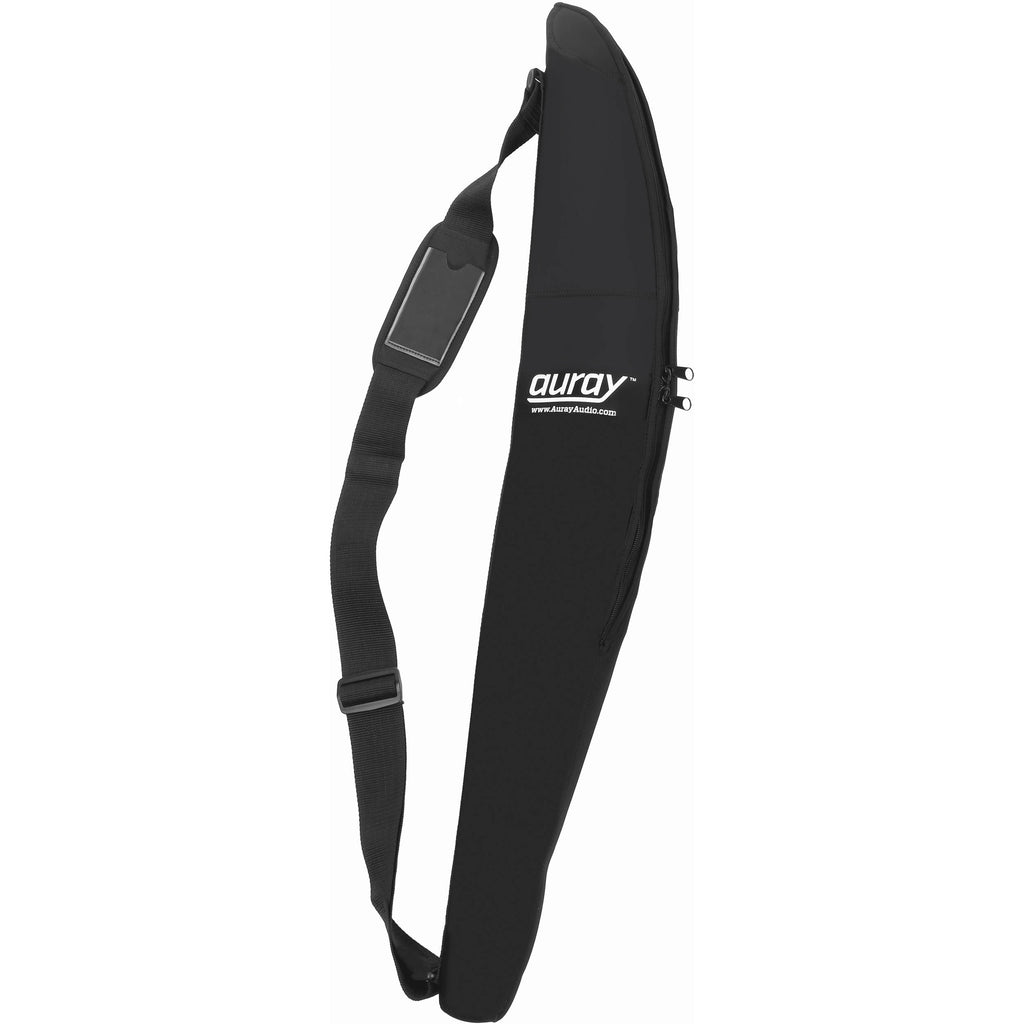

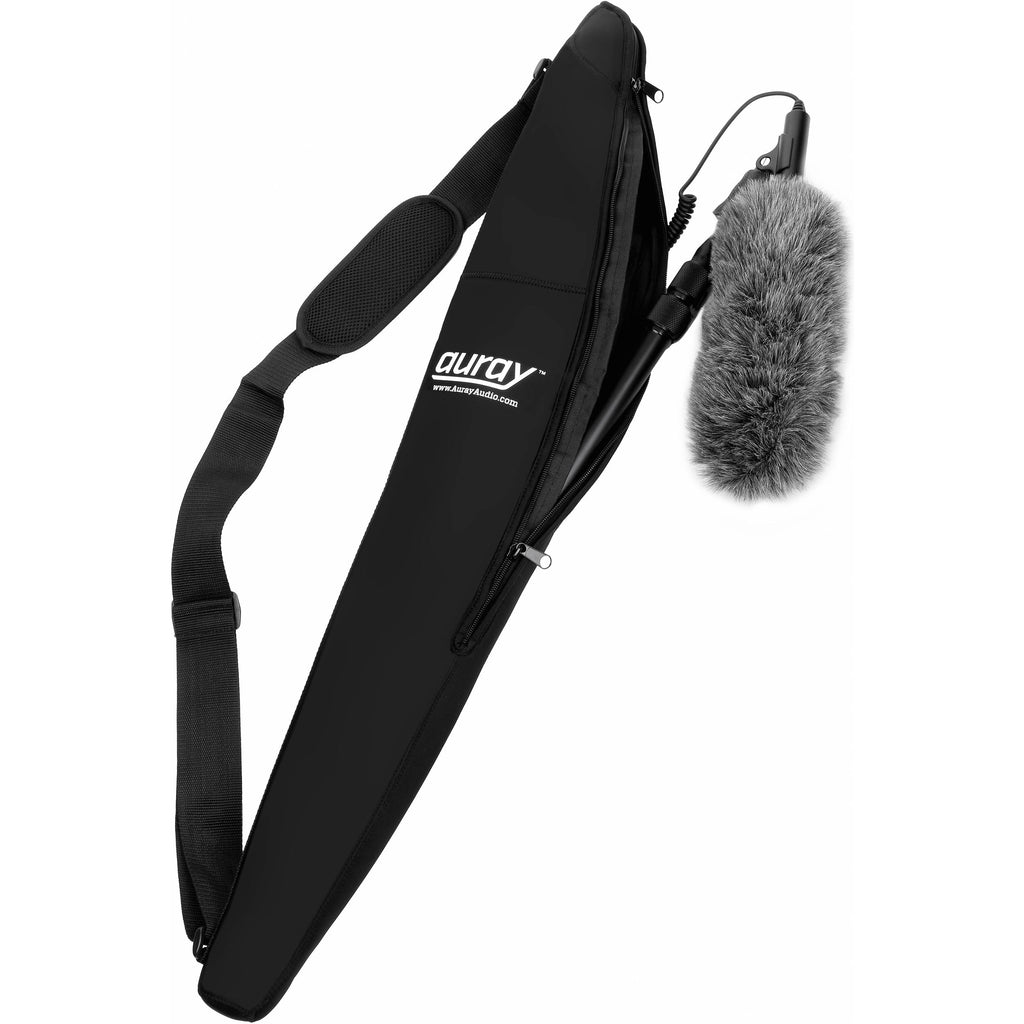

The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder.

UPC: 847628562790 Auray Universal Microphone Pistol Grip

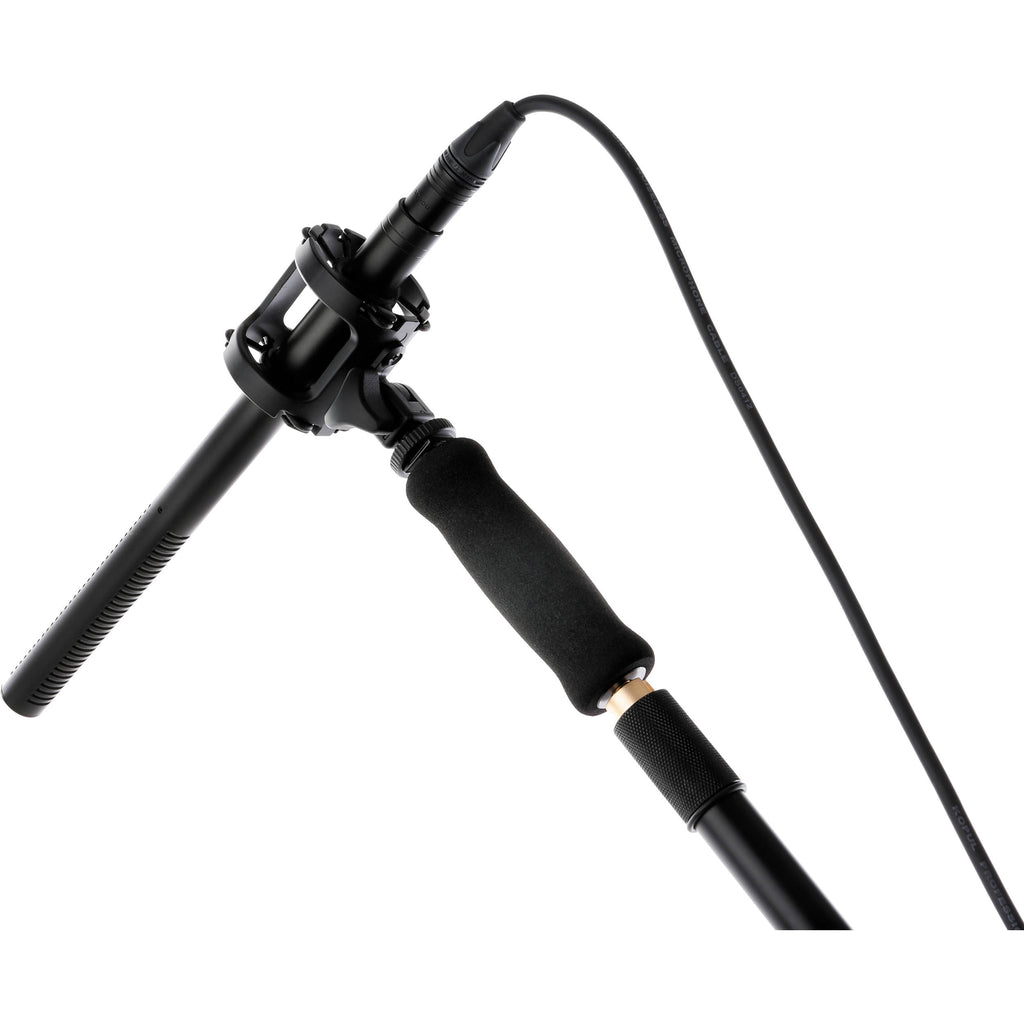

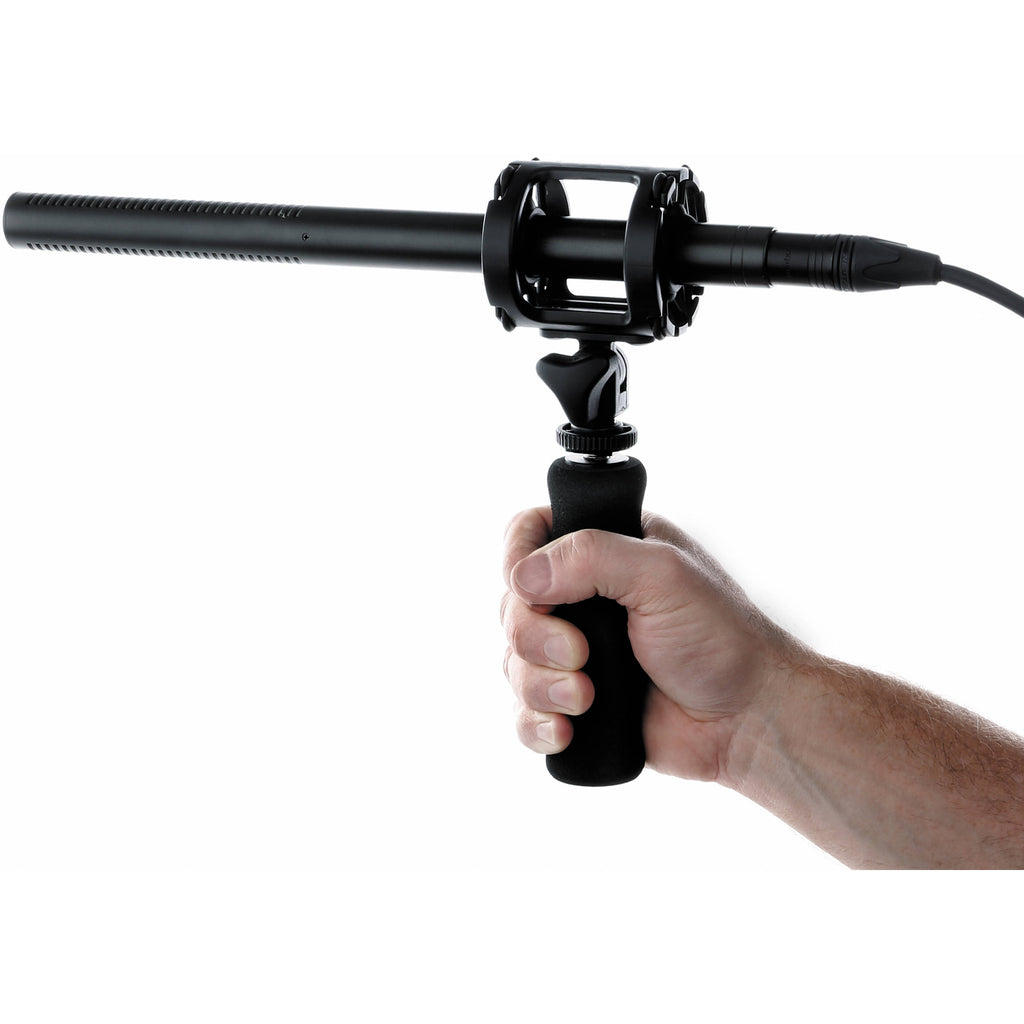

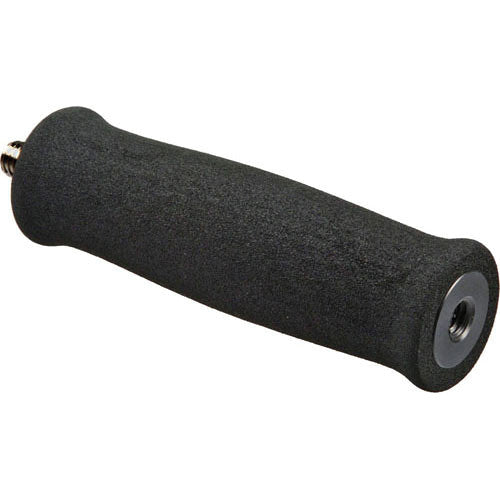

The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole.

UPC: 847628562738

Form Factor	Stand/Boom Mount
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	1 x Electret Condenser
Polar Pattern	Supercardioid
Orientation	End Address
Circuitry	Solid-State
Pad	None
High-Pass Filter	Yes
Tone Adjustment	None
Indicators	None
On-Board Controls	High-Pass Filter
Windscreen	Foam (Included)

Frequency Range	40 Hz to 20 kHz
Maximum SPL	124 dB SPL (Phantom Power, 1 kHz, 3% THD) 115 dB SPL (Battery Power, 1 kHz, 3% THD)
Off-Axis Rejection	5 dB at 60° >17 dB at 120° >13 dB at 180°
Impedance	220 Ohms ± 20% at 1 kHz (Balanced)
Sensitivity	-36 dBV/Pa at 1 kHz
Dynamic Range	107 dB (Phantom Power) 98 dB (Battery Power)
Signal-to-Noise Ratio	77 dB A-Weighted (1 kHz)
Equivalent Noise Level	17 dB SPL

Output Connectors (Analog)	1 x XLR 3-Pin Male
Headphone Connector	None
Cable Length	19.69" / 50 cm

Operating Voltage	40 to 52 V (Phantom Power) 1.5 V (Battery Power)
Operating Current Consumption	2 mA (Phantom Power) 0.6 mA (Battery Power)
Battery Type	1 x AA

Mounting	Mic Clip (Included)
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Dimensions	ø: 0.79 x L: 10.55" / ø: 20 x L: 268 mm
Weight	6.53 oz / 185 g

Package Weight	1.2 lb
Box Dimensions (LxWxH)	15.4 x 5.4 x 3.5"

Package Weight	0.285 lb
Box Dimensions (LxWxH)	4.65 x 3.2 x 2.6"

Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
Inner Depth	4.7" / 12 cm

Package Weight	0.28 lb
Box Dimensions (LxWxH)	11.65 x 4.15 x 3.2"

Material	Aluminum
Sections	4
Load Capacity	Not specified by manufacturer
Length	2' 5" to 7' 6" (0.7 to 2.3 m)
Weight	1.1 lb (0.5 kg)

Package Weight	1.5 lb
Box Dimensions (LxWxH)	33 x 2.8 x 1"

Connector 1	3-Pin XLR Male
Connector 2	3-Pin XLR Female Right-Angle
Cable Length	20' / 6.1 m
Shielding	95% Spiral
Conductor Material	Oxygen-Free Copper (OFC)
Number of Conductors	2
Wire Gauge	24 AWG
Contact Plating	Silver
Jacket Type	Polyvinyl Chloride (PVC)
Insulation Type	Polyethylene

Package Weight	0.815 lb
Box Dimensions (LxWxH)	11.9 x 8.2 x 1.3"

Connector 1	3-Pin XLR Male
Connector 2	3-Pin XLR Female Right-Angle
Cable Length	1.5' / 0.45 m
Shielding	95% Spiral
Conductor Material	Oxygen-Free Copper (OFC)
Number of Conductors	2
Wire Gauge	24 AWG
Contact Plating	Silver
Jacket Type	Polyvinyl Chloride (PVC)
Insulation Type	Polyethylene

Package Weight	0.3 lb
Box Dimensions (LxWxH)	9.4 x 9 x 1.05"

Material	Neoprene
Type of Closure	Zipper with protective lining
Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
Weight	15 oz (454 g)

Package Weight	0.8 lb
Box Dimensions (LxWxH)	39 x 7.8 x 1"

Package Weight	0.24 lb
Box Dimensions (LxWxH)	7.75 x 3.1 x 1.65"
