Description
Sony UTX-B40 Overview
- 1Description
- 2High-Quality Sound with Digital Audio Processing
- 3Automatic NFC Sync Mode
- 4Auto-Gain Mode to Prevent Mic Distortion
- 5High-Visibility OLED Display for Indoor/Outdoor Use
- 6DSP Filter Removes Occupancy Sensors Artifacts
- 7Multiple Powering Options
- 8Other Features
- 9Compatibility with Other Sony Wireless Systems

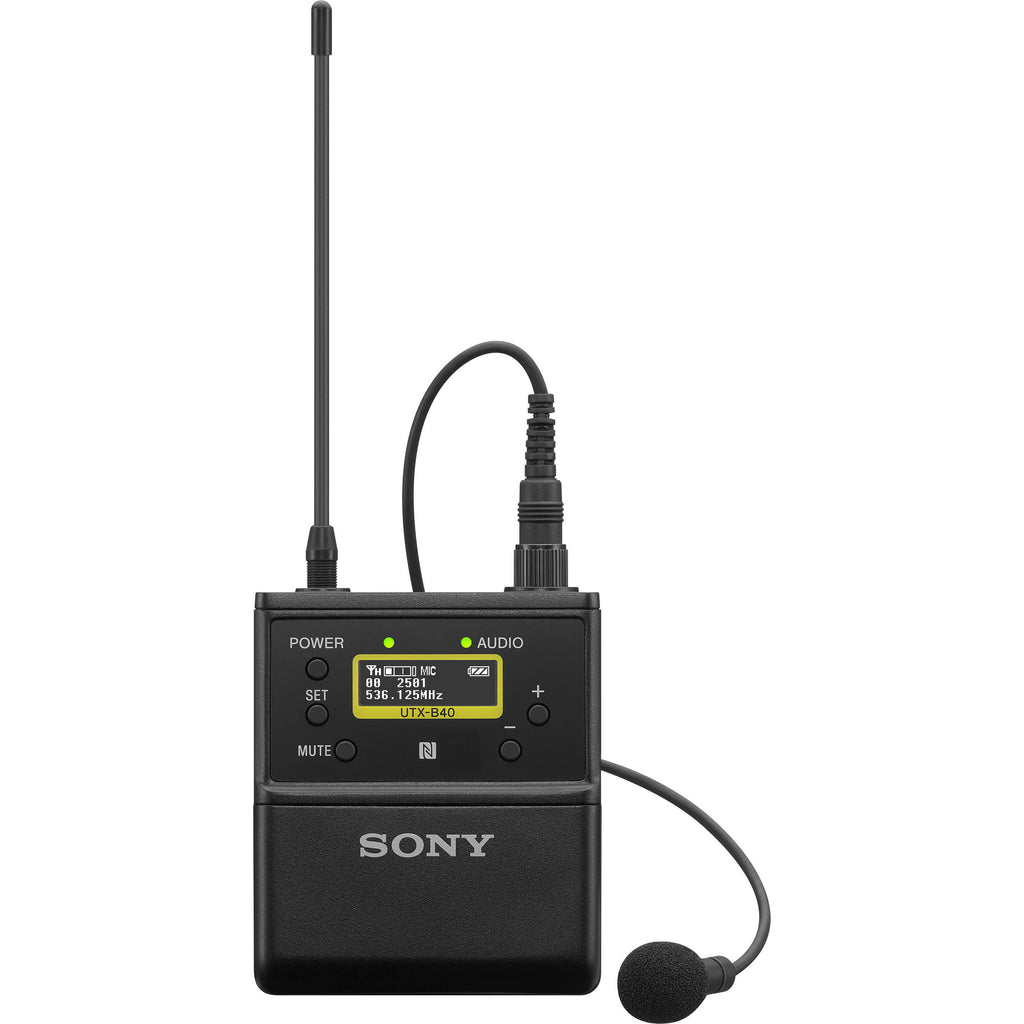

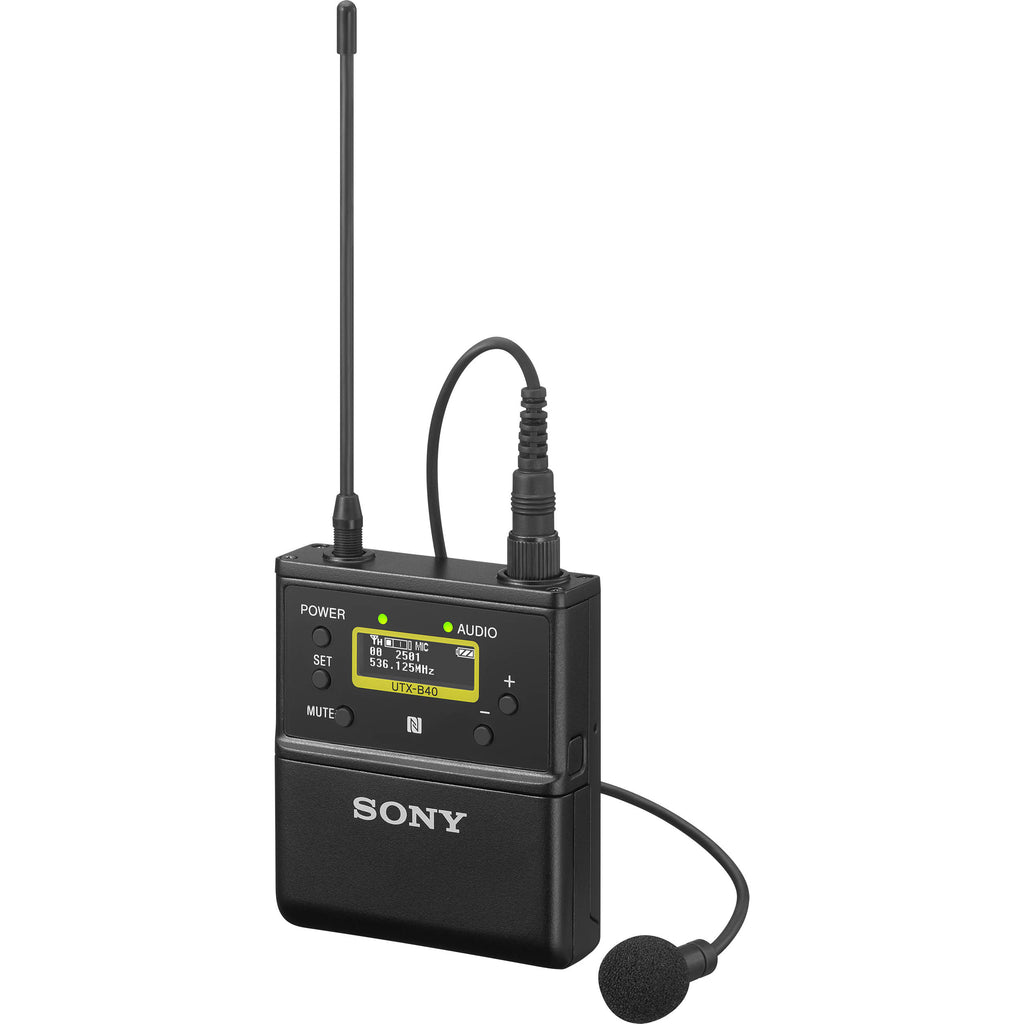

The Sony UTX-B40 is a wireless bodypack transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this bodypack is well suited for tough operating conditions, while remaining comfortable for the talent to wear. It provides up to 8 hours of operation on two AA batteries, with a selectable 5/30mW RF power output and a transmission range up to 330'.
The UTX-B40 comes with an ECM-V1BMP omnidirectional lavalier microphone optimized for speech. The transmitter has a locking, 3.5mm BMP-type microphone input connector with an adjustable input level to accommodate other compatible lavalier or headset microphones of your choice. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.
The UTX-B40 is backward-compatible with Sony WL-800 and UWP Series systems.
High-Quality Sound with Digital Audio Processing
The ECM-V1BMP lavalier mic is optimized for capturing clear and intelligible speech. This omnidirectional mic picks up sound from every direction, allowing for a variety of placement options and freedom of movement.
Automatic NFC Sync Mode
Unlike purely digital systems, the UTX-B40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.
Auto-Gain Mode to Prevent Mic Distortion
The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter�s mouth and the audio level is insufficient.
Manual input-level setting is also available.
High-Visibility OLED Display for Indoor/Outdoor Use
DSP Filter Removes Occupancy Sensors Artifacts
Multiple Powering Options
The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
A battery count-up timer allows for accurate reading of battery running time to minute accuracy.
Other Features
- Switchable Mic/Line input level so you can set the correct gain level for your sound source.
- Low-cut filter reduces noise caused by wind or machinery�Off / Low (100 Hz) / Mid (150 Hz) / High (200 Hz).
- Simple menus make navigation easy. Advanced menus for in-depth control are also available.
- The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
- You can operate up to 16 mics in one location.
Compatibility with Other Sony Wireless Systems
In the Box
- Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC25: 536 to 608 MHz)
- Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
- Windscreen
- Mic Clip
- Belt Clip
- Limited 1-Year Warranty
- Description
- High-Quality Sound with Digital Audio Processing
- Automatic NFC Sync Mode
- Auto-Gain Mode to Prevent Mic Distortion
- High-Visibility OLED Display for Indoor/Outdoor Use
- DSP Filter Removes Occupancy Sensors Artifacts
- Multiple Powering Options
- Other Features
- Compatibility with Other Sony Wireless Systems
Sony UTX-B40 Specs
| Transmitter Type | Bodypack |
| RF Output Power | 5 / 30 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | +60 dBV (Mic Level) +4 dBu (Line Level) |
| Gain Range | 0 to 21 dB (3 dB Steps) |
| Frequency Response | 23 Hz to 18 kHz |
| Sync Method | NFC |
| Antenna | 1 x 1/4 Wave External, Fixed |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 8 Hours (Alkaline) |
| USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
| Housing | Metal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Dimensions | 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas) |
| Weight | 5.3 oz / 149 g (without Batteries) |
| Microphone Type | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 40 Hz to 20 kHz |
| Sensitivity | -43 dB at 1 kHz |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 3.9' / 1.19 m |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Length | 0.77" / 19.5 mm |
| Diameter | 0.27" / 6.8 mm |
| Weight | 0.57 oz / 16.2 g |
| Wireless Technology | Analog UHF |
| RF Frequency Band | 536 to 542 MHz |
| RF Bandwidth | 72 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 330' / 100.6 m (Typical) |
| Latency | 0.35 ms |
| Modulation | FM |
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 12.1 x 7.3 x 2.9" |
Sony UTX-B40 Reviews
Doesn't work with Countryman B3 for Sony
Don't make the same mistake I did. This newly designed transmitter is nice in a lot of ways but the Mic port is made for a Lav with a longer 3.5mm stem than the one on the Countryman B3. This results on a LOT of static because the mic doesn't make a solid connection. I've tried this with different Countryman B3's and different UTX-B40 transmitters and the results are always the same. Unfortunately the only way to fix this problem is to have your Countryman B3 rewired with a longer 3.5mm jack.
Great sound, Far Range, Tough Build
Bought these to pair to my Sony URX-PO3D dual receiver. They synced up immediately. I added the Countryman EMW Lavs w/ Sony connectors and the sound is fantastic. The body pack is smaller than any other I've had before, but it is very solid. I put it on and walked outside the building and across the parking lot - solid signal. This will be my go-to audio setup for a long time!
Wireless Microphones for Sony
I purchased 2 UTX-M40 TRANSMITTERS, 1 URX-P03D receiver and an extra ECM-V1BMP for my Sony RX10M3/RX100M7 cameras. The setup works great for 4K videos using the 3.5mm output. The microphones focus on the subjects with very little background. I am very happy with this setup as the RX100M7 is very portable when using a belt pouch for the receiver.
Smaller, Lighter, and more Pro look
Im an owner of a few older UWP-D models but this has a different feel when you look at it. Its a little bit smaller than the older, the antenna is a little bit more protected and also, the unit is 24g lighter than the older one. It has a few upgrades like auto-gain, + 15 dB sensibility boost the screen turn off by it self using less battery than the older. Im really happy with it and now Im going to upgrade my older models for this one.
