Description

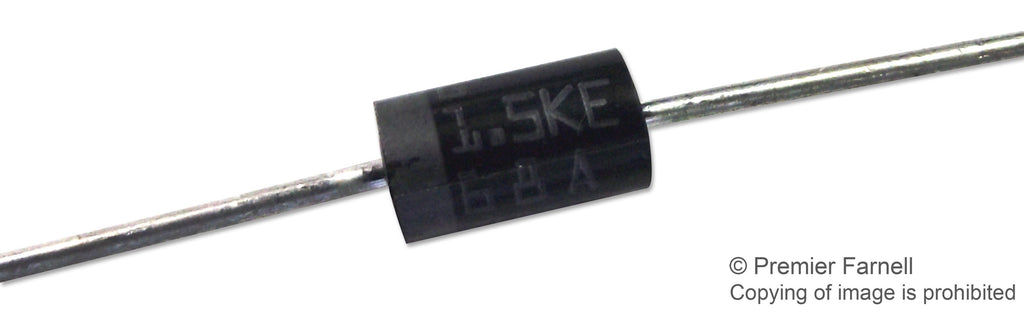

The Transil 1.5KE series from STMicroelectronics are transient voltage suppressing diodes. These diodes provide high overvoltage protection and instantaneous response to transient overvoltage by clamping action. Transil 1.5KE series are used to protect voltage sensitive devices such as low voltage supplied IC's. The unidirectional type TVS diodes are suitable for DC applications and bidirectional type TVS diodes are suitable for AC applications.
- Unidirectional and bidirectional transient voltage suppressors
- Peak pulse power of 1500W
- Breakdown voltage ranges from 6.8V to 440V
- Fast response time
- High surge capability
- Low clamping factor
- Maximum operating temperature of 175°C
- Assembly flexibility with axial (DO-201) and SMD packages
- Best in class performance at full power even with high junction temperatures
Applications
Safety, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Clamping Voltage Vc Max | 328V |
| TVS Polarity | Bidirectional |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 209V |
| Product Range | Transil 1.5KE Series |
| Automotive Qualification Standard | - |
| Breakdown Voltage Max | 231V |
| Reverse Stand-Off Voltage Vrwm | 188V |
| Peak Pulse Power Dissipation | 1.5kW |
| Packaging | Each |
| Diode Case Style | DO-201 |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | 1.5KE220CA |
| Quantity | Each |
| Technical Data Sheet EN |  |
