Description

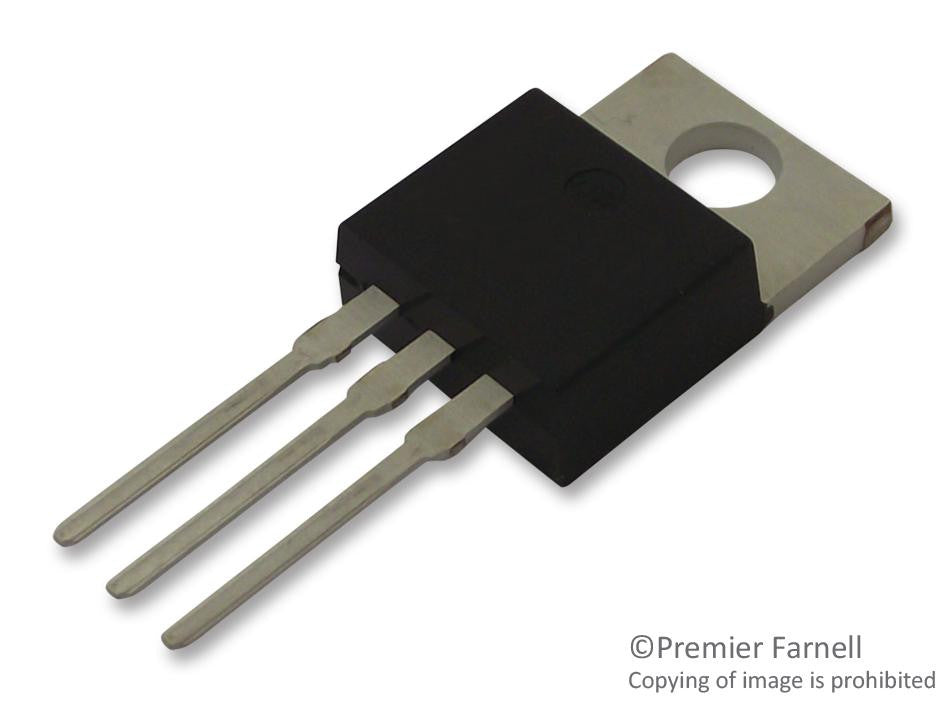

This is a Triac, 800 V, 16 A, TO-220AB, 35 mA, 1.3 V product from STMICROELECTRONICS with the model number BTB16-800CWRG
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 800V |
| On State RMS Current IT(rms) | 16A |
| Operating Temperature Max | 125°C |
| Gate Trigger Current Max (QI), Igt | 35mA |
| No. of Pins | 3Pins |
| Gate Trigger Voltage Max Vgt | 1.3V |
| Product Range | Snubberless BTB16 Series |
| Holding Current Max Ih | 35mA |
| Peak Non Rep Surge Current Itsm 50Hz | 160A |
| Triac Case Style | TO-220AB |
| Peak Gate Power | - |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BTB16-800CWRG |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
