| ₹ 1008.1 includes GST and import duties. | |
| B2B customers can avail ₹ 153.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

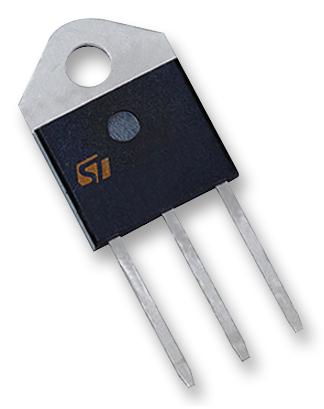

This is a Thyristor, 800 V, 50 mA, 19 A, 30 A, TOP-3, 3 Pins product from STMICROELECTRONICS with the model number BTW68-800RG
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 800V |
| Gate Trigger Current Max, Igt | 50mA |
| Current It av | 19A |
| On State RMS Current IT(rms) | 30A |
| Thyristor Case Style | TOP-3 |
| No. of Pins | 3Pins |
| Peak Non Rep Surge Current Itsm 50Hz | 400A |
| Holding Current Max Ih | 75mA |
| Gate Trigger Voltage Max Vgt | 1.5V |
| Operating Temperature Max | 125°C |
| Product Range | BTW68 Series |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | BTW68-800RG |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 987.94 |
| 3-5 | ₹ 977.86 |
| 5-10 | ₹ 957.7 |
| 10+ | ₹ 937.53 |
Bulk discount will be automatically applied during checkout based on quantity.
