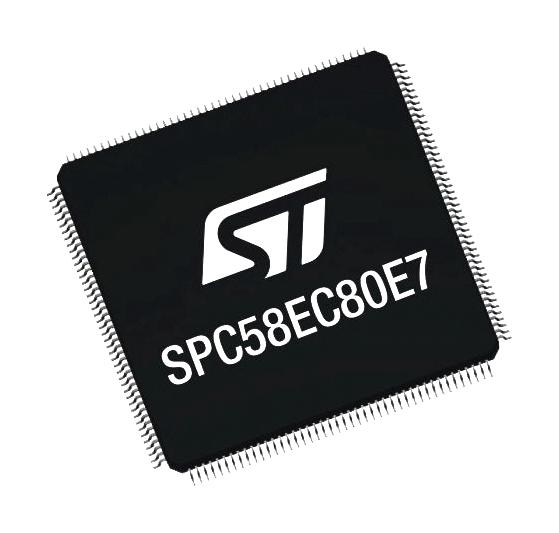

SPC58EC80E7QMC1X is a SPC58 C Line - 32bit power architecture automotive MCU. It is builds on the legacy of the SPC564Cx and SPC56ECx family, while introducing new features coupled with higher throughput to provide substantial reduction of cost per feature and significant power and performance improvement (MIPS per mW). There are two processor cores e200z420 and one e200z0 core embedded in the hardware security module.
- Dual core, 4MB memory, 180MHz at 125°C frequency, dual computing e200z4 core (CPU-2 + CPU-0)
- Ethernet + Flexray custom version, security HW (HSM), 2nd version silicon revision
- AEC-Q100 qualified, high performance e200z420n3 dual core
- 32-bit Power Architecture technology CPU, core frequency as high as 180MHz
- 176KB HSM dedicated flash memory (144KB code + 32KB data)
- Multi-channel direct memory access controller (eDMA) with 64 channels
- 1 interrupt controller (INTC), comprehensive new generation ASIL-B safety concept
- ASIL-B of ISO 26262, FCCU for collection and reaction to failure notifications
- Memory error management unit (MEMU) for collection and reporting of error events in memories
- eLQFP176 package
Product details
| Product Range:
SPC58 Family SPC58ECx Series Microcontrollers
|
| Device Core:
e200z4d
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
180MHz
|
| Program Memory Size:
4MB
|
| No. of Pins:
176Pins
|
| IC Case / Package:
LQFP-EP
|
| No. of I/O's:
154I/O's
|
| RAM Memory Size:
512KB
|
| ADC Channels:
5Channels
|
| ADC Resolution:
10Bit, 12Bit
|
| Supply Voltage Min:
3V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
SPC58
|
| MCU Series:
SPC58ECx
|
| Qualification:
AEC-Q100
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
SPC58EC80E7QMC1X |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
