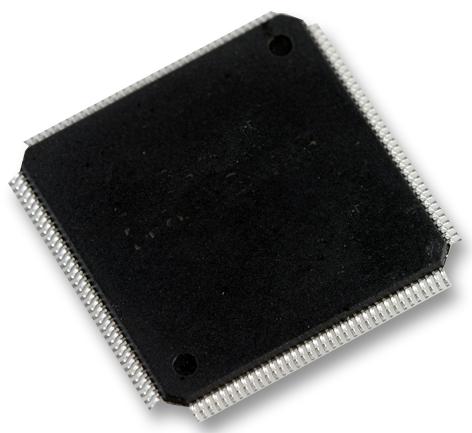

SPC58EG80E5QEC0X is a SPC58 family 32bit Power Architecture microcontroller for automotive ASIL-D applications. It features high performance e200z4 triple core: 32bit Power Architecture technology CPU, core frequency as high as 180MHz, variable length encoding (VLE), floating point, end-to-end error correction. Also has multi-channel direct memory access controller (eDMA) (one eDMA with 64 channels, one eDMA with 32 channels). Comprehensive new generation ASIL-D safety concept has ASIL-D of ISO 26262 and one CPU channel in lockstep. Dual crossbar switch architecture for concurrent access to peripherals, Flash, or RAM from multiple bus hosts with end-to-end ECC. Boot assist Flash (BAF) supports factory programming using a serial bootload through the asynchronous CAN or LIN/UART. Features hardware support for motor control and safety related applications. Also has eight modular controller area network (MCAN) modules, all supporting flexible data rate (CAN-FD).
- AEC-Q100 qualified, dual core, 16KB instruction and 64KB data local RAM
- 1 interrupt controller (INTC), single precision floating point, cache (8KB instruction, 4KB data)
- Enhanced analogue-to-digital converter system, external power supplies from 3.3V to 5V
- Logic BIST, FCCU for collection and reaction to failure notifications
- Memory BIST, cyclic redundancy check (CRC) unit
- Memory error management unit (MEMU) for collection and reporting of error events in memories
- Enhanced modular IO subsystem (eMIOS): up to 64 timed IO channels with 16bit counter resolution
- Versatile low power modes, ultra low power standby w/ RTC, smart wake-up unit for contact monitoring
- Nexus development interface per IEEEISTO 5001-2003 standard, with some support for 2010 standard
- Boot assist flash support factory programming using serial bootload via asynchronous CAN or LIN/UART
Product details
| Product Range:
SPC5 Family SPC58EGx Series Microcontrollers
|
| Device Core:
Power Architecture
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
180MHz
|
| Program Memory Size:
4MB
|
| No. of Pins:
144Pins
|
| IC Case / Package:
eTQFP
|
| No. of I/O's:
120I/O's
|
| Interfaces:
CAN, LIN, UART
|
| RAM Memory Size:
768KB
|
| ADC Channels:
6Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
3V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
SPC58
|
| MCU Series:
SPC58EGx
|
| Qualification:
AEC-Q100
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
SPC58EG80E5QEC0X |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
