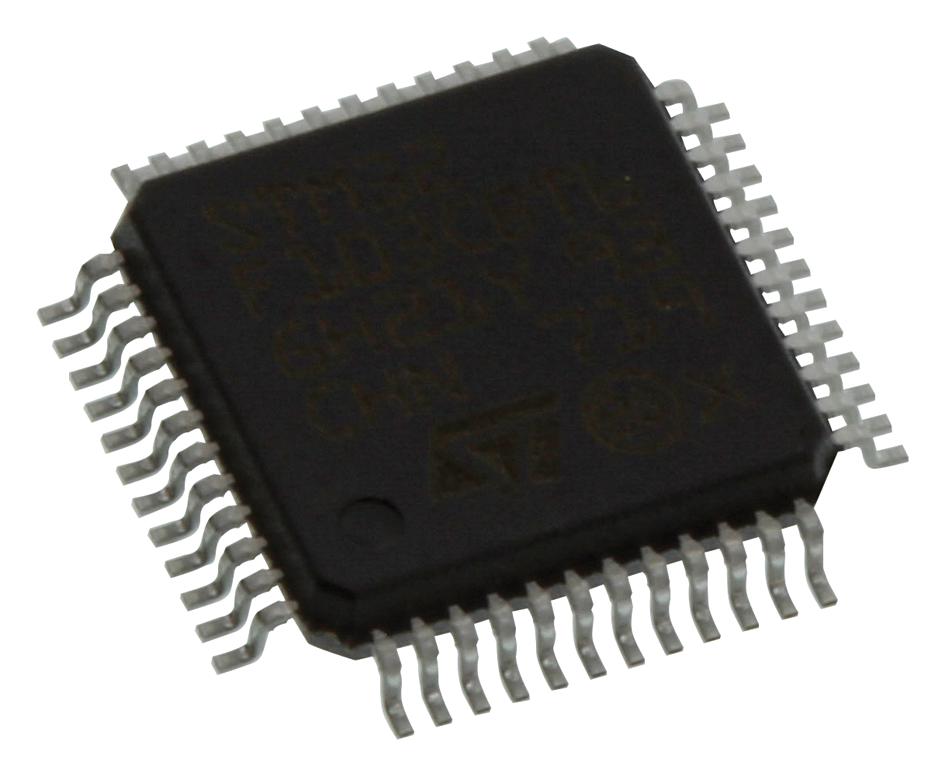

STM32C031C6T6 is a STM32 series nucleo-64 board. It provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode. The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the Nucleo open development platform with a wide choice of specialized shields. The nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
- LQFP48 package, 48MHz HSE, ST-LINK/V2-1 on micro-B USB connector
- 1 user LED shared with ARDUINO®, 1 user and 1 reset push-buttons
- 32.768KHz crystal oscillator, board connectors, ARDUINO® Uno V3 expansion connector
- ST morpho extension pin headers for full access to all STM32 I/Os
- Board-specific features, external SMPS to generate Vcore logic supply
- Board connectors, external SMPS experimentation dedicated connector
- MIPI® debug connector
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32C031C6T6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
