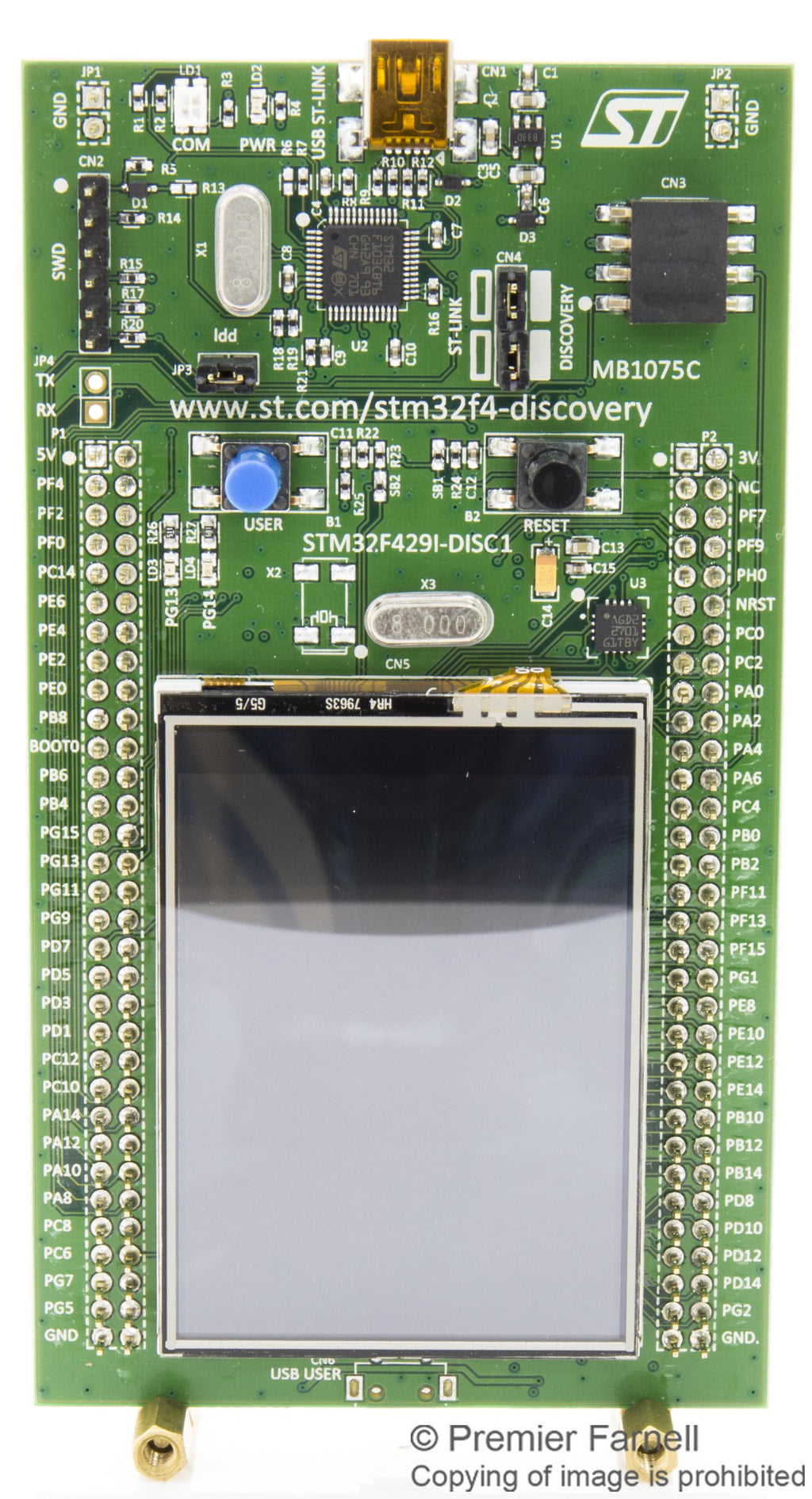

The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM® Cortex®-M4 core.

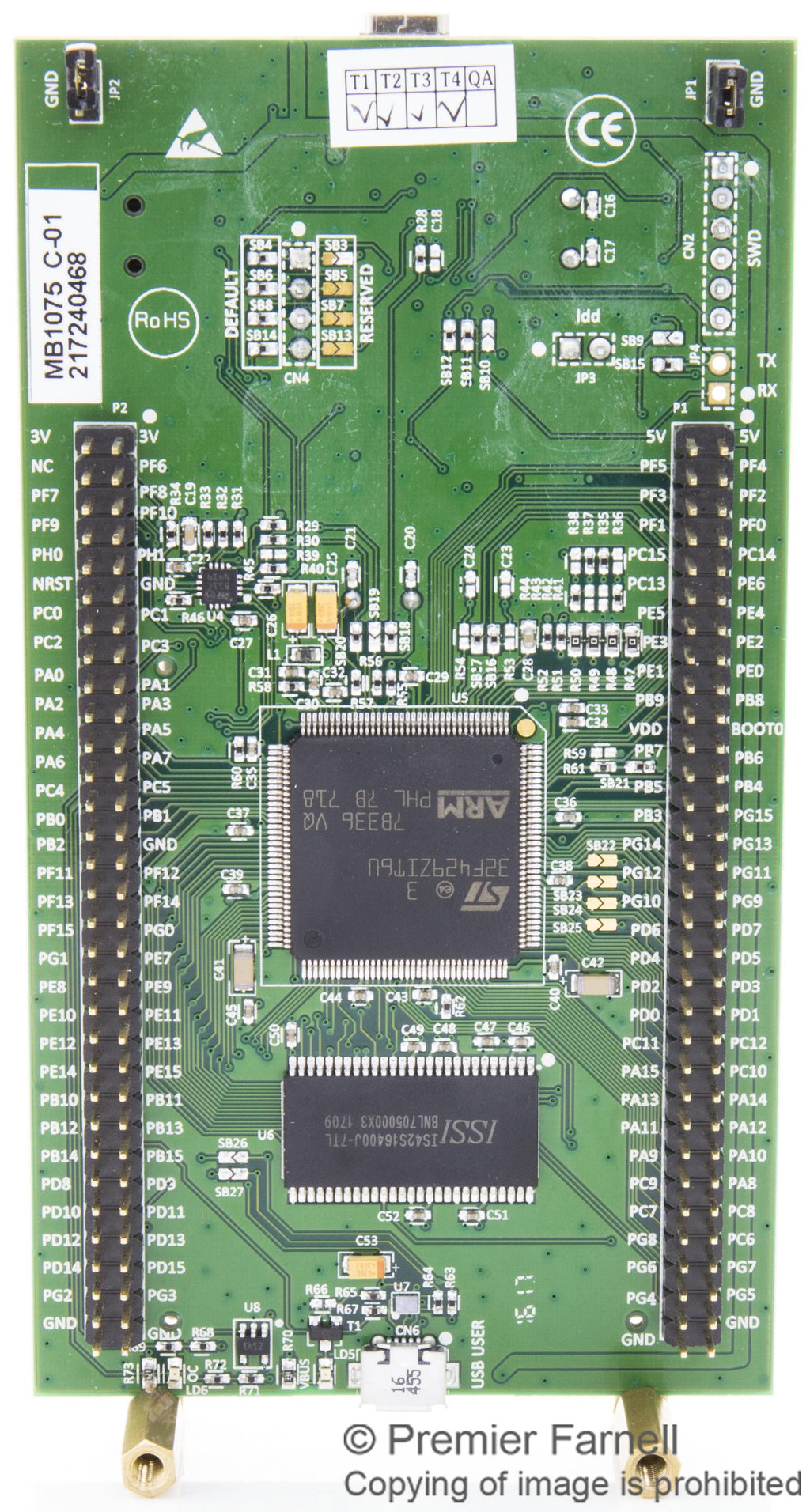

- STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory and 256 Kbytes of RAM in an LQFP144 package
- ST-LINK/V2-B debug/programmer tool on-board
- ARM® mbed Enabled�
- USB Functions: Debug port, Virtual COM port, Mass Storage
- 2.4" QVGA TFT LCD
- 64-Mbit SDRAM
- MEMS 3-axis digital output gyroscope (L3GD20) on-board
- Six LEDs: USB comms, 3.3V, 2 x USB OTG, 2 x user configurable
- Two push-buttons: Reset, user configurable
- USB OTG through micro-AB connector
- Extension headers give full access to microcontroller I/Os for easy prototyping/probing connections.
- Comprehensive free software library included
- System requirements:
- Windows® OS (XP,7, 8,10)
- USB type A to Mini-B cable
Applications
Consumer Electronics, Electronics Design, Embedded Design & Development, Hobby & Education
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32F4 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4 |
| Silicon Core Number |
STM32F429ZI |
| Kit Contents |
Discovery Board STM32F429ZI |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32F429I-DISC1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Operating Instructions EN |
|
