Description

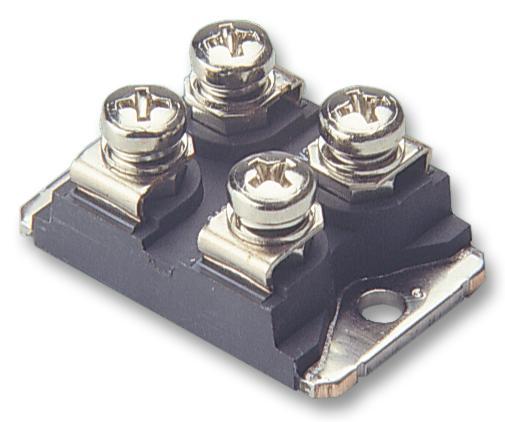

The STTH6110TV2 is an ultrafast soft recovery High Voltage Diode with high reverse voltage capability. The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate advantage for reducing maintenance of the equipment.
- Very low conduction and switching losses
- High frequency and high pulsed current operation
- High junction temperature
- 60A RMS forward current
Applications
Power Management, Industrial, Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Repetitive Peak Reverse Voltage: 1kV |
| Average Forward Current: 30A |
| Diode Configuration: Dual Isolated |
| Forward Voltage Max: 2V |
| Reverse Recovery Time: 42ns |
| Forward Surge Current: 240A |
| Operating Temperature Max: 150°C |
| Diode Case Style: ISOTOP |
| No. of Pins: 4 Pin |
| Product Range: STTH6 |
| Qualification: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH6110TV2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
