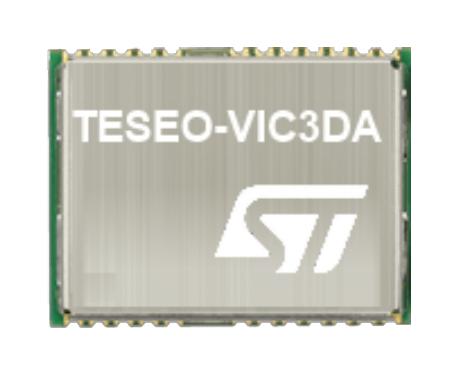

Teseo-VIC3DA module is an easy to use dead-reckoning Global Navigation Satellite System (GNSS) standalone module, embedding TeseoIII single die standalone positioning receiver IC working simultaneously on multiple constellations (GPS/Galileo/Glonass/BeiDou/QZSS).The Teseo-VIC3DA module brings the proven accuracy and robustness of TeseoIII chip to the reach of everyone: the embedded firmware and the complete evaluation environment save development time. Within its 16.0mm x 12.2mm size, Teseo-VIC3DA is offering superior accuracy thanks to the on board Temperature Compensated Crystal Oscillator (TCXO) and a reduced Time To First Fix (TTFF) relying to its dedicated Real Time Clock (RTC) oscillator. Thanks to the embedded flash Teseo-VIC3DA offers many extra features such, 7 days Autonomous Assisted GNSS, Predictive Assisted GNSS and Real-Time Assisted GNSS.Teseo-VIC3DA supports FW configurability as well as FW upgrades.
- AEC-Q100 qualification on going
- Simultaneous multiconstellation
- Teseo dead-reckoning Automotive way firmware
- -163 dBm sensitivity tracking
- 1.5 m CEP accuracy positioning
- Embedded flash for FW upgrade
- Automotive GNSS and 6-axis inertial sensor
- 3.3V supply voltage
- LCC 24 pins package (16.0mm x 12.2mm x 2.42mm)
- Free FW configuration
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
TESEO-VIC3DA |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
