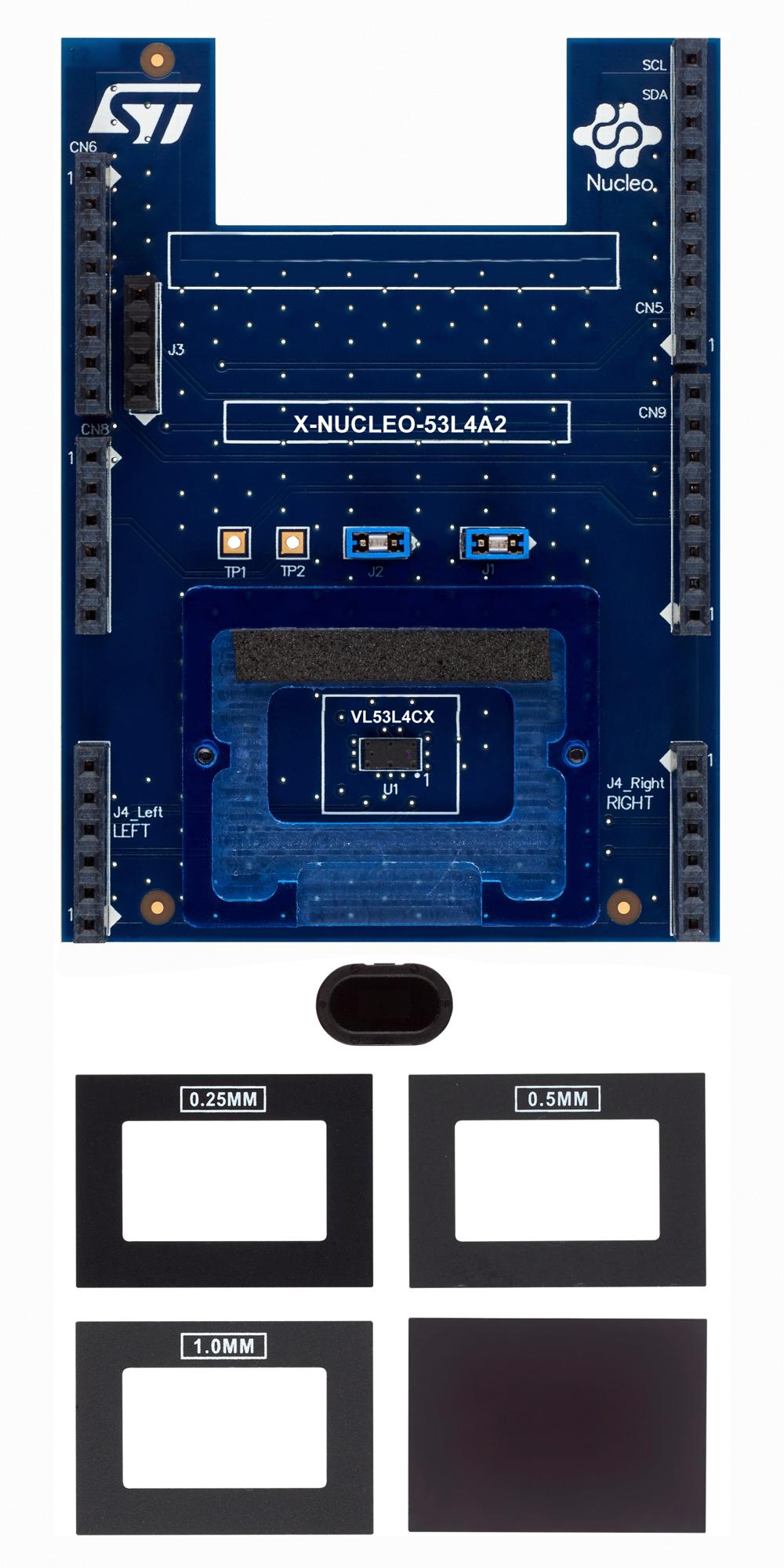

Time-of-flight sensor with extended range measurement expansion board based on the VL53L4CX for STM32 Nucleo. This s an expansion board for any STM32 Nucleo development board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate and develop applications using the VL53L4CX time-of-flight sensor with extended range measurement.
- VL53L4CX time-of-flight sensor with extended range measurement
- Accurate absolute ranging distance, independent of the reflectance of the target
- 0.25, 0.5 and 1mm spacers to simulate air gaps
- Two different cover windows to protect the sensor from the dust
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino UNO R3 connectors
- Full system software supplied, including code examples and graphical user interface
- Suitable for personal electronics-audio and video, gaming and drones applications
- Suitable for virtual augmented reality wearable applications
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M |
| Silicon Core Number |
VL53L4CX |
| Silicon Family Name |
- |
| For Use With |
STMicroelectronics STM32 Nucleo Board |
| Kit Contents |
Expansion Board VL53L4CX |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
X-NUCLEO-53L4A2- |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
