- For Nikon D810
- Arca-Style Dovetail on Both Segments
- Anodized CNC Machined Aluminum
- Fast Portrait & Landscape Switching
- Safety Stop Screws
- Reorient & Maintain Head Position

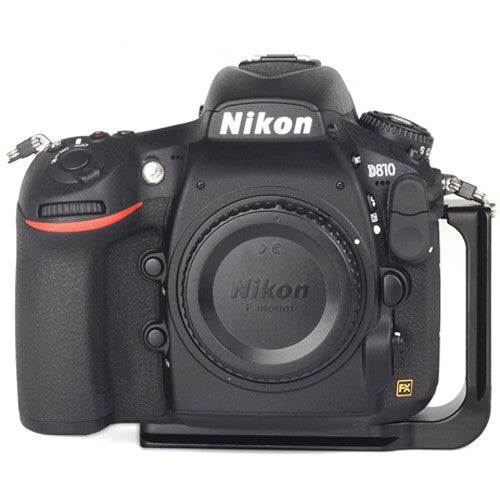

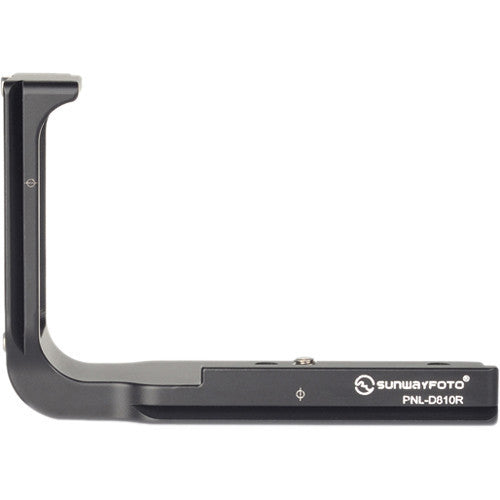

The Sunwayfoto PNL-D810R L-Bracket for Nikon D810 enables fast changes between portrait and landscape orientation with your Nikon D810 without the need to readjust your head and completely recompose the shot. You can simply release the bracket from your Arca-style quick-release clamp, tilt it 90°, and lock the bracket back in place. Using an L-bracket also facilitates a sturdier base of support than tilting an entire head to a 90° position.

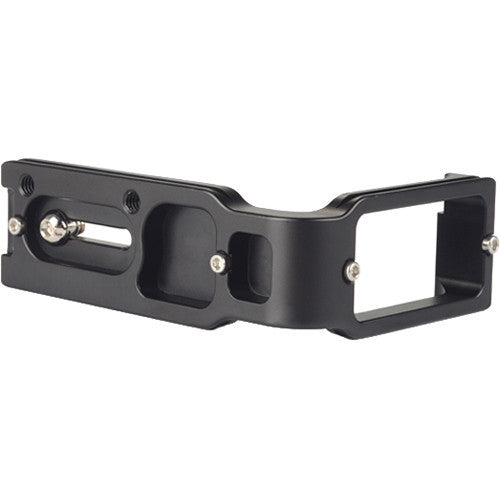

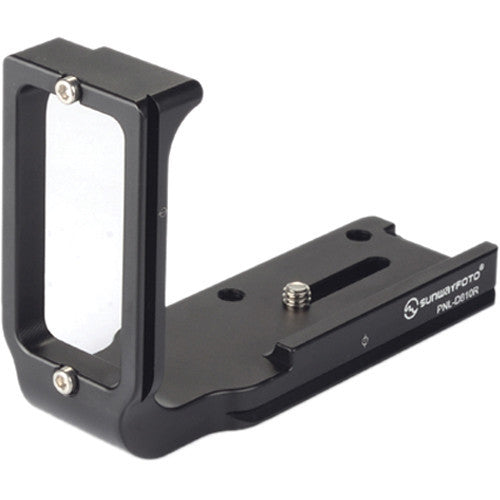

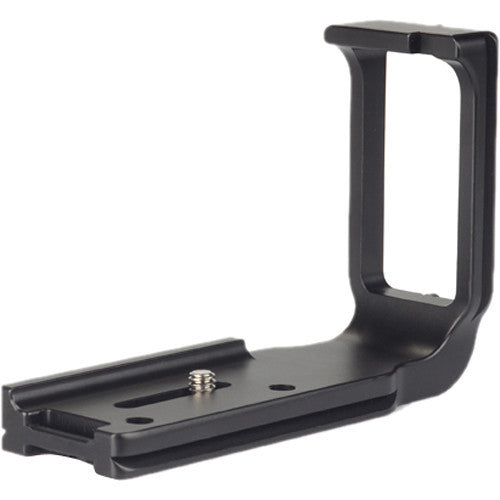

CNC machined from aluminum alloy and anodized to provide abrasion and corrosion resistance, the PNL-D810R features safety stop screws to prevent accidental release when adjusting the plate. The vertical plate is designed to allow full access to the inputs on the side of the camera, and can slide left to right to give additional clearance. A slot provides a spot for fastening a camera strap, making it easy to carry the camera while mounted to the bracket.
| Material | Aluminum alloy |
| Finish | Anodized |
| Camera Mount Thread Size | 1/4"-20 |
| Length | 4.8" (121 mm) |
| Width | 1.5" (39 mm)
Dovetail groove width: 1.5" (39 mm) |
| Height | 3.3" (84 mm) |
| Weight | 3.8 oz (109 g) |
| Packaging Info |
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 5.6 x 4.6 x 2.7" |
In the Box
Sunwayfoto PNL-D810R L-Bracket for Nikon D810
- 4 x Safety Stop Screws
- 2 x Hex Keys
- 1/4"-20 Camera Screw
- Limited 1-Year Warranty, Extendable to 6 Years with Registration
