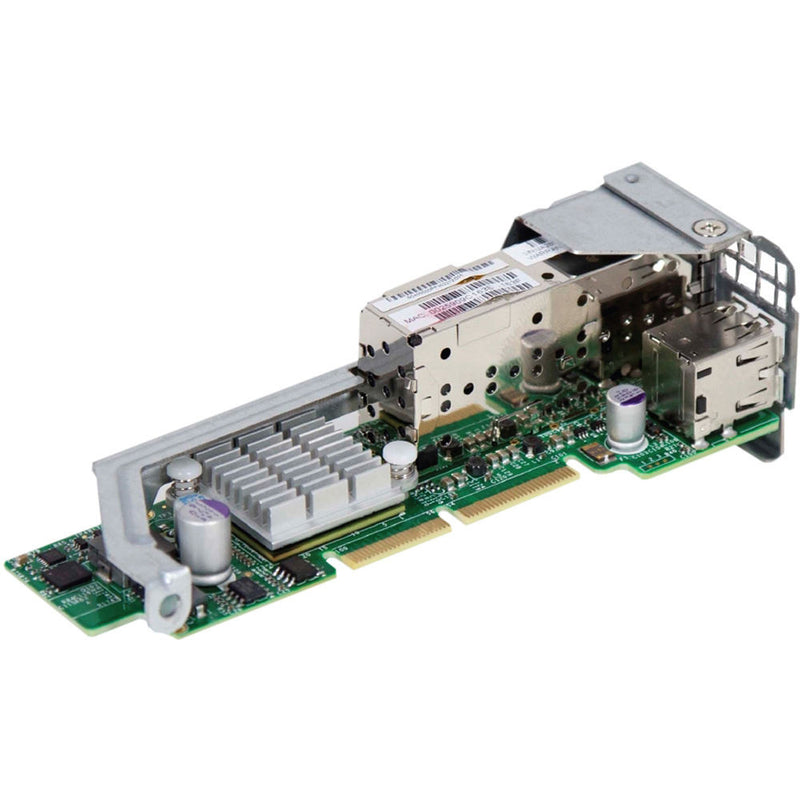

Provided by third party: The AOC-CTG-i2S 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel� 10GbE network controller 82599ES, the AOC-CTG-i2S addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance. The AOC-CTG-i2S is designed in a small microLP form factor to fit Supermicro MicroCloud and Twin server systems.
UPC: 672042121717
In the Box
Supermicro Dual Port 10 GbE Adapter for MicroCloud and Twin Server Systems with microLP Expansion Slot
- Compact and Powerful Dual-Port 10 Gigabit Ethernet Adapter
- 1 x MicroLP PCB Bracket (Pre-Installed) (BKT-0056L)
- 1 x I/O Bracket for 1U System (Pre-Installed) (BKT-0061L)
- 1 x I/O Bracket for 2U System (BKT-0062L)
- 1 x Driver and Software CDROM (CDR-NIC)
| Interfaces/Ports |
| Host Interface | PCI Express x8 |
| USB | Yes |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
| I/O Expansions |
| Number of Total Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Miscellaneous |
| Device Supported | PC |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS-6 |
| Packaging Info |
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 9.0 x 6.5 x 1.7" |
