Description

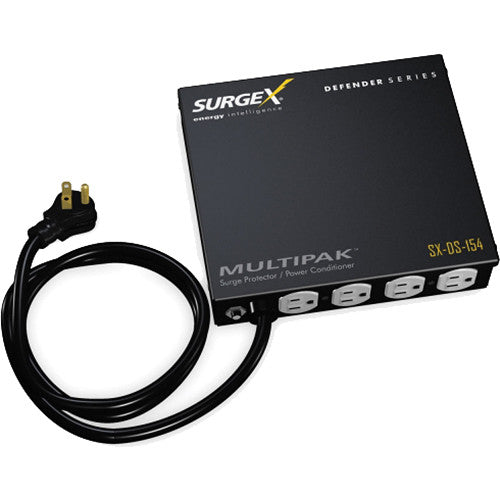

SURGEX SX-DS-154 Overview
The SX-DS-154 Defender Series MultiPak from SURGEX is a power protector and conditioner with realtime data acquisition and storage. It features one NEMA 5-15P input, and 4 NEMA 5-15R outputs. This unit is designed to protect digital panel displays from power anomalies that can cause downtime, disruption, equipment shutdown, and loss of revenue. Its multi-stage technology is designed to ensure an increased level of protection from damaging surges, spikes, over/under voltage, EMI/RFI noise, and wiring faults. The compact design easily integrates with wall/ceiling mounting systems to conceal it from view.
Protects digital panel displays from power anomalies that can cause downtime, disruption, equipment shutdown, and loss of revenue
Compact design easily integrates with wall/ceiling mounting systems to conceal it from view
Normal and Common Mode EMI Noise Filter
Zero-voltage turn-on
Zero-current turn-off
Inrush current elimination (ICE)
Wiring fault detection
Catastrophic over/undervoltage shutdown (CouVS) with selectable thresholds
Under/overvoltage event recorder (up to 999 events)
Power outage event recorder (up to 999 events)
Surge event recorder (up to 999 events)
Records surges in all three modes: line-neutral, line-ground, neutral-ground
Records surges in all three modes: line-neutral, line-ground, neutral-ground
Event timestamp recorder (up to 60 events)
Records time between events
Records time between events
Additional features available when connected to a PC:
- Import data stored in the MultiPak device memory
- Import data from a stored data file
- Export data to a data file
- Export data to a report in PDF format
- Set over and under-voltage shutdown thresholds
- Clear device memory
- Real-time AC voltmeter
- Enhanced Logging Mode
In the Box
- SURGEX SX-DS-154 Defender Series MultiPak
- Limited Lifetime Product Warranty and Limited 5-Year Connected Protection Warranty
SURGEX SX-DS-154 Specs
| Load Rating |
15 A @ 120 V
|
| Protection Rating |
330 V
|
| EMI/RFI Filter |
Normal Mode: > 30 dB, 80 kHz - 50 MHz, (50 ? load)
Common Mode: > 30 dB, 70 kHz - 50 MHz, (50 ? load) |
| Over Voltage Correction |
Adjustable from 135 V to 160 V. Restores at 130 V
|
| Under Voltage Correction |
Adjustable from 80 V to 95 V, or disabled. Restores at 105 V
|
| Connectors |
1 x NEMA 5-15P, input
4 NEMA 5-15R, output |
| Temperature Range |
41 to 95°F (5 to 35°C)
|
| Humidity Range |
5 to 95% RH, non-condensing
|
| Agency Listing |
ETL and cETL Certified to UL 1449 (pending)
|
| FCC Compliance |
Part 15 Class B
|
| Dimensions |
8.15 x 7.27 x 1.79" (20.71 x 18.47 x 4.55 cm)
|
| Weight |
4.1 lb (1.9 kg)
|
Packaging Info
| Package Weight |
5.51 lb
|
| Box Dimensions (LxWxH) |
16.1 x 11.2 x 6.4"
|
