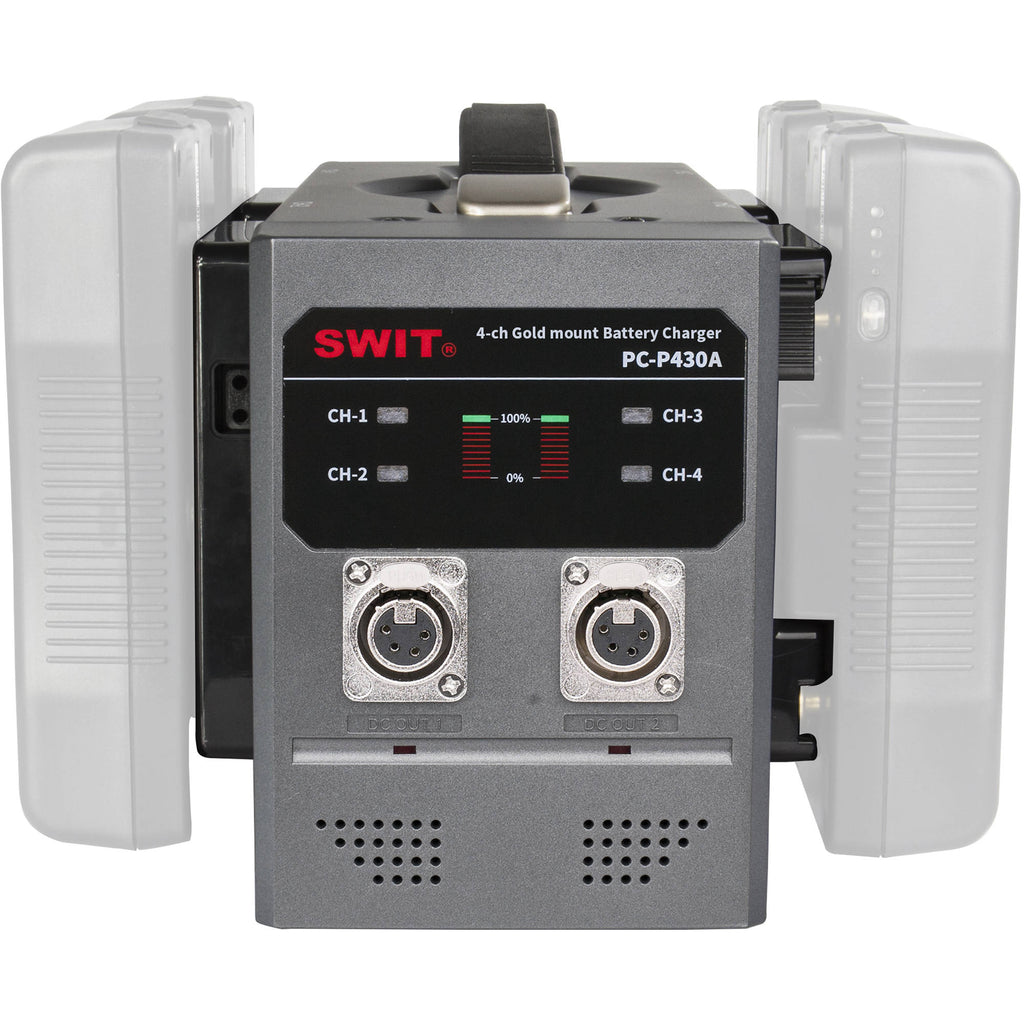

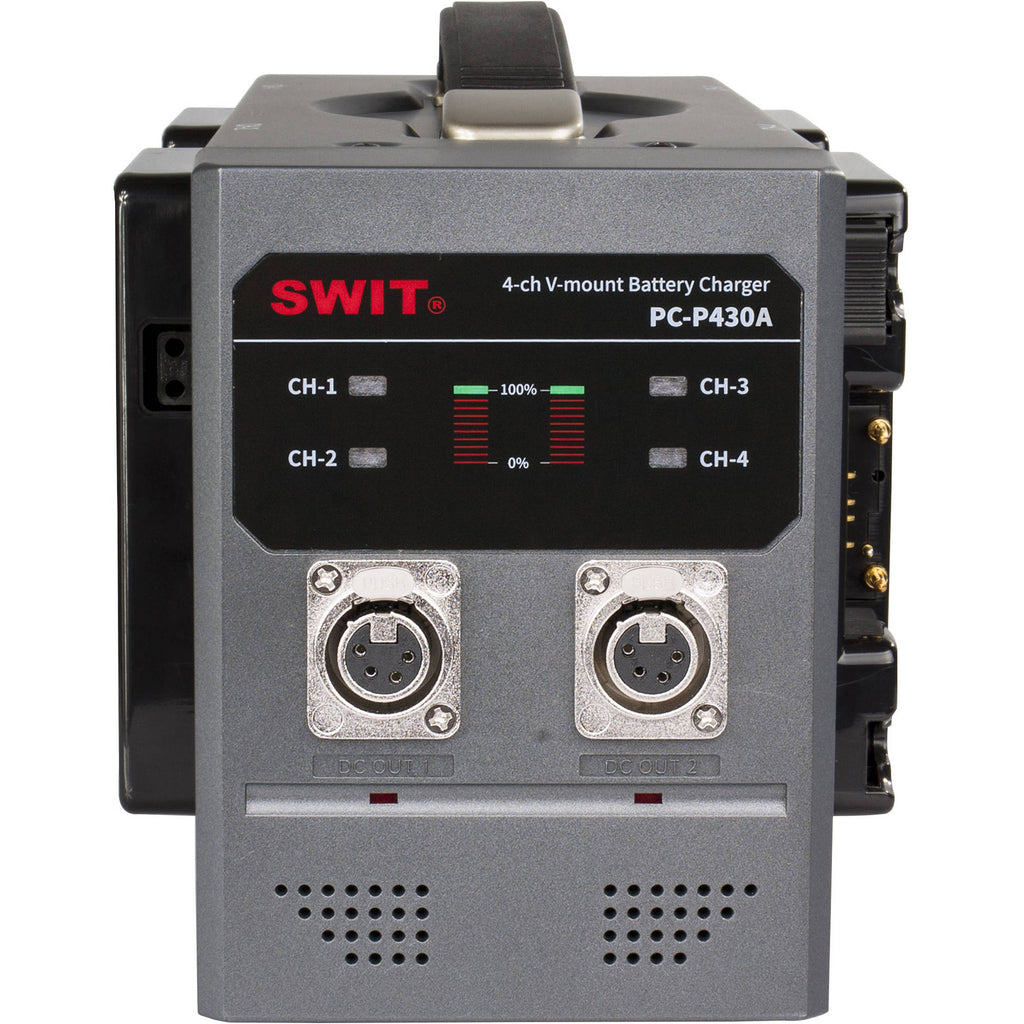

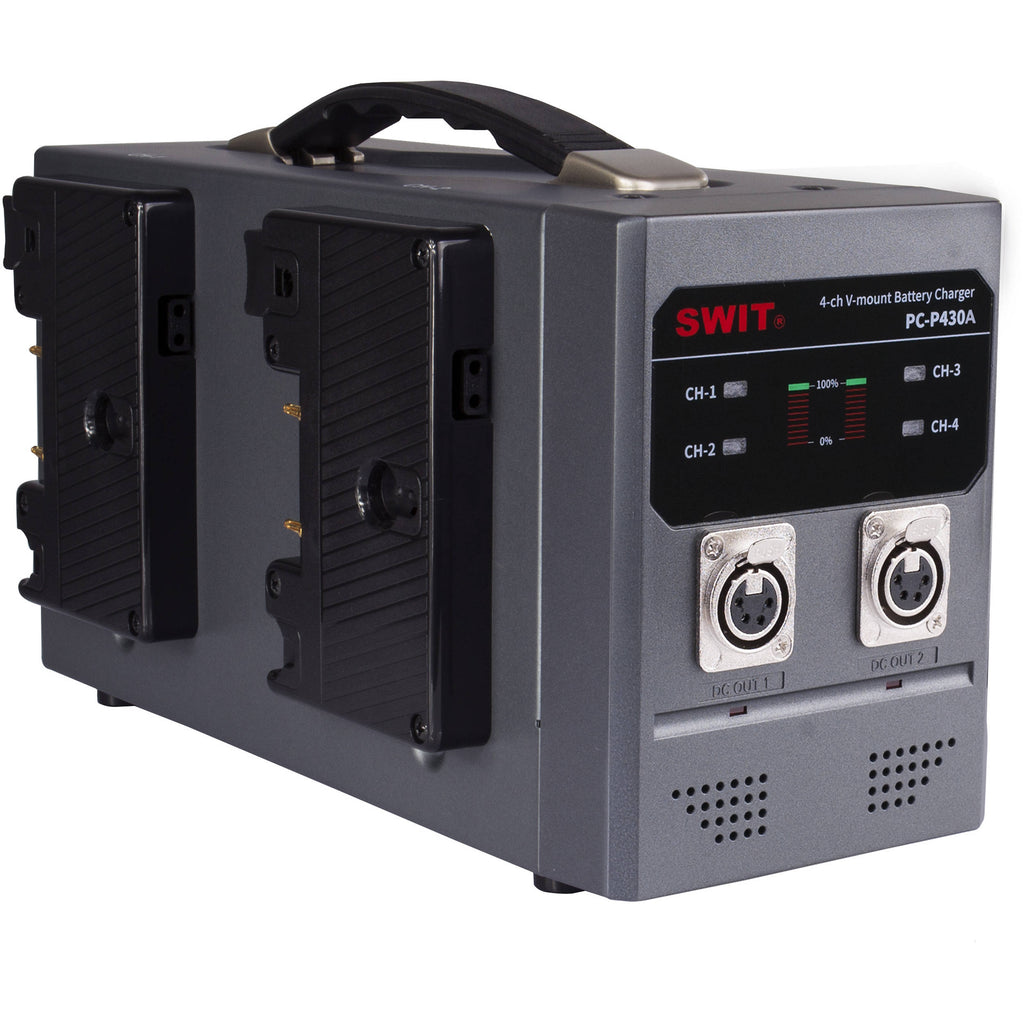

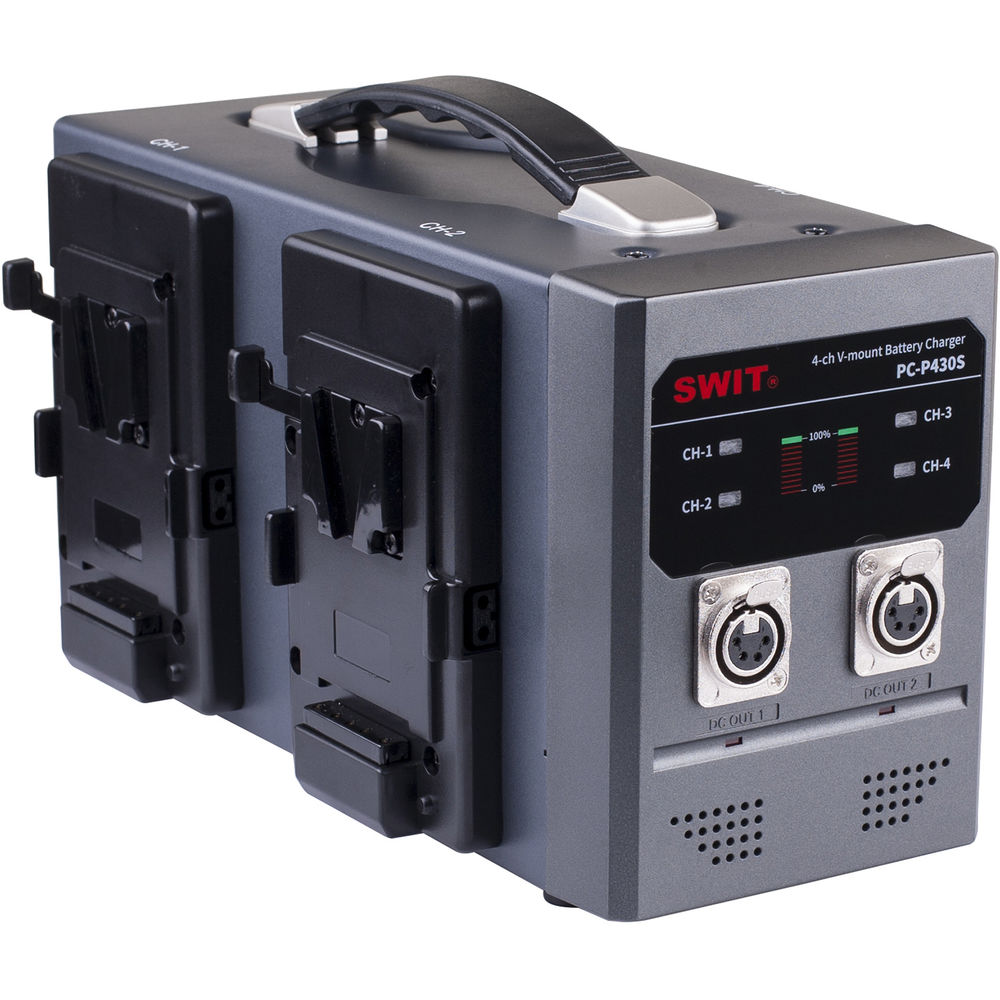

SWIT PC-P430A Overview
Use the 4-Bay Simultaneous Li-Ion Battery Charger from SWIT to charge up to four Gold mount batteries simultaneously. Each bay replenishes a lithium-ion battery at 3A, while a color LED power indicator provides charging status for each bay.
Two 4-pin XLR outputs provide 6A, 90W of power to external components and can be used as an AC to DC adapter when the batteries are not charging. Overcurrent and overcharge protection safety features keep the batteries healthy by providing only the required current to each battery. The compact vertical design is easy to transport using the top handle, and the internal power supply can handle worldwide 100 to 240 VAC. An AC power cable is included with the charger.
Note: The AC to DC adapter output will not work when batteries are charging.
SWIT PC-P430A Specs
| Mount / Series Type | Gold Mount |
| Number of Battery Bays | 4 |
| Output Connector | 4-Pin XLR Female |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Output Voltage | 16.8 VDC at 3 A
15 VDC at 6 A (4-Pin XLR Female) |
| Multi-Bay Charging Modes | Simultaneous |
| Chemistry | Lithium-Ion |
| Maximum Wattage | 276 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
General
| Indicator | LED |
| Dimensions | 11.22 x 6.81 x 5.67" / 28.5 x 17.3 x 14.4 cm |
| Weight | 7.21 lb / 3.27 kg |
| Warranty Length | Limited 2-Year Warranty |
